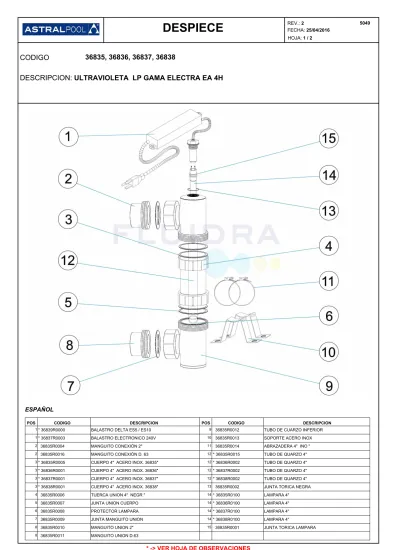

DESPIECE CODIGO 36835, 36836, 36837, DESCRIPCION: ULTRAVIOLETA LP GAMA ELECTRA EA 4H ESPAÑOL * -> VER HOJA DE OBSERVACIONES

(1)

REV.: 2

FECHA: 25/04/2016

DESPIECE

⁵⁰⁴⁹

HOJA: 1 / 2

CODIGO 36835, 36836, 36837, 36838

DESCRIPCION: ULTRAVIOLETA LP GAMA ELECTRA EA 4H

ESPAÑOL

DESCRIPCION POS CODIGO DESCRIPCION

CODIGO POS

BALASTRO DELTA ES5 / ES10

* 36839R0000 36835R0012 TUBO DE CUARZO INFERIOR

1 9

BALASTRO ELECTRONICO 240V

* 36837R0003 36835R0013 SOPORTE ACERO INOX

1 10

MANGUITO CONEXIÓN 2"

36835R0004 36835R0014 ABRAZADERA 4" INO "

2 11

MANGUITO CONEXIÓN D. 63

36835R0016 * 36835R0015 TUBO DE QUARZO 4"

2 12

CUERPO 4" ACERO INOX. 36835"

* 36835R0005 * 36836R0002 TUBO DE QUARZO 4"

3 12

* 36836R0001 * 36837R0002 TUBO DE QUARZO 4"

3 12

* 36837R0001 * 36838R0002 TUBO DE QUARZO 4"

3 12

* 36838R0001 36835R0002 JUNTA TORICA NEGRA

3 13

TUERCA UNION 4" NEGR "

36835R0006 * 36835R0100 LAMPARA 4"

4 14

JUNTA UNION CUERPO

36835R0007 * 36836R0100 LAMPARA 4"

5 14

PROTECTOR LAMPARA

36835R0008 * 36837R0100 LAMPARA 4"

6 14

JUNTA MANGUITO UNION

36835R0009 * 36838R0100 LAMPARA 4"

7 14

MANGUITO UNION 2"

36835R0010 36835R0001 JUNTA TORICA LAMPARA

8 15

MANGUITO UNION D.63 36835R0011

8

* -> VER HOJA DE OBSERVACIONES

(2)

REV.: 2

FECHA: 25/04/2016

DESPIECE

⁵⁰⁴⁹

HOJA: 2 / 2

CODIGO 36835, 36836, 36837, 36838

DESCRIPCION: ULTRAVIOLETA LP GAMA ELECTRA EA 4H

POS CODIGO OBSERVACIONES

OBSERVACIONES

36837R0003

1 PARA: 36837, 36838

36839R0000

1 PARA: 36835, 36836

36835R0005

3 PARA: 36835

36836R0001

3 PARA: 36836

36837R0001

3 PARA: 36837

36838R0001

3 PARA: 36838

36835R0015

12 PARA: 36835

36836R0002

12 PARA: 36836

36837R0002

12 PARA: 36837

36838R0002

12 PARA: 36837

36835R0100

14 PARA: 36835

36836R0100

14 PARA: 36836

36837R0100

14 PARA: 36837

36838R0100

14 PARA: 36838

(3)

REV.: 2 DATE: 25/04/2016

ÉCLATÉ

⁵⁰⁴⁹

PAG.: 1 / 2

CODE 36835, 36836, 36837, 36838

DESCRIPTION: ULTRAVIOLET LP GAMME ELECTRA EA 4H

FRANCAIS

DESCRIPTION POS CODE DESCRIPTION

CODE POS

BALLAST DELTA ES5 / ES10

* 36839R0000 36835R0012 TUBE DE QUARTZ INFERIUR

1 9

BALLAST ÉLECTRONIQUE

* 36837R0003 36835R0013 SUPPORT ACIER INOX

1 10

MANCHON 2"

36835R0004 36835R0014 COLLIER SERRAGE 4" INO "

2 11

MANCHON D. 63

36835R0016 * 36835R0015 TUBE DE QUARTZ 4"

2 12

CORPS 4"

* 36835R0005 * 36836R0002 TUBE DE QUARTZ 4"

3 12

CORPS 4"

* 36836R0001 * 36837R0002 TUBE DE QUARTZ 4"

3 12

CORPS 4"

* 36837R0001 * 36838R0002 TUBE DE QUARTZ 4"

3 12

CORPS 4"

* 36838R0001 36835R0002 JOINT TORIQUE

3 13

RACCOR UNION 4" NOI "

36835R0006 * 36835R0100 LAMPE UV E-ES 5

4 14

JOINT UNION CORPS

36835R0007 * 36836R0100 LAMPE UV E-ES 10

5 14

PROTECTION AMPOULE

36835R0008 * 36837R0100 LAMPE UV E-ES 20

6 14

JOINT MANCHON UNION

36835R0009 * 36838R0100 LAMPE UV E-ES 40

7 14

MACHON UNION 2"

36835R0010 36835R0001 JOINT TORIQUE

8 15

MACHON UNION D. 63 36835R0011

8

* -> VOIR FICHE D'OBSERVATIONS

(4)

REV.: 2 DATE: 25/04/2016

ÉCLATÉ

⁵⁰⁴⁹

PAG.: 2 / 2

CODE 36835, 36836, 36837, 36838

DESCRIPTION: ULTRAVIOLET LP GAMME ELECTRA EA 4H

POS CODE OBSERVATIONS

OBSERVATIONS

36837R0003

1 POUR: 36837, 36838

36839R0000

1 POUR: 36835, 36836

36835R0005

3 POUR: 36835

36836R0001

3 POUR: 36836

36837R0001

3 POUR: 36837

36838R0001

3 POUR: 36838

36835R0015

12 POUR: 36835

36836R0002

12 POUR: 36836

36837R0002

12 POUR: 36837

36838R0002

12 POUR: 36837

36835R0100

14 POUR: 36835

36836R0100

14 POUR: 36836

36837R0100

14 POUR: 36837

36838R0100

14 POUR: 36838

(5)

REV.: 2 DATE: 25/04/2016

PARTS BREAKDOWN

⁵⁰⁴⁹

SHEET: 1 / 2

CODE 36835, 36836, 36837, 36838

DESCRIPTION: ULTRAVIOLET LP ELECTRA RANGE EA 4H

ENGLISH

DESCRIPTION POS CODE DESCRIPTION

CODE POS

DELTA ES5 / ES10 ELECTRONIC BALLAST

* 36839R0000 36835R0012 HOLDER TEE ASSY-4"

1 9

ELECTRONIC BALLAST ASSEMBLY

* 36837R0003 36835R0013 STAND-STAINLES STEEL

1 10

UNION TAIL PIECE-CLEAR 2"

36835R0004 36835R0014 CLAMP 4" STAINLESS STEL "

2 11

UNION TAIL PIECE-CLEAR D. 63

36835R0016 * 36835R0015 QUARTZ TUBE TEE ASSY 4"

2 12

UV BODY-4" STAINLESS STEE "

* 36835R0005 * 36836R0002 QUARTZ TUBE TEE ASSY 4"

3 12

* 36838R0001 36835R0002 O'RING BLACK

3 13

UNION-NUT 4" BLAC "

36835R0006 * 36835R0100 HO UV BULD 4"

4 14

O'RING-347-BLACK

36835R0007 * 36836R0100 HO UV BULD 4"

5 14

BULB CUSHION

36835R0008 * 36837R0100 HO UV BULD 4"

6 14

FLAT O'RING GASKET 2"

36835R0009 * 36838R0100 HO UV BULD 4"

7 14

UBION TAIL PIECE-WHITE

36835R0010 36835R0001 BULD O'RING

8 15

UBION TAIL PIECE-WHITE 36835R0011

8

* -> SEE OBSERVATIONS SHEET

(6)

REV.: 2 DATE: 25/04/2016

PARTS BREAKDOWN

⁵⁰⁴⁹

SHEET: 2 / 2

CODE 36835, 36836, 36837, 36838

DESCRIPTION: ULTRAVIOLET LP ELECTRA RANGE EA 4H

POS CODE OBSERVATIONS

OBSERVATIONS

36837R0003

1 FOR: 36837, 36838

36839R0000

1 FOR: 36835, 36836

36835R0005

3 FOR: 36835

36836R0001

3 FOR: 36836

36837R0001

3 FOR: 36837

36838R0001

3 FOR: 36838

36835R0015

12 FOR: 36835

36836R0002

12 FOR: 36836

36837R0002

12 FOR: 36837

36838R0002

12 FOR: 36837

36835R0100

14 FOR: 36835

36836R0100

14 FOR: 36836

36837R0100

14 FOR: 36837

36838R0100

14 FOR: 36838

(7)

REV.: 2 DATA: 25/04/2016

ESPLOSO

⁵⁰⁴⁹

PAG.: 1 / 2

CODICE 36835, 36836, 36837, 36838

DESCRIZIONE: ULTRAVIOLETTI LP GAMMA ELECTRA EA 4H

ITALIANO

DESCRIZIONE POS CODICE DESCRIZIONE

CODICE POS

REGOLATORE DI CORRENTE DELTA ES5 / ES10

* 36839R0000 36835R0012 CORPO INFERIORE

1 9

REGOLATORE DI CORRENTE ELETTRONICO

* 36837R0003 36835R0013 SUPPORTO ACCIAIO INOX

1 10

MANICOTTO 2"

36835R0004 36835R0014 FASCETTA 4" INO "

2 11

MANICOTTO D. 63

36835R0016 * 36835R0015 CORPO SUPERIORE 4"

2 12

CORPO 4"

* 36835R0005 * 36836R0002 CORPO SUPERIORE 4"

3 12

CORPO 4"

3 12

CORPO 4"

3 12

CORPO 4"

* 36838R0001 36835R0002 O-RING

3 13

GHIERA UNIONE 4" NER "

36835R0006 * 36835R0100 KIT LAMPADA 4"

4 14

GUARNICIONE UNIONE CORPO

36835R0007 * 36836R0100 KIT LAMPADA 4"

5 14

PROTEZIONE LAMPADA

36835R0008 * 36837R0100 KIT LAMPADA 4"

6 14

GUARNIZIONE MANICOTTO UNIONE

36835R0009 * 36838R0100 KIT LAMPADA 4"

7 14

MANICOTTO UNIONE 2"

36835R0010 36835R0001 O-RING

8 15

MANICOTTO UNIONE D. 63 36835R0011

8

* -> SI FACCIA RIFERIMENTO AL FOGLIO DELLE OSSERVAZIONI

(8)

REV.: 2 DATA: 25/04/2016

ESPLOSO

⁵⁰⁴⁹

PAG.: 2 / 2

CODICE 36835, 36836, 36837, 36838

DESCRIZIONE: ULTRAVIOLETTI LP GAMMA ELECTRA EA 4H

POS CODICE OSSERVAZIONI

OSSERVAZIONI

36837R0003

1 PER: 36837, 36838

36839R0000

1 PER: 36835, 36836

36835R0005

3 PER: 36835

36836R0001

3 PER: 36836

36837R0001

3 PER: 36837

36838R0001

3 PER: 36838

36835R0015

12 PER: 36835

36836R0002

12 PER: 36836

36837R0002

12 PER: 36837

36838R0002

12 PER: 36837

36835R0100

14 PER: 36835

36836R0100

14 PER: 36836

36837R0100

14 PER: 36837

36838R0100

14 PER: 36838

(9)

ÜBER.: 2

DATUM: 25/04/2016

EINZELTEILE

⁵⁰⁴⁹

BLATT: 1 / 2

CODE 36835, 36836, 36837, 36838

BESCHREIBURG: ULTRAVIOLETT LP LEISTUNG ELECTRA EA 4H

DEUTSCH

BESCHREIBURG POS CODE BESCHREIBURG

CODE POS

VORSCHALTGERÄT DELTA ES5 / ES10

* 36839R0000 36835R0012 UNTERES QUARZROHR

1 9

VORSCHALTGERÄT

* 36837R0003 36835R0013 BEFESTIGUNGSSTÜTZEN EDELSTAHL

1 10

SCHLAUCH 2"

36835R0004 36835R0014 BEFESTIGUNSSCHELLEN 4" EDELSTAH "

2 11

SCHLAUCH D. 63

36835R0016 * 36835R0015 QARZROHR 4"

2 12

KÖRPER 4"

* 36835R0005 * 36836R0002 QARZROHR 4"

3 12

KÖRPER 4"

* 36836R0001 * 36837R0002 QARZROHR 4"

3 12

KÖRPER 4"

* 36837R0001 * 36838R0002 QARZROHR 4"

3 12

KÖRPER 4"

* 36838R0001 36835R0002 O-RING

3 13

VERBINDUNGSMUTTER 4" SCHWAR "

36835R0006 * 36835R0100 QUARZLAMPE 4"

4 14

DICHTUNG VERVINDUNG KÖRPER

36835R0007 * 36836R0100 QUARZLAMPE 4"

5 14

SCHUTZ FÜR LAMPE

36835R0008 * 36837R0100 QUARZLAMPE 4"

6 14

DICHTUNG FÜR VERBINDUNGSMUFFE

36835R0009 * 36838R0100 QUARZLAMPE 4"

7 14

VERBINDUNGSMUFFE 2"

36835R0010 36835R0001 O-RING

8 15

VERBINDUNGSMUFFE D. 63 36835R0011

8

* -> SIEHE ANMERKUGSBLATT

(10)

ÜBER.: 2

DATUM: 25/04/2016

EINZELTEILE

⁵⁰⁴⁹

BLATT: 2 / 2

CODE 36835, 36836, 36837, 36838

BESCHREIBURG: ULTRAVIOLETT LP LEISTUNG ELECTRA EA 4H

POS CODE HINWEISE

HINWEISE

36837R0003

1 FÜR: 36837, 36838

36839R0000

1 FÜR: 36835, 36836

36835R0005

3 FÜR: 36835

36836R0001

3 FÜR: 36836

36837R0001

3 FÜR: 36837

36838R0001

3 FÜR: 36838

36835R0015

12 FÜR: 36835

36836R0002

12 FÜR: 36836

36837R0002

12 FÜR: 36837

36838R0002

12 FÜR: 36837

36835R0100

14 FÜR: 36835

36836R0100

14 FÜR: 36836

36837R0100

14 FÜR: 36837

36838R0100

14 FÜR: 36838

(11)

REV.: 2 DATA: 25/04/2016

ITEM

⁵⁰⁴⁹

FOLHA: 1 / 2

CODIGO 36835, 36836, 36837, 36838

DESCRIÇÃO: ULTRAVIOLETA LP GAMA ELECTRA EA 4H

PORTUGUES

DESCRIÇÃO POS CODIGO DESCRIÇÃO

CODIGO POS

BALASTRO DELTA ES5 / ES10

* 36839R0000 36835R0012 TUBO DE QUARTZO INFERIOR

1 9

BALASTRO ELECTRÓNICO

* 36837R0003 36835R0013 SUPORTE AÇO INOX

1 10

MANGUITO 2"

36835R0004 36835R0014 ABRAÇADEIRA 4" INO "

2 11

MANGUITO D.63

36835R0016 * 36835R0015 TUBO DE QUARTZO 4"

2 12

CORPO 4"

* 36835R0005 * 36836R0002 TUBO DE QUARTZO 4"

3 12

CORPO 4"

3 12

CORPO 4"

3 12

CORPO 4"

* 36838R0001 36835R0002 JUNTA TÓRICA

3 13

PORCA UNJÂO 4" NEGR "

36835R0006 * 36835R0100 LÂMPADA 4"

4 14

JUNTA UNIÂO CORPO

36835R0007 * 36836R0100 LÂMPADA 4"

5 14

PROTECTOR LÂMPADA

36835R0008 * 36837R0100 LÂMPADA 4"

6 14

JUNTA MANGUITO UNJÂO

36835R0009 * 36838R0100 LÂMPADA 4"

7 14

MANGUITO UNJÂO 2"

36835R0010 36835R0001 JUNTA TÓRICA

8 15

MANGUITO UNJÂO D.63 36835R0011

8

* -> VEJA A FICHA DE OBSERVAÇÕES

(12)

REV.: 2 DATA: 25/04/2016

ITEM

⁵⁰⁴⁹

FOLHA: 2 / 2

CODIGO 36835, 36836, 36837, 36838

DESCRIÇÃO: ULTRAVIOLETA LP GAMA ELECTRA EA 4H

POS CODIGO OBSERVAÇÕES

OBSERVAÇÕES

36837R0003

1 PARA: 36837, 36838

36839R0000

1 PARA: 36835, 36836

36835R0005

3 PARA: 36835

36836R0001

3 PARA: 36836

36837R0001

3 PARA: 36837

36838R0001

3 PARA: 36838

36835R0015

12 PARA: 36835

36836R0002

12 PARA: 36836

36837R0002

12 PARA: 36837

36838R0002

12 PARA: 36837

36835R0100

14 PARA: 36835

36836R0100

14 PARA: 36836

36837R0100

14 PARA: 36837

36838R0100

14 PARA: 36838
