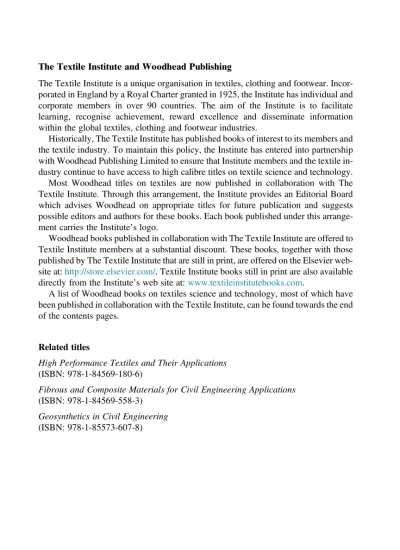

The Textile Institute and Woodhead Publishing
The Textile Institute is a unique organisation in textiles, clothing and footwear. Incor- porated in England by a Royal Charter granted in 1925, the Institute has individual and corporate members in over 90 countries. The aim of the Institute is to facilitate learning, recognise achievement, reward excellence and disseminate information within the global textiles, clothing and footwear industries.
Historically, The Textile Institute has published books of interest to its members and the textile industry. To maintain this policy, the Institute has entered into partnership with Woodhead Publishing Limited to ensure that Institute members and the textile in- dustry continue to have access to high calibre titles on textile science and technology.
Most Woodhead titles on textiles are now published in collaboration with The Textile Institute. Through this arrangement, the Institute provides an Editorial Board which advises Woodhead on appropriate titles for future publication and suggests possible editors and authors for these books. Each book published under this arrange- ment carries the Institute’s logo.
Woodhead books published in collaboration with The Textile Institute are offered to Textile Institute members at a substantial discount. These books, together with those published by The Textile Institute that are still in print, are offered on the Elsevier web- site at:http://store.elsevier.com/. Textile Institute books still in print are also available directly from the Institute’s web site at:www.textileinstitutebooks.com.
A list of Woodhead books on textiles science and technology, most of which have been published in collaboration with the Textile Institute, can be found towards the end of the contents pages.
Related titles
High Performance Textiles and Their Applications (ISBN: 978-1-84569-180-6)
Fibrous and Composite Materials for Civil Engineering Applications (ISBN: 978-1-84569-558-3)
Geosynthetics in Civil Engineering (ISBN: 978-1-85573-607-8)
Woodhead Publishing Series in Textiles:
Number 175
Geotextiles
From Design to Applications
Edited by
R.M. Koerner
AMSTERDAM• BOSTON • CAMBRIDGE • HEIDELBERG LONDON• NEW YORK • OXFORD • PARIS • SAN DIEGO
SAN FRANCISCO• SINGAPORE • SYDNEY • TOKYO Woodhead Publishing is an imprint of Elsevier
Woodhead Publishing is an imprint of Elsevier
The Officers’ Mess Business Centre, Royston Road, Duxford, CB22 4QH, UK 50 Hampshire Street, 5th Floor, Cambridge, MA 02139, USA
The Boulevard, Langford Lane, Kidlington, OX5 1GB, UK Copyright© 2016 Elsevier Ltd. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or any information storage and retrieval system, without permission in writing from the publisher. Details on how to seek permission, further information about the Publisher’s permissions policies and our arrangements with organizations such as the Copyright Clearance Center and the Copyright Licensing Agency, can be found at our website:www.elsevier.com/permissions.
This book and the individual contributions contained in it are protected under copyright by the Publisher (other than as may be noted herein).
Notices
Knowledge and best practice in thisfield are constantly changing. As new research and experience broaden our understanding, changes in research methods, professional practices, or medical treatment may become necessary.
Practitioners and researchers must always rely on their own experience and knowledge in evaluating and using any information, methods, compounds, or experiments described herein. In using such information or methods they should be mindful of their own safety and the safety of others, including parties for whom they have a professional responsibility.
To the fullest extent of the law, neither the Publisher nor the authors, contributors, or editors, assume any liability for any injury and/or damage to persons or property as a matter of products liability, negligence or otherwise, or from any use or operation of any methods, products, instructions, or ideas contained in the material herein.
British Library Cataloguing-in-Publication Data
A catalogue record for this book is available from the British Library Library of Congress Cataloging-in-Publication Data
A catalog record for this book is available from the Library of Congress ISBN: 978-0-08-100221-6 (print)
ISBN: 978-0-08-100234-6 (online)
For information on all Woodhead Publishing publications visit our website athttps://www.elsevier.com/
Publisher: Matthew Deans Acquisition Editor: David Jackson Editorial Project Manager: Edward Payne
Production Project Manager: Preeta Kumaraguruparan Designer: Matthew
Typeset by TNQ Books and Journals
List of contributors
S.R. Allen TRI/Environmental Inc., Austin, TX, United States
P.E. Ashley Mac Millan Geocomp Corporation, Acton, MA, United States T. Bauters Consultant, Sunnyvale, CA, United States
D. Bérubé Texel, Saint-Elzéar, QC, Canada D. Cazzuffi CESI SpA, Milano, Italy J.C. Chai Saga University, Saga, Japan
B.R. Christopher Christopher Consultants, Roswell, Georgia, United States L. David Suits North American Geosynthetics Society, Albany, NY, United States A.N. Desai The Bombay Textile Research Association, Mumbai, India
O. Detert Huesker Synthetic GmbH, Gescher, Germany
N. Dixon Loughborough University, Loughborough, Leicestershire, United Kingdom
A. Filshill INOVA Geosynthetics, Huntingdon Valley, PA, United States G. Fowmes Loughborough University, Loughborough, Leicestershire, United Kingdom
M. Frost Loughborough University, Loughborough, Leicestershire, United Kingdom
B. Garner Agru America, Inc., Georgetown, SC, United States H. Hangen Huesker Synthetic GmbH, Gescher, Germany
M. Heibaum BAW, Federal Waterways Engineering and Research Institute, Karlsruhe, Germany
C.W. Hsieh National Pingtung University of Science and Technology, Pingtung, Taiwan
Y.G. Hsuan Drexel University, Philadelphia, PA, United States W. Huang Rutgers University, New Brunswick, NJ, United States
N. Ivy Agru America, Inc., Georgetown, SC, United States H.-Y. Jeon Inha University, Incheon, South Korea
Ravi Kant The Bombay Textile Research Association, Mumbai, India G.R. Koerner Geosynthetic Institute, Folsom, PA, United States R.M. Koerner Geosynthetic Institute, Folsom, PA, United States; Drexel University, Philadelphia, PA, United States
A.A. Lavasan Huesker Synthetic GmbH, Gescher, Germany C.R. Lawson TenCate Geosynthetics, Malaysia
M.C. Mandaglio Mediterranea University of Reggio Calabria, Reggio Calabria, Italy
N. Moraci Mediterranea University of Reggio Calabria, Reggio Calabria, Italy D. Narejo Narejo Inc., Conroe, TX, United States
J. Raja Loughborough University, Loughborough, Leicestershire, United Kingdom P. Rimoldi Milan, Officine Maccaferri SpA, Italy
P. Saunier Afitex Texel Geosynthetics, Vancouver, BC, Canada L.R. Schimmel Huesker, Inc., Charlotte, NC, United States
C.J. Sprague TRI/Environmental, Inc., Greenville, SC, United States
J.E. Sprague TRI’s Denver Downs Research Facility, Anderson, SC, United States G.T. Torosian GeoTesting Express, Inc., Acton, MA, United States
H. Zanzinger SKZe Testing GmbH, W€urzburg, Germany
xvi List of contributors
Woodhead Publishing Series in Textiles
1 Watson’s textile design and colour Seventh edition Edited by Z. Grosicki
2 Watson’s advanced textile design Edited by Z. Grosicki
3 Weaving Second edition P. R. Lord and M. H. Mohamed
4 Handbook of textilefibres Volume 1: Natural fibres J. Gordon Cook
5 Handbook of textilefibres Volume 2: Man-made fibres J. Gordon Cook
6 Recycling textile and plastic waste Edited by A. R. Horrocks
7 Newfibers Second edition T. Hongu and G. O. Phillips
8 Atlas offibre fracture and damage to textiles Second edition J. W. S. Hearle, B. Lomas and W. D. Cooke
9 Ecotextile’98
Edited by A. R. Horrocks 10 Physical testing of textiles
B. P. Saville
11 Geometric symmetry in patterns and tilings C. E. Horne
12 Handbook of technical textiles
Edited by A. R. Horrocks and S. C. Anand 13 Textiles in automotive engineering
W. Fung and J. M. Hardcastle 14 Handbook of textile design
J. Wilson
15 High-performancefibres Edited by J. W. S. Hearle
16 Knitting technology Third edition D. J. Spencer
17 Medical textiles Edited by S. C. Anand 18 Regenerated cellulosefibres
Edited by C. Woodings
19 Silk, mohair, cashmere and other luxuryfibres Edited by R. R. Franck
20 Smartfibres, fabrics and clothing Edited by X. M. Tao
21 Yarn texturing technology
J. W. S. Hearle, L. Hollick and D. K. Wilson 22 Encyclopedia of textilefinishing
H.-K. Rouette
23 Coated and laminated textiles W. Fung
24 Fancy yarns
R. H. Gong and R. M. Wright 25 Wool: Science and technology
Edited by W. S. Simpson and G. Crawshaw 26 Dictionary of textilefinishing
H.-K. Rouette
27 Environmental impact of textiles K. Slater
28 Handbook of yarn production P. R. Lord
29 Textile processing with enzymes Edited by A. Cavaco-Paulo and G. G€ubitz 30 The China and Hong Kong denim industry
Y. Li, L. Yao and K. W. Yeung
31 The World Trade Organization and international denim trading Y. Li, Y. Shen, L. Yao and E. Newton
32 Chemicalfinishing of textiles W. D. Schindler and P. J. Hauser 33 Clothing appearance andfit
J. Fan, W. Yu and L. Hunter 34 Handbook offibre rope technology
H. A. McKenna, J. W. S. Hearle and N. O’Hear 35 Structure and mechanics of woven fabrics
J. Hu
36 Syntheticfibres: Nylon, polyester, acrylic, polyolefin Edited by J. E. McIntyre
37 Woollen and worsted woven fabric design E. G. Gilligan
38 Analytical electrochemistry in textiles P. Westbroek, G. Priniotakis and P. Kiekens 39 Bast and other plantfibres
R. R. Franck
40 Chemical testing of textiles Edited by Q. Fan
41 Design and manufacture of textile composites Edited by A. C. Long
42 Effect of mechanical and physical properties on fabric hand Edited by H. M. Behery
43 New millenniumfibers
T. Hongu, M. Takigami and G. O. Phillips
xviii Woodhead Publishing Series in Textiles
44 Textiles for protection Edited by R. A. Scott 45 Textiles in sport
Edited by R. Shishoo
46 Wearable electronics and photonics Edited by X. M. Tao
47 Biodegradable and sustainablefibres Edited by R. S. Blackburn
48 Medical textiles and biomaterials for healthcare
Edited by S. C. Anand, M. Miraftab, S. Rajendran and J. F. Kennedy 49 Total colour management in textiles
Edited by J. Xin 50 Recycling in textiles
Edited by Y. Wang
51 Clothing biosensory engineering Y. Li and A. S. W. Wong
52 Biomechanical engineering of textiles and clothing Edited by Y. Li and D. X.-Q. Dai
53 Digital printing of textiles Edited by H. Ujiie
54 Intelligent textiles and clothing Edited by H. R. Mattila
55 Innovation and technology of women’s intimate apparel W. Yu, J. Fan, S. C. Harlock and S. P. Ng
56 Thermal and moisture transport infibrous materials Edited by N. Pan and P. Gibson
57 Geosynthetics in civil engineering Edited by R. W. Sarsby
58 Handbook of nonwovens Edited by S. Russell
59 Cotton: Science and technology Edited by S. Gordon and Y.-L. Hsieh 60 Ecotextiles
Edited by M. Miraftab and A. R. Horrocks 61 Composite forming technologies
Edited by A. C. Long
62 Plasma technology for textiles Edited by R. Shishoo
63 Smart textiles for medicine and healthcare Edited by L. Van Langenhove
64 Sizing in clothing Edited by S. Ashdown
65 Shape memory polymers and textiles J. Hu
66 Environmental aspects of textile dyeing Edited by R. Christie
67 Nanofibers and nanotechnology in textiles Edited by P. Brown and K. Stevens
Woodhead Publishing Series in Textiles xix
68 Physical properties of textilefibres Fourth edition W. E. Morton and J. W. S. Hearle
69 Advances in apparel production Edited by C. Fairhurst
70 Advances infire retardant materials Edited by A. R. Horrocks and D. Price 71 Polyesters and polyamides
Edited by B. L. Deopura, R. Alagirusamy, M. Joshi and B. S. Gupta 72 Advances in wool technology
Edited by N. A. G. Johnson and I. Russell 73 Military textiles
Edited by E. Wilusz
74 3Dfibrous assemblies: Properties, applications and modelling of three-dimensional textile structures
J. Hu
75 Medical and healthcare textiles
Edited by S. C. Anand, J. F. Kennedy, M. Miraftab and S. Rajendran 76 Fabric testing
Edited by J. Hu
77 Biologically inspired textiles Edited by A. Abbott and M. Ellison 78 Friction in textile materials
Edited by B. S. Gupta
79 Textile advances in the automotive industry Edited by R. Shishoo
80 Structure and mechanics of textilefibre assemblies Edited by P. Schwartz
81 Engineering textiles: Integrating the design and manufacture of textile products Edited by Y. E. El-Mogahzy
82 Polyolefin fibres: Industrial and medical applications Edited by S. C. O. Ugbolue
83 Smart clothes and wearable technology Edited by J. McCann and D. Bryson 84 Identification of textile fibres
Edited by M. Houck
85 Advanced textiles for wound care Edited by S. Rajendran
86 Fatigue failure of textilefibres Edited by M. Miraftab
87 Advances in carpet technology Edited by K. Goswami
88 Handbook of textilefibre structure Volume 1 and Volume 2 Edited by S. J. Eichhorn, J. W. S. Hearle, M. Jaffe and T. Kikutani 89 Advances in knitting technology
Edited by K.-F. Au
90 Smart textile coatings and laminates Edited by W. C. Smith
91 Handbook of tensile properties of textile and technicalfibres Edited by A. R. Bunsell
xx Woodhead Publishing Series in Textiles
92 Interior textiles: Design and developments Edited by T. Rowe
93 Textiles for cold weather apparel Edited by J. T. Williams
94 Modelling and predicting textile behaviour Edited by X. Chen
95 Textiles, polymers and composites for buildings Edited by G. Pohl
96 Engineering apparel fabrics and garments J. Fan and L. Hunter
97 Surface modification of textiles Edited by Q. Wei
98 Sustainable textiles Edited by R. S. Blackburn
99 Advances in yarn spinning technology Edited by C. A. Lawrence
100 Handbook of medical textiles Edited by V. T. Bartels 101 Technical textile yarns
Edited by R. Alagirusamy and A. Das
102 Applications of nonwovens in technical textiles Edited by R. A. Chapman
103 Colour measurement: Principles, advances and industrial applications Edited by M. L. Gulrajani
104 Fibrous and composite materials for civil engineering applications Edited by R. Fangueiro
105 New product development in textiles: Innovation and production Edited by L. Horne
106 Improving comfort in clothing Edited by G. Song
107 Advances in textile biotechnology
Edited by V. A. Nierstrasz and A. Cavaco-Paulo 108 Textiles for hygiene and infection control
Edited by B. McCarthy 109 Nanofunctional textiles
Edited by Y. Li
110 Joining textiles: Principles and applications Edited by I. Jones and G. Stylios
111 Soft computing in textile engineering Edited by A. Majumdar
112 Textile design
Edited by A. Briggs-Goode and K. Townsend 113 Biotextiles as medical implants
Edited by M. W. King, B. S. Gupta and R. Guidoin 114 Textile thermal bioengineering
Edited by Y. Li
115 Woven textile structure B. K. Behera and P. K. Hari
Woodhead Publishing Series in Textiles xxi
116 Handbook of textile and industrial dyeing Volume 1: Principles, processes and types of dyes
Edited by M. Clark
117 Handbook of textile and industrial dyeing Volume 2: Applications of dyes Edited by M. Clark
118 Handbook of natural fibres Volume 1: Types, properties and factors affecting breeding and cultivation
Edited by R. Kozłowski
119 Handbook of naturalfibres Volume 2: Processing and applications Edited by R. Kozłowski
120 Functional textiles for improved performance, protection and health Edited by N. Pan and G. Sun
121 Computer technology for textiles and apparel Edited by J. Hu
122 Advances in military textiles and personal equipment Edited by E. Sparks
123 Specialist yarn and fabric structures Edited by R. H. Gong
124 Handbook of sustainable textile production M. I. Tobler-Rohr
125 Woven textiles: Principles, developments and applications Edited by K. Gandhi
126 Textiles and fashion: Materials design and technology Edited by R. Sinclair
127 Industrial cutting of textile materials I. Vil¸umsone-Nemes
128 Colour design: Theories and applications Edited by J. Best
129 False twist textured yarns C. Atkinson
130 Modelling, simulation and control of the dyeing process R. Shamey and X. Zhao
131 Process control in textile manufacturing
Edited by A. Majumdar, A. Das, R. Alagirusamy and V. K. Kothari 132 Understanding and improving the durability of textiles
Edited by P. A. Annis 133 Smart textiles for protection
Edited by R. A. Chapman
134 Functional nanofibers and applications Edited by Q. Wei
135 The global textile and clothing industry: Technological advances and future challenges
Edited by R. Shishoo
136 Simulation in textile technology: Theory and applications Edited by D. Veit
137 Pattern cutting for clothing using CAD: How to use Lectra Modaris pattern cutting software
M. Stott
xxii Woodhead Publishing Series in Textiles
138 Advances in the dyeing andfinishing of technical textiles M. L. Gulrajani
139 Multidisciplinary know-how for smart textiles developers Edited by T. Kirstein
140 Handbook offire resistant textiles Edited by F. Selcen Kilinc
141 Handbook of footwear design and manufacture Edited by A. Luximon
142 Textile-led design for the active ageing population Edited by J. McCann and D. Bryson
143 Optimizing decision making in the apparel supply chain using artificial intelligence (AI): From production to retail
Edited by W. K. Wong, Z. X. Guo and S. Y. S. Leung 144 Mechanisms offlat weaving technology
V. V. Choogin, P. Bandara and E. V. Chepelyuk
145 Innovative jacquard textile design using digital technologies F. Ng and J. Zhou
146 Advances in shape memory polymers J. Hu
147 Design of clothing manufacturing processes: A systematic approach to planning, scheduling and control
J. Gersak
148 Anthropometry, apparel sizing and design D. Gupta and N. Zakaria
149 Silk: Processing, properties and applications Edited by K. Murugesh Babu
150 Advances infilament yarn spinning of textiles and polymers Edited by D. Zhang
151 Designing apparel for consumers: The impact of body shape and size Edited by M.-E. Faust and S. Carrier
152 Fashion supply chain management using radio frequency identification (RFID) technologies
Edited by W. K. Wong and Z. X. Guo
153 High performance textiles and their applications Edited by C. A. Lawrence
154 Protective clothing: Managing thermal stress Edited by F. Wang and C. Gao
155 Composite nonwoven materials Edited by D. Das and B. Pourdeyhimi
156 Functionalfinishes for textiles: Improving comfort, performance and protection Edited by R. Paul
157 Assessing the environmental impact of textiles and the clothing supply chain S. S. Muthu
158 Braiding technology for textiles Y. Kyosev
159 Principles of colour appearance and measurement
Volume 1: Object appearance, colour perception and instrumental measurement A. K. R. Choudhury
Woodhead Publishing Series in Textiles xxiii
160 Principles of colour appearance and measurement
Volume 2: Visual measurement of colour, colour comparison and management A. K. R. Choudhury
161 Ink jet textile printing C. Cie
162 Textiles for sportswear Edited by R. Shishoo
163 Advances in silk science and technology Edited by A. Basu
164 Denim: Manufacture,finishing and applications Edited by R. Paul
165 Fabric structures in architecture Edited by J. Ignasi de Llorens
166 Electronic textiles: Smart fabrics and wearable technology Edited by T. Dias
167 Advances in 3D textiles Edited by X. Chen
168 Garment manufacturing technology Edited by R. Nayak and R. Padhye
169 Handbook of technical textiles Second edition Volume 1 Edited by A. R. Horrocks and S. C. Anand
170 Handbook of technical textiles Second edition Volume 2 Edited by A. R. Horrocks and S. C. Anand
171 Sustainable apparel Edited by R. S. Blackburn
172 Handbook of life cycle assessment (LCA) of textiles and clothing Edited by S. S. Muthu
173 Advances in smart medical textiles: Treatments and health monitoring Edited by L. van Langenhove
174 Medical textile materials Y. Qin
175 Geotextiles: From design to applications Edited by R. M. Koerner
xxiv Woodhead Publishing Series in Textiles
Early background and history
of geotextiles 1
R.M. Koerner
Geosynthetic Institute, Folsom, PA, United States; Drexel University, Philadelphia, PA, United States
1.1 Introduction
The oldest published reference to a fabric material being used in the context of a current geotextile application is that ofBeckham and Mills (1935). They used a woven cotton fabric to separate and stabilize the soil subgrade of an unpaved road in South Carolina. They reported that 8 years later the fabric had degraded from soil microor- ganisms to the point that it could hardly be identified. Additional trials were made by the Bureau of Public Roads in several US states at about the same time with natural fabrics, but the stage was set for the use of nonbiodegradable polymer fabrics, which is the focus of this chapter. Called by various names over the subsequent decades, eg, filter fabrics, synthetic fabrics, road rugs, construction cloth, bauvlies/filtermatte (German for “construction fleece”/“filtration mat”), etc., the name of “geotextiles”
(coined by J.-P. Giroud in 1985) is currently used worldwide.
The information to follow about geotextile types and their myriad applications will be taken from published papers or manufacturers’ brochures. In this regard, it is recog- nized that many trials were undertaken by large chemical companies, specialty manu- facturers, federal and state regulatory agencies, etc., but unless they were published in reasonably accessible literature these undoubtedly noble efforts will not be included.
This is not meant to diminish the respective contributions from people and/or com- panies that did not publish; it is merely to provide a degree of control regarding acces- sibility, peer review, and appreciation for the individual authors for making their contributions available. Also, the focus is on geotextile applications rather than the the- ory and laboratory testing that was being done at the time. This was primarily done to convince regulators, owners, and design engineers, who generally require actualfield applications, to do likewise.
At the outset it should also be mentioned that others have presented overview papers on early geotextile history, including Rankilor (1981), Jones (1982), Giroud (1986), John (1987), Pilarczyk (2000), Holtz (2004), andHeerten (2015). Their infor- mation will be used and cited accordingly.
However, this review will be somewhat different from the others in that geotextile developments in Europe (initially with nonwoven fabrics) will be presentedfirst, with developments in America (initially with woven fabrics) following. The interchange between Europe and America up until 1977 will then be described along with devel- opments in several other countries. Almost immediately after the first international
Geotextiles.http://dx.doi.org/10.1016/B978-0-08-100221-6.00001-2 Copyright© 2016 Elsevier Ltd. All rights reserved.
conference on construction fabrics was held in Paris, France, in 1977, these materials became“mainstreamed,” and their use continues to the present. The graph ofFig. 1.1 on early published papers indicates this trend. As mentioned, this review chapter will end at that time; the many chapters to follow will bring the technology to its current status.
1.2 Geotextiles in Europe
Heerten (2015), in his historical review about geosynthetics in general and geotextiles in particular, suggests almost parallel efforts in The Netherlands, France, the United Kingdom, Germany, Austria, and Denmark. The competition was indeed “harsh”
and focused on different fabric types and even different polymers for the same Paris Conference
(66 papers) To 85 in 1977 50
40
30
20
10
0
Number of papers published
1940 1950 1960 1970 1980
Year of publication
Figure 1.1 Papers published with fabrics as the main topic area up to 1977.
Koerner, R.M., Welsh, J.P., 1980. Construction and Geotechnical Engineering Synthetic Fabrics, J. Wiley and Sons, NY, p. 267.
4 Geotextiles
applications. In this regard, it should be recognized that from the beginning, large chemical companies, eg, Enka/AKZO in Holland, Rhone-Poulenc in France, ICI in the United Kingdom, Chemie Linz in Austria, and DuPont in both the United Kingdom and Switzerland, became active throughout Europe with many innovative applications, sometimes even with the requisite testing and research. As will be seen, the major chemical companies were the original promoters of their products in the early days of geotextiles.
In The Netherlands,John (1987)reported that geotextiles werefirst used in 1956.
This stems directly from the need tofind innovative construction solutions for use on their massive Delta Works Scheme, which commenced immediately after the devas- tatingflood in 1953 (see Wikipedia for details of this horrific event). The use of woven geotextiles in coastal protection works became established during the early 1960s. In these protection works, woven geotextiles were used either in place of soil filters beneath wave protection systems or as a partial replacement for willow fascines in scour protection mattresses. Nonwoven, heat-bonded fabrics were used much later combined with high-strength wovens in foundation mats for bridge piers and dams.
The Dutch were also thefirst to conceive the idea of using two layers of geotextiles, stitch-bonded together at intervals, as a flexible formwork for cast-in-place concrete revetments. A British patent granted to H. J. F. Hillen of Holland in 1968 for this concept had a priority date of October 1964 (Koerner and Welsh, 1980).
High-strength woven geotextiles, mainly promoted by Enka/AKZO and TenCate/Nic- olon, were used on very soft saturated soils for what eventually became known as basal reinforcement (Hoogendoorn, 1977). Even further, the original concept of cardboard prefabricated vertical drains (PVDs) was changed to a thick needle-punched nonwoven geotextile and later to a polymer drainage core surrounded by a geotextilefilter/sepa- rator (Risseeuw and Elzen, 1977).
The Netherlands Geotextile Organization was one of thefirst professional organi- zations to bring together individuals in manufacturing, design, testing, and govern- mental agencies and was the forerunner of many more to come (Ogink, 1975; Van Santvoort, 1995).
In France, Giroud (1986) reported that Rhone-Poulenc began manufacturing needle-punched nonwoven fabrics from continuous filaments in the 1960s. Nonwo- vens in unpaved roads for separation and stabilization began in 1968. Shortly after- ward, fabric walls and dams (Kern, 1977) and embankments (Puig et al., 1977) were being constructed. Geotextilefilters for both an internal drain and upstream blan- ket were used in the Valcros dam (Giroud et al., 1977). This particular application has been revisited regularly and indicated excellent service provided over the years (see Loudiere (1977)for similar earth dam applications). Also, an interesting application of placing continuous polyesterfilaments along with sand to construct walls and slopes was developed and implemented (LaFlaive, 1984).
In the United Kingdom, the chemical firm of ICI was significant for introducing heat-bonded nonwoven fabrics to the civil engineering community beginning in the 1970s. This direct interaction with the nascent geotextile community was evidenced with the eventual publication of the 31-page manual entitled“Designing With Terram,”
which focused on its nonwoven spun-bonded fabric. It was a breakthrough document at
Early background and history of geotextiles 5
the time of publication. Also notable is that Prof. McGown at the University of Strath- clyde was one of the earliest academics involved with geotextile testing andfield imple- mentation, eg, fabrics in an unpaved road over a peak bog in Scotland (McGown and Ozelton, 1973). ICI sponsored research at universities; for example, in 1968 they cosponsored drainage research at the University of Connecticut with Healy and Long, who developed a plastic core surrounded by a nonwoven spun-bonded textile, calling it a“fin drain” (Hunt, 1982). The interesting aspect of using nonwovens as capil- lary breaks (even in arid regions for saltwater rise) was advanced in the 1970s by Clough and French (1982). Hillen received a British patent in 1968 for a shore protec- tion system using sand-filled textile bags and containers. Fabric-reinforced retaining walls have been used in the United Kingdom since the early 1970s to the point where published guidance on construction became available (Jones, 1982).
In Germany, early work by Prof. F.-F. Zitscher at the Technical University of Han- over was pivotal from both an academic and practical perspective. He guided the use of fabrics and sand bags in coastal engineering in the 1950s. He was also thefirst to pub- lish a book with a meaningful focus on geotextiles in hydraulic work and lent the emerging area status in central Europe (Zitscher, 1971). According to Heerten (2015), coastal engineers used sand-filled tubes for erosion protection, dike construc- tion, and dike closure along the North Sea coastline in the late 1960s. The fabrics were wovens from different resin types. In the 1970s, large German chemical com- panies (such as Hoechst, BASF, and Bayer) were entering the emerging nonwoven geotextile market directly. Also, textile manufacturing companies such as Huesker and NAUE began fabric production and assembled design teams leading to the rein- forcement of soft soils using high-strength woven fabrics and revetment design using very heavy nonwoven fabrics. Geotextile installations were greatly aided in Germany by governmental agencies for waterways, dam construction, highways, and railroads applications. The German Railroad (Deutsche Bahn) developed thefirst railroad test section using nonwoven needle-punched synthetic fabrics in 1971. Based onfield expe- rience, the Federal Waterways and Research Institute was the driving force in the early 1970s to consider geotextiles with special tests for robustness during installation and in service, eg, stone dumping and abrasion tests. In 1974, the“Bavarian Dam Construc- tion Office” started the construction of several rock fill dams up to 85 m high using a soil-cement improved core with an attached thick (1000-g/m2) nonwoven needle-punched syntheticfilter and drainage layer at the core. A monitoring program at the “Frauenau Damm” has shown excellent results during decades of service to date (List, 1987;Heerten, 1984). The involvement of governmental agencies provided instant credibility for private owners and developers to accept geotextile solutions for a growing list of applications. Even further, a revetment design incorporating thick needle-punched nonwoven fabrics was introduced to North America and Australia.
In Austria, the chemicalfirm of Chemie Linz began providing design, testing, and installation services using their needle-punched nonwoven polypropylene fabrics in the early 1970s. Many of the large chemical companies in Europe began to promote fabrics for civil engineering applications at the same time. Professor Brandl at the Technical University of Vienna was involved with Austrian geotextile developments (Brandl, 1977) throughout the early days and to the present. Examples of Austrian
6 Geotextiles
experiences in 1970 by Wandschneider (1986) for fabrics used to reinforce soft subgrade soils for highways and as early as 1973 for rail bedfiltration and drainage (Wehr, 1986; Lieberenz and Piereder, 2013) are notable advancements.
In Denmark, thefirm Aldek A.S. began filling flexible tubes with sand as early as 1957. They were granted a patent in 1967 and franchised their“Longard Tube System”
in Europe and then America. Clearly, this work was an early form of large geotextile tubes for erosion control and dewatering of river and harbor sediments (Zirbel, 1975).
Also in Denmark, thefirm of Christiani and Nielsen used grout-filled bags to establish the uniform bearing capacity of cast-in-place concrete foundations on irregular rock surfaces beneath a highway tunnel (ENR, 1967). The Danish company Fibertex A.S. is one of the pioneering textile companies with geotextile activities all over Europe; it supplies polypropylene nonwovens produced with a combination of needle punching and heat bonding.
In Belgium, Gyssels (1982)described undersea mattresses of woven geotextiles, fastened to willow fascines, to receive large stones dumped from barges for North Sea breakwaters in a similar manner as in Holland.
In Sweden, the concept of modern PVDs was invented in 1971 and was brought to its current status as described in a book byHoltz et al. (1991). In addition, in 1966, Wager, of the Swedish Geotechnical Institute, was innovative in using fabrics for un- paved roads, steep soil slopes, and over pile caps to support a bridge embankment (Holtz and Massarsch, 1976, 1993).
Other countries in Europe also had individual investigators working with geotex- tiles in civil engineering applications but often lacked the impetus given by large chem- ical companies which had the resources in both personnel and materials as mentioned.
1.3 Geotextiles in America
In his1966paper, Barrett describefieldwork beginning in the late 1950s that used geo- textiles behind precast concrete seawalls, under precast concrete erosion control blocks, beneath large stone rip-rap, and in other erosion control applications. His com- pany, Carthage-Mills, a manufacturer of polypropylene tent and awning fabrics, sup- plied the very open area (from 6% to 30%) monofilament fabrics that were used. He also tried to balance permeability and upstream soil retention empirically but in a qual- itative manner. A paper byAgerschou (1961)discussed hydraulic applications along the same general lines. After many years of unsuccessful promotion, Barrett teamed with the US Army Corps of Engineers research group in Vicksburg, Mississippi.
With the lead taken byCalhoun (1972), they developed tests for opening size, gradient ratio, and a complete“filter fabric” specification designated as CW-02,215 (Calhoun, 1977). These tests and others were augmented by the consultingfirm of STS at about the same time (Holtz and Christopher, 1990).
In a totally different application, the US Forest Service began using needle-punched nonwoven geotextiles as wraparound walls in steep logging terrain in the Pacific North- west in 1974. The fabric rolls were sometimes delivered by helicopters.
Geotextile-reinforced embankments were constructed in Alaska beginning in 1975
Early background and history of geotextiles 7
(Bell et al., 1977). This work culminated in the first US Federal Highway Administration design and construction guidelines (Steward et al., 1977; Bell et al., 1975; Mohney, 1977; Steward et al., 1977; Bell and Steward, 1977). An altogether different application was developed in 1966 by Phillips Petroleum Co. using field bitumen-saturated nonwoven needle-punched fabrics to control reflective cracking in asphalt pavement overlays (Dykes, 1985).
In the early 1970s, applications with nonwovens began with the DuPont Company using carpet backing (also called“road rugs”) for unpaved road applications. The fab- ric was a nonwoven, heat-bonded, continuous filament polypropylene fabric. (See Chen et al. (1981) for an early paper describing the process and some applications).
At about the same time, Celanese Corp. began importing an ICI fabric from England.
The individualfilaments had an unusual composite fiber structure consisting of a poly- propylene core surrounded by a polyethylene sheath. The latter was heat bonded for stiffness, stability, and patent avoidance. Other large chemical companies, similar to those in Europe, become heavily involved. Exxon Chemicals Co. manufactured woven slit (split) fabrics which had excellent strength to weight characteristics and were used for both roadway stabilization and as silt fences. Crown Zellerbach Co. (a major diaper manufacturer) started marketing the first needle-punched nonwovens for use in sec- ondary roads and wraparound retaining walls. Monsanto Textiles Co. introduced a polyester spun-bonded nonwoven focusing on railroad applications. They also spon- sored academic research to North Carolina State University whereas Celanese Corp.
sponsored work at the University of Illinois. However, all of these nonwoven fabrics were introduced into the US market after similar fabrics in Europe. The US chemical companies also had technical literature in the form of brochures and manuals, which were excellent tutorials with illustratedfield applications and examples.
As with thefiltration fabrics mentioned earlier, the Corps of Engineers was again pivotal in the testing, design, and construction of high-strength woven geotextiles for use in reinforcing embankments and dikes on extremely soft subgrades. The activity was prompted by 1976 Public Law 94e587, which required the increased ca- pacity and the extended useful life of dredged materials. Shortly thereafter, work in Norfolk, Virginia at Craney Island and then Mobil Harbor in Alabama implemented high-strength geotextiles up to 250 kN/m (Fowler, 1985). This work was significant in that traditionally conservative geotechnical engineers witnessed major projects relying completely on these relatively new construction materials. Work by the Cold Regions Laboratory of the Corps of Engineers resulted in membrane-encapsulated soil layers for use in frost-sensitive soils in unpaved roads (Smith and Pazsint, 1975).
Artificial seaweed tufted into a multifilament woven fabric was developed in 1965 by Sun Oil Co. and used to encourage sand buildup in the seabed and prevent further erosion. Both Nicolon and ICI followed with similar applications in the late 1960s (Brashears and Dartnell, 1967). Silt fences, both on sloping gravel surfaces and under- water, were developed by Erosion Control Co., Burlington Industries, and the Mirafi Co. in the late 1960s (Koerner and Welsh, 1980).
Terzaghi and Lacroix (1964) used concrete-filled woven nylon flexible forms to close an irregular surface between steel sheeting and a rock abutment surface of a dam in Canada (Mission Dam, later renamed Terzaghi Dam). This application began
8 Geotextiles
numerous variations for specific applications using fabrics as flexible forms. Fabriform by Construction Techniques, Inc., consisted of two fabrics stitch bonded together at intervals for erosion control mattresses. Many variations followed, such as Hydro-Lining, VSL mats, Terrafirma, Gobimat, Terrafix, and Dura-Bags (Koerner and Welsh, 1980).Karim (1975)used similar mattresses for scour protection around bridge piers. Other similar applications are underpinning bridge piers, tunnel support (ENR, 1967), underpinning caissons, restoring pile foundations (Kupfer, 1969), and columns for mine and cavern stability (Welsh, 1975). Koerner and Welsh (1980) include 21 patents granted for similar applications between 1963 and 1976. Finally, a technique to reduce or eliminate negative skin function on pile foundations using fabric-wrapped bitumen slip layers was another concept inflexible fabric-forming sys- tems (Koerner and Mukhopadhyay, 1972).
Thefirst government-financed large research proposal was granted by the US Federal Highway Administration to Professors Bell and Hicks of Oregon State University in 1974. It was a significant undertaking which brought the emerging fabric technology to many geotechnical engineers. Other academics involved in the early years were Prof. Marks at the University of Tennessee (1975) andProf. Barenberg (1975) at the University of Illinois.
1.4 Geotextiles in other countries
Geotextile research and development leading to field installations was ongoing in many countries other than those mentioned before the Paris Conference in 1977. To name but a few,field installations in roadways, railroads, and retaining walls were be- ing made successfully in Japan (Tatsuoka et al., 1986; Fukuoka, 1986). In Canada, thick needle-punched nonwoven geotextiles have been used asfilters/separators in rail- road ballast since the early 1970s (Raymond, 1982). Since 1971, needle-punched non- wovens from continuous filaments have been produced in Brazil and South Africa.
Also in South Africa, geotextiles have been used with success as filter drains for several slime dams from gold mining operations since the early 1970s (Scheurenberg, 1982). In Australia,Lawson and Ingles (1975)reported on bitumen-sealed geotextiles to encapsulate water-sensitive and friable soils for unpaved roads.
1.5 Geotextiles become ubiquitous
By the late 1970s, chemical,fiber, and fabric manufacturers were transporting fabrics to all countries of the world (Fig. 1.2). At that time more technical papers were becoming available but one still had to be diligent in a search to ferret out specific information (recallFig. 1.1in this regard). There were no dedicated journals, specialized confer- ences (except for Paris in 1977, at which time this review ends), designfirms, testing firms, regulatory agencies focusing on geotextiles, etc. In this regard, the large chemical companies indeed “made the industry” in those formative years.Table 1.1 lists the
Early background and history of geotextiles 9
Geotextiles still little-used Influence of woven technology
Influence of non-woven technology
Pakistan India
China
Thailand
First paper 1961 much woven development in late 60s 5 years
influence
4 years influence
1966 conference in Japan
Direct American influence not strong in Asia
Late 70s UK non-woven influence into USA
9 years influence into Europe
Australian wovens begin to penetrate UK by 1978
Mid 70s non-woven melded fabric developed in UK
USSR
Late 70s Australia introduce UK non-wovens into Indonesia Use of
wovens in early and mid 70s in Singapore
Late 70s UK non-wovens penetrate Malaysia and Singapore
S. America
Mid 70s UK influence non-wovens strongly into Australia
Mid 70s development of non-wovens in Europe Late 70s strong French influence into Africa non-wovens
East Africa
Late 70s UK influence into S. Africa
By the mid 1980s it is expected that all countries will have become aware of the wide range of woven and non- woven membranes available for engineering design.
Extensive UK influence into the Middle East late 70s
Figure 1.2 Worldwide development and movement of geotextiles up to the late 1970s.
Rankilor, P.R., 1981. Membranes in Ground Engineering, Wiley and Co., London, England, p. 377.
10Geotextiles
Table 1.1
Fibers and fabrics of major chemical companies available before about 1977
Company Country Resin Type Trademark
Amoco United States PP Woven Propex,
Amopave
Bay Mills Canada FG Woven B.M. Midland
Burlington United States Nylon Woven Easy-Fencin’
Celanese United States PET Nonwoven Fortrel
Chemie Linz Austria PP Nonwoven Polyfelt
Crown Zellerbach United States PP Nonwoven Fibertex
Don and Low United Kingdom PP Woven Lotrak
DuPont United States and
United Kingdom
PP/PET Nonwoven Typar
Enka United States PET Nonwoven Stabilenka
Exxon United States PP Woven GTF
Enka/AKZO Holland PET Woven Various
Fibertex United Kingdom PP Nonwoven Fibertex
Foss United States PET Nonwoven Geonet
Hoechst United States and Germany
PET Both types Syntex
Huesker Germany Various Woven HaTe
ICI United Kingdom PET Woven Terram
Kenross-Naue Canada and United States
PP and PET Nonwoven Terrafix
Mirafi/Celanese United States PP and PET Both types Mirafi
Monsanto United States PET Nonwoven Trevira
NAUE Germany PET and PP Nonwoven Terrafix
Nicolon Holland PP and PE Woven Various
Nicolon United States PP Woven Geolon
NW fabrics United States PET Nonwoven Polytex
Phillips United States PP Both types Supac
Rhone-Poulenc France PET Nonwoven Bidim
Texel Canada PP and PET Both types Texel
UCO Holland PP and PET Both types Geotex
PET, poly(ethylene terephthalate); PP, polypropylene.
Early background and history of geotextiles 11
names of these companies, their primary location, the fabric resin and type, and product trademark by the end of the 1970s. Those of us who followed owe all of these com- panies a sincere debt with regard not only to geotextiles but indeed to all geosynthetics.
Interestingly, Rankilor predicted in his 1981 book that “by the mid 1980s it is expected that all countries will have become aware of the wide range of woven and nonwoven fabrics available for engineering design.” Indeed, this did become the case!
Acknowledgments
Sincere appreciation is expressed to Dr. Robert D. Holtz, Professor Emeritus of the University of Washington, United States, and Prof. Dr. Ing. Georg Heerten, Hon. Professor RWTH, Aachen, Germany, for their careful and constructive review of the chapter.
We also thank the many sponsoring organizations of the Geosynthetic Institute (GSI) for their ongoingfinancial support. This chapter is part of the ongoing publications activity at the institute. Current GSI member organizations and their contact members are available on the in- stitute’s Web site atwww.geosynthetic-institute.org. Board of director members are also listed accordingly.
References
Agerschou, H.A., February 1961. Synthetic materialfilters in coastal protection. Journal of the Waterways and Harbors Division, ASCE 87 (WW1), 111e124.
Barenberg, E.J., 1975. Evaluation of Soil-Aggregate Systems with Mirafi. Univ. Illinois Report.
Barrett, R.J., September 1966. Use of plasticfilters on coastal structures. In: Proc. 16th Intl.
Conf. on Coastal Engineering, Tokyo, pp. 1048e1067.
Beckham, W.K., Mills, W.H., October 3, 1935. Cotton-Fabric-Reinforced Roads. Engineering News Record, pp. 453e455.
Bell, J.R., Greenway, D.R., Vischer, W., 1977. Construction and analysis of a fabric reinforced low embankment. In: C. R. Coll. Int. Sols Textiles, Paris, France, pp. 71e75.
Bell, J.R., Hicks, A.B., 1974. Evaluation of Test Methods and Use Criteria for Filter Fabrics.
FHWA Grant DOT-FH-11-9353.
Bell, J.R., Stilley, N., Vandre, B., 1975. Fabric retained walls. In: Proceedings of the 13th Annual Engineering Geology and Soil Engineering Symposium, Moscow, Idaho, pp. 271e287.
Bell, J.R., Steward, J.E., 1977. Construction and observations of fabric retained soil walls.
In: C. R. Coll. Int. Sols Textiles, vol. 1, pp. 123e128.
Brandl, H., 1977. Die Verwendung von Kunststoffvliesen im Tiefbau. €OIAV, Heft 68, Wien.
Brashears, R.L., Dartnell, J.J., October 1967. Development of the Artificial Seaweed Concept.
Shore and Beach.
Calhoun, C.C., June 1972. Development of Design Criteria and Acceptance Specification for Plastic Filter Cloths. Technical Report. U.S. WES, Vicksburg, Mississippi, 22 p.
Calhoun, C.C., November 1977. Plastic Filter Fabrics. Guide Specification No. CW-02215. U.S.
Army COE, Vicksburg, Mississippi.
Chen, Y.H., Simons, D.B., Demery, P.M., September 1981. Laboratory testing of plasticfilters.
Journal of the Irrigation and Drainage Division, ASCE 107 (IR3).
12 Geotextiles
Clough, I.R., French, W.J., 1982. Laboratory andfield work relating to the use of geotextiles in arid regions. In: Proc. 2nd Intl. Conf. on Geotextiles, Las Vegas, NV, pp. 447e452.
Dykes, J., June 4e5, 1985. Paving fabrics with asphalt overlays. In: Proc. Geotechnical Fabrics Conference, IFAI, Cincinnati, USA, pp. 153e156.
Engineering News Record, November 9, 1967. Six-Lane Tunnel Sits on Sacks of Grout, pp. 104e105.
Fowler, J., June 4e5, 1985. Fabric-reinforced dikes; Craney island. In: Proc. Geotechnical Fabrics Conference. IFAI Publ, pp. 119e128.
Fukuoka, M., 1986. Fabric retaining wall with multiple anchors. In: Proc. 3rd Intl. Conf. on Geotextiles, Vienna, Austria, pp. 435e440.
Giroud, J.-P., 1986. From geotextiles to geosynthetics: a revolution in geotechnical engineering.
In: Proc. 3rd Intl. Conf. On Geotextiles, Vienna, Austria, pp. 1e18.
Giroud, J.-P., Gourc, J.-P., Bally, P., Delmas, P., 1977. Behavior of a nonwoven fabric in an earth dam. In: C. R. Coll. Int. Sols Textiles, Paris, France, pp. 213e218.
Gyssels, E., 1982. The exposure of the Belgian Zeebrugge harbour in the sea and the use of woven geotextiles. In: 2nd Intl. Conf. on Geotextiles, Las Vegas, NV, pp. 229e234.
Heerten, G., 1984. Geotextiles in coastal engineeringe 25 years experience. Geotextiles and Geomembranes 1, 119e141.
Heerten, G., 2015. History and current state of geosynthetic applications in Germany. In: Proc.
10th Intl. Conf. on Geosynthetics, Berlin, Germany, 30 p. (on CD).
Hillen, H.J.F., 1968. A Protective Facing Particularly for Shore Protection. Brit. Pat. No.
1111453.
Holtz, R.D., Christopher, B.R., 1990. In remembrance of Robert J. Barrett (1924e1990).
Geotechnical News 8 (3), 41.
