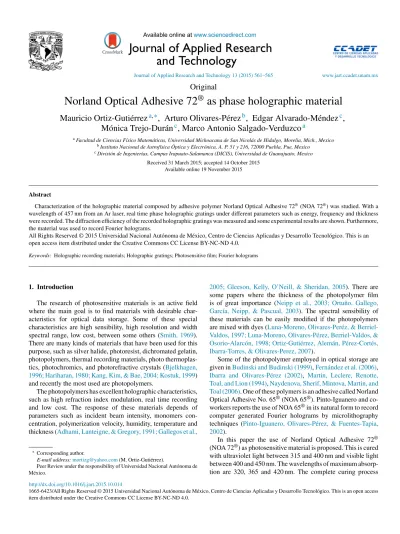

Availableonlineatwww.sciencedirect.com

Journal of Applied Research and Technology

www.jart.ccadet.unam.mx JournalofAppliedResearchandTechnology13(2015)561–565

Original

Norland Optical Adhesive 72 ® as phase holographic material

Mauricio Ortiz-Gutiérrez

a,∗

, Arturo Olivares-Pérez

b

, Edgar Alvarado-Méndez

c

, Mónica Trejo-Durán

c

, Marco Antonio Salgado-Verduzco

a

aFacultaddeCienciasFísicoMatemáticas,UniversidadMichoacanadeSanNicolásdeHidalgo,Morelia,Mich.,Mexico

bInstitutoNacionaldeAstrofísicaÓpticayElectrónica,A.P.51y216,72000Puebla,Pue,Mexico

cDivisióndeIngenierías,CampusIrapuato-Salamanca(DICIS),UniversidaddeGuanajuato,Mexico Received31March2015;accepted14October2015

Availableonline19November2015

Abstract

CharacterizationoftheholographicmaterialcomposedbyadhesivepolymerNorlandOpticalAdhesive72®(NOA72®)wasstudied.Witha wavelengthof457nmfromanArlaser,realtimephaseholographicgratingsunderdifferentparameterssuchasenergy,frequencyandthickness wererecorded.Thediffractionefficiencyoftherecordedholographicgratingswasmeasuredandsomeexperimentalresultsareshown.Furthermore, thematerialwasusedtorecordFourierholograms.

AllRightsReserved©2015UniversidadNacionalAutónomadeMéxico,CentrodeCienciasAplicadasyDesarrolloTecnológico.Thisisan openaccessitemdistributedundertheCreativeCommonsCCLicenseBY-NC-ND4.0.

Keywords:Holographicrecordingmaterials;Holographicgratings;Photosensitivefilm;Fourierholograms

1. Introduction

The researchof photosensitivematerials is an active field wherethe maingoalis tofind materialswithdesirable char- acteristics for optical data storage. Some of these special characteristics are highsensibility, highresolution andwidth spectralrange, lowcost,betweensomeothers(Smith, 1969).

Therearemanykindsofmaterialsthathavebeenusedforthis purpose,suchassilverhalide,photoresist,dichromatedgelatin, photopolymers,thermalrecordingmaterials,photothermoplas- tics,photochromics,andphotorefractivecrystals(Bjelkhagen, 1996;Hariharan,1980;Kang,Kim,&Bae,2004;Kostuk,1999) andrecentlythemostusedarephotopolymers.

Thephotopolymershasexcellentholographiccharacteristics, suchas highrefractionindexmodulation,realtimerecording and low cost. The response of these materials depends of parameters such as incident beam intensity, monomers con- centration,polymerizationvelocity,humidity,temperatureand thickness(Adhami,Lanteigne,&Gregory,1991;Gallegosetal.,

Correspondingauthor.

E-mailaddress:[email protected](M.Ortiz-Gutiérrez).

PeerReviewundertheresponsibilityofUniversidadNacionalAutónomade México.

2005; Gleeson,Kelly,O’Neill, &Sheridan, 2005).There are some papers where the thickness of the photopolymer film is of great importance (Neipp et al., 2003; Ortu˜no, Gallego, García, Neipp, & Pascual, 2003). The spectral sensibility of these materials can be easily modified if the photopolymers aremixedwithdyes(Luna-Moreno,Olivares-Peréz,&Berriel- Valdos,1997;Luna-Moreno,Olivares-Pérez,Berriel-Valdos,&

Osorio-Alarcón,1998;Ortiz-Gutiérrez,Alemán,Pérez-Cortés, Ibarra-Torres,&Olivares-Perez,2007).

Someofthephotopolymeremployedinopticalstorageare giveninBudinskiandBudinski(1999),Fernándezetal.(2006), Ibarra and Olivares-Pérez (2002), Martin, Leclere, Renotte, Toal,andLion(1994),Naydenova,Sherif,Mintova,Martin,and Toal(2006).OneofthesepolymersisanadhesivecalledNorland OpticalAdhesiveNo.65®(NOA65®).Pinto-Iguaneroandco- workersreportstheuseofNOA65®initsnaturalformtorecord computer generated Fourier holograms by microlithography techniques (Pinto-Iguanero, Olivares-Pérez,& Fuentes-Tapia, 2002).

In this paper the use of Norland Optical Adhesive 72® (NOA72®)asphotosensitivematerialisproposed.Thisiscured withultravioletlightbetween315and400nmandvisiblelight between400and450nm.Thewavelengthsofmaximumabsorp- tion are 320, 365 and 420nm. The complete curing process

http://dx.doi.org/10.1016/j.jart.2015.10.014

1665-6423/AllRightsReserved©2015UniversidadNacionalAutónomadeMéxico,CentrodeCienciasAplicadasyDesarrolloTecnológico.Thisisanopenaccess itemdistributedundertheCreativeCommonsCCLicenseBY-NC-ND4.0.

(2)

requires5Jofenergyintherangefrom315to450nm(Norland Products, 2015). To characterize the photosensitive material phaseholographicgratings(PHG)usingalightbeamwithan argonlaser wavelength of 457nmwere recorded. Diffraction efficiency(DE)ofholographicgratingsrecordedusingabeam of He–Ne laserwas measured.The materialdoes notrequire preparation processes or developingprocesses. An important property of the adhesive is its transmittance spectrum inthe range400–1200nm,whichmakesthismaterialidealforman- ufacturing diffractive phase elements. Also in thispaper, the results obtained when recordingFourier hologramsof binary objectsarealsopresented.

2. NOA72®properties

Thetypicalapplicationsofthispolymerisforputtinglenses inmetalmounts,boundingplastictoglassandcoldblockingby meansofthecuredprocess.SomepropertiesofpolymerNOA 72®aredescribedinNorlandProductsIncorporate(1999).

Thepolymer-curedprocessdependsoftheintensityandthe wavelengthofUVradiation.BeforeexposurethepolymertoUV radiation,theadhesiveisinliquidstatebecausethemonomers and photo initiators will not react with each other. When is exposedtoUVthephotoinitiatorsundergoachangecreating freeradicalsthatreactwithmonomerscreatingmonomerchains.

Inthecuredstate,themonomerchainsconverttocross-linked polymerchains.InNorlandProductsIncorporate(1999)appear typicalanswersofpre-cureandfullcureprocessofthe NOA 72®.

3. Photosensitivefilmfabrication 3.1. Preparationofthephotosensitivecells

The NOA 72® is deposited in cells manufactured by two glassplatesseparatedbytwoacetateplasticfilmsplacedatits sideends.Different cellsweremanufacturedbychangingthe thicknessoftheseparatorfilm.Thethicknessoftheplasticfilm usedwas110,220and330␮mandweremeasuredwithdigital micrometerfromMitutoyomodelIP65.Cellsareclampedby twoofitslateralendsleavingopentopandbottom.Thecellis positionedvertically toallowthepolymertobeplacedatthe top,andbygravity,thepolymerfillsthecell.

3.2. Experimentalsetup

TorecordthePHGinphotosensitivecell,theexperimental arrangementshowninFigure1isusedand,as noted,abeam of lightfromanArlaser passesthroughabeam splitter(BS) andsent two beams of light to the mirrorsM1 andM2.The M1 andM2 mirrors deflectthe beamstoward themirror M3. Thismirrorplacedat45fromthehorizontaldeflectsthebeams towardthephotosensitivecellwheretheyoverlapandgenerate aninterferencepatternthatisrecorded.Thephotosensitivecell isplacedhorizontallytoavoiddamagefrompossiblerunoffof thepolymer.

Diffraction orders

–1 0 +1

Ar laser λ = 457 nm

BS

He-Ne laser λ = 632.8nm

Photosensitive cell

M1

M3

M2

θ

Figure1.Opticalsetupemployedtorecordholographicgrating.Abeamfrom Arlasercreatesaninterferencepatternonthephotosensitivefilm.Thebeamfrom He–Nelaserreadsthegratinganddiffractsthreelightspotscalleddiffraction ordersandwiththephotodetectortheDEismeasured.

TomeasuretheDEofPHGrecordedabeamoflightfroma He–Nelaserisused.Figure1showsthatthelaserbeamincident ontheareainwhichthegratingisrecordedproducesdiffraction patternwhichconsistsofbrightspotscalleddiffractionorders.

The central brightspotis calledzero-order, side brightspots are called diffractionorders +1 and−1. DE, expressed as a percentage,isdefinedastheratiooftheintensityofthe+1(or

−1)diffractionorderandtheintensityoftheincidentbeamas showninthefollowingequation.

DE=100 I1

Ii+Ir (1)

whereI1isthe+1diffractedorderintensity,Iitheincidentbeam intensityandIristhereflectedbeamintensity.Inthisequation weareconsideringtheFresnellossesbecauseofthereflection onthephotosensitivecell.

3.3. ModulationoftherefractionindexbyKogelnik’stheory BasedontheDEmeasuredvalues,themodulationamplitude oftherefractionindexncanbecalculatedusingtheKogelnik theory(Kogelnik,1969)accordingtothenextequation

= λcosθarcsin√ DE

πd (2)

wheredisthegratingthickness,λisthereadingbeamwave- lengthandθistheincidentangleofthereadingbeam.

3.4. Fourierholograms

AlsoFourierhologramswererecordedinthismaterialwith goodresults.Figure2showstheexperimentalsetupforrecor- dingFourierhologramsthatareformedbytheinterferenceof two light beams, one of them called reference beam comes directlyfromalaser,andtheotherbeamcalledobjectbeam,is

(3)

Ar laser λ = 457 nm

BS BE BO

Object beam Reference beam

Photosensitive cell

M1

M3

M2 L1

L2

Figure2.Schematicrepresentationoftheexperimentalsetupusedforrecording Fourierhologramsofbinaryobjects.

theFouriertransformofabinaryobjectilluminatedbyaplane wave.ThelightbeamreflectedinthemirrorM2passesthrough abeamexpanderBEtogeneratesphericalwave.Thiswaveis collimatedbythelensL1 placedatitsfocallength oftheBE andgenerates aplane wave.This plane waveilluminates the objectlocatedinthefocalplaneofthelensL2andperformsthe Fouriertransformontheplanewherethephotosensitivecellis placedandgeneratestheinterferencepatternwiththereference beam.

ToreconstructtheimagerecordedintheFourierhologram, itisilluminatedwiththesamelightbeamwasusedasreference beam.InFigure3aschemeforreconstructionofFourierholo- gramsisshown.InthisschemealightbeamfromaHe–Nelaser isincidentonthephotosensitivecellwhereFourierhologram wasrecorded.Thebeam isdiffractedas itpassesthrough the materialandinaremotedisplaytherealandconjugateimages areformed.

Screen

UMSN H

UMSNH

Fourier hologram

He-Ne laser

Conjugate image Real image

Central bright

spot

Figure3.Representationoftheexperimentalsetupusedforthereconstruction ofaFourierhologram.

18

16

14

12

10

8

6

4

2

0

2 4 6 8 10 12

Energy (J/cm2)

DE (%)

14 16 18

Grating frequency:

153 lines/mm Sample thickness:

110 μm 220 μm 330 μm

Figure4.Graphofthediffractionefficiency(DE)vs.exposureenergy.The maximumDEisobtainedwiththe330␮mthicknesscellandis17.5%.

4. Results

TorecordthePHGinNOA72®alightbeamwasusedwith λ=457nmofamultilineArlaser.Thislineisusedbecauseitis theclosesttothewavelengthofmaximumabsorbance(420nm) (NorlandProducts,2015).Tomeasurethediffractionefficiency ofholographicgratingslaserHe–Neisusedwithλ=632.8nm.

ThisemissionlineisusedbecausetheNOA72®isnotsensi- tivetothiswavelengthandthusdoesnotaffecttheregistration process.ThetwolightsourcesarefromCoherent;Arlaserhas avariableoutputpowerandHe–Nelaserhasanoutputpower of5mW.

PHGwasrecordedineachofthecellsatroomtemperature;

theangle betweenbeamswas2sothatthespatialfrequency of theholographicgratingsis153lines/mm, andaccordingto our measurements, the estimated frequencyerror is 3%. The DEwasmeasuredwithanopticalpowermeterNewportModel 2930C.Cellthicknesswasmeasuredwithadigitalmicrometer fromMitutoyomodelIP65.

TheDEoftherecordedPHGisshowninFigure4andasis shownthevaluesofDEaredifferentforeachPHG.ThePHG recordedinthecellof330␮mhaslargeDEandreaches17.5%

whilethePHGrecordedonthephotosensitivecellwith220␮m thicknesshasamaximumDEof4.3%.LowerDEwasobtained withthecell110␮mandislessthan1%.

Thicknessisanimportantparameterinthisadhesiveasshown inFigure4.Thematerialhasanonlinearbehaviorwithrespect toenergyexposure.Theenergyrequiredfortheseresultsisvery high because the material was exposed tothe wavelength of 457nmandthepeakabsorbancenearestisat420nmandisof theorderof1%.

AfterthepolymerhasbeenexposedandthePHGisrecorded, changesitsphasefromliquidtosolidandremainsinthisstate withoutreturningtoitsliquidphase.

Using the results of the diffraction efficiency shown in Figure 4the refractiveindexmodulation accordingtoKogel- nik theory is calculated. The refractive indexmodulation for

(4)

0.00000 0.00003 0.00006 0.00009 0.00012 0.00015 0.00018 0.00021 0.00024 0.00027

2 4 6 8 10 12

Energy (J/cm2)

Δn

14 16 18

Sample thickness 110 μm 220 μm 330 μm

Figure5. Refractionindexmodulationforthedifferentsamplethicknesses.The valuesareobtainedfromDEresultsaccordingto Kogelnikformulaforthe 153lines/mmgrating.

holographicgratingsrecordedinthedifferentcellsisshownin Figure5.

PHGis recorded bymodulation of the refractiveindexso thatmaterialshowsphasemodulation.Figure5showsthatthe photosensitivecellswithdifferentthicknesswhichwereexposed tothesameenergyhavedifferentmodulation.Cellswithhigher volumehavemorefreeradicalsthatinteractinthecross-linking processproducinghighermodulationoftherefractiveindex.

Anotherimportantparameterforholographicgratingsisthe spatialfrequencythatcanbemodifiediftheinterferenceangleis changed.ThischangecangeneratePHGofdifferentfrequency.

Theanglebetweenthebeamsischangedsothattheinterference patternsgeneratedhavedifferentspatialfrequency.Intheexper- imentalarrangementshowninFigure1theanglewaschanged toproduceholographicgratingswithspatialfrequencyof153, 191,382and570lines/mm.

Accordingtothe resultsofthediffractionefficiencyofthe holographic grating recorded in the cell of 330␮m, one can observethatitisthebestcellforholographicrecording.Inthis

18

16

14

12

10

8

6

4

2

0

2 4 6 8 10 12

Energy (J/cm2)

DE (%)

14 16 18

330 μm sample thickness Grating frequency:

153 lin/mm 191 lin/mm 382 lin/mm 571 lin/mm

Figure6.Graphofthediffractionefficiency(DE)vs.exposureenergy.The maximumDEisobtainedforthespatialfrequency153lines/mm.

0.00000 0.00005 0.00010 0.00015 0.00020 0.00025 0.00030

2 4 6 8 10 12

Energy (J/cm2)

Δn

14 16 18

Grating frequency 153 lin/mm 191 lin/mm 382 lin/mm 571 lin/mm

Figure7.Graphoftherefractiveindexmodulationforallgratingswithdifferent spatialfrequency.

sense,thiscellisusedtorecordtheholographicgratingswith differentspatialfrequencyandtheresultsareshowninFigure6.

Thehighestdiffractionefficiencyisobtainedfortheholographic gratingof153lines/mmand,asalreadymentioned,hasavalue of17.5%.Forthegratingswithspatialfrequencyof191,382, and571lines/mmDEisverylow.Theseresultsindicatethatthe materialhasalowresolution.

Consideringtheresultsofthediffractionefficiencyshownin Figure6,inFigure7therefractiveindexmodulationisshown.

The refraction index variation (n) by Kogelnik’s theory wereobtainedbythedataofFigures5and7,asafunctionof energy,whichisimplicitlyrelatedtodiffractionefficienciesand the optimumspecificthicknessesfromcellemulsionsformed withNOA72®.

ForrecordingtheFourierhologram,arrangementshownin Figure2wasused.Theangleof2andthephotosensitivecell with thicknessof 330␮mwas used becausethese conditions were the best results obtained. Once Fourier holograms are recorded,thearrangementshowninFigure3wasusedtorecon- structtheimageswithaHe–Nelaser.Theimageswerecaptured withaCCDcameraandareshowninTable1.

IntheleftcolumnofTable1picturesofsomeofthebinary objects used to make its Fourier hologram are shown. Right

Table1

ListofbinaryobjectsandrealimagesreconstructedfromFourierholograms.

AcronymandlogooftheUniversidadMichoacanadeSanNicolásdeHidalgo wereusedasbinaryobjects.

Binaryobjects Realimages

(5)

column of Table 1 shows the photograph of the real image obtainedinthereconstructionoftheFourierhologramfromone ofthediffractedordersoftheconjugatepair.

5. Conclusions

The polymeradhesiveNOA 72® is agood photosensitive materialsuitableforrecordingholographicphasegratings.Grat- ingsrecording areperformed by modulationof the refractive indexandreachmaximumdiffractionefficiencyof17.5%with acellthicknessof330␮m.

Thephaseholographicgratingthatisrecordedinthismate- rialhaslowresolutionwith153lines/mm.Thewavelengthused isλ=457nmfromanArlaser.Tomeasurethediffractioneffi- ciencyalightbeam of λ=632.8nm fromaHe–Ne laserwas used. Beforeregistration process the polymer is inits liquid phaseandattheendoftheregistrationprocessbecomessolid.

Besidestherecordedholographicgratingsisalsopossibleto recordFourierhologramsofbinaryobjects.Notrequirecomplex proceduresforpreparationofsamplesandrequiresnodevelop- mentprocesses.

Conflictofinterest

Theauthorshavenoconflictsofinteresttodeclare.

References

Adhami,R.R.,Lanteigne,D.J.,&Gregory,D.A.(1991).Photopolymerholo- gramformationtheory.MicrowaveandOpticalTechnologyLetters,4(3), 106–109.

Bjelkhagen,H.I.(1996).Selectedpapersonholographicrecordingmaterials.

SocietyofPhotoOptical,130.

Budinski,K.G.,&Budinski,M.K.(1999).Engineeringmaterialsproperties andselection.NewJersey,USA:PrenticeHall.

Fernández,E.,García,C.,Pascual,I.,Ortu˜no,M.,Gallego,S.,&Beléndez,A.

(2006).Optimizationofathickpolyvinylalcohol–acrylamidephotopolymer fordatastorageusingacombinationofangularandperistrophicholographic multiplexing.AppliedOptics,45(29),7661–7666.

Gallego,S.,Ortu˜no,M.,Neipp,C.,Márquez,A.,Beléndez,A.,Pascual,I., etal.(2005).3dimensionalanalysisofholographicphotopolymersbased memories.OpticsExpress,13(9),3543–3557.

Gleeson,M.R.,Kelly,J.V.,O’Neill,F.T.,&Sheridan,J.T.(2005).Recor- dingbeammodulationduringgratingformation.AppliedOptics,44(26), 5475–5482.

Hariharan,P.(1980).Holographicrecordingmaterials:Recentdevelopments.

OpticalEngineering,19(5),195636.

Ibarra,J.C.,&Olivares-Pérez,A.(2002).Newholographicrecordingmaterial:

Bromothymolbluedyewithrosin.OpticalMaterials,20(1),73–80.

Kang,D.J.,Kim,J.K.,&Bae,B.S.(2004).Simplefabricationofdiffraction gratingsbytwo-beaminterferencemethodinhighlyphotosensitivehybrid sol–gelfilms.OpticsExpress,12(17),3947–3953.

Kogelnik,H.(1969).Coupledwavetheoryforthickhologramgratings.Bell SystemTechnicalJournal,48(9),2909–2947.

Kostuk,R.K.(1999).DynamichologramrecordingcharacteristicsinDuPont photopolymers.AppliedOptics,38(8),1357–1363.

Luna-Moreno,D.,Olivares-Peréz,A.,&Berriel-Valdos,L. R.(1997).Pho- toresistShipley® 1350-Jwithcrystalviolet®tintforholographicoptical elements.OpticalMaterials,7(4),189–195.

Luna-Moreno,D.,Olivares-Pérez,A.,Berriel-Valdos,L.R.,&Osorio-Alarcón, F.(1998).Rosinresinwithcrystalviolet®tint.OpticalMaterials,11(1), 95–100.

Martin,S.,Leclere,P.E.,Renotte,Y.L.,Toal,V.,&Lion,Y.F.(1994).Charac- terizationofanacrylamide-baseddryphotopolymerholographicrecording material.OpticalEngineering,33(12),3942–3946.

Naydenova,I.,Sherif,H.,Mintova,S.,Martin,S.,&Toal,V.(2006).Holographic recordinginnanoparticle-dopedphotopolymer.InHolography2005:Inter- nationalconferenceonholography,opticalrecording,andprocessingof information.pp.625206.InternationalSocietyforOpticsandPhotonics.

Neipp,C.,Gallego,S.,Ortu˜no,M.,Márquez,A.,Alvarez,M.L.,Beléndez,A., etal.(2003).First-harmonicdiffusion-basedmodelappliedtoapolyvinyl- alcohol–acrylamide-basedphotopolymer.JournaloftheOpticalSocietyof AmericaB,20(10),2052–2060.

NorlandProductsIncorporated.(1999).NorlandOpticalAdhesive65.Catalog 0906-S01.0906-S02.

Norland Products. (2015). Norland Optical Adhesive 72. https://www.

norlandprod.com/adhesives/NOA%2072.html(23.01.15)

Ortiz-Gutiérrez,M., Alemán,K.,Pérez-Cortés,M.,Ibarra-Torres, J.C.,&

Olivares-Perez, A.(2007).Polyvinyl alcohol andcrystal violetas pho- tosensitivefilm. InIntegratedoptoelectronicdevices2007. pp.648819.

InternationalSocietyforOpticsandPhotonics.

Ortu˜no,M.,Gallego,S.,García,C.,Neipp,C.,&Pascual,I.(2003).Holographic characteristicsofa1-mm-thickphotopolymertobeusedinholographic memories.AppliedOptics,42(35),7008–7012.

Pinto-Iguanero,B.,Olivares-Pérez,A.,&Fuentes-Tapia,I.(2002).Holographic materialfilmscomposedbyNorlandNoa65®adhesive.OpticalMaterials, 20(3),225–232.

Smith,H.M.(1969).Principlesofholography.NewYork,USA:JohnMWiley

&Sons.
