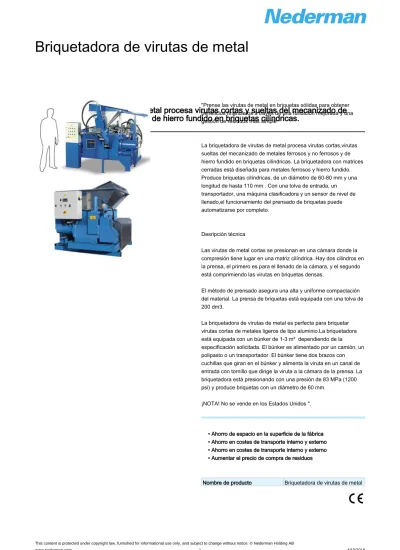

La briquetadora de virutas de metal procesa virutas cortas y sueltas del mecanizado de
metales ferrosos y no ferrosos y de hierro fundido en briquetas cilíndricas.
"Prense las virutas de metal en briquetas sólidas para obtener
beneficios financieros a través de una fundición mejorada y una
gestión de residuos más simple
La briquetadora de virutas de metal procesa virutas cortas,virutas
sueltas del mecanizado de metales ferrosos y no ferrosos y de
hierro fundido en briquetas cilíndricas. La briquetadora con matrices
cerradas está diseñada para metales ferrosos y hierro fundido.
Produce briquetas cilíndricas, de un diámetro de 60-80 mm y una
longitud de hasta 110 mm . Con una tolva de entrada, un
transportador, una máquina clasificadora y un sensor de nivel de
llenado,el funcionamiento del prensado de briquetas puede
automatizarse por completo.
Desripción técnica
Las virutas de metal cortas se presionan en una cámara donde la
compresión tiene lugar en una matriz cilíndrica. Hay dos cilindros en
la prensa, el primero es para el llenado de la cámara, y el segundo
está comprimiendo las virutas en briquetas densas.
El método de prensado asegura una alta y uniforme compactación
del material. La prensa de briquetas está equipada con una tolva de
200 dm3.
La briquetadora de virutas de metal es perfecta para briquetar
virutas cortas de metales ligeros de tipo aluminio.La briquetadora
está equipada con un búnker de 1-3 m³ dependiendo de la
especificación solicitada. El búnker es alimentado por un camión, un
polipasto o un transportador. El búnker tiene dos brazos con
cuchillas que giran en el búnker y alimenta la viruta en un canal de
entrada con tornillo que dirige la viruta a la cámara de la prensa. La
briquetadora está presionando con una presión de 83 MPa (1200
psi) y produce briquetas con un diámetro de 60 mm.
¡NOTA! No se vende en los Estados Unidos ".
• Ahorro de espacio en la superficie de la fábrica
• Ahorro en costes de transporte interno y externo
• Ahorro en costes de transporte interno y externo
• Aumentar el precio de compra de residuos
Imagen Nombre para ficha de datos Peso (kg) Aclaraciones a la ficha técnica Moldelo
Briqueteadora BP100, capacidad
de 100 kg / h. 900
Function BP type press Short chips are screw fed or pressed in to a chamber where the
compressing takes place in a cylindrical die. There are two cylinders in the press the first are filling the chamber, and the second is compressing the chips into dense briquettes. The pressing method ensures high,
uniform material and uniform material
compaction. The press is equipped with 200 dm3 hopper, with a vibrator and oil
cooler.
BP100*
Briqueteadora BP200, capacidad
de 200 kg / h 3000
Function BP type press Short chips are screw fed or pressed in to a chamber where the
compressing takes place in a cylindrical die. There are two cylinders in the press the first are filling the chamber, and the second is compressing the chips into dense briquettes. The pressing method ensures high,
uniform material and uniform material
compaction. The press is equipped with 200 dm3 hopper, with a vibrator and oil
cooler.
BP200*
Briqueteadora BP350, capacidad
de 350 kg / h 4000
Function BP type press Short chips are screw fed or pressed in to a chamber where the
compressing takes place in a cylindrical die. There are two cylinders in the press the first are filling the chamber, and the second is compressing the chips into dense briquettes. The pressing method ensures high,
uniform material and uniform material
compaction. The press is equipped with 200 dm3 hopper, with a vibrator and oil
cooler.
BP350*
Briqueteadora BP500, capacidad
de 500 kg / h 4200
Function BP type press Short chips are screw fed or pressed in to a chamber where the
compressing takes place in a cylindrical die. There are two cylinders in the press the first are filling the chamber, and the second is compressing the chips into dense briquettes. The pressing method ensures high,
uniform material and uniform material
compaction. The press is equipped with 200 dm3 hopper, with a vibrator and oil
cooler.
BP500*
Briqueteadora BP800, capacidad
de 800 kg / h 5400
Function BP type press Short chips are screw fed or pressed in to a chamber where the
compressing takes place in a cylindrical die. There are two cylinders in the press the first are filling the chamber, and the second is compressing the chips into dense briquettes. The pressing method ensures high,
*Function BP type press
Short chips are screw fed or pressed in to a chamber where the compressing takes place in a cylindrical die.
There are two cylinders in the press the first are filling the chamber, and the second is compressing the chips into dense briquettes. The pressing method ensures high, uniform
material and uniform material compaction.
The press is equipped with 200 dm3 hopper, with a vibrator and oil cooler. **Function BCM type press
The BCM Type press is perfect for briquetting of short swarf of light metals of type aluminium. The briquetter is equipped with a bunker of 1-3 m³ depending on requested specification.
The bunker is fed by a truck, skip hoist or a conveyor. The bunker has two arms with cutters which are rotating in the bunker and feeds the swarf into an inlet channel with screw which forwards the swarf to the press chamber.
The briquetter is pressing with a pressure of 83 MPa and produces briquettes with a diameter of 60mm.
Imagen Nombre para ficha de datos Peso (kg) Aclaraciones a la ficha técnica Moldelo
Briqueteadora BCM 100, 150 Tolva 1 m³
Function BCM type press The BCM Type press is perfect for
briquetting of short swarf of light metals of type aluminium. The briquetter is equipped with a bunker
of 1-3 m³ depending on requested specification. The bunker is fed by a truck, skip
hoist or a conveyor. The bunker has two arms with cutters which are rotating in the bunker and feeds the swarf into an inlet channel with screw which forwards the swarf to
the press chamber. The briquetter is pressing with a pressure of 83 MPa and produces
briquettes with a diameter of 60mm.
BCM100-1**
Briqueteadora BCM 50, 70 Tolva 3 m³
Function BCM type press The BCM Type press is perfect for
briquetting of short swarf of light metals of type aluminium. The briquetter is equipped with a bunker
of 1-3 m³ depending on requested specification. The bunker is fed by a truck, skip
hoist or a conveyor. The bunker has two arms with cutters which are rotating in the bunker and feeds the swarf into an inlet channel with screw which forwards the swarf to
the press chamber. The briquetter is pressing with a pressure of 83 MPa and produces
briquettes with a diameter of 60mm.
BCM50-3**
Briqueteadora BCM 100, 150 Tolva 3 m³
Function BCM type press The BCM Type press is perfect for
briquetting of short swarf of light metals of type aluminium. The briquetter is equipped with a bunker
of 1-3 m³ depending on requested specification. The bunker is fed by a truck, skip
hoist or a conveyor. The bunker has two arms with cutters which are rotating in the bunker and feeds the swarf into an inlet channel with screw which forwards the swarf to
the press chamber. The briquetter is pressing with a pressure of 83 MPa and produces
briquettes with a diameter of 60mm.
Technical data Briquetter BMC
Technical data Briquetter BP
