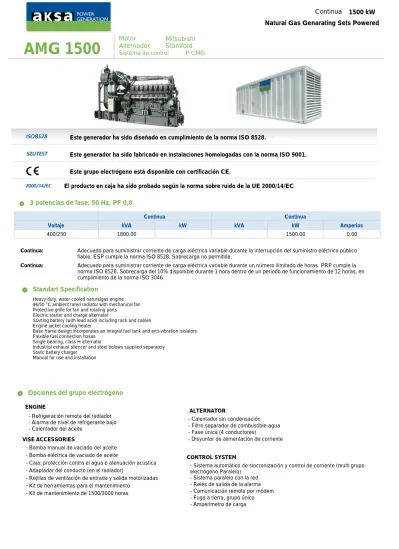

Este generador ha sido fabricado en instalaciones homologadas con la norma ISO 9001. Este grupo electrógeno está disponible con certificación CE.
Este generador ha sido diseñado en cumplimiento de la norma ISO 8528.
El producto en caja ha sido probado según la norma sobre ruido de la UE 2000/14/EC
Opciones del grupo electrógeno
VISE ACCESSORIES
- Kit de mantenimiento de 1500/3000 horas
- Rejillas de ventilación de entrada y salida motorizadas - Kit de herramientas para el mantenimiento
- Adaptador del conducto (en el radiador) - Bomba eléctrica de vaciado de aceite
- Caja: protección contra el agua o atenuación acústica - Bomba manual de vaciado del aceite
ENGINE
- Calentador del aceite
- Alarma de nivel de refrigerante bajo - Refrigeración remota del radiador
CONTROL SYSTEM
- Comunicación remota por módem - Fuga a tierra, grupo único - Amperímetro de carga - Relés de salida de la alarma - Sistema paralelo con la red
- Sistema automático de sincronización y control de corriente (multi grupo electrógeno Paralelo)
ALTERNATOR
- Fase única (4 conductores)
- Disyuntor de alimentación de corriente - Filtro separador de combustible-agua - Calentador sin condensación
Heavy duty, water cooled naturalgas engine 46/50 °C ambient rated radiator with mechanical fan Protective grille for fan and rotating parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables Engine jacket cooling heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel belows supplied separately Static battery charger
Manual for use and installation
Standart Specification
3 potencias de fase, 50 Hz, PF 0,8
Continua: Adecuado para suministrar corriente de carga eléctrica variable durante la interrupción del suministro eléctrico público fiable. ESP cumple la norma ISO 8528. Sobrecarga no permitida.
Continua: Adecuado para suministrar corriente de carga eléctrica variable durante un número ilimitado de horas. PRP cumple la norma ISO 8528. Sobrecarga del 10% disponible durante 1 hora dentro de un periodo de funcionamiento de 12 horas, en cumplimiento de la norma ISO 3046.
400/230 1800.00 1500.00 0.00
Continua Continua
Model GS16R2-PTK
Oil Capacity L 460
Gas Pressure bar 3,5-6,0
Water Capacity L 245
Contrapresiones de escape (max) mm-SS mm – ss 45.0000
Gases de escape (m3 /min.) m³ /dk. 6340
Temperaturas de gases de escape (° C) ° C 417
Máxima potencia en espera 1500 d/dk 1562.5kW[HP]
Fuel Consumption m³/h. 351,5
Calibre y carrera (mm) Calibre y carrera (mm) 170x220
Velocidad nominal (rpm) rpm 1500
Relación de compresión 00:0
Manufacturer Mitsubishi
Especificación de motor de gas natural
Voltaje del alternador (V) V 400/230
$NÕP A 2742
Fase 3
Potencia kW 1520
Cos fi
Especificación del alternador
Grupo electrógeno con cubierta kg. Peso (kg.) mm. longitud (mm.) mm. Ancho (mm.) mm. alto (mm.) SCH 40 22030 12200 2440 2800 AMG 1500 16000 5727 2173 2472 Tipo abierto kg. Peso (kg.) mm. longitud (mm.) mm. Ancho (mm.) mm. alto (mm.)
Dimensiones y peso
Protection
Indicator
P CMG - Sistema de control
Devices
ComAp, GeCon model control module Static battery charger 5A, 220/240 volt
Emergency stop push button and fuses for control circuits
Structure And Paint
Control panel is mounted generating set baseframe on robust steel stand or power module. Located at side of generating set with properly panel visibility.
Montage
Comonents installed in sheet steel enclosure. Phosphate chemical, pre-coating of steel provides corrosion resistant surface
Polyester composite powder topcoat forms high gloss and extremely durable finish Lockable hinged panel door provides for easy component Access
Generator Control Unit
GeCon controllers provide comprehensive generator protection and control for single or multiple gen-sets based on field proven InteliGenNT and InteliSysNT platforms. With GeCon software installed the primary function of the controller is to manage and function of the controller is to manage and protect the generator in preference to the engine, which is not a direct concern, and as such, can be used in applications where engine management or protection is not required or in cases where the generator is powered by another source such as a turbine controlled by an external PLC. Two versions of the GeCon software are available (land-based or marine
applications) allowing customers to select There is also the option to modify certain parameters for critical applications. A built-in synchronizer and digital
isochronous load sharer allows for a total integrated solution for gen-sets in standby, island parallel or mains parallel. The GeCon allows parallel operation of up
to 32 gen-sets in one group with power management and load sharing.
For critical applications, it is possible to arrange the controllers so a ‘hot-standby’ controller takes over the generator protection and control in case of failure of the main controller.
A powerful graphic display with userfriendly controls allows any user, whatever their ability to find the information they need.
-Excellent configurability enables users to customise to the needs of their application -Option to read information from ECU
-Power management over various engines from different producers -Configurable protections
-Optional set the frequency by step 0,1 Hz
-Choice of communication options ensures easy remote supervising and servicing
-Optional redundant ´hot standby´ controller guarantees uninterrupted generator control in case of failure of the primary controller
-Built-in PLC functions remove the need for an external PLC controller -Gen-set performance log for easy problem tracing
ENGINE Engine speed Oil pressure Coolant temperature Run time Battery volts
Engine maintenance due GENERATOR Voltage (L-L, L-N) Current (L1-L2-L3) Frequency Earth current kW Pf kVAr kWh, kVAh, kVArh Phase sequence MAINS Voltage (L-L, L-N) Frequency WARNING Charge failure Battery under voltage Fail to stop
Low fuel level (opt.) kW over load
Negative phase sequence PRE-ALARMS
Low oil pressure High engine temperature Low engine temperature Over /Under speed Under/over generator frequency Under/over generator voltage ECU warning SHUT DOWNS Fail to start Emergency stop Low oil pressure High engine temperature Low coolant level Over /Under speed Under/over generator frequency
Under/over generator voltage Oil pressure sensor open Phase rotation
ELECTRICAL TRIP Earth fault
kW over load
Generator over current Negative phase sequence Generator Protections
- 3 phase generator over/under voltage - 3 phase generator over/under frequency -Generator overload, Short current and IDMT overcurrent
-Voltage and current unbalance, Bus voltage unbalance, Reverse power, Earth fault current protection, ROCOF
-Additional 160 user configurable generator and bus/mains protections
Optional Properties
High oil temperature shut down Low fuel level shut down Low fuel level alarm High fuel level alarm EXPANSION MODULES Editional LED module (2548) Expension relay module (2157) Expansion input module (2130)Standards
Elecrical Safety / EMC compatibility
BS EN 60950 Electrical business equipment BS EN 61000-6-2 EMC immunity standard BS EN 61000-6-4 EMC emission Standard
SCH 40 - Cubierta
alto (mm.) mm. 2800
Modelo de cubierta SCH 40
longitud (mm.) mm. 12200
