Stateful Versus Stateless Selection of Edge or Cloud Servers Under Latency Constraints

(1)

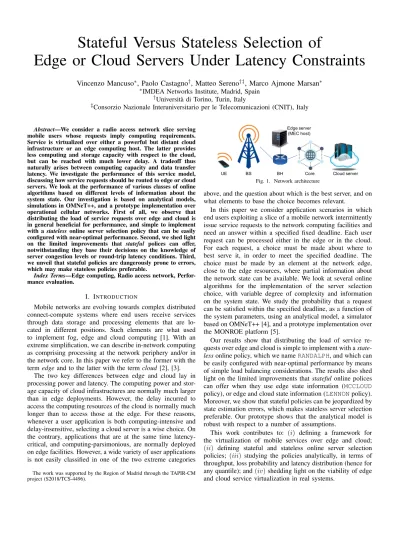

Stateful Versus Stateless Selection of

Edge or Cloud Servers Under Latency Constraints

Vincenzo Mancuso^∗, Paolo Castagno^†, Matteo Sereno^†‡, Marco Ajmone Marsan^∗

∗IMDEA Networks Institute, Madrid, Spain

†Universit`a di Torino, Turin, Italy

‡Consorzio Nazionale Interuniversitario per le Telecomunicazioni (CNIT), Italy

Abstract—We consider a radio access network slice serving mobile users whose requests imply computing requirements.

Service is virtualized over either a powerful but distant cloud infrastructure or an edge computing host. The latter provides less computing and storage capacity with respect to the cloud, but can be reached with much lower delay. A tradeoff thus naturally arises between computing capacity and data transfer latency. We investigate the performance of this service model, discussing how service requests should be routed to edge or cloud servers. We look at the performance of various classes of online algorithms based on different levels of information about the system state. Our investigation is based on analytical models, simulations in OMNeT++, and a prototype implementation over operational cellular networks. First of all, we observe that distributing the load of service requests over edge and cloud is in general beneficial for performance, and simple to implement with a stateless online server selection policy that can be easily configured with near-optimal performance. Second, we shed light on the limited improvements that stateful polices can offer, notwithstanding they base their decisions on the knowledge of server congestion levels or round-trip latency conditions. Third, we unveil that stateful policies are dangerously prone to errors, which may make stateless policies preferable.

Index Terms—Edge computing, Radio access network, Perfor- mance evaluation.

I. INTRODUCTION

Mobile networks are evolving towards complex distributed connect-compute systems where end users receive services through data storage and processing elements that are located in different positions. Such elements are what used to implement fog, edge and cloud computing [1]. With an extreme simplification, we can describe in-network computing as comprising processing at the network periphery and/or in the network core. In this paper we refer to the former with the term edge and to the latter with the term cloud [2], [3].

The two key differences between edge and cloud lay in processing power and latency. The computing power and storage capacity of cloud infrastructures are normally much larger than in edge deployments. However, the delay incurred to access the computing resources of the cloud is normally much longer than to access those at the edge. For these reasons, whenever a user application is both computing-intensive and delay-insensitive, selecting a cloud server is a wise choice. On the contrary, applications that are at the same time latency- critical, and computing-parsimonious, are normally deployed on edge facilities. However, a wide variety of user applications is not easily classified in one of the two extreme categories

The work was supported by the Region of Madrid through the TAPIR-CM project (S2018/TCS-4496).

Edge server (MEC host)

Cloud server BS

UE BH Core

Fig. 1. Network architecture

above, and the question about which is the best server, and on what elements to base the choice becomes relevant.

In this paper we consider application scenarios in which end users exploiting a slice of a mobile network intermittently issue service requests to the network computing facilities and need an answer within a specified fixed deadline. Each user request can be processed either in the edge or in the cloud.

For each request, a choice must be made about where to best serve it, in order to meet the specified deadline. The choice must be made by an element at the network edge, close to the edge resources, where partial information about the network state can be available. We look at several online algorithms for the implementation of the server selection choice, with variable degree of complexity and information on the system state. We study the probability that a request can be satisfied within the specified deadline, as a function of the system parameters, using an analytical model, a simulator based on OMNeT++ [4], and a prototype implementation over the MONROE platform [5].

Our results show that distributing the load of service requests over edge and cloud is simple to implement with a state- lessonline policy, which we name RANDALPH, and which can be easily configured with near-optimal performance by means of simple load balancing considerations. The results also shed light on the limited improvements that stateful online polices can offer when they use edge state information (MCCLOUD policy), or edge and cloud state information (LENNON policy).

Moreover, we show that stateful policies can be jeopardized by state estimation errors, which makes stateless server selection preferable. Our prototype shows that the analytical model is robust with respect to a number of assumptions.

This work contributes to: (i) defining a framework for the virtualization of mobile services over edge and cloud;

(ii) defining stateful and stateless online server selection policies; (iii) studying the policies analytically, in terms of throughput, loss probability and latency distribution (hence for any quantile); and (iv) shedding light on the viability of edge and cloud service virtualization in real systems.

(2)

UE

NP - uplink

BH Core Cloud

Edge server

BS RACH

NP - downlink

Fig. 2. System overview with background traffic (green) and overflow (red)

II. THESYSTEM

We consider the system illustrated in Fig. 1, whose components are listed in the second column of Table I. The notation used in the system models is summarized in Table II.

Mobile user terminals (UEs) attach to a base station (BS), which is connected to a backhaul subsystem (BH). An edge server is also attached to the same BH (for instance, it can be a MEC host.) A transport/core network connects BH and the Internet, where a cloud server resides. UEs generate service requests with rate λ, which are sent for computation to a server running at either the edge or the cloud. A request can also be dropped rather than forwarded to a server. The server selection or dropping decision is made according to the state of edge and cloud servers, i.e., the number of requests at the two queues, indicated as j (0 ≤ j ≤ kE) and i (0 ≤ i ≤ kC), respectively, and in some cases also considering the delays incurred to reach either the edge or the cloud server. Note that in this paper we only consider that one edge and one cloud server are available, but the extension to the case of multiple edge or cloud servers can be studied with a straightforward extension of our approach. We use αij to refer to the probability that a request is sent to the edge, and βij for the cloud.

Specifically, we consider the following classes of policies:

1) Randomized alpha (RANDALPH, stateless): selection probabilities are fixed a-priory, i.e., αij = α, independently of queue states, and βij = 1 − α. The requests reaching the edge or cloud when no space is available in their queues are discarded. Operating RANDALPH does not require knowledge about the state of the system.

2) Mobile computing plus cloud (MCCLOUD, stateful): a service request is always sent to the edge unless it has no space, in which case it is routed to the cloud.

Operating MCCLOUD requires instantaneous knowledge about the state of the edge server only. In other words, the information necessary to implement the MCCLOUD policy only concerns the state of the queue at the edge.

3) Length of next round-trip (LENNON, stateful): a server with space available is selected depending on which site offers the lowest expected round-trip time at the selection instant. Requests are dropped at the backhaul only if both edge and cloud have no space left in their queues.

Operating LENNON requires instantaneous knowledge on the state of both edge and cloud servers. In other words, the information necessary to implement the LENNON policy concerns the state of the queues at the edge and at the cloud as well as the expected round trip delays to reach either the edge or the cloud servers.

More complex policies have been defined and analyzed, that account for delay distributions and probability to miss the latency deadline, but results are not reported here because of lack of space and because the key findings of the analysis are the same as what is concluded by considering the policies introduced above.

A request consists of a message of PR bits, on average.

When a service request reaches the edge or cloud server, some computation is carried out, and a response is sent, consisting of P_S bits, on average. The intensity of served requests that are delivered to UEs is indicated as ξ ≤ λ (expressed in served requests per second). We denote the total service time by T and the application timeout by To. The service time is the round trip latency, which includes the transfer of the request to a server, the waiting and computation time at the server, and the transport of the server response back to the UE that originated the request. The performance of the system is characterized in terms of (i) service loss probability πL, (ii) latency T and (iii) failure probability πF, which is the probability that a request is not served within the timeout To.

Incoming service requests follow the network path depicted in Fig. 2. For each subsystem we denote by λ(·), µ(·), and ρ(·)the arrival rate, the service rate and the load, respectively, where the index identifies the subsystem (see Table I).

The RACH models transmissions from UE to BS. It uses a set of dedicated resources, fully isolated from other potential tenants and slices running on the same BS. We assume that RACH does not generate losses of service requests, and oper- ates independently from the state of the rest of the network.

The RACH feeds a network processor in uplink, in which the service request is buffered and then injected in the packet network that lies between the BS and the destination server.

Vice versa, service responses are queued at the downlink network processor for delivery to users. The network processor is assumed to introduce no losses.

The backhaul is an optical ring that connects several BSs and edge servers, and connects to the transport/core network [7]. It is virtually composed of point-to-point links with dedicated resources. Moreover, we assume that a slice of the backhaul is dedicated to the service we are studying, and that no losses occur in the backhaul because of its capacity.

The transport network lies between the backhaul ring and the cloud. It consists of multiple high-speed links connected sequentially, whose resources we consider not to be sliced.

Servers process user requests. They run on VMs and have a finite buffer, and use compute power and storage so as to generate downlink traffic in response to the received service requests. At both edge and cloud, the studied slice has a dedicated set of VMs, each pinned to a CPU core and used to serve the aggregate load of that slice. The number of VMs is nE for the edge and nC for the cloud. The total number of requests that can be queued at the edge server (including requests under service) is k_E, and k_C at the cloud.

Of course, in the case of resource abundance, the system behavior can be approximated by considering an infinite number of VMs at the cloud (and possibly also at the edge), with a significant simplification of the analysis the will be presented in the next section.

(3)

TABLE I

BASIC SYSTEM NOTATION,AND SYNOPSIS OF MODELING,SIMULATION AND TESTBED

Notation Description Model Simulation Testbed

R RACH Custom from [6] 3GPP-compliant Real cellular network

U , D Up-/Down-link BS network processor

M/M/1, M/M/1-PS, or M/D/1-PS

Slotted M/M/k/n Real BS scheduler (tested with various commer- cial operators)

Bu, Bd Backhaul (uplink and downlink)

Decoupled M/M/1 queues feed by constant-speed links

Decoupled slotted M/M/1/n queues feed by constant-speed links, with limited buffer space n

Cellular network plus access to proxy in a lab, implementing the allocation policy (Country A)

Tu, Td Transport (to and from the cloud)

Decoupled M/M/1 queues feed by constant-speed links

Decoupled slotted M/M/1/n queues feed by constant-speed links, with limited buffer space n

Internet in between a proxy (Country A) and a VM in a data center (Country B)

E Edge server M/M/nE/kE Slotted M/M/nE/kE Docker container implementing a slotted

M/M/nE/kE (located in Country A) C Cloud server M/M/nC/kC Slotted M/M/nC/kC VM in a Data center (located in Country B)

implementing a slotted M/M/nE/kE queue.

TABLE II MODELING NOTATION Notation Description

f, F, bf pdf and CDF of a latency r.v., and associated LST λ, µ, ρ, ξ Arrival rate (requests/s), service rate (requests/s), load

(in Erlang units) and throughput (requests/s) pR RACH attempt success probability

nE, nC Number of dedicated processors at edge and cloud kE, kC Max total number of requests at edge and cloud p_E, p_C Distribution of customers in edge and cloud servers T , To System latency (round trip service latency) and timeout α, β Request allocation probabilities towards edge and cloud πE, πC Overflow probabilities at edge and cloud

πL, πF System loss and failure probabilities

III. BASICANALYSIS

We study flows and latency distributions at each network node modeled as a queue. We use f to indicate the pdf of latency, F for the CDF, and bf for the corresponding Laplace- Stieltjes transform (LST). Loss probabilities are denoted by π, with a subscript that indicates the subsystem they refer to. We use ℓ to indicate background traffic load and assume that all queues in the system are work-conserving FIFO queues.

Next, we analyze the behavior of the system for fixed values of αij = α and with βij= 1 − α_ij, which corresponds to the analysis of RANDALPH. Successively, in Section IV, we will show how to use continuous-time Markov chains (CTMCs) to extend the analysis to analyze the proposed stateful policies.

A. RACH

From [6], the LST of the sojourn time distribution, given that the request is eventually served is as follows:

fb_R(s) =1−e^−s(T^x^+W^x⁾ s(Tx+Wx)

kx

X

i=1

p_R(λ+ℓ_R,i)

e^−sT^x 1+sE [BR]

ⁱ⁻¹ , (1) where p_R(λ + ℓ_R, i) is the probability that a request succeeds in exactly i ≤ k_x RACH attempts (where k_x is the maximum number of permitted attempts), withPkx

i=1p_R(λ + ℓ_R, i) = 1, since there are no losses. T_xand W_xare RACH configuration parameters, and E [BR] is the average RACH backoff duration.

Assuming negligible RACH losses, we can also neglect RACH timeouts, finite number of RACH retries, and network processor back-pressure. Therefore, by imposing kx = ∞ and approximating the RACH per-state success probability as the effect of power ramping (see [6]), pR in (1) becomes independent on traffic and can be simplified as

pR(λ + ℓR, i) = e⁻ⁱ⁽ⁱ⁻¹⁾² 1 − e⁻ⁱ . (2) B. Network processor

The arrival rate at the uplink network processor is λU = λ + ℓU, because we have assumed that the RACH introduces no losses. The service rate is µU, so that the load is ρU = (λ+

ℓU)/µU, which accounts for background traffic. We model this component with a processor sharing queue with fixed service time (M/D/1-PS), whose sojourn time distribution is [8]:

fbU(s) = (1 − ρU) (λU + s)²e^−(λ^U^+s)/µ^U

s²+ λU[s + (λU + s) (1 − ρU)] e^−(λ^U^+s)/µ^U. (3) When the network processor load is low, an M/M/1 approximation can be used as well, since, if the uplink processor is not the system bottleneck, results change very little if we use an M/M/1 queue or a more complex M/M/1/PS queue.

The arrival rate at the network processor in downlink is the system throughput ξ = (1 − πL)λ plus the background downlink traffic, where the system loss πL is a function of λ and α. By defining ρD = ((1 − πL)λ + ℓD)/µD, we have an expression for bfD, the LST of the latency in the downlink network processor, similar to the one for the uplink.

C. Backhaul

We use an M/M/1 representation of the backhaul, with two independent FIFO queues serving requests and replies, respectively. The LST of the sojourn time in an M/M/1 has the form a/(a + s), where a is the difference between service rate and arrival rate. For the backhaul, the uplink has service rate µB_uand sees the entire offered traffic λ plus some background traffic ℓB_u, while the downlink serves at rate µB_dand sees only the throughput ξ and the downlink background traffic ℓB_d.

Note that only the downlink case is affected by the allocation probability α, since the uplink sees the full traffic λ, while ξ is affected by server selection decisions.

(4)

D. Transport network uplink and downlink

To model the transport network, we use M/M/1 queues with service rates µT_uand µT_dto and from the cloud, respectively.

The corresponding arrival rates, which include background traffic, are βλ + ℓT_u and (1 − πC)βλ + ℓT_d.

E. Edge server

To model the edge behavior we use an M/M/nE/kE queue with arrival rate α λ + ℓE. The load is ρE = ^{α λ+ℓ}_µ ^E

E . The probability to have j requests in the edge server is

pE(j) = pE(0) ρ^j_E/

min(j, nE)! n^[j−n_E ^E^]⁺

, (4)

where pE(0) is found by solvingP

jpE(j) = 1, the loss probability relative to arrivals at the edge server is πE= p_E(k_E), and [x]⁺ indicates the max between 0 and x.

For the computation of the distribution of the latency, consider that when a customer arrives and finds j < kE

customers in the system, the customer is directly served if j < nE, while it has to wait for j −nE+1 service completions before being served if j ≥ nE. The time to complete a service when all servers are busy is exponentially distributed with rate nEµE, while the rate at which the waiting customer is finally served is µE(again, with exponential distribution). Therefore, the total time in the edge server is the sum of an exponential r.v. (the service) and an independent random waiting time, which, conditional to finding j customers in the system, is 0 if j < n_E and otherwise it is Erlang distributed with j − n_E+ 1 stages and rate n_Eµ_E if n_E ≤ j < k_E. The conditional expression is:

fb_E(s|j) = µE

s + µ_E

nEµE

s + n_Eµ_E

^[j−nE+1]⁺

. (5)

Removing the condition, the LST of the distribution of the total time spent in the edge system is as follows:

fbE(s) = 1 1−π_E

µE

s+µ_E

n_E−1

X

j=0

pE(j)

nEµE

s+n_Eµ_E

^[j−nE+1]⁺

. (6)

F. Cloud server

This case is similar to the case of the edge server, with a queue M/M/nC/kC with arrival rate β λ + ℓC and service rate µC, resulting in a queue size distribution indicated as pC(i) and loss probability πC= pC(kC).

G. RANDALPH’s performance indicators

The system throughput, with RANDALPH, is ξ = λ (1−πL), where the system loss probability is πL= α πE+ (1 − α) πC. Latency T has a distribution with LST obtained by multi- plying the LSTs of system components, because the latency in a subsystem does not depend on the latency in another subsystem. However, we need to consider only successful requests, so that latency has to be conditioned on success:

fb_T(s) = 1 1 − πL

fb_R(s) bf_U(s) bf_D(s) bf_B_u(s) bf_B_d(s)

·

α(1−πE) bfE(s)+(1−α)(1−πC) bfT_u(s) bfT_d(s) bfC(s) . (7)

A failure is either caused by a message drop (or discard) or by the expiration of the timeout. Hence, the failure probability of RANDALPH depends on the loss probability and on the CDF of T computed at To:

πF= πL+(1−πL) (1−FT(To)) = 1−(1−πL) FT(To). (8) However, computing FT(t) in t = Torequires inverting the function bfT(s)/s, the division by s representing the integral operator in the time domain, so as to pass from pdf to CDF.

This can be done numerically.

IV. STATEFULPOLICIES

The analysis presented for RANDALPH applies also to the stateful policies that we have defined, if observed in a given, fixed state of the edge and cloud queues. However, there is a key difference in the way we consider the edge and cloud servers, since in a given state the delay incurred by a request entering any of those queues sees a “simpler” latency distribution, i.e., (5) in the case of the edge.

As described in what follows, we characterize the stateful policies by evaluating the state probabilities and taking the average over all queue states. To compute such average, we solve a CTMC that describes the joint evolution of the queues of edge and cloud servers.

A. Description of the system dynamics through a CTMC All policies see the state of edge and cloud queues evolve as described in Fig. 3. The CTMC depicted in the figure is bi-dimensional; horizontal transitions represent edge events, while vertical transitions refer to the cloud. The use of a CTMC comes with an approximation that we will validate with experiments. Specifically, we are considering that a state transition happens as soon as a new request is allocated, and when a request is served. Assuming that the state of a queue changes at server selection time is however not exact, because it neglects the time needed for the request to actually reach the server. Therefore, the CTMC of Fig. 3 is inconsistent with the actual state of edge and cloud when a request is queued. In particular, we assume that the allocation decision is taken at the backhaul, i.e., very close to the edge, but not to the cloud.

Services occur as in two independent M/M/n/k queues.

Arrivals have a total intensity λ in each state, although the state-dependent server selection splits arrivals into edge arrivals, with intensity αijλ in state (i, j), and cloud arrivals, with intensity βijλ. Note that coefficients αi k_Eand βk_Cjmust be set to 0 in the CTMC, since in the corresponding states it is not possible to accept additional jobs at the edge or cloud, respectively, but the server selection probability can be larger than 0 in those states, in which case requests are lost due to overflow. However, to avoid unnecessarily heavy notation, we use αij and βij for both the allocation probabilities and the coefficients of the CTMC. Of course, CTMC coefficients are also 0 if any of the indices is negative (i.e., in the figure, there are no arrows entering from the left at the left edge, and no arrows entering from the top at the top edge).

The coefficients are such that α_ij+ β_ij ∈ [0, 1], and the quantity 1 − (α_ij+ β_ij) is the loss in state (i, j) due to policy dropping (in all nodes of the CTMC, except the right and bottom edges) or overflow (right and bottom edges of the

(5)

Edge

Cloud

State 𝑖, 𝑗 :

0 ≤ 𝑖 ≤ 𝑘_!requests on the Cloud 0 ≤ 𝑗 ≤ 𝑘_"requests on the Edge (0,0) (0,1)

(1,0) (1,1)

…

(kC,0) (kC,1) …

… …

(0,kE)

(1,kE)

(kC,kE)

… ^𝜆 𝛼^! #$%^& ^𝜆 𝛼^!#^&

min (𝑖, 𝑛')𝜇'

min (𝑖 + 1, 𝑛')𝜇'

min (𝑗 + 1, 𝑛()𝜇( min (𝑗, 𝑛()𝜇( (i,j)

𝜆 𝛽_!$% #^&

𝜆 𝛽!#&

Fig. 3. Markov chain representing the state of edge and cloud

CTMC, where the loss is αi kC and βkEj, respectively, and it is 1 in state (kC, k_E)).

B. General expressions

Let {π_ij} be the steady state solution of the CTMC representing our edge/cloud system. The fraction of traffic routed towards the edge and the cloud, and the associated loss probabilities as well as the overall loss probability πLand the LST of the latency are computed as per-state averages, i.e.:

α =X

i j

πijαij; β =X

i j

πijβij; (9)

πE = 1 α

X

i

πi k_Eαi k_E; πC= 1 β

X

j

πk_Cjβk_Cj; (10)

π_L = π_k_C_k_E+ X

(i j)̸=(k_Ck_E)

π_ij(1 − α_ij− β_ij)

+

k_C−1

X

i=0

πi k_Eαi k_E+

k_E−1

X

j=0

πk_Cjβk_Cj. (11)

fb_T(s) = 1 1 − πL

fb_R(s) bf_U(s) bf_D(s) bf_B_u(s) bf_B_d(s)

·



 X

i,j<k_E

πijαijfbE(s | j)+X

i<k_C,j

βijfbC(s | i) bfT_u(s) bfT_d(s)



. (12) The four terms in (11) are losses due to no space left in the system, the request dropping decided by the policy, the overflow at the edge when the cloud has still space left, and the one at the cloud when the edge has space, respectively.

Note that, in case αijdoes not depend on i and j, and βij = 1 − αij, the above expressions reduce to the ones computed for RANDALPH. Note also that the expression for the failure probability given by (8) holds with the system loss and LST of latency computed as in (11) and (12), respectively.

C. MCCLOUD

MCCLOUD behaves similarly to RANDALPH with α = 1.

However, here the overflow of the edge goes to the cloud, so that a loss occurs only if arrivals find the queues in state (kC, kE). So, the CTMC coefficients are as follows:







αij = 1, ∀i ≤ kC, j < kE; β_ij = 1, ∀i < k_C, j = k_E. αij = βij = 0, otherwise.

(13)

The probability to select the cloud server is the overflow probability observed by sending all requests to the edge, i.e.:

α = 1 −X

iπ_{i k}_E, β = 1 − α. (14)

The loss probability of the edge server is πE= 0, because no request is sent to the edge in case its queue is full. The cloud server suffers losses with probability πC = πk_Ck_E/β, where πL= πk_Ck_E is the overall MCCLOUD loss probability.

D. LENNON

With LENNON, no request is allocated to either the edge or the cloud if there is no space. Hence, πE= πC= 0, and losses only occur because of policy dropping when both queues are full: πL = πk_Ck_E. As a consequence, server selection probabilities and CTMC coefficients coincide in all states.

Specifically, the probability to allocate a request to the edge in state (i, j) is a function of the edge server queue occupancy and the expected latency over edge and cloud. Denoting by d_C and d_Ethe round-trip propagation time between the backhaul and the cloud or the edge server, respectively, we have:

αij=











1, i = k_C, ∀j < k_E (i.e., no space at the cloud);

1, ∀i < kC, j < kE such that

1

µ_E + max(j − n_E+ 1, 0)_n ¹

Eµ_E + d_E

≤ _µ¹

C + max(i − nC+ 1, 0)_n ¹

Cµ_C + dC; 0, otherwise.

(15)

The probability to select the cloud server is βij = 1 − αij, except in state (k_C, k_E), where it is 0 because the request is dropped. This is possible thanks to the fact that the entity that enforces the LENNON policy knows the status of both queues.

E. Modeling the error on queueing state estimation

So far we have presented our models assuming that the state of the queues at edge and cloud servers is exactly known. However, as we have already remarked, there is a lag between allocation decisions and queueing. Moreover, while it is reasonable to assume that the state of the edge queue can be estimated or communicated to the backhaul, the state of the cloud can be only roughly estimated in a real implementation. Indeed, even if a monitor (e.g., a resource orchestrator) collects information about the system state, given the very fast system dynamics and the unavoidable information transfer delays, these informations risk not to be accurate. For instance, with realistic cloud round-trip times of the order of several tens of milliseconds and network virtual functions requiring a few milliseconds to parse a service request, the status of the cloud queue changes very quickly in the time between the status is sampled and when the monitor receives the sample. In practice, the difference between the cloud status used at the monitor for making a decision and the status observed by the service request when reaching the cloud is a random variable with variance equal to the sum of the variance of the cloud arrival process in the elapsed time and the variance of the cloud service process in the same interval. The exact shape of the distribution of such a random variable depends on how status samples are gathered and on the service discipline used at the cloud. For these reasons, we generically consider queueing state estimate errors as random variables which yield the belief probabilities q((i^′, j^′) | (i, j)) = Pr ((i^′, j^′) estimated | (i, j)) .

Accordingly, the stateful policies MCCLOUD and LENNON make server selection decisions in state (i, j) as if they were observing state (i^′, j^′) with probability q((i^′, j^′) | (i, j)). The

(6)

belief probabilities have hence the effect of modifying the per-state transition probabilities. For instance, the edge server selection probability becomes:

α^(e)_ij =X

i^′

X

j^′q((i^′, j^′) | (i, j)) αi^′j^′, (16) and the same applies to compute β^(e)_ij . The expressions are identical for all stateful policies, while the error does not affect RANDALPH. CTMC transitions change because of errors, which can lead to losses due to policy dropping also for states in which the policy would normally not drop. E.g., LENNON will suffer a loss if it believes that the edge and/or the cloud server queues are not full when they are, or if it believes that both queues are full when at least one is not.

In the presence of state estimation errors, we can use the general expressions for stateful policies presented in Sec- tion IV-B, with α^(e)_ij and β_ij^(e) replacing αij and βij.

Belief probabilities are therefore easy to account for. How- ever, their actual structure depends on the estimate mechanism adopted for conveying queue state information to the backhaul.

A discussion of estimation approaches is not included in this paper for the sake of brevity. We will rather consider simple cases of independent, discretized, zero-mean Gaussian errors:

q((i^′, j^′) | (i, j)) = G(i^′, i, σ_C) G(j^′, j, σ_E), (17) where G(y, x, σ) denotes the probability that a Gaussian random variable with average x and variance σ²takes a value in the interval [y − 1/2, y + 1/2], except when x = 0 or x = k, in which case we extend the left or right limit of the interval to (minus) infinite. For MCCLOUD we simply use q(j^′ | j) = G(j^′, j, σE) because the cloud state is not used for server selection.

V. SIMULATION AND REAL EXPERIMENTS

The model presented above is validated by comparing its results with a discrete-event simulator developed in OM- NeT++ [4] and with a network overlay testbed with two server sites in two different countries (both the BS and the edge server are in Spain, while the cloud server is in Italy). In both the simulator and the testbed, we have reproduced all the subsystems used in the model, although in the testbed we did not have access to resources in an edge infrastructure, which was replaced with a dedicated server in a lab, as explained later in this section and annotated in Table I.

A. Simulator

In the simulator, all subsystems but the RACH make use of pre-defined modules offered by OMNeT++. The RACH is implemented with c++ code according the specification given in [9]: it implements the four-way handshake required to set-up a RRC connection between UE and gNB, accounting for the contention-based access procedure and its subsequent contention resolution. BS and UEs have a RACH module that handles timers as specified by the standard, causing the access procedure to fail in case an answer is not received within the required timeout. The RACH module for a UE accounts for the preamble selection, the power ramping strategy—

to select an appropriate transmission power—and for the maximum number of retrials before a connection failure. On

Proxy Edge server

Cloud server MONROE node

Fig. 4. Testbed architecture. Requests are QUIC flows that reach the proxy through the BS (orange path). The proxy routes requests to edge (blue) or cloud (black). Replies are QUIC flows that travel back over the request’s path.

the BS side, the RACH module handles contention in the preamble transmissions and accounts for limited processing capabilities. Such limitations concern the maximum number of RAR responses sent by the gNB during the standard RACH four-way handshake and the maximum number of active RRC connections. Both The BS and the UE implement the RRC connection timeout, causing a UE to repeat the random access procedure in case of long periods of inactivity.

All other subsystems of Section II are defined as routers or processing units linked together by wired links with a given capacity. The simulator considers a number of devices generating UDP requests with uniform interarrivals, while service times at edge and cloud are exponential, and their state is estimated as explained later in the testbed description. Thus, the simulator allows us to verify the accuracy of our model’s approximations on inter-request times and state transitions.

B. Testbed

For real experiments, we use the MONROE platform [5], accessing a BS in Spain, a server in our IMDEA Networks lab in Spain and a server in a data center in Italy, at the University of Turin. The testbed architecture is illustrated in Fig. 4. The testbed design includes three main device types, namely UE, server and proxy. Each device type is fully specified within a Docker image, to be easily deployed and migrated. Device images are placed around the network reflecting a specific setting, and exploit QUIC as transport protocol. Our UEs are static MONROE nodes located in Spain, and connected to operational cellular networks, over which we have no control.

The cloud server runs in a Docker container in a remote data center and the edge server and the proxy run in Docker containers on the same machine in our lab. UEs contact the proxy through their cellular connectivity and the proxy makes server selection decisions. All server replies are QUIC flows sent to the proxy and afterwards redirected to the UEs.

Proxy and cloud server talk over a wired transnational Internet backbone, which is out of our control.

The network components of the testbed are real operational networks, so that we run our experiments in the wild, except for what concerns the proxy, in which we are free to implement any server selection policy. Note however that the proxy does not know instantaneous server state values, which have to be estimated. The estimation mechanism we implemented is quite simple: the proxy monitors forwarded requests and replies, and computes the queue states by looking at request IDs, which are progressive numbers, and by discounting from the outstanding requests the expected number of services completed in a round trip time between the proxy and the server. Thus, the testbed

(7)

allows us to validate the ensemble of network approximations we have introduced in the model, and evaluate our policies robustness to state estimation errors.

VI. EVALUATION

The numerical evaluation of the three server selection policies that we have described and analyzed above (RANDALPH, MCCLOUDand LENNON) considers as a reference scenario a network slice that is allocated one processor at the edge computing facility and 10 processors at the cloud infrastructure.

Up to 10 service requests can be queued at the edge, and 50 at the cloud, including requests being processed. Each processor is capable of serving 200 requests per second. Hence, the total service capacity of edge+cloud is 2200 requests per second. These values reflect the capabilities of state of the art processors. The network delay parameters are derived from the testbed and plugged into both the simulator and the analytical model.

In addition to the three policies above, we also study two algorithms that will be considered as baseline, and that are special cases of the RANDALPH algorithm. The algorithm called STAY assumes the availability of only the edge server, so that all requests are routed to the edge (i.e., we use α = 1 in RANDALPH). On the contrary, the algorithm called GO assumes that only the cloud server is available, and all requested are routed to it (i.e., we use α = 0 in RANDALPH).

Note that STAY can process at most 200 requests per second, while GO can process up to 2000. Finally, we also look at an algorithm named R-BAL, which represents the load-balancing version of RANDALPH considering the edge and cloud nominal processing capacities (i.e., α = nEµ_E/(n_Eµ_E + n_Cµ_C)).

Note that R-BAL only requires static information about the system configuration, and is independent of the dynamics of the system state.

In Fig. 5 we plot the curves of the loss and failure probabilities for the different algorithms, as functions of the load offered to the overall processing capacity provided by edge and cloud, assuming it takes 27 ms to cross the links between UE and edge (RTT, not considering queueing and processing), and 66 ms for the cloud, in line with our experimental observations. By loss we mean a discarded request, while by failure we mean that the reply is not returned to the end user within the maximum admitted latency (which in the figure is taken to be 100 ms). Hence, failures are a superset of losses (i.e., lost requests + late replies). We can see that STAY exhibits the highest loss and failure probabilities, as expected, due to its small processing capacity. The other algorithms show comparable performance, with failure probabilities below 5%, except in the case of MCCLOUD, that does not exploit the cloud processors until the edge processor becomes full. The figure also reports results obtained with RANDALPH with the values of α that yield the lowest loss (R-LOSS) or the lowest failure probability (R-FAIL). In those curves, α is different for each value of λ. The curves do not correspond to practical algorithms, but rather to ideal algorithms that can adapt to traffic conditions. However, as shown in the figure, adaptation only leads to a small gain with respect to R-BAL and does not outperform MCCLOUD and LENNON in terms of loss.

0 0.2 0.4 0.6 0.8 1

/capacity 10^-3

10^-2 10^-1 10⁰

Failure probability (solid lines) ¹⁰^-3

10^-2 10^-1 10⁰

Loss probability (dashed lines)

STAY GO R-BAL R-FAIL

R-LOSS MCCLOUD LENNON

Fig. 5. Failure (at 100 ms) and loss (nC= 10, kC= 50, nE= 1, kE= 10)

20 30 40 50 60 70 80 90 100 110 120

Latency (ms) 10^-3

10^-2 10^-1 10⁰

CDF STAY

GO R-BAL MCCLOUD LENNON

Fig. 6. CDF of T for ρ = 0.75, nC= 10, kC= 50, nE= 1, kE= 10

0 0.2 0.4 0.6 0.8 1 1.2

/capacity 40

50 60 70 80 90

Average latency (ms)

STAY GO R-BAL R-LAT MCCLOUD LENNON

Fig. 7. Average latency T for nC= 10, kC= 50, nE= 1, kE= 10

To better compare the performance of the policies under evaluation, in Fig. 6 we plot the curves of the CDF of latency T (i.e., the time between the issue of a request by the end user, and the reception of the corresponding reply – considering only requests that are not lost) with a load ρ = 0.75. In Fig. 7 we plot the corresponding curves of the average latency.

The CDFs show a bi-modal behaviour, which corresponds to requests sent to edge and cloud, except for STAY and GO that only use one option. The latency CDF curves show that R-BAL is the only algorithm capable of providing latencies of 40-50 ms with non-negligible probabilities (remember that this CDF is computed over replies to non-lost requests; hence, the case of STAY must be considered accounting for its high loss probability). Stateful policies exhibit higher latency, which is what allows them to achieve a lower loss rate. Indeed, LENNON, which is the most complex stateful policy we consider, achieves lower latency (and therefore lower failure rates) with respect to MCCLOUD, while they see almost the same loss.

The corresponding average values, which are visible in Fig. 7 are however not so different. Indeed, from the figure we can see that in the most common range of loads (say between 0.2 and 0.8) all algorithms provide average latency values

(8)

0 0.2 0.4 0.6 0.8 1 /k

10^-3 10^-2 10^-1 10⁰

Prob. @=0.05

0 0.2 0.4 0.6 0.8 1

/k 10^-3

10^-2 10^-1 10⁰

Prob. @=0.5

0 0.2 0.4 0.6 0.8 1

/k 0.2

0.3 0.4 0.5 1

Prob. @=1.25

STAY GO R-BAL MCCLOUD LENNON

Fig. 8. Failure (solid lines) and loss (dotted lines) probability with To= 100 ms, nC= 10, kC= 50, nE= 1, kE= 10. Impact of errors.

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

/k_E 0

0.1 0.2 0.3 0.4

Probability

0 1 2 3 4 5 6 7 8 9 10

Fig. 9. Impact of estimate errors on edge state probabilities with MCCLOUD at ρ = 0.15 (for the overall system, while edge’s capacity only suffices for ρ ≤ 1/11), with nC= 10, kC= 50, nE= 1, kE= 10.

of a few tens of ms. STAY has the highest average latency because of its lower capacity. The curve labeled R-LAT shows results for RANDALPH, using a value of α that adapts to λ so as to minimize latency. Of course, implementing R-LAT is impractical as for the cases of R-FAIL and R-LOSS, but we report it to give an idea of what latency is achievable by a genie-based algorithm.

All of the results presented so far assume that the state of the queues of requests at edge and cloud processors are exactly known with no delay. In this (admittedly unrealistic) situation, we can draw two important conclusions from results: i) the joint exploitation of edge and cloud processors is important, and ii) a state-oblivious algorithm like R-BAL is capable of achieving performance comparable to algorithms that exploit the instantaneous system state.

As a next step, we investigate the effect of imprecise information about the system state on the algorithm performance.

In Fig. 8 we report the loss and failure probabilities versus the standard deviation of state estimate error, normalized to the state size k (i.e., either to k_Efor the edge or k_Cfor the cloud) – for each point of the curves we inject the same normalized error magnitude to both edge and cloud state estimations) for the different algorithms at three values of the load requested from the edge and cloud processors. Left we plot results for load equal to 5% of the overall capacity (110 requests/s).

The load grows to 50% in the middle plot, and to 125%

in the right plot. Only in the left plot algorithm STAY is in normal operating conditions, and can provide acceptable loss and failure probabilities. In the middle and right plots, STAY is in sustained overload, and its loss probability corresponds to the excess requests with respect to its capacity. LENNON and R-BAL perform very well at load 0.5, and R-BAL shows good performance also in overload conditions.

Looking in more detail, we can observe that errors affect loss and failure in a different way, depending on the used policy. In fact, loss and failure curves under low-medium

loads evolve almost in parallel for LENNON, which means that LENNON suffers more losses due to errors, while the loss of MCCLOUD is barely affected at low loads and its failure grows faster than loss in general. However, it is interesting to notice that stateful policies under very high loads (ρ ≥ 1), experience some benefit from the presence of small errors, and their failure probability shows a minimum as the error variance changes. For instance, with a sustainable load for the edge (left plot), MCCLOUD suffers no impact of errors on loss because both edge and cloud are underutilized; however, delay increases because some of the traffic that could be served at the edge is sent to the cloud. This explains why the failure probability of MCCLOUD worsens with the magnitude of the error. Instead, LENNON can experience more losses because it may erroneously estimate the overall system as full.

At medium/high load for the edge, the impact of errors on MCCLOUD is twofold. On the one hand, the error causes unnecessary losses at the edge, which receives requests that cannot be queued. This however reduces the load of the cloud, so that, on the other hand, the overall failure probability eventually starts dropping. Asymptotically, for large error magnitudes, the edge receives half of the requests (and only serves 1/11 of the capacity of the system), while the remaining half is served at the cloud with little loss (except if the system is largely overloaded). The combination of these two effects produces a maximum in the curves of the loss of MCCLOUD versus the error variance. The behaviour of LENNON is similar, except errors on the estimation of the cloud state can partially compensate errors on the edge, so that the maximum of the curves is reached for larger error variances.

In order to visualize the effect of errors in the estimation of the state of the edge processor when using MCCLOUD, in Fig. 9 we report the probabilities of states at the edge queue for a load equal to 15%, which saturates the edge server. The element π0 is the probability that the edge processor is idle, while the other elements correspond to one request in service and from 0 to 9 in the queue (i.e., π10 is the probability that the edge queue is full and a request is being served).

We see that the probability π10, which is close to 0.4 in the absence of errors, drops significantly with the error variance.

This means that the effect of errors is to lower the load of the edge progressively, which occurs because i) the edge queue size is overestimated by MCCLOUD and ii) some requests are retained by the edge when the edge queue is full (and therefore those requests are lost). However, when there are small errors, MCCLOUD in practice offloads some traffic to the cloud only when the edge queue is almost full (e.g., the figure shows that the queue’s level is 80% or more with about 80-90%

(9)

TABLE III

VALIDATION:MODEL(M)VS SIMULATION(S)VS TESTBED(T)

Policy πF πL E[T ] Q1 Q2 Q3

(%) (%) (ms) (ms) (ms) (ms)

GO@{ρ=0.5, M 1.6 1e-10 66.8 60.1 63.7 70.4

RTTE=32.5 ms, S 2.1 0 64.7 57 61 68

RTTC=56 ms}. T 3.7 0.2 68.4 59 63 69

GO@{ρ=0.75, M 1.3 4e-3 64.1 57.1 61.2 68.1

RTTE=28.4 ms, S 1.8 2e-3 62.8 56 57 68

RTTC=51.9 ms}. T 1.6 1e-3 62.8 56 60 66

R-BAL@{ρ=0.5, M 1.5 4e-3 64.5 58.8 62.4 69.1

RTTE=31.9 ms, S 1.9 4e-3 65.5 55 59 66

RTTC=55.4 ms}. T 4.6 6e-2 67.8 58 63 70

R-BAL@{ρ=0.75, M 1.2 0.1 60.8 54.5 58.4 65.3

RTTE=27 ms, S 1.6 0.1 60.2 51 59 63

RTTC=50.4 ms}. T 1.2 3e-3 67.8 55 59 65

MCCLOUD@{ρ=0.5, M 4.2 0.2 66.6 56.7 61.6 72.1

RTTE=28.7 ms, S 4.6 0 64 53 58 69

RTTC=52.2 ms}. T 4.3 0.1 66.3 56 60 67

MCCLOUD@{ρ=0.75, M 3.1 0.2 65.1 56.3 60.8 69.9

RTTE=27.8 ms, S 3.6 4e-4 63.3 53 58 67

RTTC=51.4 ms}. T 4.2 0.3 66.6 57 61 68

LENNON@{ρ=0.5, M 1.1 1e-13 61.3 54.9 58.7 65.8

RTTE=28 ms, S 2.6 0 61.1 52 56 66

RTTC=51.4 ms}. T 2.0 0 61.9 55 59 64

LENNON@{ρ=0.75, M 1.2 3e-5 61.7 55 59 66

RTTE=27.3 ms, S 1.8 1e-4 60.5 52 56 64

RTTC=50.8 ms}. T 1.2 8e-3 61.2 55 59 64

probability when σ/k < 0.2, which corresponds to frequent error estimates up to 2 units, for an edge with kE= 10). This can be convenient in terms of latency because the cloud queue is not necessarily long. Therefore the failure probability drops for small errors. However, when the normalized error variance increases above 0.2, MCCLOUD observes more and more losses because the probability to wrongly estimate the edge as non- full becomes high, asymptotically half of the times. So, with ρ = 1.25, the loss starts at about 20% of 1.25 (i.e., the part of ρ exceeding 1) in the absence of error, while asymptotically the edge will receive 1.25/2 · 2200 requests/s, and only serve up to 200, which corresponds to a loss of about 43% of the total offered load, as shown in the rightmost plot of Fig. 8.

The investigation of the effect of errors leads us to conclude that in order to reap the (small) performance benefits of algorithms that leverage the information about the edge and cloud state, it is necessary to guarantee the accuracy and timeliness of the information used by the algorithm. In the many practical cases in which accuracy and timeliness of the information about the system state are not possible (or too costly) to obtain, state oblivious algorithms, such as R-BAL allow almost equal performance to be reached.

Finally, Table III presents results for failure and loss probabilities, average latency, and first, second and third quantiles of latency, obtained with the analytical model (M), simulation (S), and testbed (T) for the policies GO, R-BAL, MCCLOUD and LENNON, at loads ρ=0.5 and ρ=0.75.

We can observe that, in spite of the differences among the approaches, results are in very good agreement. Note that, to compute these results, we have first run testbed experiments and recorded the latency while sending very few

requests, so as to capture the average time to reach the servers in absence of congestion (reported in the first column of the table). Afterward, we have simulated and modeled the behavior of the policies under the same operational conditions.

The matching between model and simulation is extremely good, which validates our model under ideally stable network conditions. However, some discrepancies can be observed when considering LENNON and, in general, testbed results.

These differences are due to two main causes. The first is that the testbed includes the effects of background traffic, which is ignored in model and simulations because, of course, we could not measure the background in the cell and in the Internet in general. We have minimized the impact of background traffic by running experiments at night¹. The second and most important cause is that in simulations and testbed experiments, the state of edge and cloud is only estimated by observing what flows through the proxy. The magnitude of the error due to state estimation depends on the load, which we have in turn estimated from the RTT between proxy and servers and used in the model. For instance, with a typical RTT of 0.15 ms between proxy and edge, the error resulting from considering exactly 200 services per second instead of the real value—

which is a Poisson number with average up to 200—is a r.v.

with variance equal at most to 0.03, i.e., σ/kE= 0.005, which explains the good match for MCCLOUD results even if our estimate of the error parameter were not too precise. At the cloud, instead, with an RTT of about 25 ms and a capacity of 2000 services/s, the variance of the error can go up to 50, hence σ/kC = 0.142, with some uncertainty that justifies a small mismatch in the table.

VII. RELATEDWORK

Edge computing aims to bring computing capabilities within the radio access network as close as possible to UEs (see [2], [3] and the references therein). This technology expands the computational capabilities of mobile devices by moving their computations to either cloud servers (usually far from the place where the request is generated) or servers that are close to the end users. Edge and Fog servers are different instances of these servers located close to base stations.

The problem addressed in our paper is called in different ways in the edge/cloud computing literature: computation offloading, server selection, request routing. Different names emphasize different aspects of the problem. The authors of [10] provide an interesting taxonomy of different approaches to computation offloading in edge/cloud systems that allows a precise positioning of our proposal. In particular, our algorithms can be seen as instances of centralized offloading schemes with a cloud infrastructure and a single edge server.

Our scheme is centralized because the offloading destination, that is, either edge or cloud, is determined by a decision maker (that in some cases uses information on the status of the servers). Although the literature on offloading strategies is quite wide and varied (see for instance the references in [10]),

1Minimizing the impact of background traffic is necessary, although our model and simulator can account for it, because we cannot measure or control background traffic in the testbed, and thus we cannot study equivalent configurations with model, simulation and testbed, unless the background traffic is close to zero.
