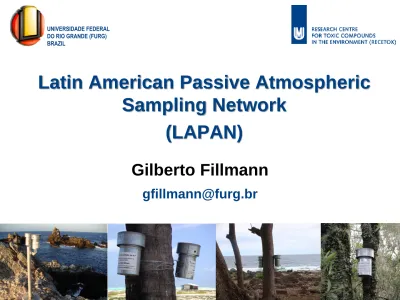

Latin American Passive Atmospheric Sampling Network (LAPAN)

Latin American Passive Atmospheric

Sampling Network

(LAPAN)

Gilberto Fillmann

Running at 13

countries

COLLABORATORS

Beatriz Aristizabal - Universidad Nacional de Colombia (Colombia)

Boris Johnson Restrepo – Universidad de Cartagena (Colombia)

Carola Resabala – Escola Superior Politecnica del Litoral (Ecuador)

Floria Gutiérrez – Instituto Tecnológico de Costa Rica (Costa Rica)

Gabriela Eguren - Universidad de la Republica (Uruguay)

Isabel Moreno - Universidad Mayor de San Andres (Bolivia)

Karina Miglioranza – Universidad de Mar del Plata (Argentina)

Karla Pozo – Universidad San Sebastian (Chile)

Malverve Spencer - Antigua State College (Antigua & Barbuda)

Nadia Gamboa – PUC (Peru)

Ricardo Barra –Universidad de Concepcion (Chile)

Sheila Marques – Universidad Central de Venezuela (Venezuela)

Yaris Zavala-Rodriguez – CESCCO/ MIAMBIENTE (Honduras)

Frank Wania – University of Toronto (Canada)

Jana Klanova – RECETOX (Czech Republic) And, many other annonymous collaborators....

PAS by Background

60 running sites

● 25 Urban/Suburban ● 30 Low impact sites ● 5 Agricultural

Installed PAS ● 7th _{year of sampling} ● 6th _{year of sampling} ● 5th _{year of sampling} ● 4th _{year of sampling} ● 3rd _{year of sampling} ● 2nd _{year of sampling} ● 1st _{year of sampling}

Wania et al., 2003. ES&T, 37

XAD2

-based PAS

• XAD2 resin is exhaustively cleaned and then stored

• Samplers are mounted in a stainless steel mesh cylinders

• Dried under gently N₂ flow

• Stored in hermetically sealed SS containers

XAD2-based PAS

Side by side GAPS PUF-PAS – 6 sites • 2010-2014 – 2-3 resins/site

Project Aims

1. Assess the effectiveness of Stockholm Convention within

GRULAC region;

2. Gather new data for air (improve spatial and temporal resolution of data);

3. Assessment of local and global sources by deploying PAS

in agricultural, urban/industrial and low impact areas; 4. Produce long-term temporal studies

5. Consolidate/improve the research network;

6. Improve regional capability for sampling and analysis in air

GRULAC - Group of Latin American and Caribbean Countries in the United Nations

Target Chemicals (FURG)

1. Chlorinated Pesticides 2. PCBs

3. PBDEs

✓ First data (

24

samples from

14

sites of selected

years

between

2010-2013

)

were

chosen

to

compose the

2

_{Regional Monitoring Report}

-GRULAC Region

for the GMP report presented in

May

2015

at

the

seventh

meeting

of

the

Conference of the Parties to the Stockholm

Convention (SC COP-7)

✓ Data available at the Global Environmental

Assessment and Information System (

GENASIS

data bank

)

– RECETOX (Czech Republic)

GMP for POPs

2nd _{Regional Monitoring}

Report - GRULAC Region _{Bahia Blanca}

0 4 8 12 16

Trifluralin Chlorothalonil Dichlofluanid

pg m -3

C

0 5 10 15 20 25

Σ chlo Σ HCHs Σ hept ∑ PBDEs

pg m -3 B 0 25 50 75 100 ANT 2010-2011 BR1 2010-2012 BR2 2010-2012 BR3 2010-2011 BR3 2011-2012 BR3 2012-2013 BR4 2010-2012 BR5 2010-2011 BR6 2011-2013 AR1 2010-2011 AR1 2011-2012 AR12012-2013 AR2 2010-2011 AR2 2011-2012 AR2 2012-2013 PE 2010-2011 PE 2011-2012 CHI1 2010-2011 CHI1 2011-2012 CHI2 2010-2011 CHI2 2011-2012 UR 2010-2011 UR2011-2012 VE 2011-2013 ∑ PCBs Σ End Σ DDTs pg m -3 A B raz il Ar gen tin a P er u C h ile Uru gu ay Antarctica

Levels (pg m-3_{) of ΣPCBs, ΣEndolsulfan, ΣDDTs (A), ΣChlordane, ΣHCHs, ΣHeptachlor, ΣPBDEs (B),}

and Trifluralin, Chlorothalonil and Dichlofluanid (C)

Venezuela

Not analyzed

177

RESULTS

Bahia Blanca Low brominated BDEs mainly Endosulfan

PCBs &

DDTs were the predominant

Target Chemicals (FURG)

1. Chlorinated Pesticides 2. PCBs

3. PBDEs

4. Polycyclic Aromatic Hydrocarbons (PAHs)

Sampling Year / Sites

2010-2011 => 29 sites analyzed out of 31 2011-2012 => 32 sites analyzed out of 32 2012-2013 => 16 sites analyzed out of 36 2013-2014 => zero sites analyzed out of 44 2014-2015 => zero sites analyzed out of 48

- 20 40 60 80 100 120 140 2º ano 2º ano 3º ano 1º ano 2º ano 3º ano 1º ano 2º ano 3º ano 1º ano 2º ano 3º ano 1º ano 2º ano 1º ano 2º ano 3º ano 1º ano 2º ano 3º ano R io Gal lego s P. D es eado C om . R iv a dav ia P. M adr y n BB T io F ran BB dep BB ant es ∑PBDEs ∑DDTs ∑endosulfan ∑PCBs

Northern

Argentina

Southern

Argentina

- 5 10 15 20 25 30 1º ano 2º ano 1º ano 2º ano 1º ano 2º ano 3º ano 1º ano 2º ano 3º ano 1º ano 2º ano 3º ano 1º ano 2º ano 3º ano 1º ano 2º ano M o n te vid e o Sa lto FU RG FEP AM SJ A UF P R CET ESB ∑PBDEs ∑DDTs ∑endosulfan ∑PCBs

Southeastern

Brazil

Southern

Brazil &

Uruguay

LAPAN (RECETOX) 53 Sites ● 2014-2015 ● 2015-2016 ● 2016-2017 Temporal Trends 6 Remote Sites ● 2014-2017

Target Chemicals (RECETOX)

1. Chlorinated Pesticides 2. PCBs

3. PBDEs

4. Br & Cl Novel Flame Retardants

5. Organophosphate Esters (OPEs) Flame Retardants

6. Perfluoroalkyl Substances

7. Polycyclic Aromatic Hydrocarbons (PAHs) 8. Currently-Used Pesticides (CUPs)

9. SCCPs (screening for some samples) 10. Siloxane (University of Porto)

❖ Modeling based on emission inventories (Prof Martin Scheringer)

❖ Toxicity testing of gas-phase samples (Dr Klára Hilscherová / Prof. Ludek Blaha)

❖ Sample banking (1 resin/site)

UNIVERSIDADE FEDERAL DO RIO GRANDE (FURG)
