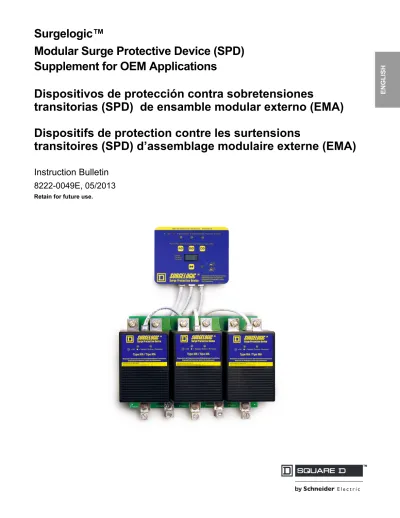

Surgelogic™

Modular Surge Protective Device (SPD)

Supplement for OEM Applications

Dispositivos de protección contra sobretensiones

transitorias (SPD) de ensamble modular externo (EMA)

Dispositifs de protection contre les surtensions

transitoires (SPD) d’assemblage modulaire externe (EMA)

Instruction Bulletin

8222-0049E, 05/2013

Retain for future use.

™ EN G L IS H

(2)

ENGLISH

Precautions

At end-of-life conditions, Surge Protective Devices (SPDs) can lose their ability to block power system voltage and attempt to draw excessive current from the line. This SPD is equipped with overcurrent and overtemperature components that disconnect the surge suppression elements from the electrical supply should the surge suppression elements reach end of life. Tripping of the branch circuit breaker or fuse feeding the SPD can occur when the surge suppression elements reach end of life.

The SPD is equipped with overcurrent components that will limit the per

phase I2_{t, I}

apparent, Ip, and Ith values to those listed in Table 1 when

connected to a power system with a short-circuit current rating not exceeding 200,000 A.

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E or CSA Z462.

• This equipment must only be installed and serviced by qualified electrical personnel.

• Turn off all power supplying this equipment before working on or inside equipment.

• Always use a properly rated voltage sensing device to confirm power is off. • Replace all devices, doors and covers before turning on power to this

equipment.

• This equipment must be effectively grounded per all applicable codes. Use an equipment-grounding conductor to connect this equipment to the power system ground.

Failure to follow these instructions will result in death or serious injury.

CAUTION

LOSS OF BRANCH CIRCUIT POWER/LOSS OF SURGE SUPPRESSION

• Ensure that the branch circuit breaker or fuse trip characteristic has been coordinated with the overcurrent components inside the Surge Protective Device (See Tables 1 and 2).

• Perform periodic inspection of the Surge Protective Device status indicator lights as part of the preventative maintenance schedule. • Promptly service the Surge Protective Device when an alarm state

exists.

• Use dry contacts to signal an alarm state to the central supervisory system for unmanned, inaccessible, or critical installations.

• Use multiple Surge Protective Devices to achieve redundancy for critical applications.

Failure to follow these instructions can result in injury or equipment damage.

(4)

Surgelogic™ Modular Surge Protective Device (SPD) 8222-0049E

Introduction 05/2013

4

ENGLISH

Introduction

Table 1: SPD Operational Limits SPD Device Per Phase

I2_t Iapparent Ip Ith TVS*IMA10O_ through TVS*IMA24O_ _{175 kA}2 seconds 17,000 A RMS 40,000 A RMS 220 A TVS4HIMA10O_ through TVS4HIMA24O_ TVS9IMA10O_ through TVS9IMA18O_ _98kA2 seconds 12,750 A RMS 30,000 A RMS 165 A TVS8HIMA10O_ through TVS8HIMA18O_ * 1 - 8

CAUTION

LOSS OF SURGE SUPPRESSION

• Do not energize the Surge Protective Devices until the electrical system is completely installed, inspected, tested, and all conductors have been connected and functional, including the neutral.

• Verify the voltage rating of the device and system before energizing the Surge Protective Device.

• Perform high-potential insulation testing, or any other tests where Surge Protective Device components will be subjected to voltages higher than their rated turn-on voltage, with the neutral and Surge Protective Device disconnected from the power source.

Failure to follow these instructions can result in injury or equipment damage.

DANGER

equipment.

(5)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Location Considerations EN G L IS H

Unpacking and Preliminary

Inspection

Inspect the entire shipping container for damage or signs of mishandling before unpacking the device. Remove the packing material and further inspect the device for any obvious shipping damage. If any damage is found and is a result of shipping or handling, immediately file a claim with the shipping company.

Storage

The device should be stored in a clean, dry environment. Storage temperature is -40 °F to + 149 °F (-40 °C to + 65 °C). All of the packaging materials should be left intact until the device is ready for installation.

Safety Labels

English, Spanish, and French versions of all safety labels, (Danger, Warning, and Caution), are provided.

Location Considerations

Environment

The device is designed to operate in an ambient temperature range of -4 °F to + 149 °F (-20 °C to + 65 °C) with a relative humidity of 0 to 95% non-condensing. The operating temperature of the LCD on the diagnostic display panel is +14 °F to + 140 °F (-10 °C to + 60 °C). Refer to the product catalog for further details on enclosures. All IMA devices operate normally without reduction in performance when subjected to shock and vibrations described in IEC 60721-3-3, Class 3M4.

Audible Noise

The device background noise is negligible and does not restrict the location of the installation.

Mounting

Refer to page 13 for typical mounting dimensions.

Service Clearance

The service clearance should meet all applicable code requirements.

Equipment Performance

To obtain the maximum system performance, locate the device as close to the circuit being addressed as possible, to minimize the interconnecting wiring length. For every foot of wire length, approximately 160 Volts, (6 kV / 3 kA, 8/20 microsecond), is added to the suppressed voltage. The Voltage Protection Rating (VPR) is located on the device nameplate and is

measured six inches from the enclosure sidewall, according to UL®₁₄₄₉

Third Edition.

NOTE: For troubleshooting, call the Surgelogic

Technical Assistance Group at 1-800-577-7353.

Proper installation is imperative to maximize the Internal Modular Assembly (IMA) surge protective device’s effectiveness and performance. The installer should follow the steps outlined in this instruction bulletin to ensure proper installation. Read the entire instruction bulletin before beginning the installation. These instructions are not intended to replace national or local electrical codes. Check all applicable electrical codes to verify compliance. Installation of modular surge suppressors should only be performed by qualified electrical personnel.

(6)

Electrical 05/2013

6

ENGLISH

Electrical

Voltage Rating

Prior to mounting the SPD, verify that the device has the same voltage rating as the power distribution system in which it is installed. Compare the nameplate voltage on the SPD with the nameplate voltage of the electrical distribution equipment.

The specifier or user of the device must be familiar with the configuration and arrangement of the power distribution system in which any SPD is to be installed. The system configuration of any power distribution system is based strictly on how the secondary windings of the transformer supplying the service entrance main or load are configured. This includes whether or not the transformer windings are referenced to earth via a grounding conductor. The system configuration is not based on how any specific load or equipment is connected to a particular power distribution system. See Table 2 for the service voltage of each SPD.

DANGER

Confirm the Surge Protective Device voltage rating on the module or nameplate label is the same as the operating voltage.

Table 2: Voltage Ratings for OEM / Assembler Kits

Service Voltage Peak Surge Current _{Rating Per Phase} Catalog Number1

120/240 V, 1-phase, 3-wire + ground 120 TVS1IMA12O_ 160 TVS1IMA16O_ 240 TVS1IMA24O_ 208Y/120 V,1_3-phase,

4-wire + ground2 _Wye

120 TVS2IMA12O_ 160 TVS2IMA16O_ 240 TVS2IMA24O_ 240/120 V, 3-phase, 4-wire + ground High-Leg Delta 120 TVS3IMA12O_ 160 TVS3IMA16O_ 240 TVS3IMA24O_ 480Y/277 V, 3-phase, 4-wire + ground3 Wye 120 TVS4IMA12O_ 160 TVS4IMA16O_ 240 TVS4IMA24O_ 480Y/277 V, 3-phase, 3-wire + ground3 High-Resistance Ground 100 TVS4HIMA10O_ 120 TVS4HIMA12O_ 160 TVS4HIMA16O_ 200 TVS4HIMA20O_ 240 TVS4HIMA24O_ 480 V, 3-phase, 3-wire + ground Delta 100 TVS5IMA10O_ 120 TVS5IMA12O_ 160 TVS5IMA16O_ 200 TVS5IMA20O_ 240 TVS5IMA24O_ Continued–

(7)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Electrical EN G L IS H

Terminals, Wire Size, and

Installation Torque

Terminals are provided for phase (line), neutral, and equipment ground

connections. The IMA terminals accept a range of 10 AWG (5.3 mm2_{) to 2/0}

AWG (50 mm2_{) copper wire for phase, neutral, and ground connectors.}

Torque connections to the following values.

Branch Circuit Overcurrent

Protection

240 V, 3-phase, 3-wire + ground Delta 100 TVS6IMA10O_ 120 TVS6IMA12O_ 160 TVS6IMA16O_ 200 TVS6IMA20O_ 240 TVS6IMA24O_ 600Y/347 V, 3-phase, 4-wire + ground Wye 120 TVS8IMA12O_ 160 TVS8IMA16O_ 240 TVS8IMA24O_ 600Y/347 V, 3-phase, 3-wire + ground High-Resistance Ground 100 TVS8HIMA10O_ 120 TVS8HIMA12O_ 160 TVS8HIMA16O_ 180 TVS8HIMA18O_ 600 V, 3-phase, 3-wire + ground Delta 100 TVS9IMA10O_ 120 TVS9IMA12O_ 160 TVS9IMA16O_ 180 TVS9IMA18O_

1 _{Catalog numbers are representational. Actual catalog numbers require a suffix to indicate}

enclosure, a UL Type, and options.

2 _{208Y/120 series also applies to the following voltage 220Y/127.}

3 _{480Y/277 series applies to the following voltages 380Y220, 400Y/230, and 415Y/240.}

Table 2: Voltage Ratings for OEM / Assembler Kits

Service Voltage Peak Surge Current _{Rating Per Phase} Catalog Number1

Table 3: Terminal Torque

Power Connection Torque

AØ, BØ, CØ and N

35 in-lb. (4 N•m) Ground

DANGER

• Use conductors rated for the Overcurrent Protection Device (OCPD) per

applicable codes.

• Use conductors rated for the application per applicable codes.

Failure to follow these instructions will result in death or serious injury.

(8)

Location of Surge Protective Device (SPD) 05/2013

8

ENGLISH

UL 1449 Type 1 SPDs have been designed and approved for line side applications prior to the main service disconnect without supplemental overcurrent protection. Type 2 SPDs must be installed on the load side of the main Overcurrent Protection Device (OCPD). All installations should either provide or include a disconnecting means.

Type 1 SPDs can also be used in Type 2 applications (load side of OCPD). When either Type 1 or Type 2 SPDs are used on the load side, they must be installed per local codes. A branch circuit OCPD, either in the form of a circuit breaker or fuse, must be provided for the SPD. The branch circuit OCPD provides the required short circuit protection for wire feeding the device and also provides a disconnecting means for services needs. Since the current drawn by the IMA device during standby operation is negligible, the IMA device can be connected to a dedicated, separate branch circuit or connected to a suitable existing branch circuit.

• When connected to a separate, dedicated branch circuit, the OCPD

setting must be selected to protect the conductors feeding the IMA device.

• When connected to an existing branch circuit, the conductors connected

to the IMA device must have an ampacity not less than the setting of the existing OCPD.

During overvoltage surge diversion, current will flow through the IMA device. The branch circuit OCPD must pass this current without tripping for the IMA device to function properly.

For further information concerning coordination of the OCPD with the IMA device, refer to Table 1.

Location of Surge Protective

Device (SPD)

Locate the SPD as close as possible to the circuit being addressed to minimize the wire length and optimize SPD performance. Avoid long wire runs so that the device will perform as intended. To reduce the impedance that the wire displays to surge currents, the phase, neutral, and ground conductors must be routed within the same conduit and tightly bundled or twisted together to optimize device performance. Avoid sharp bends in the conductors. See Figure 1.

Figure 1: Surge Protective Device Wiring Practice

To load(s) Phases Neutral (if applicable) Ground Ground bus Neutral bus SPD Phase A Phase B Phase C Neutral (if applicable) Ground Interconnect wiring – Minimize length – Avoid sharp bends Panel

(9)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Grounding EN G L IS H

Grounding

The IMA product has leakage current to ground when energized and can present a hazardous touch voltage.

General

The IMA device has SPD elements connected from phase to ground. To prevent hazardous touch voltage on the enclosure surrounding the IMA during normal operation or during SPD end-of-life, it is critical that there be a robust and effective connection to the building grounding structure. The grounding connection must utilize an equipment grounding conductor run with the phase and neutral (if present) connection of the power system. The IMA device should not be connected to a separate isolated ground.

When metallic raceway is used as the wiring method, an insulated grounding conductor should be run inside the raceway and sized in accordance with all applicable codes. Maintain electrical continuity at all raceway connections using appropriate bonding devices and do not install isolation bushings to interrupt a metallic raceway run.

For best overvoltage suppression by the IMA device, use a single-point ground system where the service entrance grounding electrode system is connected to and bonded to all other available electrodes, building steel, metal water pipes, driven rods, etc. (for reference, see IEEE 142-2007). The ground impedance measurement of the electrical system should be as low as possible, and in compliance with all applicable codes.

WARNING

HAZARDOUS TOUCH VOLTAGE

• Connect the Surge Protective Device ground terminal to the building grounding grid structure.

• Use an appropriately sized equipment grounding conductor. • When using metallic raceway or conduit:

— Do not use isolation bushings to interrupt the metallic raceway or conduit.

— Maintain electrical continuity at all raceway and conduit connections using appropriate bonding devices.

• Do not use a separate isolated ground for the Internal Modular Assembly device.

• Verify proper equipment connection to the grounding system. • Verify ground grid continuity by performing regularly scheduled

inspections and testing as part of a comprehensive electrical maintenance program.

Failure to follow these instructions can result in death or serious injury.

(10)

Grounding 05/2013

10

ENGLISH

Power System Grounding

Solidly-Grounded Power Systems

SPDs rated for use on solidly-grounded power systems must not be connected to resistance-grounded (for example, HRG) or ungrounded power systems. Such a connection can result in damage to the SPD.

Always verify the power system grounding configuration prior to application of power to the device. Confirm that all ground bonds are installed at both the service entrance equipment and power system transformer prior to application of power.

Resistance-Grounded Power

Systems

In addition to the power system configuration and voltage, the power system grounding method must be considered when selecting the appropriate IMA device. Refer to the following chart for information concerning the suitability of IMA device to specific power system grounding

Table 4: Grounding Methods

IMA Device Catalog Number Power System Grounding Method

TVS1IMA__ Solidly-Grounded TVS2IMA__ TVS3IMA__ TVS4IMA__ TVS8IMA__ TVS5IMA__ Ungrounded TVS6IMA__ TVS9IMA__

TVS4HIMA__ and TVS8HIMA__ Resistance Grounded Wye (for example, HRG) 1

1 _{HRG refers to a High Resistance Ground system. The increased system resistance is from the}

neutral connection to the ground connection. However, the ground connection is solidly-grounded.

NOTICE

SURGE PROTECTIVE DEVICE DAMAGE AND POWER SYSTEM OVERVOLTAGE

• Do not connect devices rated for use on solidly-grounded power systems to resistance-grounded (for example, High Resistance Ground) or ungrounded power systems.

• Verify that the service entrance equipment is bonded to ground in accordance with all applicable codes.

• Verify that the neutral terminal of the power system transformer feeding the device is bonded to system ground in accordance with all applicable

codes.

Failure to follow these instructions can result in equipment damage.

NOTICE

SURGE PROTECTIVE DEVICE DAMAGE AND POWER SYSTEM OVERVOLTAGE

• Do not connect devices rated for use on resistance-grounded power systems to ungrounded power systems.

• Resistance-grounded power systems must be maintained in an over-damped state to limit voltage overshoot and duration during operation. • Verification and adjustment of correct power system damping should be

done:

— Periodically as part of normal system maintenance. — Following power system modifications.

(11)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Installation EN G L IS H

The HRG IMA product is intended for use on resistance-grounded power systems where the power system has been set for, and is maintained in, an over-damped state. For the power system to be over-damped, the current through the grounding resistor during a bolted phase-to-ground fault must be significantly greater than the total charging current of the system. Periodic engineering evaluation of the power system is required to determine the worst-case charging current of the system and to adjust the grounding resistance accordingly. As the power system is modified, the value of the grounding resistor must be evaluated and adjusted to maintain the system in the over-damped state.

Installation

UL Conditions of Acceptability

For use only in equipment where the acceptability of the combination is

determined by Underwriters Laboratories®_{. When installed in the end-use}

equipment, the following are among the considerations to be made: 1. A suitable electrical enclosure shall be provided in the end-use product. 2. The device is intended for factory wiring only with the suitability of the

connections (including spacings between factory connectors) determined in the end-use application.

3. Voltage Protection Rating (VPR) shall be determined in the end-product where applicable.

4. The SPD unit has been subjected to the following tests of UL1449, 3rd Edition:

a. Surge Testing (VPR)

b. Nominal Discharge Test (20 kA) c. Operational Voltage Test d. Dielectric Voltage Withstand

e. Current Tests (Short Circuit Current, Intermediate Currents, Limited Currents)

5. The component SPD has been evaluated to Short Circuit Rating tests (SCCR), per UL 1449 Third Edition, Section 39 at 200 kA rms available fault current, without external Overcurrent Protective Devices (OCPD) or external enclosures.

DANGER

equipment.

(12)

Wiring 05/2013

12

ENGLISH

Wiring

Follow the steps listed below when making wiring connections:

1. Turn off all power supplying this equipment before working on or inside any enclosure containing this equipment.

2. Confirm the SPD voltage rating and configuration is the same as the system voltage and power system configuration to which it will be connected.

3. Identify proper location for surge protective device. Locate as close as possible to the panel being addressed so the wires are as short as possible. Mount unit securely.

NOTE: The surge protective device must be installed in an accessible

location as described in the NEC.

4. Install in accordance with national and local electrical codes for overcurrent protection recommendations and wire ampacity considerations.

NOTE: The neutral connection is not present on 3-wire, 3-phase wye

ground or 2-wire single-phase mid-point ground power systems. For these systems, bond the neutral and ground lugs together in the SPD. For a High Resistance Ground (HRG) or Delta SPD, no neutral connection exists. For installation wiring see Figures 6 and 7.

NOTE: See Terminals, Wire Size, and Installation Torque and Table 3

on page 7 for acceptable wire size and installation torque.

5. Twist conductors ½ turn or more for every 12 inches of length. Do not loop or coil wires. Be sure to maintain adequate wire bending space per NEC.

DANGER

equipment.

DANGER

Confirm the Surge Protective Device voltage rating on the module or nameplate label is the same as the operating voltage.

(13)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Wiring EN G L IS H

6. If the remote signaling contacts of the diagnostic display panel are to be used, refer to the section, “Dry Contacts”, on page 18 for wiring instructions.

7. On a High-Leg Delta installation, note the high leg connection per wiring diagram. See Figure 5.

8. Replace all devices, doors and covers before turning on power to the equipment. If the SPD is properly installed and functioning, the green LED indicators on the display will be lit.

For questions pertaining to the installation of this device, contact the Surgelogic Technical Assistance Group at 1-800-577-7353.

Figure 2: Dimensions and Mounting

NOTE: The neutral connection will not be present on Delta and HRG configurations.

6.60 [167.6] Mounting Hole Locations 6.13 [155.7] 5.33 [135.3] 0.49 [12.4] 0.89 [22.6] 5.69 [144.5] _9.86 [250.4] GROUND NEUTRAL Mounting Stand-offs 3X 1/4-20 2.39 [60.7] 0.78 [19.8] 3.65 [92.7]

(14)

Wiring 05/2013

14

ENGLISH

Wiring Diagrams

Without Integral

Figure 3: Single-Phase, Three-Wire, Grounded Installation Integral Switch

Figure 4: Three-Phase, Three- or Four-Wire, Grounded Wye Installation

Figure 5: Three-Phase, Three- or Four-Wire, High-Leg Delta Installation

Ø C Ø A N 8222-0049-02 A N C Type MA / Tipo MA

Dispositivo de Protección contra Sobretensiones Transitorias Dispositif de Protection contre les Surtensions www.SquareD.com 8222-0001A Made in USA / Hecho en E.U.A. / Fabriqué aux É.-U.

= Replace / Sustituir / Remplacer = OK Type MA / Tipo MA

= Replace / Sustituir / Remplacer = OK

Customer Connections 120–240 kA Back of Display Panel

Phase C Ground Neutral Phase A

NOTE 1. The neutral conductor may not be present on three-wire,

grounded neutral power systems. For these systems, tie the neutral and ground lugs on the SPD together.

See Note 1 SPD Ø C Ø A BØ N 8220-0049-03 Type MA / Tipo MA

= Replace / Sustituir / Remplacer = OK A N C B SPD Phase A Phase C Ground Neutral Phase B

Back of Display Panel

Customer Connections 120–240 kA

NOTE 2: The neutral conductor is not present on three-wire,

grounded neutral power systems. For these systems tie the neutral and ground lugs of the SPD together.

See Note 2 Ø C Ø A BØ N 8222-0049-04 Type MA / Tipo MA

= Replace / Sustituir / Remplacer = OK A N C B Customer Connections 120–240 kA Phase B (High-Leg) Phase C Phase A Neutral Ground SPD

NOTE 3: The high-leg of the power system must connect to phase B of the SPD.

The neutral conductor is not present on three-wire, grounded neutral power systems. For these systems tie the neutral and ground lugs on the SPD together.

(15)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Wiring EN G L IS H

Wiring Diagrams for HRG and

Delta Systems

Figure 6: High Resistance Ground (HRG) Wye Installation

SPD

NOTE 4: The neutral conductor is not present

on HRG wye grounded power systems.

Ground Phase A Phase C Phase B See Note 4 Ø C Ø BØ A Type MA / Tipo MA

Type MA / Tipo MA

Figure 7: Three-Phase Three-Wire + Ground, Delta Installation

SPD SPD

NOTE 5: The ground connection of the Delta SPD shall be connected to the system ground

conductor. The neutral conductor is not present on Delta systems.

Ø C

Ø BØ

A

NOTE 6: The ground connection of the Delta SPD shall be connected to the

system ground conductor. The neutral conductor is not present on Delta systems. Phase B of the electrical system is typically the grounded phase.

Ungrounded Delta Corner Grounded Delta

See Note 6 See Note 5

Phase C Ground Phase A Phase B Phase A Phase C Phase B Ground

(16)

Operation 05/2013

16

ENGLISH

Operation

LED Status Indicators

The SPD diagnostic display panel shows the status of each MA module with diagnostically controlled green/red LEDs (see Figure 8). If a unit is operating correctly, all of the phase LEDs will be illuminated green. To test the integrity of the diagnostics for each phase, push the button below the phase LEDs on the diagnostic display panel. The green LED will turn red and the alarm will sound, if the alarm is enabled. Releasing the test button will complete the test; the red LED will turn green and the alarm will shut off. If an inoperable condition occurs on any phase, the audible alarm sounds and the corresponding phase LED on the diagnostic display panel is illuminated red. This indicates that the device needs service by qualified electrical personnel. The audible alarm can be silenced, until a qualified person is able to evaluate and service the SPD, by pressing the alarm enable/disable button. The alarm will silence and the green alarm LED will not be lit. The red phase LED will continue to be illuminated until the inoperative condition had been cleared.

On an MA module (see Figure 8), if either LED is not lit, the module should be replaced. If both green LEDs are not lit and the diagnostic display panel has power, then power has been lost to that phase or the module should be replaced (refer to Table 2 on page 6). Refer to the final equipment

instruction bulletin for MA module disconnection and access instructions. When power is applied to the SPD and one or more of the diagnostic display panel LEDs are red, and one or more MA module LEDs are out, the appropriate MA module should be replaced. Refer to “Maintenance and Troubleshooting” on page 20 for proper troubleshooting procedures and Table 5 for replacement modules. If the module LEDs are green and the diagnostic display LEDs are red, please call SPD TAG at 1-800-577-7353.

DANGER

equipment.

(17)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Operation EN G L IS H

Replacement Modules

Figure 8: MA Module LEDs

Left green LED lit: L-G suppression is operating.

Left green LED not lit: Loss of surge suppression from L-G.

Right green LED not lit: Loss of surge suppression from L-N for MA(1, 3, 4, or 8)IMA_ L-L for

Right green LED lit: Suppression is operating L-N for MA(1, 3, 4, or 8)IMA_ L-L for MA(5, 6, or 9)IMA_ (Delta)

MA_IMA_H (HRG) MA_IMA_LL (L-L Enhanced)

MA(5, 6, or 9)IMA_ (Delta) MA_IMA_H (HRG) MA_IMA_LL (L-L Enhanced)

Table 5: IMA Replacement Modules System Voltage Peak Surge

Current Rating (kA)

Catalog Numbers1

1 _{Catalog numbers are representational. Actual catalog numbers require a suffix to indicate UL}

Type.

Phase A Phase B Phase C

120/240 V, 1-phase, 3-wire + ground 120 160 240 MA1IMA12_ MA1IMA16_ MA1IMA24_ — — — MA1IMA12_ MA1IMA16_ MA1IMA24_ 208Y/120 V, 3-phase, 4-wire + ground 2 Wye

2 _{208Y/120 series also applies to the following voltage 220Y/127.}

120 160 240 MA1IMA12_ MA1IMA16_ MA1IMA24_ MA1IMA12_ MA1IMA16_ MA1IMA24_ MA1IMA12_ MA1IMA16_ MA1IMA24_ 120/240 V, 3-phase, 4-wire + ground 3 High-Leg Delta

3 _{High-Leg Delta (Phase B modules are different than Phase A and Phase C modules).}

120 160 240 MA1IMA12_ MA1IMA16_ MA1IMA24_ MA3IMA12_ MA3IMA16_ MA3IMA24_ MA1IMA12_ MA1IMA16_ MA1IMA24_ 240 V, 3-phase, 3-wire + ground Delta 120 160 240 MA6IMA12_ MA6IMA16_ MA6IMA24_ MA6IMA12_ MA6IMA16_ MA6IMA24_ MA6IMA12_ MA6IMA16_ MA6IMA24_ 480Y/277 V, 3-phase, 4-wire + ground 4 Wye

4 _{480Y/277 series applies to the following voltages 380Y/220, 400Y/230, and 415Y/240.}

120 160 240 MA4IMA12_ MA4IMA16_ MA4IMA24_ MA4IMA12_ MA4IMA16_ MA4IMA24_ MA4IMA12_ MA4IMA16_ MA4IMA24_ 480Y/277 V, 3-phase, 3-wire + ground 3 High-Resistance Ground 120 160 240 MA4IMA12H_ MA4IMA16H_ MA4IMA24H_ MA4IMA12H_ MA4IMA16H_ MA4IMA24H_ MA4IMA12H_ MA4IMA16H_ MA4IMA24H_ 480 V, 3-phase, 3-wire + ground Delta 120 160 240 MA5IMA12_ MA5IMA16_ MA5IMA24_ MA5IMA12_ MA5IMA16_ MA5IMA24_ MA5IMA12_ MA5IMA16_ MA5IMA24_ 600Y/347 V, 3-phase, 4-wire + ground Wye 120 160 240 MA8IMA12_ MA8IMA16_ MA8IMA24_ MA8IMA12_ MA8IMA16_ MA8IMA24_ MA8IMA12_ MA8IMA16_ MA8IMA24_ 600Y/347 V, 3-phase, 3-wire + ground High-Resistance Ground 120 160 180 MA8IMA12H_ MA8IMA16H_ MA8IMA18H_ MA8IMA12H_ MA8IMA16H_ MA8IMA18H_ MA8IMA12H_ MA8IMA16H_ MA8IMA18H_ 600 V, 3-phase, 3-wire + ground Delta 120 160 180 MA9IMA12_ MA9IMA16_ MA9IMA18_ MA9IMA12_ MA9IMA16_ MA9IMA18_ MA9IMA12_ MA9IMA16_ MA9IMA18_

(18)

Operation 05/2013

18

ENGLISH

Audible Alarm

Push the alarm enable/disable button to enable or disable the alarm (see Figure 9). If the green alarm LED is lit the alarm is enabled. If the green alarm LED is not lit the alarm is disabled.

Surge Counter

The surge counter displays the number of transient voltage surges since the counter was last reset. The counter is battery powered to retain memory in the event of a power loss to the IMA module. To reset the surge counter, remove all power and press the small switch located inside the unit on the underside of the diagnostic circuit board near the diagnostic display connectors (also refer to Figure 10). This will reset the counter to zero.

Dry Contacts

The IMA series SPD is provided with dry contacts. The connection for the dry contacts is located on the back of the diagnostic display panel, (lower right

corner, refer to Figure 10), and will accept 22 AWG (0.33 mm2_{) to 14 AWG (2.1}

mm2_{) stranded or solid wire. The dry contacts are three-position, Form “C” type}

with Normally Open, Normally Closed, and Common connections. In the unpowered state the contact is closed between terminals NC and COM. This is also the alarm condition. The opposite state, closed between terminals NO and COM, indicates that power is on to the unit and that no alarm condition exists (See Table 7).

These contacts can be used for remote indication of the SPD’s operating status to a computer interface board or emergency management system. Also, these contacts are designed to work with the SPD remote monitor option described in the next section.

Table 6: Replacement Diagnostic Cables

TVS19PCK Three 19 in. (48.3 cm) cables

DANGER

• Use 600 Vac rated dry contact wiring.

• Dry contact wiring must have less than 1/16 in. (1.6 mm) exposed wire from the dry contact block.

• Maintain at least 1.0 in. (25 mm) separation between dry contact wiring and the power wiring in the enclosure.

Failure to follow these instructions will result in death or serious injury.

Table 7: Dry Contact Configuration

Alarm Contact Terminals Contact State with Power Applied

NO to COM Closed

(19)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD) 05/2013 Operation EN G L IS H

Care must be taken when installing the dry contact wiring because the terminals are on a moving door. Avoid the door hinge, any switches, and the high voltage areas of the enclosure when routing the wiring. To avoid the door hinge, tie wrap any dry contact wiring to the existing cable harness which crosses the hinge. Once the dry contact wiring is secured on a non-moving point of the enclosure, it is the user’s responsibility to maintain at least 1.0 in. (25 mm) separation between 600 Vac rated dry contact wiring and the power wiring in the enclosure.

The dry contacts are designed for a maximum voltage of 24 Vdc / 24 Vac and a maximum current of 2 A. Higher energy applications may require additional relay implementation outside the SPD. Damage to the SPD relay caused by use with energy levels in excess of those discussed in this instruction bulletin are not covered by warranty. For application questions, contact the Surgelogic Technical Assistance Group at 1-800-577-7353.

Remote Monitor Option

The remote monitor option has two LEDs, one red and one green, and an audible alarm with an enable/disable switch. Normal status is a lit green LED, and no audible alarm. To test the integrity of the remote monitor, press the push-to-test switch. If the alarm is enabled, the green LED will turn off, the red LED will turn on, and the alarm will sound. Releasing the switch will complete the test; the red LED will turn off, the green LED will turn on and the alarm will shut off.

If suppression on any phase is lost, the green LED will turn off, the red LED will turn on and an alarm will sound. The audible alarm can be silenced by pushing the alarm enable/disable button. The alarm will silence and the green alarm LED will not be lit. The red LED will continue to be illuminated until the inoperative condition has been cleared.

Figure 9: Three-Phase Diagnostic Display Panel with Surge Counter

Figure 10: Rear of Diagnostic Circuit Board

= = Phase LEDs On-line diagnostic push buttons Surge counter Alarm enable/disable push button Description of phase LEDs Alarm LED Enable alarm Disable alarm Surge counter reset switch (on diagnostic circuit board)

NOTE: Phase B is not present

on single-phase applications. Diagnostic Display Connectors TVS3DSPHC Dry contacts Surge counter reset switch (white)

(20)

Maintenance and Troubleshooting 05/2013

20

ENGLISH

The remote monitor includes a 120 Vac to 12 Vdc adapter with a six-foot power cord. Connections are made to the SPD diagnostic panel with Form “C”, 3-position dry contacts (provided) and the appropriate length of solid or

stranded 22 AWG (0.33 mm2_{) to 14 AWG (2.1 mm}2_{) not provided.}

Maintenance and

Troubleshooting

Figure 11: Remote Monitor Option (TVS12RMU)

= OK = Fault / Falla / Défaut

www.SquareD.com • 8220-0037A • Made in USA / Hecho en E.U.A. / Fabriqué aux É.-U.

Bouton pousser pour vérifier

Monitor Remoto / Moniteur À Distance

[63,5] 2.500 [31,8] 1.25 [88,9] 3.500 [100,3] 3.950 [5,86] 0.230 [5,86] 0.460 [4,75] 2x Ø 0.187 [111,76] 4.400 [3,3] 0.130 [28,58] 1.125

120 Vac power cord in [mm]

Dry contacts

DANGER

equipment.

(21)

8222-0049E Surgelogic™ Modular Surge Protective Device (SPD)

05/2013 Maintenance and Troubleshooting

EN

G

L

IS

H

Preventative Maintenance

Inspect the SPD periodically to maintain reliable system performance and continued transient voltage surge suppression. Periodically check the state of the diagnostic display panel LED status indicators. Routinely use the built-in diagnostics to inspect for inoperative modules.

Troubleshooting

If a module shows two green indicator lights and the display panel shows a red phase indicator light, follow the Troubleshooting Flow Chart in Figure 12 below.

Replacement Parts

The following replacement parts are available. For ordering information please contact your local distributor or refer to the product catalog.

• MA modules. Replacement instructions are included with the

replacement parts.

• Diagnostic display panel assemblies. Replacement instructions are

included with the replacement parts.

Figure 12: Troubleshooting Flow Chart

START Red diagnostic display phase LED(s) lit. Alarm on? Is alarm Enable/Disable LED on? Press alarm Enable/Disable switch. Is alarm on? Is alarm LED on? NO NO YES YES Check patch cable connections. Is diagnostic display Red LED(s) on? Check the voltage on each phase. Is the voltage correct?

Are all module LEDs on?

Possible diagnostic display board failure.

Contact Technical Assistance at 1-800-577-7353 for troubleshooting. NO YES YES YES NO YES YES NO

Check the power utility feed and verify voltage levels. NO Replace module Verify proper connection and energize SPD. NO

NOTE: For further assistance, call the Surgelogic

(22)

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

Schneider Electric and Square D are trademarks owned by Schneider Electric Industries SAS or its affiliated companies. All other trademarks are the property of their respective owners. 8222-0049E 05/2013

Replaces 8222-0014D, 03/2012

Schneider Electric

1751 S. 4800 W.

Salt Lake City, UT 84104 USA 1-888-778-2733

www.schneider-electric.us

Surgelogic™ Modular Surge Protective Device (SPD) Instruction Bulletin

(23)

Surgelogic™

Suplemento del dispositivo de protección contra

sobretensiones transitorias (SPD) modular para aplicaciones

de fabricantes del equipo original (OEM)

Boletín de instrucciones

8222-0049E, 05/2013

Conservar para uso futuro.

™

(24)

Dispositivo de protección contra sobretensiones transitorias (SPD) modular Surgelogic™ 8222-0049E 05/2013

2

ESPA

ÑOL

Contenido

Precauciones ... 3 Introducción ... 5

Desempaque e inspección preliminar ... 5 Almacenamiento ... 5 Etiquetas de seguridad ... 5

Consideraciones para la ubicación ... 6

Medio ambiente ... 6 Ruido audible ... 6 Montaje ... 6 Espacio libre necesario para realizar servicios de mantenimiento ... 6 Rendimiento del equipo ... 6

Especificaciones eléctricas ... 6

Tensión nominal ... 6 Terminales, tamaño de cable y par de apriete de la instalación ... 8 Protección contra sobrecorrientes del circuito derivado ... 8 Ubicación del SPD ... 9

Conexión a tierra ... 9

General ... 10 Puesta a tierra del sistema de alimentación ... 10 Sistemas de alimentación sólidamente puestos a tierra ... 11 Sistemas de alimentación con resistencia a tierra ... 11

Instalación ... 12

Condiciones de aceptación de UL ... 12

Alambrado ... 13

Diagramas de alambrado... 15 Diagramas de alambrado para los sistemas de HRG y en delta ... 16

Funcionamiento ... 17

Indicadores de estado LED ... 17 Módulos de repuesto ... 18 Alarma audible ... 19 Contador de sobretensiones transitorias ... 19 Contactos secos ... 19 Monitor remoto opcional ... 21

Servicio de mantenimiento y diagnóstico de problemas ... 22

Servicio de mantenimiento preventivo ... 22 Diagnóstico de problemas ... 23 Piezas de repuesto ... 23

(25)

8222-0049E Dispositivo de protección contra sobretensiones transitorias (SPD) modular Surgelogic™

05/2013 Precauciones

ESPAÑOL

Precauciones

PELIGRO

PELIGRO DE DESCARGA ELÉCTRICA, EXPLOSIÓN O DESTELLO POR ARQUEO

• Utilice equipo de protección personal (EPP) apropiado y siga las prácticas de seguridad en trabajos eléctricos establecidas por su Compañía, consulte la norma 70E de NFPA/Z462 de CSA y NOM-029-STPS.

• Solamente el personal eléctrico especializado deberá instalar y prestar servicio de mantenimiento a este equipo.

• Desenergice el equipo antes de realizar cualquier trabajo dentro o fuera de él.

• Siempre utilice un dispositivo detector de tensión nominal adecuado para confirmar la desenergización del equipo.

• Vuelva a colocar todos los dispositivos, las puertas y las cubiertas antes de volver a energizar el equipo.

• Este equipo deberá estar correctamente conectado a tierra de acuerdo con los códigos aplicables. Utilice un conductor de conexión a tierra del equipo para conectar este último a la tierra del sistema de alimentación.

El incumplimiento de estas instrucciones podrá causar la muerte o lesiones serias.

PRECAUCIÓN

PÉRDIDA DE ALIMENTACIÓN DEL CIRCUITO DERIVADO/PÉRDIDA DE SUPRESIÓN DE SOBRETENSIONES TRANSITORIAS.

• Asegúrese de que la función de disparo por fusible o interruptor automático derivado haya sido coordinada con los componentes de sobrecorriente dentro del SPD (consulte las tablas 1 y 2).

• Realice inspecciones periódicas a las luces indicadoras de estado del SPD como parte del programa de mantenimiento preventivo.

• Deberá prestarse servicio de inmediato al SPD cuando se activa una alarma.

• Utilice contactos secos para emitir una señal de alarma al sistema de supervisión central en las instalaciones críticas o difíciles de acceder y no supervisadas por personal.

• Emplee múltiples SPD para obtener redundancia para las aplicaciones críticas.

El incumplimiento de estas instrucciones puede causar lesiones personales o daño al equipo.

(26)

Dispositivo de protección contra sobretensiones transitorias (SPD) modular Surgelogic™ 8222-0049E

Precauciones 05/2013

4

ESPA

ÑOL

Cuando llegan al fin de su vida útil, los dispositivos de protección contra sobretensiones transitorias (SPD) pueden perder su habilidad de bloquear la tensión del sistema de alimentación e intentar extraer corriente excesiva de la línea. El SPD está equipado con componentes de sobrecorriente y sobrecalentamiento que desconectan los elementos de supresión de sobretensiones transitorias de la fuente de alimentación eléctrica en caso de que estos elementos alcancen su fin de vida útil. El posible disparo del interruptor automático derivado o fusible que alimenta al SPD puede activarse cuando los elementos de supresión de sobretensiones transitorias llegan al fin de su vida útil.

El SPD está equipado con componentes de sobrecorriente que limitarán los

valores por fase de I2_{t, I}_aparente_{, I}_p_{e I}_th_{en los valores que figuran en la}

tabla 1, cuando se conecta a un sistema de alimentación con una corriente nominal de cortocircuito de no más de 200 000 A.

Tabla 1: Límites de funcionamiento de los SPD

Dispositivo SPD Por fase I2t I_aparente I_p I_th

TVS*IMA10O_ a TVS*IMA24O_ _{175 kA}2 segundos 17,000 A rcm 40,000 A rcm 220 A TVS4HIMA10O_ a TVS4HIMA24O_ TVS9IMA10O_ a TVS9IMA18O_ _98kA2 segundos 12,750 A rcm 30,000 A rcm 165 A TVS8HIMA10O_ a TVS8HIMA18O_ * 1 - 8

PRECAUCIÓN

PÉRDIDA DE SUPRESIÓN DE SOBRETENSIONES TRANSITORIAS

• No energice los SPD sino hasta que el sistema eléctrico haya sido completamente instalado, inspeccionado, probado y todos los conductores estén conectados y funcionando, incluyendo el neutro. • Verifique la tensión nominal del dispositivo y del sistema antes de

energizar el SPD.

• Realice las pruebas de rigidez dieléctrica al aislamiento, o cualquier otra prueba donde los componentes del SPD sean sometidos a tensiones más altas que la tensión de conexión, con el neutro y el SPD desconectados de la fuente de alimentación.

El incumplimiento de estas instrucciones puede causar lesiones personales o daño al equipo.

(27)

8222-0049E Dispositivo de protección contra sobretensiones transitorias (SPD) modular Surgelogic™ 05/2013 Introducción ESPAÑOL

Introducción

Desempaque e inspección

preliminar

Realice una inspección visual de la caja de embalaje para ver si encuentra daños o indicaciones de un manejo inadecuado del equipo antes de desempacarlo. Retire el material de embalaje y revise el equipo para ver si encuentra daños obvios causados durante el envío. Si encuentra algún daño causado durante el envío o debido al manejo inadecuado, notifique de inmediato a la compañía de transporte.

Almacenamiento

Almacene el equipo en un lugar seco y limpio a una temperatura ambiente de -40 °C a +65 °C (-40 °F a 149 °F). No deseche el material de embalaje sino hasta después de haber instalado el equipo.

Etiquetas de seguridad

Se incluyen versiones en inglés, español y francés de todas las etiquetas de seguridad (peligro, advertencia y precaución).

PELIGRO

• Utilice equipo de protección personal (EPP) apropiado y siga las prácticas de seguridad en trabajos eléctricos establecidas por su Compañía, consulte la norma 70E de NFPA/Z462 de CSA y NOM-029-STPS.

• Solamente el personal eléctrico especializado deberá instalar y prestar servicio de mantenimiento a este equipo.

• Desenergice el equipo antes de realizar cualquier trabajo dentro o fuera de él.

• Siempre utilice un dispositivo detector de tensión nominal adecuado para confirmar la desenergización del equipo.

• Vuelva a colocar todos los dispositivos, las puertas y las cubiertas antes de energizar este equipo.

• Este equipo deberá estar correctamente conectado a tierra de acuerdo con los códigos aplicables. Utilice un conductor de conexión a tierra del equipo para conectar este último a la tierra del sistema de alimentación.

NOTA: Para obtener asistencia de diagnóstico

de problemas, póngase en contacto con el grupo de asistencia técnica Surgelogic llamando al 1-800-577-7353 (en EUA) o bien al 01-800 72 463 4337 (en México).

La instalación adecuada es fundamental para maximizar la eficacia y el rendimiento del dispositivo de protección contra sobretensiones transitorias tipo ensamble modular interno (IMA). La persona encargada de la instalación deberá adherirse a los pasos descritos en este boletín de instrucciones para asegurarse de obtener una instalación correcta. Lea todas las instrucciones de este boletín antes de comenzar la instalación. Estas instrucciones no deberán utilizarse como un sustituto del código nacional eléctrico de los EUA (NEC), NOM-001-SEDE ni de los códigos locales. Revise todos los códigos eléctricos correspondientes y asegúrese de que cumple con ellos. La instalación de los dispositivos de protección contra sobretensiones transitorias modulares deberá realizarla solamente personal eléctrico calificado.

(28)

Consideraciones para la ubicación 05/2013

6

ESPA

ÑOL

Consideraciones para la

ubicación

Medio ambiente

Este dispositivo ha sido diseñado para funcionar en temperaturas

ambientales de -20 °F a +65 °C (-4 °C a +149 °F), con humedad relativa de 0 a 95% sin condensación. La temperatura de funcionamiento de la pantalla de cristal líquido de diagnóstico es de -10 °C a +60 °C (+14 °F a +140 °F). Consulte el catálogo de productos para obtener más detalles sobre los gabinetes. Todos los dispositivos IMA funcionan normalmente sin reducir su rendimiento cuando se les somete a choques o vibraciones, como se describe en la norma IEC 60721-3-3, clase 3M4.

Ruido audible

El ruido de fondo del dispositivo es insignificante y no es un elemento limitante de la ubicación de instalación.

Montaje

Consulte la página 14 para conocer las dimensiones de montaje típico.

Espacio libre necesario para

realizar servicios de

mantenimiento

El espacio libre necesario para realizar servicios de mantenimiento debe cumplir con todos los requisitos de los códigos correspondientes.

Rendimiento del equipo

Para obtener un rendimiento máximo del sistema, coloque el dispositivo lo más cerca posible del circuito que se está protegiendo para minimizar la longitud del alambrado de interconexión. Para cada 0,3 m (1 pie) de longitud de cable, se agregan aproximadamente 160 V (6kV / 3kA, 8/20 microsegundos) a la tensión suprimida. El nivel de protección de tensión (VPR) está especificado en la placa de datos del dispositivo y debe medir 152 mm (6 pulgadas) desde las terminales del dispositivo, según la norma UL 1449, tercera edición.

Especificaciones eléctricas

Tensión nominal

Antes de montar el SPD, asegúrese de que el dispositivo tenga la misma tensión nominal que la red de distribución eléctrica en que esté instalado. Compare la tensión de la placa de datos en el SPD con la tensión de la placa de datos del equipo de distribución eléctrica.

La persona encargada de proporcionar las especificaciones o el usuario del dispositivo deberá estar familiarizado con la configuración y la disposición de la red de energía en la que se instalará el SPD. La configuración del sistema de cualquier red de distribución eléctrica está basada

rigurosamente en la configuración de los devanados secundarios del transformador que suministran a la carga o entrada principal de acometida. Inclusive si los devanados del transformador están conectados o no a tierra a través de un conductor de puesta a tierra. Sin embargo, la configuración

PELIGRO

Asegúrese de que la tensión nominal del SPD en el módulo o especificada en la placa de datos sea la misma que la tensión de funcionamiento.

(29)

05/2013 Especificaciones eléctricas

ESPAÑOL

de la red no está basada en la conexión de ninguna carga o equipo específico de una red de distribución eléctrica particular. Consulte la tabla 2 para conocer la tensión de acometida de cada SPD.

Tabla 2: Valores nominales de tensión para OEM / Kits de ensamble

Tensión de acometida _{máxima (kA) por fase}Corriente transitoria Número de catálogo1

1 _{Los números de catálogo son de ejemplo. Los números de catálogo reales requieren un sufijo}

para indicar el gabinete, el tipo UL y las opciones. 120/240 V, 1 fase, 3 hilos + tierra 120 TVS1IMA12O_ 160 TVS1IMA16O_ 240 TVS1IMA24O_ 208Y/120 V, 3 fases,

4 hilos + tierra (en estrella2₎

2 _{La serie 208Y/120 también es aplicable para la tensión de 220Y/127.}

120 TVS2IMA12O_

160 TVS2IMA16O_

240 TVS2IMA24O_

240/120 V, 3 fases, 4 hilos + tierra (instalación en delta con extremo

alto [High Leg Delta])

120 TVS3IMA12O_

160 TVS3IMA16O_

240 TVS3IMA24O_

480Y/277 V, 3 fases, 4 hilos +

tierra3_{(en estrella)}

3 _{La serie 480Y/277 es aplicable para las siguientes tensiones 380Y/220, 400Y/230 y 415Y/240.}

120 TVS4IMA12O_

160 TVS4IMA16O_

240 TVS4IMA24O_

480Y/277 V, 3 fases, 3 hilos +

tierra3_{(puesto a tierra con alta}

resistencia) 100 TVS4HIMA10O_ 120 TVS4HIMA12O_ 160 TVS4HIMA16O_ 200 TVS4HIMA20O_ 240 TVS4HIMA24O_ 480 V, 3 fase, 3 hilos + tierra (en delta)

100 TVS5IMA10O_ 120 TVS5IMA12O_ 160 TVS5IMA16O_ 200 TVS5IMA20O_ 240 TVS5IMA24O_ 240 V, 3 fase, 3 hilos + tierra (en delta)

100 TVS6IMA10O_ 120 TVS6IMA12O_ 160 TVS6IMA16O_ 200 TVS6IMA20O_ 240 TVS6IMA24O_ 600Y/347 V, 3 fases, 3 hilos + tierra (en estrella)

120 TVS8IMA12O_

160 TVS8IMA16O_

240 TVS8IMA24O_

600Y/347 V, 3 fases, 3 hilos + tierra (puesto a tierra con

alta resistencia) 100 TVS8HIMA10O_ 120 TVS8HIMA12O_ 160 TVS8HIMA16O_ 180 TVS8HIMA18O_ 600 V, 3 fase, 3 hilos + tierra (en delta)

100 TVS9IMA10O_

120 TVS9IMA12O_

160 TVS9IMA16O_

(30)

Especificaciones eléctricas 05/2013

8

ESPA

ÑOL

Terminales, tamaño de cable y par

de apriete de la instalación

Se proporcionan terminales para las conexiones de fase (línea), neutro y tierra del equipo. Las terminales del dispositivo IMA aceptan una gama de

tamaños de conductor de cobre de 5,3 mm 2_{a 50 mm}2_{(10 a 2/0 AWG)}

para los conectores de fase, neutro y conexión a tierra. Apriete las conexiones en los siguientes valores.

Protección contra sobrecorrientes

del circuito derivado

Los SPD UL 1449 tipo 1 han sido diseñados y aprobados para aplicaciones del lado de línea adelante de la desconexión de acometida principal sin protección contra sobrecorriente adicional. Los SPD tipo 2 deben ser instalados en el lado de carga del dispositivo de protección contra sobrecorriente principal (DPCS). Todas las instalaciones deben proporcionar o incluir un medio de desconexión.

Los SPD tipo 1 también se pueden utilizar en aplicaciones de tipo 2 (lado de carga del DPCS). Cuando los SPD de tipo 1 o tipo 2 se utilizan en el lado de carga, éstos deben ser instalados según los códigos locales. Un DPCS en un circuito derivado, ya sea en forma de un interruptor automático o fusible, debe ser provisto para el SPD. El DPCS en el circuito derivado proporciona la protección contra cortocircuito requerida por el cable que alimenta al dispositivo y también proporciona un medio de desconexión para la acometida.

Puesto que la corriente extraída por el dispositivo IMA durante un funcionamiento en espera es insignificante, el dispositivo IMA puede ser conectado a un circuito derivado dedicado independiente, o bien, conectado a un circuito derivado apropiado existente.

• Cuando está conectado a un circuito derivado dedicado independiente, el

ajuste del DPCS debe ser seleccionado para proteger los conductores que alimentan al dispositivo IMA.

• Cuando está conectado a un circuito derivado existente, la capacidad

de corriente de los conductores conectados al dispositivo IMA no debe ser inferior al ajuste del DPCS existente.

Durante una desviación de sobretensión transitoria, la corriente circulará a través del dispositivo IMA. El DPCS del circuito derivado debe pasar esta corriente sin dispararse para que el dispositivo IMA funcione como es debido.

Para obtener información adicional relacionada con la coordinación del DPSC con el dispositivo IMA, consulte la tabla 1.

Tabla 3: Par de apriete de las terminales Conexiones de la alimentación Par de apriete

AØ, BØ, CØ y N

4 N•m (35 pulg-lbs) Tierra

PELIGRO

• Utilice conductores apropiados para el dispositivo de protección contra sobrecorrientes (DPCS) según los códigos correspondientes.

• Utilice conductores apropiados para la aplicación según los códigos correspondientes.

(31)

05/2013 Conexión a tierra

ESPAÑOL

Ubicación del SPD

Coloque el SPD lo más cerca posible del circuito que se está protegiendo para minimizar la longitud del cable y optimizar el funcionamiento del SPD. Evite tendidos largos de cable para que el equipo funcione correctamente. Para reducir la impedancia que el cable ofrece a las corrientes transitorias, los conductores de fase, neutro y puesta a tierra deberán ser enrutados dentro del mismo tubo conduit y amarrarse fuertemente para optimizar el funcionamiento del dispositivo. Evite doblar los conductores en ángulo recto. Vea la figura 1.

Conexión a tierra

El dispositivo tipo IMA tiene corriente de fuga a tierra cuando es energizado y puede presentar una tensión peligrosa al tocarlo.

Figura 1: Prácticas de alambrado del dispositivo de protección contra sobretensiones transitorias

A la(s) carga(s) Fases Neutro Tierra Barra de tierra Barra neutra SPD Fase A Fase B Fase C Neutro Tierra Tablero Alambrado de interconexión –Minimice la longitud –Evite dobleces en ángulo recto (si es aplicable)

ADVERTENCIA

TENSIÓN PELIGROSA AL TOQUE

• Conecte la terminal de tierra del SPD a la estructura de la red de puesta a tierra del edificio.

• Utilice un conductor de puesta a tierra del equipo de tamaño apropiado. • Cuando se usa tubo conduit o canalización metálica:

— No utilice pasamuros de aislamiento para interrumpir el tubo conduit o canalización metálica.

— Mantenga continuidad eléctrica en todas las conexiones de la canalización y tubo conduit empleando dispositivos de conexión apropiados.

• No utilice una conexión a tierra aislada independiente para el dispositivo tipo ensamble modular interno (IMA).

• Revise las conexiones al equipo y asegúrese de que esté correctamente conectado al sistema de puesta a tierra. • Verifique la continuidad de la red de puesta a tierra realizando

inspecciones y pruebas como parte de un programa completo de servicio de mantenimiento eléctrico.

El incumplimiento de estas instrucciones puede causar la muerte o lesiones serias.

Dispositivos de protección contra sobretensiones transitorias (SPD) de ensamble modular externo (EMA)

Surgelogic™

Modular Surge Protective Device (SPD)

Supplement for OEM Applications

Dispositivos de protección contra sobretensiones

transitorias (SPD) de ensamble modular externo (EMA)

Dispositifs de protection contre les surtensions

transitoires (SPD) d’assemblage modulaire externe (EMA)

Instruction Bulletin

8222-0049E, 05/2013

Table of Contents

Precautions

DANGER

CAUTION

Introduction

CAUTION

DANGER

Unpacking and Preliminary

Inspection

Storage

Safety Labels

Location Considerations

Environment

Audible Noise

Mounting

Service Clearance

Equipment Performance

Electrical

Voltage Rating

DANGER

Terminals, Wire Size, and

Installation Torque

Branch Circuit Overcurrent

Protection

DANGER

Location of Surge Protective

Device (SPD)

Grounding

General

WARNING

Power System Grounding

Solidly-Grounded Power Systems

Resistance-Grounded Power

Systems

NOTICE

NOTICE

Installation

UL Conditions of Acceptability

DANGER

Wiring

DANGER

DANGER

Wiring Diagrams

Without Integral

Wiring Diagrams for HRG and

Delta Systems

Operation

LED Status Indicators

DANGER

Replacement Modules

Audible Alarm

Surge Counter

Dry Contacts

DANGER

Remote Monitor Option

Maintenance and

Troubleshooting

DANGER

Preventative Maintenance

Troubleshooting

Replacement Parts

Surgelogic™

Suplemento del dispositivo de protección contra

sobretensiones transitorias (SPD) modular para aplicaciones

de fabricantes del equipo original (OEM)

Boletín de instrucciones

8222-0049E, 05/2013

Contenido

Precauciones

PELIGRO
