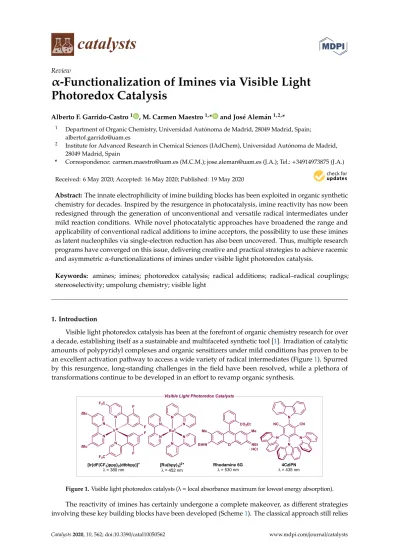

catalysts
Review
α -Functionalization of Imines via Visible Light Photoredox Catalysis
Alberto F. Garrido-Castro1 , M. Carmen Maestro1,* and José Alemán1,2,*
1 Department of Organic Chemistry, Universidad Autónoma de Madrid, 28049 Madrid, Spain;
2 Institute for Advanced Research in Chemical Sciences (IAdChem), Universidad Autónoma de Madrid, 28049 Madrid, Spain
* Correspondence: [email protected] (M.C.M.); [email protected] (J.A.); Tel.:+34914973875 (J.A.)
Received: 6 May 2020; Accepted: 16 May 2020; Published: 19 May 2020
Abstract:The innate electrophilicity of imine building blocks has been exploited in organic synthetic chemistry for decades. Inspired by the resurgence in photocatalysis, imine reactivity has now been redesigned through the generation of unconventional and versatile radical intermediates under mild reaction conditions. While novel photocatalytic approaches have broadened the range and applicability of conventional radical additions to imine acceptors, the possibility to use these imines as latent nucleophiles via single-electron reduction has also been uncovered. Thus, multiple research programs have converged on this issue, delivering creative and practical strategies to achieve racemic and asymmetric α-functionalizations of imines under visible light photoredox catalysis.
Keywords: amines; imines; photoredox catalysis; radical additions; radical–radical couplings;
stereoselectivity; umpolung chemistry; visible light
1. Introduction
Visible light photoredox catalysis has been at the forefront of organic chemistry research for over a decade, establishing itself as a sustainable and multifaceted synthetic tool [1]. Irradiation of catalytic amounts of polypyridyl complexes and organic sensitizers under mild conditions has proven to be an excellent activation pathway to access a wide variety of radical intermediates (Figure1). Spurred by this resurgence, long-standing challenges in the field have been resolved, while a plethora of transformations continue to be developed in an effort to revamp organic synthesis.
Catalysts 2020, 10, x; doi: FOR PEER REVIEW www.mdpi.com/journal/catalysts
Review
1 α-Functionalization of Imines via Visible Light
2
Photoredox Catalysis
3
Alberto F. Garrido-Castro 1, M. Carmen Maestro 1,*, and José Alemán 1,2,*
4
1 Department of Organic Chemistry, Universidad Autónoma de Madrid, Madrid 28049, Spain;
5
6
2 Institute for Advanced Research in Chemical Sciences (IAdChem), Universidad Autónoma de Madrid,
7
Madrid 28049, Spain
8
* Correspondence: [email protected] (M.C.M.), [email protected] (J.A.); Tel.: +34914973875 (J.A.)
9
Received: 6 May 2020; Accepted: 16 May 2020; Published: date
10
Abstract: The innate electrophilicity of imine building blocks has been exploited in organic synthetic
11
chemistry for decades. Inspired by the resurgence in photocatalysis, imine reactivity has now been
12
redesigned through the generation of unconventional and versatile radical intermediates under
13
mild reaction conditions. While novel photocatalytic approaches have broadened the range and
14
applicability of conventional radical additions to imine acceptors, the possibility to use these imines
15
as latent nucleophiles via single-electron reduction has also been uncovered. Thus, multiple
16
research programs have converged on this issue, delivering creative and practical strategies to
17
achieve racemic and asymmetric α-functionalizations of imines under visible light photoredox
18
catalysis.
19
Keywords: amines; imines; photoredox catalysis; radical additions; radical–radical couplings;
20
stereoselectivity; umpolung chemistry; visible light
21
22
1. Introduction
23
Visible light photoredox catalysis has been at the forefront of organic chemistry research for over
24
a decade, establishing itself as a sustainable and multifaceted synthetic tool [1]. Irradiation of catalytic
25
amounts of polypyridyl complexes and organic sensitizers under mild conditions has proven to be
26
an excellent activation pathway to access a wide variety of radical intermediates (Figure 1). Spurred
27
by this resurgence, long-standing challenges in the field have been resolved, while a plethora of
28
transformations continue to be developed in an effort to revamp organic synthesis.
29
30
Figure 1. Visible light photoredox catalysts (λ = local absorbance maximum for lowest energy
31
absorption).
32
O CO2Et
NEt
Me Me
EtHN
· HCl
Rhodamine 6G λ = 530 nm RuII
N N
N N N N
[Ru(bpy)3]2+
λ = 452 nm
CN NC
N
N N N
4CzIPN λ = 435 nm IrIII
N N
N N
[Ir{dF(CF3)ppy}2(dtbbpy)]+ λ = 380 nm tBu
tBu F3C
F3C F
F F F
Visible Light Photoredox Catalysts
Figure 1.Visible light photoredox catalysts (λ= local absorbance maximum for lowest energy absorption).
The reactivity of imines has certainly undergone a complete makeover, as different strategies involving these key building blocks have been developed (Scheme1). The classical approach still relies
Catalysts 2020, 10, 562; doi:10.3390/catal10050562 www.mdpi.com/journal/catalysts
Catalysts 2020, 10, 562 2 of 22
on the innate electrophilic nature of imines to undergo standard alkyl radical addition (pathway A in Scheme1, left). Thanks to photoredox catalysis, the generation of nucleophilic radicals starting from mild alkylating reagents [2] has provided a broader range to a severely limited transformation in the past due to hazardous reagents and impractical conditions.
Catalysts 2020, 10, x FOR PEER REVIEW 2 of 21
The reactivity of imines has certainly undergone a complete makeover, as different strategies
33
involving these key building blocks have been developed (Scheme 1). The classical approach still
34
relies on the innate electrophilic nature of imines to undergo standard alkyl radical addition
35
(pathway A in Scheme 1, left). Thanks to photoredox catalysis, the generation of nucleophilic radicals
36
starting from mild alkylating reagents [2] has provided a broader range to a severely limited
37
transformation in the past due to hazardous reagents and impractical conditions.
38
Alternatively, the photocatalytic single-electron reduction of imines has emerged as a powerful
39
technology to generate radical anion intermediates which exist as two different resonant forms
40
(pathway B in Scheme 1, right) [3,4]. The α-amino radical species can engage in radical–radical
41
couplings with a large pool of reacting partners (pathway B1 in Scheme 1),while also displaying a
42
complementary nucleophilic behavior to their corresponding electrophilic imine precursors. Indeed,
43
they can be trapped by electron-deficient π-systems, a combination which would not be feasible using
44
polar chemistry (pathway B2 in Scheme 1). Interestingly, the N-centered radical species can be
45
quickly quenched by an H atom donor to yield a stable carbanion capable of reacting with a
46
traditional electrophile in polar fashion (pathway B3 in Scheme 1).
47 48
49
Scheme 1. Photocatalytic functionalization of imines: pathway A, alkyl radical addition (left);
50
pathway B, single-electron reduction (right).
51
The single-electron reduction event (pathway B in Scheme 1, right) can be a challenging redox
52
process which often requires assistance [4]. While some electron-poor imines can undergo a
53
straightforward photocatalytic reduction (such as N-sulfonyl- or α-keto-imines), other neutral imines
54
feature a reduction potential which falls out of range of most photocatalysts. The addition of an
55
external Lewis acid can increase the reduction potential of the imine (less negative) through
56
coordination. Moreover, hydrogen-bonding via Brønsted acid can make this reduction a
57
thermodynamically favorable process thanks to proton-coupled electron transfer (PCET), wherein an
58
electron transfer from the photocatalyst to the imine takes place in concert with a proton transfer
59
from the Brønsted acid to the imine.
60 61
Pathway B2 Giese Radical Addition Photocatalytic Functionalization of Imines
HN N
HN Alk
HN broader range of
reacting partners diverse reactivity:
electrophile
&
nucleophile
N N
HN E Pathway A
Alkyl Radical Addition
Pathway B Single-Electron
Reduction
Pathway B1 Radical-Radical
Coupling
EWG Pathway B3 Nucleophilic Attack
Scheme 1.Photocatalytic functionalization of imines: pathway A, alkyl radical addition (left); pathway B, single-electron reduction (right).
Alternatively, the photocatalytic single-electron reduction of imines has emerged as a powerful technology to generate radical anion intermediates which exist as two different resonant forms (pathway B in Scheme1, right) [3,4]. The α-amino radical species can engage in radical–radical couplings with a large pool of reacting partners (pathway B1 in Scheme1), while also displaying a complementary nucleophilic behavior to their corresponding electrophilic imine precursors. Indeed, they can be trapped by electron-deficient π-systems, a combination which would not be feasible using polar chemistry (pathway B2 in Scheme1). Interestingly, the N-centered radical species can be quickly quenched by an H atom donor to yield a stable carbanion capable of reacting with a traditional electrophile in polar fashion (pathway B3 in Scheme1).
The single-electron reduction event (pathway B in Scheme 1, right) can be a challenging redox process which often requires assistance [4]. While some electron-poor imines can undergo a straightforward photocatalytic reduction (such as N-sulfonyl- or α-keto-imines), other neutral imines feature a reduction potential which falls out of range of most photocatalysts. The addition of an external Lewis acid can increase the reduction potential of the imine (less negative) through coordination.
Moreover, hydrogen-bonding via Brønsted acid can make this reduction a thermodynamically favorable process thanks to proton-coupled electron transfer (PCET), wherein an electron transfer from the photocatalyst to the imine takes place in concert with a proton transfer from the Brønsted acid to the imine.
Catalysts 2020, 10, 562 3 of 22
