Stephan Roche October, 2010

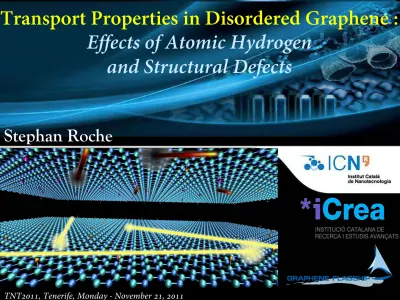

TNT2011, Tenerife, Monday - November 21, 2011

Transport Properties in Disordered Graphene : Effects of Atomic Hydrogen

and Structural Defects

Stephan Roche

(2)

OUTLINE

Reminder Electronic Properties

OUTLINE

1.

2.

3.

4. Chemically modified Graphene

Local magnetic ordering and metal-insulator transition

Defects and Transport in Graphene

Manifestation of Pseudospin & weak antilocalization

Why focusing on “dirty graphene” ?

(3)

Why focusing on “dirty graphene” ?

Ph. Kim et al., PRL 99, 246803 (2007) Suspended graphene

A.K. Geim, Bull. Am. Phys. Soc. 55 (2010)

Large area (catalytic growth) graphene Top gated graphene MOS channels

Stephan Roche September 2011

• Understanding mobility reduction in CVD-grown graphene (transparent electrodes)

• Band-gap engineering / ON-OFF ratio (graphene transistors & logic functions)

• Implementing (bio)chemical sensing capability (medicine, biotec,….)

• Diversifying electronic, transport properties of charge, spin, phonons,..

Making graphene magnetic at room-temperature (hydrogenation) Making graphene good thermoelectrical converters

Etc.

(4)

CVD grown graphene (roll to roll and material transfer)

used in current prototypes of flexible displays promising but still of relatively poor quality

Crystalline imperfections (growth, transfer processes, etc..) Work in high dissipation regime(bias, temperature, heating)

SAMSUNG NT11,

Graphene Satellite meeting Cambridge July 2011

Today s state of the art in

graphene-based flexible electronics

(5)

CVD graphene film transferred on SiO2

How does it looks like ? Mesoscopic scale

AFM image

EPL, 94 (2011) 28003

“Different thermal expansion of the Cu foil and the graphene

sheet result in the formation of a few nm high ripples. Locally

cracks can form during the transfer process and occasionally

one is left with PMMA residues”

(6)

Disorder Engineering….

Graphene Nanomesh

J. Bai et al., Nature Nanotech 2010 L. Zhao et al., Science 333,999 (2011)

Nitrogen doped graphene

Bandgap engineering (chemical functionalization)

T. Echtermeyer et al, Elec. Dev. Lett. (2008) Electrochemical switch

Grafting nitrophenyl groups

H. Zhang Nano Lett. (in press)

(7)

Ozone functionalization of Graphene

J. Moser et al.,

Phys. Rev. B 81, 205445 (2010)

pristine

(temperature independent)

Stephan Roche November 2011

Ozone flux

(8)

Localization length

J. Moser, H. Tao, S.R., F. Alsina, C. M. Sotomayor Torres, A. Bachtold, Phys. Rev B 81, 205445 (2010)

Gate-dependent Damaged Transport

Analyse of magnetotransport fingerprints (weak localization-coherence length-)

Low temperature transport (variable range hopping)

(9)

• Enhanced structural & electronic complexity at the nanoscale driven by disorder (defects, deformations,chemical reactivity,...)

• Randomness of defects distribution

If quantitative prediction is targeted

Simulation of very large system size

1µm

2

- 10 Millions carbon atoms

Stephan Roche September 2011

Complexity & Computational challenges

Theoretical modelling & simulation

First-principles calculations - accurate predictions of structures, electronic properties, description of impurity states,…

Reduced Hamiltonian (tight-binding,..)

Order N implementation of transport methodologies

(Landauer, Kubo)

(10)

OUTLINE

Reminder Electronic Properties

OUTLINE

1.

2.

3.

4. Chemically modified Graphene

From electronic insulators to Magnectic materials

Defects and Transport in Graphene

From Klein Tunneling to weak antilocalization

Why focusing on “dirty graphene” ?

(11)

1 Brillouin Zone

Hybrid Molecular Orbitales

Cohesion

Electronic Properties in the vicinity of EF

kx

ky

0

π - Effective Model

2 atoms/ cell

nearest neighbor orbital overlap

Stephan Roche November 2011

(12)

Linearization close to Fermi level

Massless Dirac Fermions in 2D

[sublattice basis]

[diagonal basis]

A

B

A B

eigenstates have a well defined helicity (good q.n.)

Dirac Equation for Massless particles

(13)

Pseudospin and Klein Tunneling

Katsnelson, Novoselov, Geim Nature Physics 2006

Stephan Roche November 2011

(14)

KT-limits : Disorder & valley mixing

Disorder induces (multiple) scattering events

(energy conserved/elastic scattering)

Short range potential

Intervalley scattering

(large momentum transfer)

Long range potential

Intravalley scattering

(short momentum transfer)

* diffusive (mean free path)

* Quantum interferences and Localization phenomena

Deviation from linear dispersion

(trigonal warping)

(15)

OUTLINE

Reminder Electronic Properties

OUTLINE

1.

2.

3.

4. Chemically modified Graphene

Local magnetic ordering and metal-insulator transition

Defects and Transport in Graphene

Manifestation of Pseudospin & weak antilocalization

Why focusing on “dirty graphene” ?

Stephan Roche November 2011

(16)

Weak antilocalization in graphene…..

F.V. Tiknonenko et al, Phys. Rev. Lett 97, 146805 (2007)

No so-coupling…

no magnetic impurities

(17)

Quantum conductance

Time-reversed trajectories interfere constructively

P

Q

O

+ -

P Q

Positive magnetoconductance (weak localization)

Additional phase factor (pseudospin rotation) inducing sign reversal

Negative magnetoconductance (weak antilocalization )

Localization Phenomena

Disordered metal

Disordered Graphene

Stephan Roche November 2011

(18)

Weak localization in 2D graphene

E. McCann, K. Kechedzhi, V. I. Fal’ko, H.Suzuura, T. Ando, B.L. Altshuler, Phys. Rev. Lett 97, 146805 (2007)

Quantum interferences correction (WL)

Introduction of several phenomenological parameters which can not be computed analytically from a given disorder model

digamma function Intervalley scattering time

Trigonal warping scattering time Intravalley scattering time

(19)

Quantum Transport Methodology

Chebyshev Bessel

~10

Quantum Transport

--- Order-N

Disorder systems

Combined Molecular Dynamics

10-100 million atoms

Time-evolution operator

Calculation time of conductance using Kubo approach

Total evolution time 3 [ps]

S.R. et al PRL 79, 2518 (1997) C.R. Physique 10, 283-296 (2009)

(20)

Non Magnetic Defects

Stone-Wales

Divacancy 585

Divacancy 555777

3-fold symmetry axis

J. Kotakoski et al PRB 83, 245420 (2011)

SIESTA ab initio calculations (red) TB-third nearest neighbors (black)

(21)

Wavepacket Propagation

Clean Graphene Graphene with a single structural defect

Diffusion coefficient

Stephan Roche November 2011

(22)

DoS, MFP and SC-Conductivities

From dynamics of wavepackets

A. Lherbier et al., Phys. Rev. Lett 106, 046803 (2011)

(23)

Long range disorder potential

W

W (depth of onsite potential ~screening)

Charges trapped in the oxide

Long range (Gaussian) potential

W

Sample size

Stephan Roche November 2011

(24)

B-suppression of quantum interferences

Quantum interferences

are suppressed by increasing magnetic field

Weak localization phenomenon

At B=0 the Diffusion

shows onset of localization (time-dependent decay)

(25)

Weak localization

Crossover

Weak Antilocalization

Not WAL !!

(ballistic regime)

F. Ortmann, A. Cresti, G. Montambaux, SR. Euro. Phys. Lett. 94, 47006 (2011)

W=2

W=1

EDP=0

EI=0.049eV EII=0.097eV EIII=0.146eV

Crossover from WL to WAL

Stephan Roche November 2011

(26)

OUTLINE

Reminder Electronic Properties

OUTLINE

1.

2.

3.

4. Chemically modified Graphene

Local magnetic ordering and metal-insulator transition

Defects and Transport in Graphene

Manifestation of Pseudospin & weak antilocalization

Why focusing on “dirty graphene” ?

(27)

Room temperature ferromagnetism

Magnetic hysterisis at room temperature

Stephan Roche November 2011

(28)

Lieb s Theorem

E.H. Lieb, Phys. Rev. Lett 62, 1201 (1989)

Theorem (repulsive case) : If the lattice is bipartite (t couple only A sites with B sites), Assuming number of B larger or equal to number of A sites (and number of electron

=total number of sites (half-filled band), then the ground state of is unique with spin

H. Yang et al., PRB in press

Graphene Nanomesh

J. Bai et al.,

Nature Nanotech 2010

(29)

Describing Hydrogenated Graphene

Hubbard Hamiltonian

Single π band with a repulsive Coulomb interaction between electrons with opposite spin occupying the same orbital

self-consistent occupation numbers for spin-down and spin-up electrons

Stephan Roche November 2011

constant one-site coulomb repulsion raising energy by U when 2 electrons occupy the same orbital

(30)

Spin texture around Hydrogen defects

Case studies low H- coverage

Absence of any (local) magnetic ordering (1 H per unit cell)

Local Antiferromagnetism (2 H defects on sites A and B)

Local Ferromagnetism (2H grafted on the same sublattice A) or applying magnetic field

Local (site) spin (s) versus r (the distance to the center of the supercell)

A site

B site

(31)

Drude Conductivity – magnetic state

Spin-resolved DoS Spin-r esolved diffusion coefficient

D. Soriano et al., Phys. Rev. Lett. 107, 016602 (2011)

Stephan Roche November 2011

For the local ferromagnetic ordering spin splitting and

Neglecting quantum interferences

(32)

Magnetoresistance signal

D. Soriano, N. leconte, P. Ordejon, J.C. Charlier, J. Palacios, S.R.

Phys. Rev. Lett. 107, 016602 (2011)

Ground state

Excited state (applying B)

A site

B site

B site A site

(33)

A site

B site

N. Leconte, D. Soriano, S. R. et al. ACS Nano 5, 3987 (2011)

Local Antiferromagnetism / quantum regime

The disordered graphene turns to an insulator Conductivity strongly decay at low temperatures

Stephan Roche November 2011

(34)

Z. H. Ni, L. A. Ponomarenko, R. R. Nair, R. Yang, S. Anissimova, I. V. Grigorieva, F. Schedin, Z. X. Shen, E. H. Hill, K. S. Novoselov, A. K. Geim

On resonant scatterers as a factor limiting carrier mobility in graphene Nano Letters 10, 3868 (2010)

Controlled Hydrogenation of Graphene

(35)

Local Ferromagnetic ordering

A site A site

N. Leconte, D. Soriano, S. R. et al. ACS Nano 5, 3987 (2011) The disordered graphene remains metallic

conductivity insensitive to localization Effects at low temperatures

Suppression of quantum interferences Spin Splitting

Stephan Roche November 2011

(36)

OUTLINE

Reminder Electronic Properties

OUTLINE

1.

2.

3.

4. Chemically modified Graphene

Local magnetic ordering and metal-insulator transition

Defects and Transport in Graphene

Manifestation of Pseudospin & weak antilocalization

Why focusing on “dirty graphene” ?

(37)

Stephan Roche September 2011

Acknowledgements

Ph.D students

Nicolas Leconte Dinh Van Tuan

Postdocs

Frank Ortmann David Soriano Blanca Biel

Coworkers

Xavier Blase,

Jean-Christophe Charlier François Triozon

Pablo Ordejon

Gianaurelio Cuniberti G. Montambaux

(38)

Tight-binding vs ab-initio (the clean case) A. Cresti, et al..

Charge Transport in Disordered

Graphene-Based Low Dimensional Materials

Nano Research 1, 361-394 (2008)

Limits of oversimplified description of the electronic structure and « disordered » graphene based materials!!

First-principles and TB-modelling

Referencias

Documento similar

In this thesis, we have used the STM-BJ technique to investigate the electronic properties of atomic wires of gold (Chap. 3) and molecular junctions between gold

While the calculated electronic structure rules out the formation of a magnetic moment around the divacancy, the generation of an electronic resonance near the Fermi level

We study the optical properties of double-layer graphene for linearly polarized evanescent modes and discuss the in-phase and out-of-phase plasmon modes for both, longitudinal

In particular, all the defects discussed above play a key role in streamlining the physical and chemical properties of semi- conductor materials directly associated with the

Therefore to characterize and study possi- ble evolution effects of the structural and dynamical properties of ELOs, we describe their three dimensional distributions of mass

classified by a color code.. 172 The resolution in Figure 3 23 is so good that we have tried to determine the exact atomic position of all the atoms in the graphene substrate

The experimental setup is schematically shown in figure 6.1: the conducting tip is placed in direct contact with the sample surface, and the current can be measured as a function of

An Andreev reflection involves an electron incoming from the normal region into the superconducting one that is reflected as a hole, injecting a Cooper pair into the superconductor..
