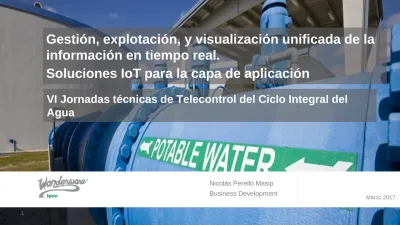

VI Jornadas técnicas de Telecontrol del Ciclo Integral del Agua
Gestión, explotación, y visualización unificada de la información en tiempo real.
Soluciones IoT para la capa de aplicación
Nicolás Perelló Masip Business Development
Marzo 2017
1
Wonderware Spain
Wonderware…
Nuestros mercados
Otros
Algunos de nuestros más de 700 clientes en España…
Food & Beverage
Farmacéutica/Química
Automoción
Aguas
Transporte
Facility Management
Ciudades & equivalentes
2
La situación
Food and Beverage7
En el año 2050, el mundo será un lugar diferente…
Crítica y creciente necesidad de acceso al agua
Crecimiento población
+40%
Población mundial vive bajo estrés hídrico
+55%
Aumento previsto de la demanda de agua
1.4
BillionPersonas sin acceso a saneamiento básico
240
MillionPersonas sin acceso a una fuente de agua potable
Fuente:OCDE (2012)
+34%
La tendencia a largo plazo:
Agua y aguas residuales es un mercado en crecimiento
Población que pudiera ser suministrada con el agua perdida diariamente
TW de potencia generada que se gasta en agua que es filtrada o no pagada en Estados Unidos
Cantidad de agua superficial de Europa por debajo de un buen estado ecológico
> 50%
200M
5-10
Cantidad de agotamiento de aguas subterráneas en el sur de Asia
38%
Food and Beverage9
• Infraestructura envejecida
• Persona cerca de la jubilación
• Factores de negocio
• (CAPEX decrece / OPEX incrementa)
• Cambio climático
• Conservación y eficiencia
• Impacto ambiental
• Costes energía mayores
• Regulación más exigente
• Infraestructura y ciberseguridad
• Nuevas fuentes de agua, reciclaje y reutilización
• Pérdidas agua / Agua no facturada
Principales retos de los servicios
públicos y municipios
Necesidad de eficiencia en todo el ciclo de vida del agua
Necesidad de eficiencia operacional, eficiencia energética y un menor coste de propiedad dentro de las plantas y a través de redes
Smartcities?
CITY OPERATIONAL INFRASTRUCTURE
Water &
Wastewater
User Interface Maintenance
Data Workforce
Systems
Buildings
User Interface Maintenance
Data Workforce
Systems
Airports
User Interface Maintenance
Data Workforce
Systems
Traffic Management
User Interface Maintenance
Data Workforce
Systems
Transportation
User Interface Maintenance
Data Workforce
Systems
Business Community
User Interface Maintenance
Data Workforce
Systems
Prison &
Detention
User Interface Maintenance
Data Workforce
Systems
Education
User Interface Maintenance
Data Workforce
Systems
Power
User Interface Maintenance
Data Workforce
Systems
System X… +
User Interface Maintenance
Data Workforce
Systems
DEVICES DEVICES DEVICES DEVICES DEVICES DEVICES DEVICES DEVICES DEVICES DEVICES
* New European Economy, Article: “In Germany’s Industrial Heartland Smart Production is Becoming Reality”, page 86 April 2016
“We must-and I say this as the German chancellor in the face of a strong Germany economy –deal quickly with the fusion of the online World and the world of industrial production. In Germany, we call it Industry 4.0 because otherwise, those who are the leaders in the digital domain will take the lead in industrial production.
We enter this race with great confidence.
But it’s a race we have not yet won.”
–Angela Merkel
“For the next ten years, Germany plan to invest around 10.9 billion euros in the evolution of Industry 4.0.” *
Germany. Industry 4.0
USA. IoT?
** IDC, Worldwide Internet of Things Forecast Update: 2015- 2019, February 2016
* Internet of Business, Article: Looks like President Obama cares about the IoT, date: April 14th, 2016
“The US Department of Commerce (DoC)’s National Telecommunications and Information Administration (NTIA) has been tasked with conducting an analysis to Assess what role – if any – the US Government should play in
the IoT’s development.” * “The worldwide Internet of Things market spend will grow from $591.7 billion in 2014 to $1.3 trillion in 2019 with compound annual growth rate of 17%. The installed base of IoT endpoints will grow from 9.7 billion in 2014 to more than 25.6 billion in 2019, hitting 30 billion in 2020.”**
China. Estrategia?
“We will implement the Made in China 2025 strategy, seek innovation-driven development, apply smart technologies, strengthen foundations, pursue green development and redouble our efforts to upgrade China from a manufacturer of quantity to one of quality.”
–Chinese Premier Li Keqiang
“Chinese government establish a 40 billion yuan (US$6.45 billion) innovation fund to sponsor new business, supporting the creation of manufacturing innovation centers 15 by 2020 and 40 by 2025.”*
The Problem: The Complexity!!!
Que piensan los “decisión-makers” (*)
(*) “IoT 2020 Business Report: The future of the Internet of Things from sensor to business sense,”
¿Qué debo hacer?
Cloud Computing
Augmented reality
• ¿Va a cambiar mi modelo de negocio?
• ¿Qué tecnologías son las mejores?
• ¿Cómo voy a empezar?
• ¿Y las personas?
• ¿Cuál es la visión…?
¡Olvidemos los acrónimos…!
3
La estrategia
Los paradigmas actuales proponen…
Utilización masiva
de las de tecnologías Mejorar:
(Productividad, Eficiencia, Eficacia...)
Las personas
Ambientes industriales en
una red social de dispositivos
Algunos aspectos clave de estos paradigmas…
MARCO ESTRATEGICO
► Necesidad de un Roadmap
► Lo disruptivo es el Roadmap
► Aceleración rendimiento negocio
► Gestión global en tiempo real
► Cambio cultural
► Estandarización a todos los niveles
► Cuidado con los concursos
► Seleccionar lo mejor mediante Prueba Concepto / Piloto...
► Poder combinar los mejores integradores para los servicios
► Fuerte compartición de información IT/OT al mismo nivel de importancia
► Cyberseguridad de OT
► Seguridad de funcionamiento global
► Comunicaciones muy flexibles
► …
ARQUITECTURA REFERENCIA
► Plataforma estándar fuerte, sin sistemas a medida o semi a medida
► Conectado a cualquier hardware y software e independiente de ellos
► Fácil uso y escalable
► Cyberseguridad integrada en el sistema, siguiendo su evolución
► Reducido coste de mantenimiento e ingeniería
► Gestión de millones de E/S…
► Híbrido: Cloud & On premise…
► Seguimiento estándares garantizado
► En mejora continua:
► Análisis
► Workflow
► Inteligencia artificial, etc.
► …
Qué significa estándares…
(no están todos ni entramos al detalle)
El futuro a medio – largo plazo
(*) “The manufacturing pyramid can be virtualized and hosted as services, except those time-critical and safety-critical manufacturing functions remaining at the shop floor level”
(*) Current Standards Landscape for Smart Manufacturing Systems
An Lu KC Morris Simon Frechette Systems integration Division Engineering Laboratory February 2016
Marco de trabajo propuesto
Dimensión estratégica
Esquema metodológico
Arquitectura de referencia
Dimensión
tecnológica
Arquitectura de referencia simplificada
Industria Infraestructuras SmartCities
Real Time Management
Smart Business Systems (ERP’s)
Industrial
Communications High
availability
M2M Industrial
Cybersecurity Real Time – Business Sharing
Intelligent Enterprise Asset Management
Arquitectura de referencia simplificada
Real Time Management
Industrial
Communications High
availability
M2M Industrial
Cybersecurity Real Time – Business Sharing
Intelligent Enterprise Asset Management
Smart Business Systems (ERP’s)
Integración vertical
Smart Business Systems (ERP’s)
Arquitectura de referencia simplificada
Industria Infraestructuras SmartCities
Real Time Management
Industrial
Communications High
availability
M2M Industrial
Cybersecurity Real Time – Business Sharing
Intelligent Enterprise Asset Management
Integración vertical
Integración horizontal (End to End)
Plan, Ejecución, Tiempo Real
¡¡¡Las salas de control!!!
Ejemplos
Ejemplos
Ejemplos
Establecer el Roadmap – Metodología
Esqu ema me tod ológ ic o
Antes de las iniciativasFormación
Definición estratégica
Evaluación
Durante las iniciativas
Planificación (Plan Director)
Ejecución
Después de las iniciativas
Validación
Comunicación y gestión del cambio
4
Las soluciones de
Wonderware
La solución de Plataforma
Enterprise Integration (Control Room)
Asset Management
Visualization Workflow
Management
Systems Management
City Intelligence
Mobile Workforce
System Platform
ArchestrA Common
Services Historian/Cloud Device
Integration
Web Integration Server
Stand Alone Solutions
La solución de mantenimiento avanzado
35
Non-Instrumented Plant Equipment Data
Online Process Data
Machine Learning
KPIs &
Reports Asset Health
Dashboard
Collect Visualize
Rules-based
Industrial Asset Analytics Platform
Analyze Act
EAM Integration
Workflow
Development Toolkit
