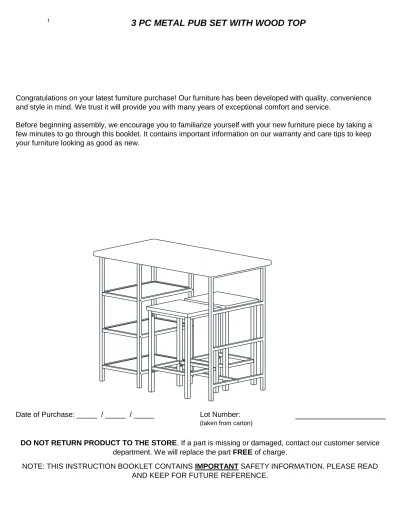

Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
3 PC METAL PUB SET WITH WOOD TOP
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a few minutes to go through this booklet. It contains important information on our warranty and care tips to keep your furniture looking as good as new.
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Congratulations on your latest furniture purchase! Our furniture has been developed with quality, convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service.
1
Check bolts/screws periodically and tighten them if necessary.
* DO NOT use power tools.
* Phillips head screw driver is not included.
CARE AND CLEANING
NOTES
* Ensure all parts and components are present before beginning assembly.
* Assemble on a soft, smooth surface to prevent damage to product finish.
* CAUTION: Adult assembly required
* Assembly and handling may require two people.
* Estimated assembly time is 45 - 60 minutes.
Dust table regularly with a soft, dry cloth to prevent soil build up. A dampened cloth may be used occasionally to clean the surface. Dry immediately and buff lightly, following the grain. Avoid using harsh cleaners and abrasive products.
Use coasters to prevent the formation of moisture rings and trivets to protect from hot items. Cover extension leaves (if applicable) with a soft protective fabric before storing. Do not slide objects across the surface - always lift them.
MAINTENANCE
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
3 PC METAL PUB SET WITH WOOD TOP
HARDWARE LIST
1 2
35 PCS 18 PCS
3 4
φ1/4"*1-1/4" φ1/4"*1/2"
BOLT BOLT
18 PCS 1 PC
φ1/8"*1/2" M4
SCREW ALLEN KEY
3
4 PCS
J K
BOTTOM STRETCHER
4 PCS
TOP STRETCHER
SEAT BOARD STOOL PANEL
3 PCS 2 PCS 4 PCS
SHELF
1 PC 1 PC 6 PCS
G H I
D E F
STRETCHER RAIL
RIGHT SIDE PANEL
TABLE TOP LEFT SIDE PANEL MIDDLE PANEL
1 PC 1 PC 1 PC
3 PC METAL PUB SET WITH WOOD TOP
PARTS LIST
A B C
STEP 1
3 PC METAL PUB SET WITH WOOD TOP
Attach the left side panel (B), middle panel (C), and right side panel (D) to table top (A) with bolts (1). Use Allen Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.
5
STEP 2
3 PC METAL PUB SET WITH WOOD TOP
Attach stretcher (E) to middle and right side panel (C & D) with bolts (1) & (2). Use Allen Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following
steps.
STEP 3
3 PC METAL PUB SET WITH WOOD TOP
Attach rails (F) to left side panel (B) and middle panel (C) with bolts (1). Use Allen Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.
7
STEP 4
Tighten all bolts previously installed in steps 1~4.
With the help of another person, turn the table upright.
3 PC METAL PUB SET WITH WOOD TOP
Attach shelves (G) to left side panel (B), middle panel (C), and rails (F) as shown below using screws (3) and a Phillips head screwdriver (not included).
NOTE: Phillips round head screws (3) will make their own holes. Do not use power tools and do not
over tighten the screws.
STEP 5
3 PC METAL PUB SET WITH WOOD TOP
Attach bottom and top stretchers (K & J) to stool panels (I) with bolts (2).
Use Allen Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.
9
STEP 6
Repeat steps 5-6 to assemble the other stool.
3 PC METAL PUB SET WITH WOOD TOP
Attach seat board (H) to stool panels (I) with bolts (1) and Allen key (4).
Tighten all bolts previously installed in steps 5~6.
That's it ! You've finished assembling your pub set.
3 PC METAL PUB SET WITH WOOD TOP
CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service department. We will replace the part FREE of charge.
Product Maximum Weight
50 lbs.
15 lbs. per
11
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code) Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Customer Service
Fecha de compra: _____ / _____ / _____ Número de lote:
(en la caja)
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Le recomendamos que antes de comenzar a armarlo se familiarice con su nueva compra y tome unos minutos de su tiempo para leer este manual. Contiene información importante sobre nuestra garantía y consejos de cuidados para que su mueble siempre conserve su apariencia de nuevo.
NO DEVUELVA EL PRODUCTO A LA TIENDA. Si falta una pieza o está dañada, contacte nuestro departamento de servicio a la clientela. Reemplazaremos la pieza SIN cargo.
NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE. POR FAVOR, LÉALO Y CONSÉRVELO PARA CONSULTARLO EN EL FUTURO.
NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE. POR FAVOR, LÉALO Y CONSÉRVELO PARA CONSULTARLO EN EL FUTURO.
¡Felicitaciones por su nueva compra de un mueble! Los muebles han sido diseñados con la calidad, la comodidad y el estilo en mente. Estamos seguros de que este mueble le servirá por muchos años con su comodidad excepcional.
13
* Asegúrese de tener todas las piezas. Trabaje en un lugar espacioso, de preferencia sobre un tapiz.
* El armado y la manipulación pueden requerir dos personas.
* El tiempo de armado se estima en 45-60 minutos.
ADVERTENCIA: Si este producto se ha
dañado, y/o sus componentes están rotos o faltan, NO LO USE.
AVERTENCIA
* No use herramientas eléctricas.
* PRECAUCIÓN: Requiere ser armado por un adulto.
CUIDADO Y LIMPIEZA
* El destornillador Phillips no está incluido.
* Para evitar que se raye, por favor retire todo el embalaje y ármelo sobre una superficie limpia y suave.
Regularmente, limpie la mesa con un paño suave y seco para evitar que el polvo se acumule. De vez en cuando puede usar un paño húmedo para limpiar la superficie. Séquela inmediatamente y lústrela suavemente, siguiendo la veta.
Evite usar productos de limpieza ásperos o abrasivos.
Utilice posavasos para evitar que se formen marcas de humedad y posafuentes para proteger la superficie de
recipientes calientes. Cubra las extensiones (si las tiene) con una tela suave para protegerlas antes de guardarlas. No deslice objetos sobre la superficie, siempre levántelos.
MANTENIMIENTO
Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario.
18 PZAS 1 PZA
φ1/8"*1/2" M4
TORNILLO LLAVE ALLEN
35 PZAS 18 PZAS
3 4
φ1/4"*1-1/4" φ1/4"*1/2"
PERNO PERNO
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA LISTA DE ACCESORIOS
1 2
15
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
LISTA DE PIEZAS
A B C
TAPA DE MESA LADO IZQUIERDO PANEL CENTRAL
1 PZA 1 PZA 1 PZA
D E F
TENSOR BARRA
4 PZAS
1 PZA 1 PZA 6 PZAS
G H I
4 PZAS 4 PZAS
LADO DERECHO
ESTANTE
TENSOR SUPERIOR
J K
TENSOR INFERIOR
ASIENTO LADO TABURETE
3 PZAS 2 PZAS
ETAPA 1
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Una el lado izquierdo (B), el panel central (C) y el lado derecho (D) con la tapa de la mesa (A) con pernos (1). Utilice la llave Allen (4) para instalar los pernos.
NOTA: No ajuste los pernos totalmente. El dejarlos algo flojos facilitará el trabajo en las siguientes etapas.
17
ETAPA 2
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Una el tensor (E) con el panel central y el lado derecho (C y D) con pernos (1) y (2).
Utilice la llave Allen (4) para instalar los pernos.
NOTA: No ajuste los pernos totalmente. El dejarlos algo flojos facilitará el trabajo en las
siguientes etapas.
ETAPA 3
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Una las barras (F) con el lado izquierdo (B) y con el panel central (C) con pernos (1).
Utilice la llave Allen (4) para instalar los pernos.
NOTA: No ajuste los pernos totalmente. El dejarlos algo flojos facilitará el trabajo en las siguientes etapas.
19
ETAPA 4
Ajuste todos los pernos instalados en las etapas 1 a 4.
Con la ayuda de otra persona coloque la mesa sobre las patas.
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Una los estantes (G) con el lado izquierdo (B), el panel central (C) y las barras (F) tal como ilustrado más abajo con tornillos (3) y un destornillador Phillips (no incluido).
NOTA: Los tornillos Phillips de cabeza redonda (3) perforarán sus propios agujeros. No utilice
herramientas eléctricas y no ajuste demasiado los tornillos.
ETAPA 5
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Una los tensores inferior y superior (K y J) con los lados del taburete (I) con pernos (2).
Utilice la llave Allen (4) para instalar los pernos.
NOTA: No ajuste los pernos totalmente. El dejarlos algo flojos facilitará el trabajo en las siguientes etapas.
21
ETAPA 6
Repita las etapas 5 y 6 para ensamblar el otro taburete.
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
Una el asiento (H) con los lados del taburete (I) con pernos (1) y la llave Allen (4).
Ajuste todos los pernos instalados en las etapas 5 y 6.
¡Listo! Acaba de armar su juego de pub!
JUEGO DE PUB 3 PZ DE METAL CON TAPA DE MADERA
PRECAUCIÓN: Esta unidad está prevista únicamente para ser usada con los productos y el peso máximo indicados. El usarla con
otros productos más pesados que el peso máximo indicado puede provocar inestabilidad y causar heridas.
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de servicio a la clientela. Reemplazaremos la pieza SIN cargo.
PESO MÁXIMO
50 lbs.
15 lbs. para estante
23
POR FAVOR, NO DEVUELVA ESTE PRODUCTO A LA TIENDA
Fecha de pedido:
Nombre:
Dirección de envío:
Calle y número:
Ciudad y Estado:
Código postal:
Teléfono para llamar de día:
(incluyendo código regional)
Fecha y lugar de compra:
Descripción de pieza(s) y cantidad: (Por favor, asegúrese de incluir número de modelo o número SKN)
Servicio a la Clientela
POR FAVOR, CONTACTE LOS REPRESENTANTES DEL SERVICIO A LA CLIENTELA A LOS SIGUIENTES NÚMEROS SI FALTA UNA PIEZA O ESTÁ DEFECTUOSA.
Date d'achat : _____ / _____ / _____ Numéro de lot : (sur la boîte)
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Nous vous encourageons à vous familiariser avec les caractéristiques de votre nouveau meuble avant de commencer l’assemblage ; prenez donc quelques minutes pour lire ce manuel. Il contient de l’information importante concernant notre garantie et des conseils d’entretien pour vous assurer de garder votre meuble aussi beau qu’aux premiers jours.
NE RETOURNEZ PAS LE PRODUIT AU MAGASIN. Si une pièce est manquante ou endommagée, veuillez communiquer avec notre service à la clientèle. Nous la remplacerons GRATUITEMENT.
NOTE: CE MANUEL D'INSTRUCTIONS CONTIENT INFORMATION DE SÉCURITÉ IMPORTANTE. VEUILLEZ LE LIRE ET LE CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.
Félicitations pour votre dernier achat d’un meuble ! Les meubles ont été conçus ayant en tête la qualité, la commodité et le style. Nous sommes convaincus que ce meuble vous servira durant de nombreuses années avec un confort exceptionnel.
25
*
* L'assemblage requiert deux personnes.
* Temps d'assemblage estimé : 45-60 minutes.
*
*
Veuillez vérifier les boulons/vis régulièrement et les ajuster si nécessaire.
MISE EN GARDE: Si ce produit et/ou ses
composantes sont endommagés ou manquants, NE L'UTILISEZ PAS.
NE PAS UTILISER d'outils électriques.
MISE EN GARDE: L'assemblage doit être effectué par un adulte.
ENTRETIEN ET NETTOYAGE
Époussetez la table régulièrement avec un chiffon doux et sec pour empêcher la poussière de s'accumuler. Un chiffon humide peut être utilisé à l'occasion pour nettoyer la surface. Séchez immédiatement et polir légèrement en suivant le grain.
Évitez d'utiliser des nettoyants forts ou des produits abrasifs.
Utilisez des sous-verres pour prévenir la formation d'anneaux d'humidité et des sous-plats pour protéger la surface des articles chauds. Couvrez les panneaux de rallonge (si applicable) avec un tissu protecteur doux avant de ranger. Ne pas faire glisser d'objets sur la surface - toujours les soulever.
ENTRETIEN
NOTES :
Assurez-vous d'avoir toutes les pièces et composantes avant de commencer à l'assembler.
φ1/4"*1-1/4" φ1/4"*1/2"
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS LISTE DE QUINCAILLERIE
1 2
BOULON BOULON
35 PCES 18 PCES
3 4
φ1/8"*1/2" M4
VIS CLÉ ALLEN
18 PCES 1 PCE
27
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
A B C
DESSUS DE TABLE CÔTÉ GAUCHE PANNEAU CENTRAL
1 PCE 1 PCE 1 PCE
D E F
TRAVERSE BARRE
4 PCES
1 PCE 1 PCE 6 PCES
G H I
4 PCES 4 PCES
CÔTÉ DROIT
ÉTAGÈRE
TRAVERSE SUPÉRIEURE
J K
TRAVERSE INFÉRIEURE
SIÈGE CÔTÉ TABOURET
3 PCES 2 PCES
LISTE DE PIÈCES
ÉTAPE 1
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Attachez le côté gauche (B), le panneau central (C) et le côté droit (D) avec le dessus de la table (A) avec des boulons (1). Servez-vous de la clé Allen (4) pour installer les boulons.
NOTE : Ne pas serrer les boulons complètement. Cela facilitera le travail lors des étapes suivantes.
29
ÉTAPE 2
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Attachez la traverse (E) au panneau central et au côté droit (C et D) avec des boulons (1) et (2). Servez-vous de la clé Allen (4) pour installer les boulons.
NOTE : Ne pas serrer les boulons complètement. Cela facilitera le travail lors des étapes
suivantes.
ÉTAPE 3
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Attachez les barres (F) au côté gauche (B) et au panneau central (C) avec des boulons (1). Servez-vous de la clé Allen (4) pour installer les boulons.
NOTE : Ne pas serrer les boulons complètement. Cela facilitera le travail lors des étapes suivantes.
31
ÉTAPE 4
Serrez tous les boulons installés lors des étapes 1 à 4.
Avec l’aide d’une autre personne, mettez la table sur ses pieds.
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Attachez les étagères (G) au côté gauche (B), au panneau central (C) et aux barres (F) tel qu’illustré ci-dessous avec des vis (3) à l’aide d’un tournevis à tête cruciforme (non compris).
NOTE : Les vis à tête arrondie (3) perceront leurs propres trous. Ne pas utiliser d’outils électriques et
ne pas trop serrer les vis.
ÉTAPE 5
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Attachez les traverses inférieure et supérieure (K et J) aux côtés du tabouret (I) avec des boulons (2).
Servez-vous de la clé Allen (4) pour installer les boulons.
NOTE : Ne pas serrer les boulons complètement. Cela facilitera le travail lors des étapes suivantes.
33
ÉTAPE 6
Répétez les étapes 5 et 6 pour assembler l’autre tabouret.
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
Attachez le siège (H) aux côtés du tabouret (I) avec des boulons (1) et la clé Allen (4).
Serrez tous les boulons installés lors des étapes 5 et 6.
Voilà! Vous avez terminé d'assembler votre ensemble de pub.
ENSEMBLE DE PUB 3 PC DE MÉTAL AVEC DESSUS EN BOIS
ATTENTION: Cette unité est conçue pour être utilisée seulement avec les produits et/ou les poids maximum indiqués.
L'utilisation avec d'autres produits et/ou des produits plus lourds que les poids maximum indiqués peut entraîner de l'instabilité et
causer des blessures.
NE PAS RETOURNER LE PRODUIT AU MAGASIN.
Si une pièce est manquante ou endommagée, contactez notre Service à la clientèle. Nous remplacerons la pièce GRATUITEMENT.
Poids maximum
50 lbs.
15 lbs. par étagère
35
S.V.P. NE PAS RETOURNER CE PRODUIT AU MAGASIN
S.V.P. CONTACTEZ NOS REPRÉSENTANTS DU SERVICE À LA CLIENTÈLE AUX NUMÉROS SUIVANTS SI VOUS AVEZ DES PIÈCES MANQUANTES OU DÉFECTUEUSES.
Date de la demande :
Nom : Adresse de livraison :
Numéro & Rue : Ville & Province : Code Postal :
No. de téléphone (jour) : (incluant le code régional) Date & Nom du Magasin :
Description & quantité de pièce(s): S.V.P. ne pas oublier le numéro de modèle ou de SKU)
