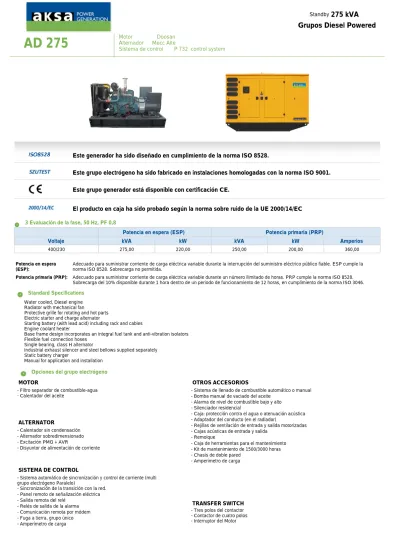

Water cooled, Diesel engine Radiator with mechanical fan
Protective grille for rotating and hot parts Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately Static battery charger
Manual for application and installation Standard Specifications
3 Evaluación de la fase, 50 Hz, PF 0,8
Este grupo electrógeno ha sido fabricado en instalaciones homologadas con la norma ISO 9001.
Este grupo generador está disponible con certificación CE.
Este generador ha sido diseñado en cumplimiento de la norma ISO 8528.
El producto en caja ha sido probado según la norma sobre ruido de la UE 2000/14/EC
400/230 275,00 220,00 250,00 200,00 360,00
Potencia en espera (ESP) Potencia primaria (PRP)
Voltaje kVA kW kVA kW Amperios
Potencia en espera (ESP):
Adecuado para suministrar corriente de carga eléctrica variable durante la interrupción del suministro eléctrico público fiable. ESP cumple la norma ISO 8528. Sobrecarga no permitida.
Potencia primaria (PRP): Adecuado para suministrar corriente de carga eléctrica variable durante un número ilimitado de horas. PRP cumple la norma ISO 8528. Sobrecarga del 10% disponible durante 1 hora dentro de un periodo de funcionamiento de 12 horas, en cumplimiento de la norma ISO 3046.
Opciones del grupo electrógeno
OTROS ACCESORIOS
- Caja de herramientas para el mantenimiento - Remolque
- Cajas acústicas de entrada y salida - Kit de mantenimiento de 1500/3000 horas
- Rejillas de ventilación de entrada y salida motorizadas - Alarma de nivel de combustible bajo y alto
- Bomba manual de vaciado del aceite
- Sistema de llenado de combustible automático o manual
- Adaptador del conducto (en el radiador)
- Caja: protección contra el agua o atenuación acústica - Silenciador residencial
MOTOR
- Calentador del aceite
- Filtro separador de combustible-agua
ALTERNATOR
- Excitación PMG + AVR
- Disyuntor de alimentación de corriente - Calentador sin condensación - Alternador sobredimensionado
Especificación del motor diesel
Entrada de aire (m3 /min.) m3 /min. 16,40
Capacidad del refrigerante (L) L 65,00
Consumo de combustible L/h. Load 53,30 40,00 27,50 %100 carga %75 carga %50 carga
Aire de refrigeración del radiador (m3 /min.) m3 /min. 295,00
Sistema de excitación 24 V d.c.
Temperaturas de gases de escape (° C) ° C 560,00
Gases de escape (m3 /min.) m3 /min. 43,00
Desplazamiento total (L) L 11,050
Máxima potencia en espera 272,00 kW
[364,00HP] 1500 rpm Capacidad de aceite (L) L 23,00 Velocidad nominal (rpm) rpm 1500 Relación de compresión 17,0:1 Calibre y carrera (mm) mm. 123 x 155 Manufacturer Doosan Model P126TI
Especificación del alternador
Potencia kVA 250,00
Corriente A 360,00
Fase 3
Voltaje del alternador (V) V 400/230
Temperature H
Coseno de Fi 0,80
Marca Mecc Alte
Frecuencia Hz 50
Modelo ECO 38-1LN
Dimensiones y peso
Grupo Peso longitud (mm.) Ancho alto (mm.) Capacidad del tanque (L)
AD 275 2265,00 2950,00 1300,00 1588,00 450,00 Open Type kg. Peso mm. longitud (mm.) mm. Ancho mm. alto (mm.) L
Microprocessor controlled
132 x 64 pixel LCD display makes information easy to read Front panel programming and also via PC software Soft touch membrane keypad and five key menu navigation
Remote communications via RS232, RS485 and ethernet and SMS messaging Event logging (50) showing date and time
Multiple date and time engine exercise mode and maintenance scheduler Engine block heater control.
Controls; stop,manuel, auto, test,start, mute lamp test/transfer to generator, transfer to mains, manu navigation. 7KH'6(FRQUROPRGXOHLVDVWDQGDUGDGGLWLRQWRRXUJHQHUDWRUVHWVIURPN9$XSZDUGVDQGÕWKDVEHHQ GHVLJQHGWRVWDUWDQGVWRSGLHVHODQGJDVJHQHUDWLQJVHWVWKDWLQFOXGHHOHFWURQLFDQGQRQHOHFWURQLFHQJLQHV7KH '6(LQFOXGHVWKHDGGLWLRQDOFDSDELOLW\RIEHLQJDEOHWRPRQLWRUDPDLQVXWLOLW\VXSSO\DQGLVWKHUHIRUH VXLWDEOHIRUFRQWUROOLQJDVWDQGE\JHQHUDWLQJVHWLQFRQMXQFWLRQZLWKDQDXWRPDWLFWUDQVIHUVZLWFK7KH'6(DOVR LQGLFDWHVRSHUDWLRQDOVWDWXVDQGIDXOWFRQGLWLRQVDXWRPDWLFDOO\VKXWWLQJGRZQWKHJHQHUDWLQJVHWDQGLQGLFDWLQJ IDXOWVE\PHDQVRILWV/&'GLVSOD\RQWKHIURQWSDQHO Especificación estándar
Unidad de control del grupo generador
Control panel is mounted generating set baseframe on robust steel stand or power module. Located at side of generating set with properly panel visibility.
Instalación
Comonents installed in sheet steel enclosure. Phosphate chemical, pre-coating of steel provides corrosion resistant surface
Polyester composite powder topcoat forms high gloss and extremely durable finish Lockable hinged panel door provides for easy component access
DSE, model 7320 Auto Mains Failure control module Static battery charger
Emergency stop push button and fuses for control circuits
Construcción y acabado
dispositivos
P 732 control system - Sistema de control
Menu navigation buttons Close mains button
Main Status and instrumentation display Alarm LED's
Close generator button Status LED's
Operation selecting buttons 1 2 3 4 5 6 7
High oil temperature shut down Low fuel level shut down Low fuel level alarm High fuel level alarm EXPANSION MODULES Editional LED module (2548) Expension relay module (2157) Expansion input module (2130)
Estándares
Elecrical Safety / EMC compatibility
BS EN 60950 Electrical business equipment BS EN 61000-6-2 EMC immunity standard BS EN 61000-6-4 EMC emission standard
Opciones
Instrumentos
ENGINE Engine speed Oil pressure Coolant temperature Run time Battery voltsEngine maintenance due GENERATOR Voltage (L-L, L-N) Current (L1-L2-L3) Frequency Earth current kW Pf kVAr kWh, kVAh, kVArh Phase sequence MAINS Voltage (L-L, L-N) Frequency
Circuitos de protección
WARNING Charge failure Battery under voltage Fail to stopLow fuel level (opt.) kW over load
Negative phase sequence Loss of speed signal PRE-ALARMS Low oil pressure High engine temperature Low engine temperature Over /Under speed Under/over generator frequency Under/over generator voltage ECU warning SHUT DOWNS Fail to start Emergency stop Low oil pressure High engine temperature Low coolant level Over /Under speed Under/over generator frequency
Under/over generator voltage Oil pressure sensor open Phase rotation
ELECTRICAL TRIP Earth fault kW over load
Generator over current Negative phase sequence
%DWWHU\FKDUJHULVPDQXIDFWXUHGZLWKVZLWFKLQJPRGHDQG60'WHFKQRORJ\DQGÕWKDVKLJKHIILFLQF\ %DWWHU\FKDUJHUPRGHOVRXWSXW9,FKDUDFWHULVWLFLVYHU\FORVHWRVTXDUHKDVIXOO\RXWSXWVKRWFLUFXLWSURWHFWLRQDQG ÕWFDQEHXVHGDVDFXUUHQWVRXUFH FKDUJHUKDVKLJKHIILFLHQF\ORQJOLIHORZIDLOXUHUDWHOLJKWZHLJKWDQGORZKHDWUDGLDWHGLQDFFRUGDQFHZLWKOLQHDU DOWHUQDWLYHV 7KHFKDUJHULVILWWHGZLWKDSURWHFWLRQGLRGHDFURVVWKHRXWSXW&KDUJHIDLORXWSXWLVDYDLODEOH&RQQHFWFKDUJHIDLOUHOD\ FRLOEHWZHHQSRVLWLYHRXWSXWDQG&)RXWSXW
Steel structures.
Emergency stop push button.
Control panel is mounted on the baseframe . Located at the right side of the generator set.
Corrosion-resistant locks and hinges. oil could be drained via valve and a hose Exhaust system in the canopy.
special large access doors for easy maintanance
in front and back side special large access doors for easy maintanance Base frame -fuel tank.
Plastic air intake pockets. sound proofing materials
the cap on the canopy provides easy accsess to radiator cap. Lifting points similar to ISO container , located on each top corner of the canopy. 1 2 3 4 5 6 7 8 9 13 12 11 10
MS 60 - Cubierta
Acerca del producto
Sound–attenuated and Weather-protective Enclosures Sound-attenuated and weather protective enclosures for generating sets from Aksa, meet event the sound requirements and provide optimum protection from inclement weather and development by our specialist acoustic engineers. Our modular designed sound insulated canopies provide ease of access for servicing and general maintenance and interchangeable components permitting on-site repair. Enclosures are designed to optimize genset cooling performance, providing you with confidence that genset ratings and ambient capability.
Especificación estándar
Compact footprint, low profile design.
Enclosure, generator set, exhaust system and fuel tank are pre-ssembled, pre-integrated and shipped as one package Body made from steel components treated with polyester powder coating
Fire retardant foam insulation Easy access to all service points Exhaust system inside canopy Large doors on each side
Control panel viewing window in a lockable access door Emergency stop push button mounted on enclosure exterior Cooling fan and battery charging alternator fully guarded
Fuel fill and battery can only be reached via lockable access doors. Lifting points on the top of canopy and base frame
Customer options available to meet your applications needs.
Aksa makes its generating sets' noise level tests in accordance with directive 2000/14/EC validation of the noise level test has been aproved by the notified body Szutest
alto (mm.) mm. 1970
Capacidad del tanque de combustible L 450
Ancho mm. 1300
