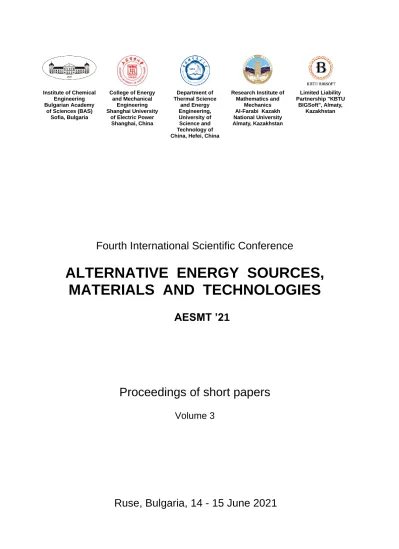

Fourth International Scientific Conference

ALTERNATIVE ENERGY SOURCES, MATERIALS AND TECHNOLOGIES

AESMT ’21

Proceedings of short papers Volume 3

Ruse, Bulgaria, 14 - 15 June 2021

(2)

MAIN TOPICS

ALTERNATIVE ENERGY SOURCES

• Solar and Hybrid Thermal Systems

• Solar Photovoltaic Systems

• Solar Radiation Measurement and Sun-tracking

• Geothermal Energy Applications

• Phase Change Materials (PCM) Applications

• Wind Energy

• Biotechnologies

• Hydrogen Energy

• Ocean/ Tidal Energy

ALTERNATIVE MATERIALS

• Energy Materials Science

ALTERNATIVE TECHNOLOGIES

• Mechanical Engineering and Technologies

• Electrical Engineering

• Low-Carbon Technologies

• Energy Efficiency

© Edited by Aleksandar Georgiev, 2021

© Publishing House: „Imeon“ Sole-owner, 2021

ISSN 2603-364X

(3)

CHAIRS:

▪ Prof. Aleksandar GEORGIEV, PhD (Bulgaria);

▪ Assoc. Prof. Daniela DZHONOVA-ATANASOVA, PhD (Bulgaria);

▪ Prof. Qunzhi ZHU, PhD (China)

▪ Prof. Gang Pei, PhD (China)

▪ Assoc. Prof. Saltanat BOLEGENOVA, PhD (Kazakhstan);

▪ Assoc. Prof. Rustem MANATBAYEV, PhD (Kazakhstan).

SCIENTIFIC COMMITTEE:

Adeel Waqas (Pakistan) Adrian Olaru (Romania) Aidarkhan Kaltayev (Kazakhstan)

Aleksandra Krstic (Serbia) Alexander Genbach (Kazakhstan) Aleksandrs Volperts (Latvia) Aleksey Benderev (Bulgaria) Alexandru Radulescu (Romania) Ali Riza MOTORCU (Turkey) Aliya Askarova (Kazakhstan) Ana Vieira (Portugal) Andre Thess (Germany) Andrei Rotaru (Romania) Arturo Busso (Argentina) Arvind Jadhav (India)

Barkat Ali BHAYO (Pakistan) Bin Zhao (China)

Bo Cao (China)

Bojan Zlender (Slovenia) Cristina H. C. Tsuha (Brazil) Christos Markides (UK) Daniel Tudor Cotfas (Romania) Dinara Turalina (Kazakhstan) Dorin Lucache (Romania) Dorin Petreus (Romania) Dorota Chwieduk (Poland) Dragi Antonijevic (Serbia) Dragomir Yankov (Bulgaria) Erol ARCAKLIOĞLU (Turkey) Essam A. Al-Ammar (Saudi Arabia)

Gady Golan (Israel) Gilles Notton (France) Georgiana Chisiu (Romania) Giorgio Besagni (Italy) Guoqing He (China)

Haitham Mohamed Ramadan (France)

Hamid Reza Karimi (Italy) Henrik Lund (Denmark) Hernán Olguín (Chile)

Hristo Beloev (Bulgaria) Hülya Kalaycıoğlu (Turkey) Iliya Iliev (Bulgaria) Inga Zicmane (Latvia) Irina Radulescu (Romania) Ishak ERTUGRUL (Turkey) Ivan Yatchev (Bulgaria) Janis Kleperis (Latvia) Javier F. Urchueguia (Spain) Jing Li (UK)

Jingyu Cao (China)

Joan Ramón Morante (Spain) Jolanta Sadauskiene (Lithuana) Josua P Meyer (South Africa) Jürgen Ulbricht (Switzerland) Khairulla Baishagirov (Kazakhstan)

Kim Tiow Ooi (Singapore) Laila H. Abu Hassan (Jordan) Leonard Vasiliev (Belarus) Liana Bogatu (Romania) Liana Sanda Baltes (Romania) Lilyana Kolaklieva (Bulgaria) Liviu Costiuc (Romania) Luisa F. Cabeza (Spain) Maosheng Zheng (China) Marco Barla (Italy)

Mariya Aleksandrova (Bulgaria) Mihaela Buciumeanu (Romania) Michele Bottarelli (Italy) Miglena Nikolaeva-Dimitrova (Bulgaria)

Ming Li (China) Mingke Hu (China) Mirko Komatina (Serbia) Mitko Stoev (Bulgaria) Muhsin Kiliç (Turkey) Murugesan Mohanraj (India) Musa Yilmaz (Turkey) Naima AMRANI (Algeria) Neyara Radwan (Saudi Arabia)

Orkun HASEKİOĞLU (Turkey) Paul Christodoulides (Cyprus) Paul Nicolae BORZA (Romania) Petia Bobadova (USA)

Petru A. Cotfas (Romania) Qiongfen Yu (China) Ritunesh Kumar (India) Robert Gavriliuc (Romania) Rumen Popov (Bulgaria) Saide Doodi (Iran) Sakshum Khanna (India) Sarah Mc Cormack (Irland) Senai YALÇINKAYA (Turkey) Simon Jayaraj (India)

Soteris Kalogirou (Cyprus) Stanislaw Nagy (Poland) Subarna Maiti (India) Sümer Şahin (Turkey) Taeseong Kim (Denmark) Tahir Çetin Akinçi (Turkey) Tairan Fu (China)

Telman Karimbaev (Russia) Teodor Iliev (Bulgaria) Theocharis Tsoutsos (Greece) Veerabathiran ANBUMALAR (India)

Venko Beshkov (Bulgaria) Xie Lingzhi (China) Xu Ji (China) Yanjun Dai (China) Yong Shuai (China) Yuehong Su (UK) Yupeng Wu (UK) Yonghang Tai (China) Yunlan Li (China) Yusuf Şahin (Turkey) Zaure Rakisheva(Kazakhstan) Zhang Liang (China)

3

(4)

F O R E W O R D

The Fourth International Scientific Conference “Alternative Energy Sources, Materials &

Technologies AESMT’21” was held between 14

^th

and 15

^th

June 2021 in Ruse, Bulgaria.

Representatives of 34 countries (Austria, Bulgaria, Chile, China, Cyprus, Egypt, France, Germany, Greece, Hungary, India, Iran, Iraq, Israel, Italy, Kazakhstan, Kosovo, Kuwait, Latvia, Lebanon, Lithuania, Macedonia, Nigeria, Norway, Portugal, Romania, Russia, Serbia, Spain, Tajikistan, Turkey, United Kingdom, and Yemen) sent their works to the conference. Selected reports (69 works) have been published as short papers in the proceeding of the conference.

It is my pleasure to be an editor of the presented short papers, which focus on new international scientific results in the field of Alternative Energy Sources, Materials and Technologies (Solar and Hybrid Thermal Systems, Solar Photovoltaic Systems, Solar Radiation Measurement and Sun-tracking, Geothermal Energy Applications, Phase Change Materials (PCM) Applications, Wind Energy, Biotechnologies, Hydrogen Energy, Ocean/ Tidal Energy, Energy Materials Science, Mechanical Engineering and Technologies, Electrical Engineering, Low-Carbon Technologies, Energy Efficiency).

Prof. Aleksandar Georgiev, PhD (European Polytechnic University, Pernik, Bulgaria) Chair of the AESMT’21 conference

(5)

Alternative Energy Sources, Materials & Technologies (AESMT’21), Volume 3, 2021

5

(6)

Xiaoqiao Huang, Yonghang Tai, Junsheng Shi. Prediction of hourly electricity consumption for a University Campus based on LSTM...………,,...……….. 47 Xiaoqiao Huang, Yonghang Tai, Junsheng Shi. Prediction of hourly photovoltaic power based on conditional

generative adversarial network and Bi-LSTM...…...………... 49

GEOTHERMAL ENERGY APPLICATIONS

A. Galgaro, A. Carrera, E. Di Sipio, G. Dalla Santa, A. Ramos Escudero, J. M. Cuevas, R. Pasquali, B. Sanner, A.

Bernardi. Scale drillability maps as a tool to select the drilling technology to install Borehole Heat Exchange (BHE) probes... 51 B. Kunovska, D. Djunakova, N. Chobanova, J. Djounova, A. Angelova, Z. Stojanovska, K. Ivanova. Daily variation

of the indoor radon in Bulgarian spas using geothermal water...………...….. 53 Hossein Javadi, Javier Fermín Urchueguía Schölzel, Borja Badenes, Ali Nejad Ghafar, Lenin Guillermo Lemus

Zúñiga, Miguel Ángel Mateo Pla, Ojas Arun Chaudhari. Innovative research methodology of borehole heat exchangers incorporating advanced materials for use as thermal energy storage (BTES)...………...……….. 55 L. Aresti, A. Skaliontas, G. Florides, P. Christodoulides. Environmental Impact of a Ground Source Heat Pump

system of in a Mediterranean residential building – a Preliminary Assessment...…...………...…... 57 P. N. Gerginov, N. T. Stoyanov, A. D. Benderev, S. Valtchev. Opportunities and approaches for the use of thermal

waters in Central Northern Bulgaria...…... 59

PHASE CHANGE MATERIALS (PCM) APPLICATIONS

Bin Xu, Xing Xie, Xing-ni Chen. Implicit methods for solving heat transfer model: Applications on phase change

materials and thermochromic windows.……….….………… 61

Silvia Cesari, Giuseppe Emmi, Michele Bottarelli. An experimental data-driven control strategy for PCM integrated radiant floor systems.…………...……… ……….... 63

WIND ENERGY

B. Li, V. S. Olawoore, Y. Shuai, W. H. Cai. Numerical Investigation of Synthetic Jet Assisted Flow Control Over

Horizontal Axis Wind Turbines………….………..……… 65

N. Khasanzoda, I. Zicmane, S. Beryozkina, M. Kh. Safaraliev, Sh. M. Sultonov, A. K. Kirgizov. Fuzzy models for management and evaluation of power wind systems on the basis of probability

characteristics.……….…..……….….. 67

N. Khasanzoda, M. Kh. Safaraliev, I. Zicmane, S. Beryozkina, J. B. Rahimov, J. S. Ahyoev. Optimization of wind unit’s operation in isolated power systems under smart grid concept……….. 69 P. T. Gkeka-Serpetsidaki, S. Papadopoulos, T. Tsoutsos. Estimation of the optical disturbance of offshore wind

farms..………... 71 Zh. E. Baizhuma, R. K. Manatbayev, A. K. Yershina, A. G. Georgiev, A. Zhumabayev. Performance evaluation of the

G-shaped Vertical Axis Wind Turbine using commercial

software……….... 73

BIOTECHNOLOGIES

Ance Plavniece, Aleksandrs Volperts, Galina Dobele, Aivars Zhurinsh, Ivar Kruusenberg, Katlin Kaare, Kaspars Kaprans, Ingars Lukosevics, Janis Kleperis. Activated Biochar Pre and Post N-doping for energy applications….. 75

(7)

HYDROGEN ENERGY

M. Kramer, L. Eitzinger-Lange, M. Leeb, A. Meindl, G. C. Brunauer. Investigations into the viability of utilizing locally produced green hydrogen for seasonal energy storage for alpine heavy-duty vehicles – Simulation based on Austrian communities.……… ………... 77 Zaiguo Fu, Jin Lu, Jiang Liu, Zhuoxiong Zeng, Weiguo Pan. Numerical simulation of combustion characteristics of

methane mixed with hydrogen in the combustor of a counter-flow micro gas turbine………... 79

ENERGY MATERIALS SCIENCE

Azeem Mustafa, Yong Shuai, Bachirou Guene Lougou, Samia Razzaq. Modeling the electrochemical conversion of CO2 to CO in a microfluidic cell..………...………...………. 81 B Guene Lougou, Y Shuai, H Zhang, B Jiang, Y Getahun Dessie, J Zhao. (Mn, Co) oxide redox cycles-based high-

temperature thermochemical energy storage..………... 83 C. Dulucheanu, T. L. Severin, D. A. Cerlinca, L. Irimescu, J. Javorova. Mechanical properties of some dual-phase

steels with low manganase content………..…… 85

Cong Wang, Xu Ji, Biangfeng Yang, Jiangyang Han, Delong Yang. Study on adsorption characteristics of carbon based composite desiccant... 87 G. Orr, G. Golan. Crystalline quality in aluminum single crystals, characterized by X-Ray diffraction and Rocking-

Curve analysis. ……… 89

J. X. Flores-Lasluisa, F. Huerta, D. Cazorla-Amorós, E. Morallón. Manganese-based materials for the oxygen

reduction reaction ……….………... 91

Jie Liu, Xianze Ao, Kegui Lu, Bin Zhao, Gang Pei. Scalable Polymer-based Film for Continuous Sub-ambient

Radiative Cooling. ……….……….. 93

Lin Fu, Tairan Fu, Kai Chen. Synthesis and thermal properties of silica aerogel composites reinforced with various

fibers..……… ………...……….. 95

R. A. Umirzakov, Bulbul Ongar, A. G. Georgiev. Development and research of a highly efficient drying plant for

oilseeds..………... 97

MECHANICAL ENGINEERING AND TECHNOLOGIES

A. S. Askarova, S. A. Bolegenova, V. Yu. Maximov, S. A. Bolegenova, M. T. Beketayeva, Z. A. Bakyt. The method of improving the environmental situation by modeling of pollutants in combustion systems of the Republic of

Kazakhstan………... 99

ELECTRICAL ENGINEERING

P. N. Borza, M. Machedon-Pisu, S. Vlase, F. Hamza-Lup. Electric hybrid storage systems and their applications

……….. 101

LOW-CARBON TECHNOLOGIES

A. Mezulis, P. Lesnicenoks, J. Kleperis, I. Dimanta. Developing the technical solutions for use of biofuels and hydrogen fuel additive in Latvia...……….…. 103 A. S. Askarova, S. A. Bolegenova, A. O. Nugymanova, A.S. Tagaibek. Influence of thermochemical activation of fuel

on the combustion process in furnace chambers of thermal power plants………... 105 Ahmad Faraj, Mostafa Mortada, Jalal Faraj, Haitham S. Ramadan, Ziad M. Ali, Mahmoud Khaled. Enhancing the

Thermal Performance of Vehicle Cooling Modules Using Diffusers.……....……… ……… 107

7

(8)

Bianfeng Yang, Xu Ji, Cong Wang, Qianrong Yue. Performance evaluation of a twice evaporative cooling air

conditioning system based on desiccant bed………..……….……….… 109

Chengfeng Xu, Xianze Ao, Bin Zhao, Gang Pei. A new type of spectrally selective spectrum for better radiative sky cooling..………...………. 111

P. Lesnicenoks, J. Kleperis, A. Knoks, L. Jekabsons. Electrocatalytic CO2 conversion to hydrocarbons – renewables for industry...………... 113

Tianxiang Hu, Trevor Hocksun Kwan, Gang Pei. An All-day Cooling System that Combines Solar Absorption Chiller and Radiative Cooling... 115

ENERGY EFFICIENCY G. S. Lu, L. Ming, Y. Zhang, L. Zhao, G. L. Li, C. Z. Hu. Research on Characteristics of Direct Contact Heat Exchange Refrigeration System Under Different Energy Storage ………... 117

I. Berezovskaya, Sa. Bolegenova, O. Vorobyova, M. Ryspayeva, Sy. Bolegenova, Ye. Shotaeva, Z. Begaly. Numerical study of heat and mass transfer processes in the internal combustion chamber by method of computer simulation...… ……….……….…….……….. 119

L. Costiuc, I. Costiuc. Dynamic modelling of the condenser type heat-exchanger..……….…..…….. 121

L. Lopez, A. Giusti, E. Gutheil, H. Olguin. A comparison of the total heat release and soot formation rates of ethanol and n-butanol flames in a counterflow configuration………... 123

M. Milanovic, M. Komatina, N. Manic. Thermomechanical aspects of juice industry residues... 125

M. Y. Shi, L. Ming, Y. Zhang, J. Li, M. Gao, Z. H. Deng, R. Liu, G. S. Lu. Flow field analysis and structure optimization of heat pump drying oven... 127

N. S. Milutinovic, N. R. Rudonja, M. D. Gojak, G. S. Živkovic. Energy and exergy assessment of an ORC power plant with geothermal hot water and wood biomass-Serbian case…….……….. 129

S. Birkelbach, S. Bilir Mahcicek. Thermal Behaviour Simulation and Analysis of Adaptive Facades....……… 131

S. Zerbib, N. Shahar, G. Golan. Flow Measurements Using Enthalpy Sensing...…………...……….. 133

T. Zhang, Z. W. Yan, J. Y. Cai. Structural Optimization of a Low-Temperature Heat Pump Sludge Drying System... 135

Xing Xie, Xing-ni Chen, Bin Xu, Gang Pei. Effect of cool storage zone on thermal comfort during occupancy: A case study of public buildings with high window-wall ratio in Guangzhou... 137

Xing Xie, Yu-qian Zhao, Fei Xia, Bin Xu, Yang-liang Wang, Gang Pei. Effect of surface emissivity on indoor thermal comfort with the radiant wall heating system... 139

Zahra Wehbi, Ahmad Faraj, Jalal Faraj, Haitham S. Ramadan, Ziad M. Ali, Mahmoud Khaled. A Short Review on Waste Water Heat Recovery Systems: Types and Applications... 141 Zhangwei Feng, Chengyun Xin, Jianmei Zhang, Tuo Zhou, Tairan Fu. Investigation of air-side thermal and hydraulic performances of integrally-formed spiral fin-and-tube heat exchangers... 143

Zibaei Freidoon. Facing Global Warming…... 145

(9)

Alternative Energy Sources, Materials & Technologies (AESMT’21), Volume 3, (pp. 51-52) 2021 ALTERNATIVE ENERGY SOURCES, Geothermal Energy Applications

Scale drillability maps as a tool to select the drilling technology to install Borehole Heat Exchange (BHE) probes

A. Galgaro

^1,2

, A. Carrera

¹

, E. Di Sipio

^1*

, G. Dalla Santa

¹

, A. Ramos Escudero

³

, J.M.

Cuevas

³

, R. Pasquali

⁴

, B. Sanner

⁵

, A. Bernardi

⁶

1 Department of Geosciences, Università di Padova, Via G. Gradenigo 6, 35131 Padova, Italy [email protected]

2 CNR-IGG, Padova, Italy

3Universidad Politécnica de Cartagena, Cartagena, Spain

4GeoServ Solutions, Ireland

5 UBeG Dr. Mands & Sauer GbR, Reinbergstr 2, 35580 Wetzlar, Germany

6CNR-ISAC, Padova, Italy

The main aim of EU funded project GEO4CIVHIC is the development, growth and spreading of more efficient and low-cost geothermal systems for conditioning retrofitting civil and historical buildings. Within this context, the assessment of the most suitable drilling technique to install borehole heat exchangers (BHE) is affected by the local geological, hydrogeological and thermal conditions.

In order to provide professional (i.e. drillers, designers) and decision makers (i.e. building owners, policy makers) with preliminary information about expected drilling-time and costs for different geothermal systems, drillability maps at European and municipality scale are here presented.

Keywords: Geothermal drilling, shallow geothermal systems, ground thermal properties, drillability, GIS

INTRODUCTION

The European Green Deal sets an ambitious target of reducing CO

2

and climate-altering gas emissions by at least 55% by 2030 (compared to 1990 levels) and climate neutrality by 2050. In this respect, geothermal energy (GE) plays a key role because it provides two main advantages, (1) a further shift in the energy mix towards renewable and (2) a substantial reduction in energy demand in the residential sector. In detail, the Energy Transition initiative of the European Commission is focusing on increasing the retrofitting of the building stock from the current 1 % level to 3 % and to shift the nature of the interventions towards deep retrofits.

The application of shallow geothermal installations in the built environment is attractive, but to be competitive on the market the total investment cost of geothermal systems has to decrease compared with alternative solutions. In this framework, the high drilling cost needs to be tackled and, at the same time, a better understanding of available drilling technology suitable for shallow geothermal installation is needed [1-2].

Drillability mapping

In GEO4CIVHIC “drillability” is defined as the most suitable drilling methods related to BHEs installation taking into account the estimated installation time in function of the rig and drilling

technology and the local geological constrains. At first it is necessary to define the main geological parameters as the stratigraphic sequence, type of rocks, ground hardness, degree of consolidation., geothermal and hydrogeological conditions. Then, the common drilling techniques used in the whole Europe for shallow geothermal installations were identified based on the contribution of partners expert in drilling technologies. Finally, a correlation between main identified lithologies and best methods to drill them was finalized. In this way, maps able to support the design phase of new GSHP (Ground Source Heat Pump) systems and to provide a first evaluation of the drilling costs and time expected to install BHEs in different locations is provided.

European scale map

For the installation of a BHE, the classic drilling methods (percussing, rotating, and combined percussion-rotation methods) were combined with more than 200 geological settings identified following the European Geological Data Infrastructure (EGDI) description at 1:1.500.000 scale. According to the lithological distribution four main regions were identified:

• Northern Europe, characterized mainly by hard rocks requiring a combined percussion-rotation method

51

(10)

A. Galgaro et al.: Scale drillability maps as a tool to select the drilling technology to install Borehole Heat Exchange (BHE) probes

• Central and Southern Europe, characterized by different kind of rocks requiring rotating or combined percussion-rotation methods depending on rock hardness

• European fold belts where rocks are folded and metamorphosed and drilling is done mostly

with percussion-rotation, sometimes only rotation

• European sedimentary basin, where unconsolidated sediments are prevalent and drilling can be done with rotary rigs, often using temporary casing to stabilise the hole

Fig.1. Map of the drilling methods selected according to underground lithological variability at European scale

Municipal scale map

The approach proposed at European scale was then implemented at municipal scale (≤ 1:25.000). In the four demonstration sites belonging to GEO4CIVHIC project (Dublin - Ireland, La Valletta- Malta, Mechelen – Belgium, Ferrara - Italy), showing very different underground conditions, local drillability maps based on local geological, hydrogeological, geotechnical and geothermal information were realized. The aim was to provide a tool useful for drillers and GSHP designers, containing preliminary information about the most suitable drilling technology, the ground thermal properties and the timing/costs of the installation.

CONCLUSIONS

Several approaches have been proposed so far to describe the geo-exchange potential and related techno-economic concerns for shallow geothermal systems [3-4-5]. GEO4CIVHIC approach focus on drillability definition and aims to produce maps able to provide a first evaluation of the drilling method, time and cost to be expected according to underground variability. This information, summarized in a series of maps, will support both administrators, direct users and experts (designers and drillers) in the decision making and authorization processes. The maps at municipal or regional scale will identify the suitability to GSHP systems installation, providing both technical

(underground, drilling method) and economic (time and cost) information.

ACKNOWLEDGEMENTS

This work has been supported financially by the EU project GEO4CIVHIC, which is gratefully acknowledged by the author. The project has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No. 792355REFERENCES.

REFERENCES

[1] GEO4CIVHIC project. https://geo4civhic.eu/

2] B. Sanner, P. Dumas, R. Gavriliuc, R. Zeghici. The use of geothermal energy for buildings refurbishment in Europe - technologies, success stories and perspectives. Revista Română de Inginerie Civilă, 4 (2013), Numărul 3. 2013.

[3] A. Galgaro. E. Di Sipio, G. Teza, E. Destro, M. De Carli, S. Chiesa, A. Zarrella, G. Emmi, A.

Manzella. Empirical modeling of maps of geo- exchange potential for shallow geothermal energy at regional scale. Geothermics, 57, 173–184, (2015).

[4] A. Ramos-Escudero, M. S. García-Cascales, J. M.

Cuevas, B. Sanner, and J. F. Urchueguía. Spatial analysis of indicators affecting the exploitation of shallow geothermal energy at European scale.

Renewable Energy, 167, 266–281 (2021)

[5] R. Perego, S. Pera, A. Galgaro. Techno-Economic Mapping for the Improvement of Shallow Geothermal Management in Southern Switzerland, 12, no. 2, 279, (2019).

Scale drillability maps as a tool to select the drilling technology to install Borehole Heat Exchange (BHE) probes

Fourth International Scientific Conference

ALTERNATIVE ENERGY SOURCES, MATERIALS AND TECHNOLOGIES

AESMT ’21

Proceedings of short papers Volume 3

Ruse, Bulgaria, 14 - 15 June 2021

MAIN TOPICS

ALTERNATIVE ENERGY SOURCES

• Solar and Hybrid Thermal Systems

• Solar Photovoltaic Systems

• Solar Radiation Measurement and Sun-tracking

• Geothermal Energy Applications

• Phase Change Materials (PCM) Applications

• Wind Energy

• Biotechnologies

• Hydrogen Energy

• Ocean/ Tidal Energy

ALTERNATIVE MATERIALS

• Energy Materials Science

ALTERNATIVE TECHNOLOGIES

• Mechanical Engineering and Technologies

• Electrical Engineering

• Low-Carbon Technologies

• Energy Efficiency

© Edited by Aleksandar Georgiev, 2021

© Publishing House: „Imeon“ Sole-owner, 2021

ISSN 2603-364X

CHAIRS:

▪ Prof. Aleksandar GEORGIEV, PhD (Bulgaria);

▪ Assoc. Prof. Daniela DZHONOVA-ATANASOVA, PhD (Bulgaria);

▪ Prof. Qunzhi ZHU, PhD (China)

▪ Prof. Gang Pei, PhD (China)

▪ Assoc. Prof. Saltanat BOLEGENOVA, PhD (Kazakhstan);

▪ Assoc. Prof. Rustem MANATBAYEV, PhD (Kazakhstan).

SCIENTIFIC COMMITTEE:

3

F O R E W O R D

The Fourth International Scientific Conference “Alternative Energy Sources, Materials &

Technologies AESMT’21” was held between 14

and 15

June 2021 in Ruse, Bulgaria.

Prof. Aleksandar Georgiev, PhD (European Polytechnic University, Pernik, Bulgaria) Chair of the AESMT’21 conference

CONTENTS

5

7

Scale drillability maps as a tool to select the drilling technology to install Borehole Heat Exchange (BHE) probes

A. Galgaro

, A. Carrera

, E. Di Sipio

, G. Dalla Santa

, A. Ramos Escudero

, J.M.

Cuevas

, R. Pasquali

, B. Sanner

, A. Bernardi

INTRODUCTION

The European Green Deal sets an ambitious target of reducing CO

In GEO4CIVHIC “drillability” is defined as the most suitable drilling methods related to BHEs installation taking into account the estimated installation time in function of the rig and drilling

• Northern Europe, characterized mainly by hard rocks requiring a combined percussion-rotation method

51

• Central and Southern Europe, characterized by different kind of rocks requiring rotating or combined percussion-rotation methods depending on rock hardness

• European fold belts where rocks are folded and metamorphosed and drilling is done mostly

with percussion-rotation, sometimes only rotation

• European sedimentary basin, where unconsolidated sediments are prevalent and drilling can be done with rotary rigs, often using temporary casing to stabilise the hole

CONCLUSIONS

(underground, drilling method) and economic (time and cost) information.

ACKNOWLEDGEMENTS

This work has been supported financially by the EU project GEO4CIVHIC, which is gratefully acknowledged by the author. The project has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No. 792355REFERENCES.

REFERENCES
