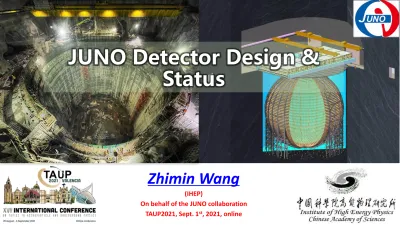

JUNO Detector Design &

Status

Zhimin Wang

(IHEP)

On behalf of the JUNO collaboration

(2)

Outline

 JUNO

 Detector & Physics

 Few updates

 Progress

Civil construction

Production

 Installation

(3)

Overview of JUNO

Jiangmen Underground Neutrino Observatory

Experiment Daya Bay Borexino KamLAND JUNO Liquid scintillator [tons] 8 x 20 ~300 ~1,000 20,000

Photocathode coverage [%] 12 34 34 75+3

Eff. Light Yield [p.e./MeV] ~160 ~500 ~250 ~1345

Energy resolution [%] ~8.5 ~5 ~6 ~3

Energy calibration uncertainty [%]

0.5 1 2 <1

Daya Bay

JUNO

~3%/ 𝑬 𝑀𝑒𝑉 energy resolution with huge LS target volume

arXiv:2104.02565v2 [hep-ex] 13 May 2021 Accepted by PPNP

(4)

Acrylic Sphere : Φ 35.4 m

Stainless steel lattice shell : Φ 40.1 m

Water pool : Φ 43.5 m

P o o l d ep th : 4 4 m

Calibration house Central detector:

 Steel structure

 Acrylic sphere

 20 kton LS

Top tracker

PMTs:

 17612 20” HQE PMTs

 25600 3” PMTs

 75%+3% coverage

Water pool veto:

 35 kton pure water

 2400 20” HQE PMTs Earth magnetic shielding coils:

 For 20” PMTs

 Double coil system

JUNO Detector system

~700m

(5)

JUNO collaboration 665 members from 77 institutes

15_thCollaboration Meeting, January 13-17, 2020, GXU, Nanning

(6)

Physics with JUNO

• Neutrino mass ordering

• Precise measurement of Neutrino mixing parameters (better than 1%)

• Addressing many important topics in neutrino and astro-particle physics

Talk 169, “JUNO Oscillation Physics” by Jinnan Zhang Talk 273, “JUNO Non-oscillation Physics”, by Giulio Settanta

(7)

Reactor neutrino detection

• Two of Taishan reactor cores will not be built

• Neutrino flux reduced 25%

• Experimental hall shifted up by ~60 m

• Cosmic muon flux increases by 30%

• Optimization of the antineutrino selection

• Live time improved from 83% to 93% to similar background level with minimization the dead time after the muon veto

• Higher 20-inch PMTs photon detection efficiency

• 27% to 29%

• More realistic PMT and liquid scintillator optical model

• Better understanding on the energy non-linearity

• Combined analysis of the TAO and JUNO detectors

Few updates w.r.t JPG 43, 030401 (2016)

Neutrino Physics with JUNO, arXiv:2104.02565v1

(8)

Production of JUNO central detector (CD)

The top of acrylic sphere

Panel machining & node bonding

1 ppt requirement for U/Th/K

arXiv:2107.03669

Thermoforming of spherical panel 3 m x 8 m x 120 mm

Acrylic panel and lift structure

(9)

Central Detector installation strategy

Self-Lifting test

Pre-assembly of the Installation platform

Acrylic sphere installation test with installation platform

Steps on platform

Platform carton

Anchor installed in

water pool

(10)

Stainless steel structure

Top part Nodes

Embedded anchors in WP Welding supporting legs with its base plate

Supporting legs

(11)

PMTs

 Two sizes of PMTs will be used to fully (~78%) cover CD;

• 17612 20’’ PMTs for CD (~75%) + 2400 20’’ PMTs for Veto;

• 5000 HPK dynode PMTs + 15000 NNVT MCP PMTs

• All delivered and qualified now:

• average PDE ~29% for CD (required/aimed ~27%)

• 25600 3’’ PMTs (~2.7%);

• Produced and tested

 Waterproof potting

 Will finish in this month for 20” PMTs

 Implosion protection;

 Production/assembly/installation going on

 Photon detection efficiency (PDE) will be further corrected for

testing system aging

(12)

Veto Systems

Active and passive shielding for CD

Water Cherenkov Detector

 Shield ambient radioactivity and neutrons induced by cosmic rays

 Fast neutron background ~0.1/day;

 Veto muon induced backgrounds

 2400 20” MCP-PMTs

 35 kton ultra pure water with circulation

 Radon in water for JUNO prototype: < 10 mBq/m

³

;

(arXiv:2107.03669)

 Thermal Uniformity Calculation 20 ℃ < T

_water

<22 ℃ ；

 Muon Efficiency > 99%

Top Tracker (TT)

 Precise muon tracking

 The TT will cover 1/3 of all atmospheric muons passing through the CD (60% top of WP)

 Recycling the plastic scintillators from OPERA Target Tracker

 New electronics cards designed to account for 100 x higher radioactivity from rocks at JUNO site

6. 8 m

Top view

1.7m

(13)

TAO

Taishan Antineutrino Observatory, A satellite experiment of JUNO

 A 1:1 prototype is under construction and it will be tested without full SiPM;

 TAO is expected to start operation in 2022;

 ~30 m from a Taishan reactor core (4.6 GW)

 10 m underground

  ~2000 IBD/day

 Physics goals:

 Precisely measure reactor antineutrino spectrum

 Provide a model-independent reference spectrum for JUNO’s NMO determination

 Reactor monitoring and safeguard

 Search for new physics

 Target:

• Gd-LS, 2.6 ton in total and 1 ton fiducial volume;

• Ton-level Gadolinium-doped LS at -50 °C

 Detector:

• Gd-LS + Acrylic + LAB + SiPM;

• Full coverage with SiPMs~10 m²SiPM with PDE>50% and >90% coverage

• Effective Light yield: 4500 P.E./MeV Energy res. : ~1.8% / 𝑬 𝑀𝑒𝑉

TAO CDR, arXiv:2005.08745

(14)

Civil construction progress

Surface Buildings

• Power supply equipment in position

• Utility rooms completed

• Ventilation pipes and equipment installation are in progress

5000 ton LS tank

Entrance Computing room

Now

(15)

Water pool status

Transportation Tunnel

Bird view Bottom view

Bird view with crane & water

lining

Now

(16)

 Installation finished

 Filling

 Testing

JUNO Timeline

(17)

Summary

• Vast program in particle physics & astrophysics

• Probing the neutrino oscillation mechanism at unprecedented precision

• Updates to the reactor neutrino detection

• Water pool civil construction completed

• Production/assembly/installation of Detector components going on

• Detector construction to be completed next year (2022)

Talk 169, “JUNO Oscillation Physics” by Jinnan Zhang Talk 273, “JUNO Non-oscillation Physics”, by Giulio Settanta Poster 142, “The JUNO OSIRIS detector” by Tobias Sterr

Poster 244, “Characterization of the JUNO Large-PMT readout electronics” by Beatrice Jelmini Poster 172, “Energy Response Model for JUNO Experiment” by Miao Yu

Poster 290: “Detection of Core-Collapse Supernova Neutrino at JUNO” by Xin Huang

(18)

Thanks for your

attention!

(19)

Backup

(20)

Status : Small PMT

Parameters Unit Requirement Data/Mean

Detection efficiency

(QE*CE) % >22(Mean>24) 24.9

HV@2*10⁶gain V 900-1300 1113

SPE resolution % <45(Mean<35) 33.2

P-V ration >2(Mean>3) 3.2

Dark [email protected]. <1.8K(Mean<1K) 512

SPE TTS(FWHW) ns <5 3.7

QE non-uniformity % <11 4.9

Effective Diameter of cathode mm >74(Mean>76) 77.2

Spectral response range % QE320>5 10.2

QE550>5 8.6

(21)

Status : Calibration system

 The calibration system need to accurately address both the non-uniformity and non-linearity in the detector energy response ;

 Energy scale uncertainty < 1%;

 Four complementary subsystems:

• 1-D: Automated calibration unit(ACU);

→ Scan the central axis;

• 2-D: Cable loop system(CLS);

→ Scan vertical planes;

• 2-D: Guide tube calibration system(GTCS);

→ Scan CD outer surface;

• 3-D: Remotely operated vehicle(ROV);

→ Full detector scan;

 Radioactive Sources:

• γ 、 e+ 、 n sources

(22)

Liquid Scintillator

LS recipe for Daya Bay

 JUNO LS recipe:

LAB + 2.5 g/L PPO + 3 mg/L Bis-MSB

 Higher light yield; more transparent!

 Attenuation length: >20 m @ 430 nm

Online Scintillator Internal Radioactivity Investigation System (OSIRIS)

Liquid scintillator

11

LS recipe from Daya Bay

Liquid scintillator (LS) recipe:

• 2.5 g/L PPO + (1-4) mg/L bis-MSB

A pilot LS purification

system at Daya Bay for R&D Low radioactive backgrounds:

• 10 -15 g/g for neutrino mass ordering determination

• 10 -17 g/g for solar neutrino detection Attenuation Length: > 20 m @430 nm

• Improve raw materials and production process

• Purification systems (Al 2 O 3

Filtration column, water extraction, gas stripping)

Online Scintillator Internal Radioactivity Investigation System (OSIRIS)

 Low radioactive backgrounds:

10

^-15

g/g for neutrino mass ordering determination;

10

^-17

g/g for solar neutrino detection

TAUP2021，9/1，2021 Zhimin Wang on behalf of JUNO collaboration 22

Pls. refer to Poster by “The JUNO

OSIRIS detector” by Tobias Sterr

(23)

Electronics
