Planetary and low orbit thermal environment for space thermal design

(1)

Universidad Politécnica de Madrid

Escuela Técnica y Superior de Ingeniería Aeronáutica y del Espacio

Doctoral Dissertation

David González Bárcena

Máster Universitario en Sistemas Espaciales

2022

(2)

(3)

Instituto Universitario de Microgravedad "Ignacio da Riva"

Escuela Técnica y Superior de Ingeniería Aeronáutica y del Espacio

Planetary and low orbit thermal environment for space thermal design

Doctoral Dissertation

David González Bárcena

Máster Universitario en Sistemas Espaciales

Tutor: Prof. Dr. Ángel Sanz Andrés

2022

(4)

(5)

i

Tribunal nombrado por el Sr. Magfco. de la Universidad Politécnica de Madrid, el día...de...de 20....

Presidente:...

Vocal:...

Secretario:...

Suplente:...

Realizado el acto de defensa y lectura de la Tesis el día...de...de 20.... en la E.T.S.I./Facultad...

Calificación...

EL PRESIDENTE LOS VOCALES

EL SECRETARIO

(6)

(7)

Acknowledgements

A mis padres, Pilar y Francisco, a mi hermano Mario y a mi hermana Sara por inculcarme el valor del trabajo con el ejemplo, por aguantarme y por darme su apoyo siempre.

A mi abuela María por su fe ciega en mi, a mi abuelo Pepe por ser mi primer maestro y a mis abuelos Castor y Victoria por todo lo que pudo ser y no fue.

Al resto de mi familia por creer siempre en mi y a mis amigos por darme lo que necesito para mantener el equilibrio en todo momento.

A Isabel por su apoyo constante y por la confianza desde el primer momento que ha hecho posible esta Tesis. A Ángel por toda su ayuda e interés durante estos años y por la oportunidad de poder darle forma a todo el trabajo dentro del IDR.

A mis compañeros del IDR, por ese día a día en compañía.

En especial a Arturo y a Alejandro por todo el trabajo codo con codo durante estos años.

(8)

(9)

Abstract

The thermal environment characterization is one of the main steps to be done when facing the thermal analysis of space systems. They are usually analysed using worst-case values, which define the extreme conditions that can drive the system to its maximum temperatures. If the system is analysed under these conditions, temperatures during its whole life would be between these limits. However, it is important to well define the thermal environment in order to both get an appropriate design and to avoid oversizing the thermal control subsystem.

The criteria developed by NASA for selecting the worst-case parameters has been widely used for years in several space missions. However, these criteria has not evolved since 1994 when first Earth radiation budget data were available.

Nowadays, there are many data sources that can be used instead in order to deal with some limitations of the NASA criteria. In addition, the current computing capabilities allow for more complex analysis that can improve the thermal analysis and design of these systems.

In this work, firstly, NASA criteria has been adapted to the thermal analysis of stratospheric balloon missions. This kind of missions have some differences with regard to the space ones, which makes necessary to perform a particularized analysis.

Once at the floating altitude, convection is negligible in most cases but not during the ascent phase when it should be considered together with other parameters.

In addition, the residence time over a point on the Earth surface is much higher than for a satellite. This makes necessary to focus the analysis on the geographic area where the flight is going to be, and to limit the data to the epoch when they can be performed. A complete thermal environment characterization based on real-observation data has been developed in order to define the worst-case analysis for both the float and ascent phases. This methodology has been applied to real missions such as SUNRISE III and TASEC-Lab.

Secondly, NASA criteria for selecting the worst-case thermal environmental parameters in Low Earth Orbits has been reviewed with the aim of identifying its limitation and proposing a new methodology. It is common to analyse satellites from a thermal point of view by identifying worst-case orbits with constant values for the thermal environmental parameters. This method has been successfully used for years but small satellites or low massive parts need a reconsideration since

(10)

based on a particularized characterization.

(11)

Resumen

La caracterización del ambiente térmico es una de las principales tareas a realizar a la hora de afrontar el análisis térmico de un sistema espacial. Por lo general, éstos se analizan utilizando los valores de los "peores casos", que definen las condiciones extremas que pueden llevar al sistema a sus temperaturas máximas y mínimas. Si se analiza el sistema bajo estas condiciones, es posible garantizar que las temperaturas durante toda su vida útil estarían entre estos límites. Sin embargo, es importante definir bien el ambiente térmico para obtener un diseño adecuado y evitar sobredimensionar el subsistema de control térmico.

Los criterios desarrollados por la NASA para seleccionar los parámetros de los peores casos se han utilizado ampliamente durante años en varias misiones espaciales.

Sin embargo, este criterio prácticamente no ha evolucionado desde 1994, cuando se utilizaron para ello los primeros datos disponibles del balance radiativo de la Tierra. Hoy en día, hay muchas fuentes de datos que pueden usarse en su lugar para lidiar con algunas de sus limitaciones. Además, las capacidades informáticas actuales permiten análisis más complejos que pueden mejorar el análisis térmico y el diseño de estos sistemas.

En este trabajo, en primer lugar, se han adaptado los criterios de la NASA al análisis térmico de las misiones de globos estratosféricos. Este tipo de misiones tienen algunas diferencias con respecto a las espaciales que hacen necesario realizar un análisis particularizado de las mismas. Una vez en la altitud de crucero, la convección puede despreciarse en la mayoría de los casos. Sin embargo, esto no ocurre durante la fase de ascenso cuando ésta debe considerarse junto con otros parámetros. Además, el tiempo de residencia de los globos estratosféricos sobre un punto de la superficie terrestre es mucho mayor que el de un satélite. Esto hace necesario centrar el análisis en el área geográfica donde se va a realizar el vuelo y acotar los datos a la época en que se pueden realizar. En esta tesis se ha desarrollado una caracterización completa del entorno térmico basada en datos de observación real para definir los análisis tanto para la fase de crucero como para la de ascenso.

Esta metodología se ha aplicado a misiones reales como SUNRISE III y TASEC-Lab.

En segundo lugar, se ha llevado a cabo una revisión de los criterios de la NASA para seleccionar los peores casos de los parámetros del entorno térmico en órbitas bajas con el objetivo de identificar sus limitaciones y proponer una nueva

(12)

los parámetros del entorno térmico. Este método ha sido utilizado con éxito durante años, pero los satélites pequeños o partes más ligeras de los mismos necesitan una reconsideración de esta metodología ya que están más acoplados a las variaciones en el entorno térmico. En este trabajo se proponen perfiles orbitales dependientes del tiempo para los parámetros térmicos con el objetivo de obtener análisis más precisos basados en una caracterización particularizada a cada satélite.

(13)

List of Figures

1.1 Exploded view of Sputnik-1. NASA History Division. . . 2 1.2 Spectral Solar Irradiance from 200 nm to 100000 nm. NRLSSI2 Daily

Average 1/1/1882 [6]. . . 3 1.3 Balloon inflation for CREAM mission launch. . . 6 1.4 Spectral distribution of solar irradiance at 1 AU and its approximation

by a blackbody at 5780 K (dashed line) [36]. . . 14 1.5 Wavelength absorption by atmospheric gases compared to normalized

spectral distribution of blackbodies at 6000 K and 250 K [37]. . . . 14 1.6 Fraction of orbit in eclipse as a function of the SBA and the altitude

[38] . . . 16 1.7 Thermal modelling process. . . 21 1.8 Temperature ranges for Thermal Control System. . . 22 1.9 Thermal environment characterization process for obtaining unit-

lever boundary conditions. . . 24 2.1 Orbital-average albedo correction term as a function of the orbital

beta angle and correction at minimum SZA [17]. . . 26 2.2 Extreme hat and cold cases (albedo, OLR and combined) [17]. . . . 28 2.3 Mission critical hot and cold extreme environments at low, medium

and high inclinations, and averaging times from 16 seconds to 24 hours [17]. . . 29 2.4 Non-critical hot and cold extreme environments at low, medium and

high inclinations, and averaging times from 16 seconds to 24 hours [17]. 30 2.5 Sample time series of observed ERBE OLR data with multiple hot

and cold pulses superimposed on base values [17]. . . 31 2.6 Extreme hot case set for maximum OLR (Condition Set A) and

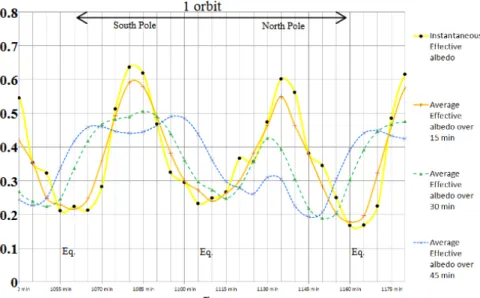

maximum albedo (Condition Set B) [40]. . . 32 2.7 Evolution in time of instantaneous effective albedo and average

effective albedo over various periods for a SSO orbit, 800 km, LTAN 18:00 [16] . . . 34 2.8 Comparison between orbital average effective albedo/Earth tempera-

ture for several LEO orbits [16] . . . 34 xiii

(18)

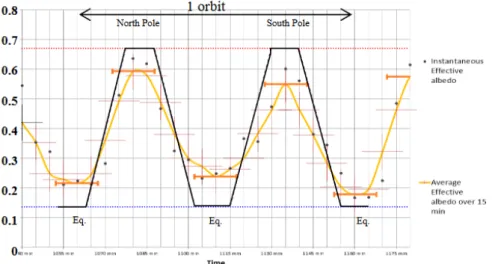

2.9 Correlation between average orbital effective albedo and average orbital effective Earth temperature (for a same orbit) for a SSO orbit, 800 km altitude, LTAN 20:00 over 5 years (2007-2011) [16] . . . 35 2.10 Worst case profile of the evolution of average effective albedo over

various periods for an SSO orbit, 800 km, LTAN 18:00 [16] . . . 35 3.1 Earth’s global mean energy budget for July 2005-June 2015 [41]. . . 38 3.2 Mean sea level pressure and wind at 200 hPa forecast in Europe for

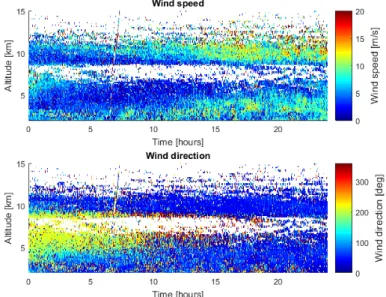

9^th of March 2022. . . 42 3.3 Wind data of Esrange the day of launch of SUNRISE I, June 8^th,
