RACE BRED ADRENALINE
w w w. s t a s i s e n g i n e e r i n g . c o m 8 8 8 - 9 - S TA S I S

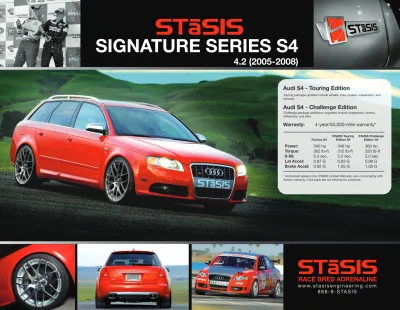

SIGNATURE SERIES S4
Audi S4 - Touring Edition
Audi S4 - Challenge Edition
Warranty: 4-year/50,000-mile warranty*
340 hp 348 hp 360 hp
302 lb-ft 312 lb-ft 320 lb-ft 5.3 sec. 5.2 sec. 5.0 sec.
0.87 G 0.93 G 0.98 G
0.92 G 1.05 G 1.05 G
Power:
Torque:
0-60:
Lat Accel:
Brake Accel:
Factory S4 STaSIS Touring
Edition S4 STaSIS Challenge Edition S4
* Authorized dealers only. STaSIS Limited Warranty runs concurrently with factory warranty. Core parts are not returned to customer.
Challenge package additional upgrades include suspension, brakes, differential, and tires.
Touring package updates include wheels, tires, brakes, suspension, and exhaust.
4.2 (2005-2008)
20
5 6 7 8 9 10 11 12 15
40 35 30 25 50 45
13 14
STOPPING DISTANCE OVER CONSECUTIVE STOPS FROM 100 KPH (62 MPH)
STaSIS Brake Kit
Number of Stops Factory Brakes
HIGH-SPEED FADE TEST OVER
CONSECUTIVE STOPS MAINTAINING 0.7 G
Brake Pressure (Bar)
STaSIS Brake Kit
Number of Stops
Factory Brakes
Signature Series S4
RACE BRED ADRENALINE • www.stasisengineering.com • 888.9.STASIS
TRACTION CIRCLE
Power: 340 hp 348 hp 360 hp
Torque: 302 lb-ft 312 lb-ft 320 lb-ft
0-60: 5.3 sec. 5.2 sec. 5.0 sec.
Lateral Accel.: 0.87 G 0.93 G 0.98 G Brake Accel.: 0.92 G 1.05 G 1.05 G
Factory S4 Touring Edition
S4 Challenge Edition S4
TRACTION CIRCLE
STaSIS Signature Series S4
Factory S4 1.05
0.98 0.87
0.92
Challenge Edition
Inspired by the STaSIS World Challenge racecars, the Challenge Edition has the feel of the STaSIS racecars. The Challenge edition adds to the Touring Edition with the brilliant pedal feel of monobloc brake calipers and the added agility of our road-gripping differential.
Touring Edition
A unique blend of power, responsiveness and comfort, the Touring Edition delivers jet-like acceleration and sports car performance. Lowered ride height and wide, multi-spoked forged wheels create a subtle but aggressive stance that echoes the performance available.
Exhaust
• T304 stainless steel • 2.5” dual cross flow Suspension
• Lowered stance for better weight transfer
• Increased spring rate for better response
• STaSIS digressive damper valving for factory ride comfort
Wheels and Tires
• 19” x 8.5” lightweight cast aluminum wheels
• High-performance tires Accessories
• STāSIS Signature Series floor mats Warranty
• 4-year/50,000-mile warranty*
Engine Tuning Software • 360 hp, 320 lb-ft Suspension
• High-performance anti-roll bar kit for added cornering grip Brakes
• 6-piston Alcon monobloc calipers • Lightweight 370-mm two-piece
floating rotors (390-mm rotors optional)
• High-performance pads • Stainless steel brake lines
Differential
• Puts power down to the ground for quicker acceleration
• Enables up to 20% more power application to the rear wheel under acceleration
Wheels and Tires
• Ultra-high-performance tires Warranty
• 4-year/50,000-mile warranty*
4.2 (2005–2008)
Meters
* Authorized dealers only. STaSIS Limited Warranty runs concurrently with factory warranty.
20 30 40 50 60 70 80
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
HP/Torque
0
1000 1700 2400 3100 3800 4500 5200 5900 6600 200
150 100 50 300 250
7300 8000
HORSEPOWER/TORQUE GAINS
Speed (RPM)
Torque (lb-ft) Power (hp) Stock Torque (lb-ft) Stock Power (hp)
Copyright © 2010 STāSIS Engineering. All rights reserved.
SE992-G70-13-00 October 2010
