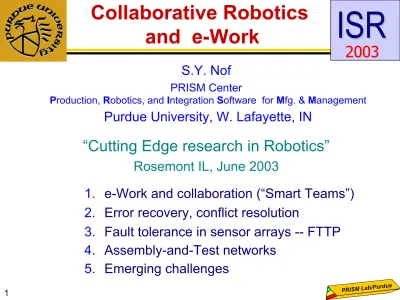

Collaborative Robotics and e-Work

(1)

PRISM Lab/Purdue

Collaborative Robotics and e-Work

S.Y. Nof

PRISM Center

Production, Robotics, and Integration Software for Mfg. & Management

Purdue University, W. Lafayette, IN

“Cutting Edge research in Robotics”

Rosemont IL, June 2003

1. e-Work and collaboration (“Smart Teams”) 2. Error recovery, conflict resolution

3. Fault tolerance in sensor arrays -- FTTP 4. Assembly-and-Test networks

5. Emerging challenges

ISR ISR

2003 2003

(2)

2 ^{PRISM Lab/}^Purdue

e-Work definition [PRISM, 1999]

• Collaborative, computer-supported, and

communication-enabled operations in highly distributed organizations of humans / robots / autonomous systems

• Our goal: Augment human abilities to work

• Challenges: ^• ^Complexity • ^Dependence • ^Integrity

• Communication • Coordination • ^Noise • ^Mismatch … e e - - W o r k W o r k

v-Design _e-Commerceê-Business _RoboticsÎ- _v-Factoryê-Mfg. ^Logisticsê- _Enterprise^v-

...

i-Tran

(3)

PRISM Lab/Purdue Supply grid

planner Performance

monitor Resource

broker

Cost optimizer

VR-based

tutor Collaboration matcher

GriTeam Functions

Archive sharing Collaborative eng. Scientific research.

e-Learning/

e-Tutoring

The NMI middleware platform GriTeam Services and Toolkit

Resource Broker

GRAM

Grid components

GRAM

Grid components

GRAM

Grid components

OPT I OPT I OPT I

Examples: M.E.N optimization, scalability; MEMS sensor arrays/networks; GriTeam; FDL-CDR

Design Design Supply Supply Logistics Logistics Production Production Design

Design Supply Supply Logistics Logistics Production Production Enterprise i

1. Comm.

2. Exchange 3^.Integrate Coordina-

tion

Enterprise j Enterprise j Level

ATC, IN21stC, AAE+CS+IE+ME Tokyo--

Osaka Italy—S.A.

PU+Chile+

Japan

PU, UIC, ANL, IBM

GM, Tecnomatix, Adept

Enterprise k Enterprise k

(4)

4

Task Administration Protocols (Regular; Active)

Definition (different from std. Comm. protocols):

• Control rules that enable effective collaboration among agents and tasks

• Active TAP: Can trigger and initiate

interactions to optimize performance

Ex. in e-Work: Time-out; negotiation; assignment

• TIE (Teamwork Integration Evaluator) Parallel

simulators

(5)

Overview of TIE development

Sponsors: NSF, IBM, Caterpillar, SGI,

TAP, Tecnomatix, ATC, State of Indiana

(6)

6

e-Work : Foundations, Tools, and Emerging Discoveries

(7)

Cost of Error Recovery / Conflict Resolution

0 100 200 300 400 500 600 700 800 900 1000

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Number of Iterations

Cost

s=0.1 s=0.2 s=0.3 s=0.4 s=0.5 s=0.6 s=0.7 s=0.8 s=0.9

Increases

exponentially when human

communications and operations are

applied (assuming q=0.2)

0 10 20 30 40 50 60 70 80 90 100

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Number of Iterations

Cost

s=0.1 s=0.2 s=0.3 s=0.4 s=0.5 s=0.6 s=0.7 s=0.8 s=0.9

Reaches an upper bound

when IT is Applied

(assuming q=0.0)

q = % of human involvement S = rate of conflicts

(8)

8

Example: Robotic assembly cell Detectable task errors:

1) Bad position of gripper, of part, of assembly base

2) Bad part orientation

3) Part arrives in incorrect order to the pick-up area

4) Part or assembly base is missing

EDPR: Error Diagnostics, Prevention, Recovery

What’s new?

Machine learning to improve diagnostics and

recovery strategies, success probability

(9)

Recovery Strategy

Sensor Data File

Help Request with Advisory Action

Sensor Information

Assistance Recovery

Order

Sensing

Operations and Recovery Actions R

o b o t

Production Process

NEFUSER: Neuro-Fuzzy System for Error Recovery Human-robot-computer Recovery Interactions

Controller

(10)

10

Computer-Supported Conflict Resolution

Example: FDL’s Field-of-View Evaluation function

(11)

Operation Logic of FDL/CR

Detection of conflict situation

Activation of FDL-CR

Identification of type of conflict situation

Run GMCR software

for CM and CA of C(j) j = {d, f, r, v}

j = f ? Develop product flow

analysis for CR

Develop dependency analysis for CR

Update of FDL facility model Y

N

Y

N

Run inference system for CC Y

N CM and CA = Y ? CM and CA = X ?

Graph Model of Conflict

Resolution

Id. conflict type Run FDL/CR

Product flow analysis

Inference system CAE tools

Dependency

analysis

(12)

12

Yes

No

Task assignment &

global execution plan Cooperation

Requirement Planning

Cell and robot Control Systems

Error

?

Interactive Error Recovery

End

Conflict? Conflict

Resolution

Yes

No Begin

Error Types:

Logistics Design Operation Other …

Conflict Types:

Design Supply Cost

Organization Other .…

Robotic Assembly: Framework for cooperation

requirement planning with conflict resolution

(13)

Alternative MEMS and Nano Sensor Arrays / Networks

Optimized along an Artery for Measurement and Control

(14)

14

B₁

B₂

B₃

…

B_n S₁

Y

…

Knowledge Base Sensor Nodes Base Station

Y

Y Y

Rerouting task announcement message S₂

S_n S₃

B₁empty

&& t >=T

B₁empty

&& t >=T

B₁empty

&& t >=T

B₁empty

&& t >=T

Logic combination of F-T and T-O

Sensor Node

ID

Backup Node

Transmission Delay Time

1 2

…

n

…

1,4,5

T₁

…

2,3,4

T₂

T_n 1,2,n-1

Knowledge Base

Fault-tolerant time-out protocol (FTTP)

Patent Pending

(

Liu & Nof, 2002)

Distributed Sensor Network / Arrays:

Fault-Tolerant & Time-Out Integration Protocols*

(15)

Assembly & Test – The Supply Network/Grid

Suppl

iers Customers

(16)

16

Use Adaptable TestLAN, with preferred adaptation

characteristics of 0.2 ≤ ∆ ≤ 0.4, ε

_β

, β

_{= 30}

3. Inter-arrival patterns with it

¹

<< it

²

...<< it

ⁿ

and periodic demand fluctuations or design changes

Use Non-adaptable TestLAN

2. Inter-arrival patterns such that it

¹

<< it

²

...<< it

ⁿ

and few demand fluctuations or design changes

Use Non-TestLAN 1. Job classes having similar

inter-arrival patterns

Actions Based on this Research

Conditions

Assembly & Test: Adaptable TestLAN design

recommendations (Williams et al., 2003)

(17)

Smart Robotics Teams: Challenges

1. Optimized coordination of e-Work interactions is key to competitiveness

2. Manage errors, conflicts, and interactions’

complexity among team robots

3. Next generation collaborative robotics will depend on fault-tolerant, time-out

integration, e.g., FTTP

4. Smart robotic teams will be able to interact even better than human teams

Other ideas?

(18)

18

The PRISM Center: Production, Robotics, and Integration Software / Systems for manufacturing & Management

Established in 1991, main lab: Grissom 126; sponsored by government and industry, over

$7.5 mil. total

Graduated 28 MS/PhD students; 12 BSIE honors students; 8 international visitors. Current:

12 faculty and students researchers

Center Objective: Apply computer intelligence to most effectively improve the performance of industrial systems, particularly by computer-

supported integration and collaboration. This area has been defined by PRISM as e-Work. Collaborative robotics is a key to e-Work.

Assembly & Inspection Integration Engineering & Design Collaboration

Distributed Models of Networked Enterprises

International projects

http://gilbreth.ecn.purdue.edu/~prism Contact: [email protected]

Main Project Areas:

Collaborative Robotics and e-Work
