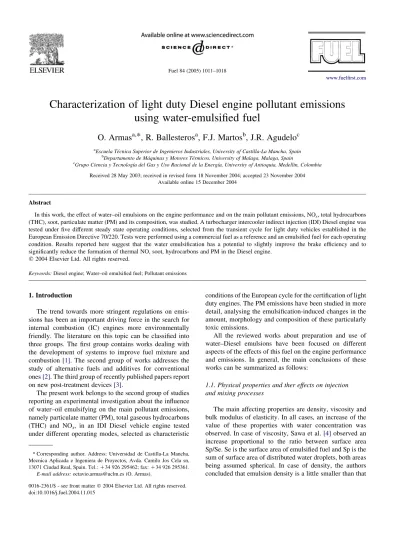

Characterization of light duty Diesel engine pollutant emissions
using water-emulsified fuel
O. Armas
a,*, R. Ballesteros
a, F.J. Martos
b, J.R. Agudelo
caEscuela Te´cnica Superior de Ingenieros Industriales, University of Castilla-La Mancha, Spain bDepartamento de Ma´quinas y Motores Te´rmicos, University of Malaga, Malaga, Spain
cGrupo Ciencia y Tecnologı´a del Gas y Uso Racional de la Energı´a, University of Antioquia, Medellin, Colombia
Received 28 May 2003; received in revised form 18 November 2004; accepted 23 November 2004 Available online 15 December 2004
Abstract
In this work, the effect of water–oil emulsions on the engine performance and on the main pollutant emissions, NOx, total hydrocarbons
(THC), soot, particulate matter (PM) and its composition, was studied. A turbocharger intercooler indirect injection (IDI) Diesel engine was tested under five different steady state operating conditions, selected from the transient cycle for light duty vehicles established in the European Emission Directive 70/220. Tests were performed using a commercial fuel as a reference and an emulsified fuel for each operating condition. Results reported here suggest that the water emulsification has a potential to slightly improve the brake efficiency and to significantly reduce the formation of thermal NO, soot, hydrocarbons and PM in the Diesel engine.
q2004 Elsevier Ltd. All rights reserved.
Keywords:Diesel engine; Water–oil emulsified fuel; Pollutant emissions
1. Introduction
The trend towards more stringent regulations on emis-sions has been an important driving force in the search for internal combustion (IC) engines more environmentally friendly. The literature on this topic can be classified into three groups. The first group contains works dealing with the development of systems to improve fuel mixture and combustion[1]. The second group of works addresses the study of alternative fuels and additives for conventional ones[2]. The third group of recently published papers report on new post-treatment devices[3].
The present work belongs to the second group of studies reporting an experimental investigation about the influence of water–oil emulsifying on the main pollutant emissions, namely particulate matter (PM), total gaseous hydrocarbons (THC) and NOx, in an IDI Diesel vehicle engine tested
under different operating modes, selected as characteristic
conditions of the European cycle for the certification of light duty engines. The PM emissions have been studied in more detail, analysing the emulsification-induced changes in the amount, morphology and composition of these particularly toxic emissions.
All the reviewed works about preparation and use of water–Diesel emulsions have been focused on different aspects of the effects of this fuel on the engine performance and emissions. In general, the main conclusions of these works can be summarized as follows:
1.1. Physical properties and ther effects on injection and mixing processes
The main affecting properties are density, viscosity and bulk modulus of elasticity. In all cases, an increase of the value of these properties with water concentration was observed. In case of viscosity, Sawa et al.[4] observed an increase proportional to the ratio between surface area Sp/Se. Se is the surface area of emulsified fuel and Sp is the sum of surface area of distributed water droplets, both areas being assumed spherical. In case of density, the authors concluded that emulsion density is a little smaller than that
0016-2361/$ - see front matterq2004 Elsevier Ltd. All rights reserved. doi:10.1016/j.fuel.2004.11.015
www.fuelfirst.com
* Corresponding author. Address: Universidad de Castilla-La Mancha, Mecnica Aplicada e Ingeniera de Proyectos, Avda. Camilo Jos Cela sn, 13071 Ciudad Real, Spain. Tel.:C34 926 295462; fax:C34 926 295361.
obtained from averaging the fuel and water densities. The emulsion density value depends on the amount air bubbles in the emulsion as a result of the preparation process. Likewise, the authors concluded that an increase of air bubbles carries a decrease of bulk modulus.
The increased viscosity of emulsified fuel tends to advance injection timing in some injection systems due to the modification of the dynamics of the command hydraulic system. This effect is mainly due to the flow variations through the control circuit[4–6].
With the use of emulsions an improvement in mixing process was observed. This improvement is caused by two confirmed phenomena. The first, consists of an additional momentum in jet behaviour [6,7]. The second and more important, is based on the internal droplet micro-explosions of water, which produce a secondary atomisation, thus improving the mixing process. [8–13]. The mentioned micro-explosion phenomenon is induced by the volatility difference between the water and the fuel[14,15].
1.2. Effect on combustion process and emissions
In an important number of reviewed studies, the authors have observed that an increase of water concentration in the emulsion produce a significant increase in the ignition delay, due to the heat absorption by water vaporisation in the fuel jet[5,7,8,10,13,16–20].
Another proven benefit of the emulsion as Diesel fuel is that the heat absorption by water vaporization causes a decrease of local adiabatic flame temperature and therefore reduces the chemical reaction in gas phase to produce thermal NO, depending, in some cases, of engine operation mode[6,7,10,12,18,21–23].
The improvement on vaporization and mixing processes leads to a shorter combustion reaction. This effect can help to reduce soot, PM, CO and HC formation [4–10,12,13, 16–21,23,24].
1.3. Effect on engine performance
The effects of the emulsified fuel on the engine performance are different from one study to another. The obtained results depend, mainly, on the engine operation mode [5,6,10,12,16,19,25–28], type and tuning of the injection system [17,18,22], and finally, on the optimised combustion chamber configuration[29]. When the emulsi-fied fuel is used, the most probable reason to obtain improvement in specific fuel consumption or thermal efficiency is the reduction of heat losses[30,31].
2. Fuel properties
Two fuels were tested: a commercial fuel and the same fuel after emulsification with a 10% w/w of water. Their main characteristics are summarized inTable 1 [32].
In particular, the changes in density, viscosity and heating value respect to the commercial fuel must be noticed. The density is a measure of the mixture efficiency. The viscosity must be close to that of the reference fuel in order to avoid problems with the injectors. The heating value affects the effective power.
The summarized formula of both fuels is calculated from the elemental analysis and the molecular weight.
2.1. Production of emulsified fuel
Fig. 1 shows a scheme of the device used for the preparation of the emulsified fuel. This fuel was produced using a Hartmann whistle[33]coupled to a gear pump and two tanks, one for water and the other for the Diesel fuel with the surfactants recommended by Repsol-YPF company (polyethylenglycole monoleate and sorbitole sesquioleate). Table 1
Chemical characteristics and properties of emulsified fuel and commercial Diesel fuel
Fuel Diesel Emulsified fuel
Density (kgmK3
) 839.3 850.0
Cetane number 52.4 44.5
Viscosity (cSt) 2.869 3.210
Lower heating value (MJkgK1) 42.97 40.51 Sulphur content (ppm w) 294 265 Distillation T50 (8C) 276.2 248.6 Final boiling point (8C) 371.8 344.6 Elemental analysis
C (% w/w) 86.120 77.510
H (% w/w) 12.970 12.780
S (% w/w) – –
N (% w/w) 0.060 0.054
O (% w/w) – 8.888
Aromatic content (% w/w) 30.03 27.03 Polyaromatic content (% w/w) 0.53 0.48 Molecular weight (gmolK1
) 212.4 193.0
Summarized formula C15.243H27.548
N0.009
C15.243H27.548N0.009C 10% w/w H2O
Adiabatic flame temperature (K) 2740.2 2714.4
2.2. Thermo-chemical properties
The Joback group contribution method[34]was used to estimate the specific heat at constant pressure and the standard enthalpy of formation in the reference Diesel fuel:
Cp
R ZK1:88239C0:13899TK8:2679!10
K5
T2
C1:8934!10K8T3C6:8157!10K15T4
h0f
R ZK50250:69 K
For water, the thermo-chemical properties were calculated using the thermo-dynamical data base included in the CHEMKIN III [35]. The fits are obtained using the following correlations until 1000 K:
Cp
R Z3:38684C0:003475TK6:355!10
K6
T2
C6:969!10K9T3K2:507!10K12T4
h0w
R Z29899:21 K
The vaporization enthalpy of the water at standard conditions is 2440 kJ/kg.
This data was introduced in a chemical equilibrium model [36] which considers 29 chemical species (N2, O2,
CO2, H2O, CO, H2, NO, OH, N, H, O, Ar, N2O, NO2, HO2,
NH3, NH2, NH, CN, HCN, NCO, S, S2, SO, SO2, SO3, HS,
H2S, COS) to calculate the adiabatic flame temperature at
constant pressure. A pressure of 80 bar, temperature of
900 K and stoichiometric A/F ratio were taken as typical Diesel in-cylinder conditions at the start of combustion (see
Table 1).
3. Experimental set-up for testing and analysis
3.1. Engine test bed and instrumentation
The tested engine was a Renault F8Q turbocharged intercooler IDI Diesel, similar to those commonly used in European passenger car. The engine was coupled to a Schenck hydraulic brake and equipped with the instrumen-tation for its control and for the measurement of all the parameters affecting emissions as shown inFig. 2.
This engine was tested in five different operating conditions (Table 2), selected among the collection of steady stages [37] which reproduce the sequence of operating conditions that the vehicles equipped with this type of engines must follow during the transient cycle established in the European Emission Directive 70/220, amendment 2001/C 240 E/01[38]. In all tests the lubricant oil was a SAE 15W40 supplied by Repsol-YPF.
Particulate matter was collected in a partial dilution mini-tunnel (Nova Microtroll) on glass fibber filters covered by Teflon, as stated by regulations. The filters were conditioned in a climatic chamber (Minitest CCM-0/81), before and after the collection, in order to maintain constant temperature and humidity. An analytical balance was placed inside the chamber to perform the weightings under these conditions. The collection and conditioning procedure was optimised as described by Lapuerta et al.[39].
Further insight into the exhaust composition was gained with the measurement of hydrocarbon and nitrogen oxides, detected by flame ionisation (Amluk 2010uP) and gas-phase chemiluminiscence (Beckman 951A), respectively. The smoke opacity of the exhaust gas was measured by a smokemeter (AVL 415).
3.2. Instrumentation and software for chemical and morphologycal analysis
After weighing, the filters with particles were subjected to an optimised Soxhlet extraction method [40]. In this process, the soluble organic fraction (SOF) of the particulate matter was analysed by gas chromatography (Hewlett Packard 6890), and the insoluble fraction (ISF) was measured by high performance liquid chromatography (Gibson 802C with an ionic conductivity detector 732U Methrom). The SOF chromatograms allowed distinguishing the origin of soluble organic hydrocarbons by comparison with those from lubricant oil and fuel[41].
Similar filter-deposited samples to those used in the chemical analysis were studied by Scanning Electronic Microscopy (SEM). In spite of the advantages of on-line methods (SMPS, ELPI, etc.), the procedure used here can be easily integrated in the certification methodology for Diesel vehicles, and has proved to correlate well with tendencies obtained from on-line methods.
Eight SEM images for each filter paper (four at 500!
and four at 8000!) were obtained and subjected to a digital
analysis developed in Matlab. The particulate matter morphology was quantified through the number of particles
per filter surface unit, the arithmetical mean diameter and Sauter mean diameter. This program modifies the contrast in the 500 magnification images in order to make the texture more uniform [42], subtracts the fibbers, and finally, binarizes into black/white images. The nanoparticles, smaller than the pixel size, were subjected to another procedure from SEM images with 8000 magnification, where fibbers filter do not appear. The final outputs are the particle size distribution, the standard deviation and several characteristic average diameters, such as the arithmetic or Sauter mean ones. The good qualitative agreement between these particle size distributions and those obtained with on-line equipment validated this analytical procedure[43].
4. Effect of emulsified fuel on engine performance
All the results shown here have been obtained as the main value of four measurements for every parameter in each operating mode, neglecting values with discrepancies above 2%.
All the results from the emulsified fuel study have been referred to the Diesel fuel mass consumption. TheFigs. 3–5
show the results obtained in terms of engine performance, thermo-dynamical diagnostic (rate of heat release and heat release law) and pollutant emissions, respectively.
The improvement in the brake efficiency at mode E (Fig. 3) can be understood from the evolution of the needle lift and the cylinder pressure signals, both represented in
Fig. 4. The higher viscosity of the emulsified fuel yields earlier injection (always compared with commercial fuel). However, this is compensated by the increase in the delay time induced by the water content in the emulsion and therefore the beginning of the heat release in the main chamber is detected approximately at the same time as with the reference fuel. From this point on, the combustion itself is faster for the emulsion, which explains the increased brake efficiency[44].
In mode H, a similar injection advance was also observed. In fact, for this mode, the heat release in the main chamber should begin earlier for the emulsion than for
Fig. 3. Engine performances for both tested fuels. Table 2
Engine operating conditions
Operating mode
Engine speed (minK1
)
Torque (Nm)
Break mean effective pressure (bmep) (bar)
E 2087 11.2 0.75
E0 2311 20.7 1.39
F 2378 38.9 2.61
H 3139 70.0 4.70
the reference Diesel fuel, because the delay time under these conditions is much shorter. However, this effect is not noticed because the beginning of the combustion is hidden in the pre-chamber, where no pressure transducer is located. The faster combustion of the emulsion, a prerequisite to explain the previous observations, can be explained by the improvement in the spray atomisation due to the water drops micro-explosions[13,44].
5. Effect of emulsified fuel on engine emissions
Fig. 5(a) shows the expected improvements in the NOx
specific emissions, explained by the introduction of liquid water in the combustion process. The vaporization and sensible water heats reduce the local adiabatic flame temperature and thus NOxformation[18].
Fig. 5(b) and (c) show the measured reduction in soot and unburned hydrocarbons emissions, respectively. The observed reduction in soot emissions agrees with the results reported in previous works[9,13,18,44]. As mentioned in
the introduction, the micro-explosion phenomenon in the emulsified fuel is caused by the volatility differences between water and Diesel fuel. This violent disintegration disperses the fine droplets and consequently enhances the fuel–air mixing in the combustion chamber[12,44], which helps reducing the formation of soot and THC. Additionally, the increased amount of OH radicals from water dis-sociation also reduces the formation of soot because high radical concentrations promote carbon oxidation to CO and CO2, thereby limiting carbon availability for the formation
of soot precursors[45].
6. Effect of emulsified fuel on particulate composition, origin and morphology
The SOF/ISF ratio indicates the amount of organic compounds adsorbed on the surface of the soot nuclei (per unit mass). The interest of this coefficient lies on that it gives the degree of saturation of the porous and solid substrate of the particles, regardless their surface and size.
Fig. 4. Thermo-dynamic diagnostic results for modes E and H.
A decrease in the relative adsorption with increasing load can be observed inFig. 6(a). Two factors contribute to this trend: First, the highest rate of soot formation produces a higher probability of agglomeration, with the subsequent reduction of the surface/volume ratio of the particles, and therefore of its adsorption capacity. Second, the higher exhaust temperature favours the adsorption of gas hydro-carbons rather than liquid hydrohydro-carbons. The larger specific volume of the gas hydrocarbons yields a smaller soluble mass adsorbed than in the case of condensed hydrocarbons. The decrease of the SOF/ISF ratio when using the emulsified fuel with respect to the Diesel fuel (Fig. 6(a), is mainly explained by the reduction in THC emissions. The higher porosity of the emitted particulate matter using emulsion, as referenced by different authors[9,44], does not compensate the mentioned decrease.
In any case, it is interesting to note the consistency between the insoluble fraction of PM and soot emissions (Fig. 5(b)), on one side, and between the extracted SOF from PM and the resulting emissions of THC (Fig. 5(c)), on the other side. Both results have the same trends with varying load for both fuels.
The origin of the hydrocarbons in the SOF of the emitted PM when using the emulsified fuel is very similar to that in the case of the reference fuel (Fig. 6(b)).
As can be seen in Table 1, the sulphur content is very similar in both fuels. In fact, the measured sulphates specific emissions were nearly the same [42]. The same happens with the specific emissions of nitrogen salts (Fig. 6(b)).
After the image processing routine described above, no significant differences were obtained for the arithmetic and Sauter mean diameters. The same is applicable to the particle number per filter surface unit (seeFig. 7).
7. Conclusions
A water–Diesel emulsion was studied in an IDI Diesel engine to clarify the changes in the main pollutant emissions, especially in the composition and morphology of particulate matter.
The study of the emulsified fuel showed that the fuel viscosity affects the hydraulic injection control system, Fig. 6. Composition of soluble and insoluble fractions.
causing an advanced injection and in consequence, advanced combustion process.
The use of the emulsified fuel improves the engine efficiency in certain operating modes. This result confirms the necessity of a more exhaustive study combining emulsion characteristics with tuning of engine parameters.
For the operating modes studied here, a reduction of the measured pollutant emissions (NOx, HC, soot and
particu-late matter) was observed when the emulsion was used. Moreover, similar trends were observed between the hydrocarbons emissions and those of soluble organic compounds, on one hand, and between the soot emissions and the insoluble fraction obtained from the chemical characterization of the particles, on the other hand.
The use of the emulsified fuel reduces the adsorption of the hydrocarbons and, therefore, the SOF/ISF ratio remains below that obtained with the reference fuel. This is probably caused by the reduction on emitted hydrocarbons which is consequence of the enhanced fuel/air mixing.
There are no significant differences in the arithmetic and Sauter mean particle diameters neither from different loads nor between the emulsion and the commercial fuel.
In general, the results reported here suggest that the water emulsification has a potential to slightly improve the brake efficiency and to significantly reduce the formation of thermal NO, soot, hydrocarbons and PM in the Diesel engine. Further, experimental work for optimising the emulsion formulation in terms of water content and internal structure is recommended.
Acknowledgements
The Government of Castilla-La Mancha is gratefully acknowledged for their financial support (COMBALT research project). REPSOL-YPF is also acknowledged for the supply of commercial fuel.
References
[1] Boehner W, Hummel K. Common rail injection system for commercial diesel vehicles. SAE paper 970345; 1997.
[2] Graboski MS, McCormick RL. Combustion of fat and vegetable oil derived fuels in diesel engines. Prog Energy Combust Sci 1998;24: 125–64.
[3] Abdul-Khalek IS, Kittelson DB, Graskow BR, Wei Q, Brear F. Diesel trap performance: particle size measurement and trends. SAE paper 982599; 1998.
[4] Sawa N, Kajitani S. Physical properties of emulsions fuel (water/oil-type) and its effect on engine performance under transient operation. SAE paper 920198; 1992.
[5] Samec N, Kegl B, Dibble RW. Numerical and experimental study of water/oil emulsified fuel combustion in a Diesel engine. Fuel 2002;81: 2035–44.
[6] Desantes JM, Arre`gle J, Ruiz S, Delage A, Schmelezle P, Esmilaire O. Characterisation of the injection-combustion process in a common-rail D.I. Diesel engine running with fuel–water emulsion. Proceedings of EAEC Congress, Barcelona 1999 pp. 59–68.
[7] Andrews GE, Bartle KD, Pang SW, Nurein AM, Williams PT. The reduction in Diesel particulate emissions using emulsified fuels. SAE paper. 880348, 1988.
[8] Sheng HZ, Chen L, Wu CK.The droplet group micro-explosions in w/o Diesel fuel emulsion sprays. SAE paper 950855; 1995. [9] Ballester JM, Fueyo N, Dopazo C. Combustion characteristics of
heavy oil–water emulsions. Fuel 1996;75(6):695–705.
[10] Park JW, Huh KY, Park KH. Experimental study on the combustion characteristics of emulsified Diesel in a rapid compression and expansion machine. Proc Inst Mech Eng 2000;214(Part D):579–86. [11] Gong JS, Fu WB. A study on the effect of more volatile fuel on
evaporation and ignition for emulsified oil. Fuel 2001;80:437–45. [12] Kadota T, Yamasaki H. Recent advances in the combustion of water
fuel emulsion. Prog Energy Combust Sci 2002;28:385–404. [13] Ocampo-Barrera R, Villasen˜or R, Diego-Marı´n A. An experimental
study of the water content on combustion of heavy fuel oil/water emulsion droplets. Combust Flame 2001;126:1845–55.
[14] Dryer FL. Water addition to practical combustion systems: concepts and applications. Sixteenth symposium (International) on combustion. The Combustion Institute. Pittsburgh. PA 1977 p. 279–295. [15] Lasheras JC, Ferna´ndez-Fello AC, Dryer FL. Initial observations on
the free droplet combustion characteristics of water-in-fuel emulsions. Combust Sci Technol 1979;21:1–14.
[16] Harbach JA, Agosta V. Effects of emulsified fuel on combustion in a four-stroke Diesel engine. J Ship Res 1991;35(4):356–63.
[17] Valdmanis E, Wulfhorst DE.The effect of emulsified fuels and water induction on Diesel combustion. SAE paper 700736; 1970. [18] Park JW, Huh KY, Lee JH. Reduction of NOx, smoke and brake
specific fuel consumption with optimal injection timing and emulsion ratio of water-emulsified Diesel. Proc Inst Mech Eng 2001;215:83–93. [19] Heinrich G, Prescher K, Finsterwalder G. Diesel combustion adding
water and methanol. MTZ 1984;45(5):183–8 [in German]. [20] Mollenhauer K, Zelenka P. Combustion of water-in-fuel-emulsions in
stationary operating Diesel engines. MTZ 1986;47(1):3–7 [in German].
[21] Song KH, Lee YL, Litzinger, TA. Effects of emulsified fuels on soot evolution in an optically-accessible DI Diesel engine. SAE paper 2000-01-2794; 2000.
[22] Tsukahara M, Yoshimoto Y. Reduction of NOx, smoke, BSFC, and maximum combustion pressure by low compression ratios in a Diesel engine fuelled by emulsified fuel. SAE paper 920464; 1992. [23] Odaka M, Koike N, Tsukamoto Y. Reduction effect of emulsified fuel
on NOx and smoke emissions from direct injection Diesel engines. 9303537. JSAE Rev 1993;14(2).
[24] Pinson JA, Ni T, Litzinger TA. Quantitative imaging study of the effects of intake air temperature on soot evolution in optically-accessible DI Diesel engine. SAE paper 942044; 1994.
[25] Barnes A, Duncan D, Marshall J, Psaila A, Chadderton J, Eastlake A. Evaluation of water-blend fuels in a city bus and an assessment of performance with emission control devices. SAE paper 2001-01-1915; 2001.
[26] Barnaud F, Schmelzle P, Schulz P. AQUAZOLETM: an original emulsified Water–Diesel fuel for heave-duty applications. SAE paper 2000-01-1861; 2001.
[27] Cornet I, Nero WE. Emulsified fuels in compression ignition engines. Ind Eng Chem 1995;47(10):2133–41.
[28] Castro DM, Alfonso J, Rubinos R, Armas O, Zayas E. Water/gas oil emulsions using residual as emulsifier. Proceedings of Emulsions World Conference, France 1997.
[29] Tsukahara M, Murayama T, Miyamoto N, Yoshimoto Y. Influence of combustion chamber configurations on the combustion in Diesel engine driven by emulsified fuel. Bull JSME 1982;25(208):1567–73.
[30] Yoshimoto Y, Tsukahara M, Kuramoto T. Improvement of BSFC by reducing Diesel engine cooling losses with emulsified fuel. SAE paper 962022; 1996.
[31] Selim MYE, Elfeky SMS. Effects of Diesel/water emulsion on heat flow and thermal loading in a precombustion chamber Diesel engine. Appl Thermal Eng 2001;21:1565–82.
[32] Lapuerta M, Herna´ndez JJ, Ballesteros R, Dura´n A. Composition and size of Diesel particulate emissions from a commercial European engine tested with present and future fuels. J Automobile Eng. Proc Inst Mech Engrs, part D 2003;217:907–19.
[33] CarlinB. Ultrasonido. Ed. Urmo. Bilbao, Espan˜a. 1979.
[34] Reid RC, Praustnitz JH, Poling BE. The properties of gases and liquids. 4th ed. New York: Mc GrawHill; 1987.
[35] Kee RJ, Rupley FM, Miller JA. The Chemkin thermo-dynamic data base.: Sandia National Laboratories; 1990.
[36] Lapuerta M, Herna´ndez JJ, Armas O. Kinetic modelling of gaseous emissions in a Diesel engine. SAE paper 2000-01-2939; 2000.
[37] Lapuerta M, Armas O, Ballesteros R, Carmona M. Fuel formulation effects on passenger car Diesel engine particulate emissions and composition. SAE paper 2000-01-1850; 2000.
[38] Parliament and Council Directive 2001/1/EC. OJL 35, 6 February 2001.
[39] Lapuerta M, Armas O, Ballesteros R, Dura´n A. Influence of mini-tunnel operating parameters and ambient conditions on Diesel particulate measurement and analysis. SAE paper 1999-01-3531; 1999.
[40] de Lucas A, Dura´n A, Carmona, M, Lapuerta M. Characterization of soluble organic fraction in DPM: optimisation of extraction method. SAE paper 1999-01-3532; 1999.
[41] IP PM BZ/96. Analysis of fuel- and oil-derived hydrocarbons in Diesel particulates on filters—gas chromatography method; 1996. [42] Gonza´lez RC, Wintz P. Digital image processing. 2nd ed.: Addison
Wesley; 1987.
[43] Lapuerta M, Armas O, Go´mez A. Diesel particle size distribution estimation from digital image analysis. Aerosol Sci Technol 2003;37: 369–81.
[44] Masjuki H, Abdulmuin MZ, Sii HS. Indirect injection Diesel engine operation on palm oil methyl esters and its emulsions. Proc Inst Mech Eng 1997;211(Part D):291–9.
[45] Owen K, Coley T. Automotive fuels reference book. 2nd ed.: Society of Automotive Engineers, Inc; 1995.
