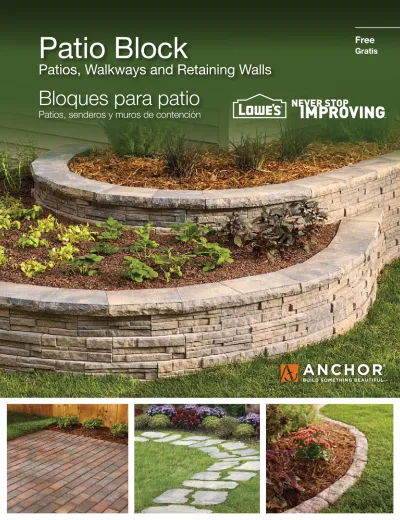

Patio Block. Bloques para patio Patios, senderos y muros de contención. Patios, Walkways and Retaining Walls. Free Gratis

(1)

Patio Block

Patios, Walkways and Retaining Walls

Bloques para patio

Patios, senderos y muros de contención

Free

Gratis

(2)

Colors shown in this brochure may vary from actual product colors. Check store for sample color. Not all products and colors are available at all locations. Check with your local store.

Lowe’s, the gable design, MyLowe’s and Never Stop Improving are trademarks of LF, LLC.

Los colores que se muestran en este folleto pueden variar del color real del producto. Revise la muestra de color en la tienda. No todos los productos y colores están disponibles en todas las tiendas. Consulte a su tienda local.

Lowe’s, el diseño del gablete, MyLowe’s y Siempre Mejorando son marcas registradas de LF, LLC.

Home Delivery

Talk to a Lowe’s Associate about the easy way

to get all your project materials to your house.

Home Delivery is available in most areas at a

low cost.

MyLowe’s

Register for MyLowe’s to easily store project

details, outdoor dimensions and manage

materials all in one place.

Shop Online, Pick-up in store

in 20 mins.

With our exclusive 20-Minute Pick Up In Store

Guarantee,* you can get what you need, when

you need it. Always free, and always fast.

Everyday Low Prices Guaranteed

If you happen to find a lower price on an

identi-cal stock item at any area retail competitor, and

provide confirmation of that price, we’ll match it

and beat their price by an additional 10%.

Convenient Financing

Lowe’s Consumer Credit Card provides

conve-nient buying power at all Lowe’s stores. Enjoy

special promotional offers throughout the year,

as well as low monthly payments. You can also

view, pay and manage your account online.

See a Lowe’s Associate for details.

Improve Your Yard, Enjoy Outdoor Living

Committed to innovation, Anchor Block

Company is continually inventing new ways to

help homeowners improve outdoor spaces.

With looks that span classic to modern to

natural, our innovative products make it easy

to find a style you’ll love. anchorblock.com

Entrega a domicilio

Consulte a un asociado de Lowe’s sobre la manera sencilla de recibir todos los materiales para el proyecto en su casa. La entrega a domicilio está disponible en la mayoría de las áreas por un bajo costo.

MyLowe’s

Regístrese en MyLowe’s para guardar los detalles de su proyecto, las dimensiones en exteriores y para adminis-trar todos los materiales en un solo lugar.

Compre en línea, busque el producto en

la tienda en 20 minutos

Con nuestro sistema exclusivo de entrega del producto en la tienda en 20 minutos Garantizado*, puede obtener lo que necesite en el momento mismo en el que lo necesite. Siempre libre y siempre rápido.

Precios bajos todos los días. Garantizado

Si encuentra un precio más bajo en un artículo idéntico en existencia en cualquier competidor minorista de la zona y suministra confirmación de dicho precio, iguala-remos y mejoraiguala-remos ese precio en un 10% adicional.

Financiamiento conveniente

La tarjeta de crédito para consumidores de Lowe’s proporciona una práctica capacidad de compra en todas las tiendas de Lowe’s. Disfrute de ofertas promocionales especiales durante todo el año, así como también bajos pagos mensuales. También puede consultar, pagar y administrar su cuenta en línea. Consulte a un asociado de Lowe’s para más información.

Mejore su patio, disfrute su espacio exterior

Comprometida con la innovación, Anchor Block Com-pany crea constantemente nuevas formas de ayudar a los propietarios a mejorar los espacios exteriores de sus hogares. Con apariencias que van de lo clásico a lo moderno y a lo natural, nuestros innovadores productos permiten que usted encuentre fácilmente el estilo que busca. anchorblock.com

Home Delivery

Talk to a Lowe’s Associate about the easy way to get all your project materials to your house. Home Delivery is available in most areas at low cost.

spHome Delivery

Nosotros entregamos

Convenient Financing

Lowe’s Consumer Credit Card provides convenient buying power at all Lowe’s stores. Enjoy special promotional of-fers throughout the year, as well as low monthly payments. You can also view, pay and manage your account online. See a Lowe’s Associate for details.

Convenient Financing

Lowe’s Consumer Credit Card provides convenient buying power at all Lowe’s stores. Enjoy special promotional offers throughout the year, as well as low monthly payments. You can also view, pay and manage your account online. See a Lowe’s Associate for details.

2 MyLowe’s

Register for MyLowe’s to easily store project details, outdoor dimensions and manage materials all in one place.

spMyLowe’s

Everyday Low Prices Guaranteed

If you happen to find a lower price on an identical stock item at any area retail competitor, and provide confirma-tion of that price, we’ll match it and beat their price by an additional 10%.

Everyday Low Prices Guaranteed

If you happen to find a lower price on an identical stock item at any area retail competitor, and provide confirmation of that price, we’ll match it and beat their price by an additional 10%.

Shop Online, Pick-up in store

in 20 mins.

With our exclusive 20-Minute Pick Up In Store Guarantee,* you can get what you need, when you need it. Always free, and always fast.

spShop Online, Pick-up in store

in 20 mins.

With our exclusive 20-Minute Pick Up In Store Guarantee,* you can get what you need, when you need it. Always free, and always fast. Simply place an order on Lowes.com and

Home Delivery

spHome Delivery

Convenient Financing

Lowe’s Consumer Credit Card provides convenient buying power at all Lowe’s stores. Enjoy special promotional of-fers throughout the year, as well as low monthly payments. You can also view, pay and manage your account online. See a Lowe’s Associate for details.

Convenient Financing

Lowe’s Consumer Credit Card provides convenient buying power at all Lowe’s stores. Enjoy special promotional offers throughout the year, as well as low monthly payments. You can also view, pay and manage your account online. See a Lowe’s Associate for details.

2 MyLowe’s

spMyLowe’s

Everyday Low Prices Guaranteed

If you happen to find a lower price on an identical stock item at any area retail competitor, and provide confirma-tion of that price, we’ll match it and beat their price by an additional 10%.

Everyday Low Prices Guaranteed

If you happen to find a lower price on an identical stock item at any area retail competitor, and provide confirmation of that price, we’ll match it and beat their price by an additional 10%.

Shop Online, Pick-up in store

in 20 mins.

With our exclusive 20-Minute Pick Up In Store Guarantee,* you can get what you need, when you need it. Always free, and always fast.

spShop Online, Pick-up in store

in 20 mins.

With our exclusive 20-Minute Pick Up In Store Guarantee,* you can get what you need, when you need it. Always free, and always fast. Simply place an order on Lowes.com and

(3)

Products

Pages 4–19

| Walls

Pages 20–29 | Patio Stones

Pages 30–33 | Pavers

Pages 34–35 | Edgers

How-To

Page 36-41 | Wall Installation

and Calculation

Pages 42-46 | Paver Patio and Walkway

Installation and Calculation

Pages 44–46 | Patio Stone Installation

and Calculation

Page 47

| Edger Installation

and Calculation

Patio Block

Patios, Walkways and Garden Walls

Bloques para patio

/ Patios, senderos y muros de jardines

Productos

Páginas 4 a 19 | Muros

Páginas 20 a 29 | Piedras para patio

Páginas 30 a 33 | Adoquines

Páginas 34 a 35 | Esquineros

Cómo hacerlo

Página 48 a 53 | Cálculo e instalación de muro

Página 54 a 58 | Cálculo e instalación del patio y

el sendero de adoquines

Páginas 56 a 58 | Cálculo e instalación de las lajas

Páginas 59

| Cálculo e instalación de rebordes

(4)

This smaller version

of LedgeWall

®

_retaining

wall makes a perfect

complement to the 12 in

version when mixing large

and small projects.

Esta versión más pequeña

del muro de contención

LedgeWall

®

_{es un complemento}

perfecto para la versión de

30,48 cm cuando combine

proyectos grandes y pequeños.

(5)

This smaller version

of LedgeWall

®

_retaining

wall makes a perfect

complement to the 12 in

version when mixing large

and small projects.

Esta versión más pequeña

del muro de contención

LedgeWall

®

_{es un complemento}

perfecto para la versión de

30,48 cm cuando combine

proyectos grandes y pequeños.

USES

• Small retaining walls

• Flower beds and garden borders

• Coordinating cap unit completes project

BENEFITS

• Build walls up to 2 ft high

• Create curved or straight walls

• Rear lip makes installation easy

• Premium colors enhance any landscape

• Look and feel of natural stacked stone

9 in LedgeWall

®

Retaining Wall

Muro de contención LedgeWall

®

_{de 22,86 cm}

USOS

• Muros de contención pequeños • Macizos de flores y bordes de jardines

• Las unidades de tapas a juego completan el proyecto

BENEFICIOS

• Para construir muros de hasta 61,00 cm de alto • Para crear muros curvos o rectos

• El reborde posterior facilita la instalación

• Los colores de primera calidad mejoran cualquier jardín • Apariencia y sensación de piedras apiladas naturales

Wall

/

Muro Charcoal/Tan #383003 9 in W 22,86 cm 3 in H 7,62 cm 6 in D 15,24 cm

Cap

/

Tapa Charcoal/Tan #258019 2 in H 5,08 cm 8 in D 20,32 cm 12 in W 30,48 cm

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

14

27

40

54

67

80 4 Courses /

Capas

27

54

80

107

134

160 6 Courses /

Capas

40

80

120

160

200

240 8 Courses /

Capas

54

107

160

214

267

320 Caps /

Tapas

6

12

17

22

28

34

10.4 lbs, 1 pc = 0.19 sq ft, 240 pc/pallet / 4,72 kg 3,30 piezas por metro lineal, 240 piezas/paleta

14.7 lbs, 1 pc/lin ft, 80 pc/pallet / 6,67 kg 3,30 piezas por metro lineal, 80 piezas/paleta

(6)

The detailed, earthy

texture and attentively

stacked blocks of the

LedgeWall

®

_retaining

wall fit well in both

traditional and

modern landscapes.

Las piedras cuidadosamente

apiladas, llenas de detalles y

de textura terrosa del muro de

contenciòn Ledgewall

®

_encajaran

tanto en jardines modernos

como tradicionales.

(7)

The detailed, earthy

texture and attentively

stacked blocks of the

LedgeWall

®

_retaining

wall fit well in both

traditional and

modern landscapes.

Las piedras cuidadosamente

apiladas, llenas de detalles y

de textura terrosa del muro de

contenciòn Ledgewall

®

_encajaran

tanto en jardines modernos

como tradicionales.

USES

• Retaining walls

• Garden walls

• Raised gardens

• Coordinating cap unit completes project

BENEFITS

• Build walls up to 2 ft high

• Create curved or straight walls

• Rear lip makes installation easy

• Premium colors enhance any landscape

• Look and feel of natural stacked stone

12 in LedgeWall

®

Retaining Wall

Muro de contención LedgeWall

®

_{de 30,48 cm}

USOS

• Muros de contención • Muros de jardín • Jardines elevados

BENEFICIOS

• Los colores de primera calidad mejoran cualquier jardín • Apariencia y sensación de piedras apiladas naturales

Wall

/

Muro Charcoal/Tan #320794 12 in W 30,48 cm 4 in H 10,16 cm 7 in D 17,78 cm

Cap

/

Tapa Charcoal/Tan #258019 2 in H 5,08 cm 8 in D 20,32 cm 12 in W 30,48 cm

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

10

20

30

40

50

60 4 Courses /

Capas

20

40

60

80

100

120 6 Courses /

Capas

30

60

90

120

150

180 Caps /

Tapas

6

12

17

22

28

34 Installation instructions on pages 36-41. /

Instrucciones de instalación en las páginas 48 a 53.

22 lbs, 1 pc = 0.33 sq ft,140 pc/pallet / 10,00 kg 3,30 piezas por metro lineal,140 piezas/paleta

(8)

The smallest version of

ChiselWall

®

_retaining

wall offers the timeless

look of hand-chiseled

stone for small walls

and makes a perfect

complement to the

12 in and 16 in

versions when mixing

large and small projects.

La versión más pequeña de

muro de contención ChiselWall

®

ofrece la apariencia atemporal

de la piedra tallada a mano

para muros pequeñas y es

un complemento ideal para

las versiones de 30,48 cm y

40,64 cm cuando se combinan

proyectos grandes y pequeños.

(9)

Wall

/

Muro

Cap

/

Tapa

USES

• Small retaining walls

• Flower beds and garden borders

• Coordinating cap unit completes project

BENEFITS

• Build walls up to 2 ft high

• Create curved or straight walls

• Rear lip makes installation easy

• Premium colors enhance any landscape

• Looks and feels like hand-chiseled stone

9 in ChiselWall

®

Retaining Wall

Muro de contención ChiselWall

®

de 22,86 cm

USOS

BENEFICIOS

• Para construir paredes de hasta 61,00 cm de alto • Para crear paredes curvas o rectas

• Los colores de primera calidad mejoran cualquier jardín • Apariencia y sensación de piedra tallada a mano Tan/Brown #320798 9 in W 22,86 cm 3 in H 7,62 cm 6 in D 15,24 cm 2 in H 5,08 cm 8 in D 20,32 cm Tan/Brown #258018 12 in W 30,48 cm

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

14

27

40

54

67

80 4 Courses /

Capas

27

54

80

107

134

160 6 Courses /

Capas

40

80

120

160

200

240 8 Courses /

Capas

54

107

160

214

267

320 Caps /

Tapas

6

12

17

22

28

34 Installation instructions on pages 36-41. /

10.4 lbs, 1 pc = 0.19 sq ft, 240 pc/pallet / 4,72 kg 3,30 piezas por metro lineal, 240 piezas/paleta

(10)

This original version of

ChiselWall

®

_retaining

wall has the timeless

look of hand-chiseled

stone. Complement

with 16 in and 9 in

sizes for large and

small projects.

Esta versión original de muro de

contención ChiselWall

®

_cuenta

con la apariencia atemporal

de la piedra cincelada a mano.

Complemente con los tamaños

de 40,64 cm y 22,86 cm para

proyectos grandes y pequeños.

(11)

Wall

/

Muro

Cap

/

Tapa

USES

• Retaining walls

• Garden walls

• Raised gardens

• Coordinating cap unit completes project

BENEFITS

• Build walls up to 2 ft high

• Create curved or straight walls

• Rear lip makes installation easy

• Premium colors enhance any landscape

• Looks and feels like hand-chiseled stone

12 in ChiselWall

®

Retaining Wall

Muro de contención ChiselWall

®

de 30,48 cm

USOS

• Las unidades de tapas a juego completan el proyecto

BENEFICIOS

• Los colores de primera calidad mejoran cualquier jardín • Apariencia y sensación de piedra tallada a mano Tan/Brown #257998 12 in W 30.48 cm 4 in H 10,16 cm 7 in D 17,78 cm Charcoal/Tan #258012 2 in H 5,08 cm 8 in D 20,32 cm Charcoal/Tan #258019 Tan/Brown #258018 12 in W 30,48 cm

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

10

20

30

40

50

60 4 Courses /

Capas

20

40

60

80

100

120 6 Courses /

Capas

30

60

90

120

150

180 Caps /

Tapas

6

12

17

22

28

34 Installation instructions on pages 36-41. /

(12)

Inspired by the

timeless design of

hand-chiseled stone,

16 in ChiselWall

®

retaining wall is

well-suited for

larger projects.

Inspirado en el diseño atemporal

de la piedra cincelada a mano,

este muro de contención

ChiselWall

®

_{de 40,64 cm es ideal}

(13)

2 in H

5,08 cm

8 in D

20,32 cm

Wall

/

Muro

Cap

/

Tapa

USES

• Large retaining walls

• Large raised gardens

• Terraced walls

• Coordinating cap unit completes project

BENEFITS

• Build walls up to 2 ft 11 in high

• Create curved or straight walls

• Rear lip makes installation easy

• Premium colors enhance any landscape

• Looks and feels like hand-chiseled stone

16 in ChiselWall

®

Retaining Wall

Muro de contención ChiselWall

®

de 40,64 cm

USOS

• Muros de contención grandes • Jardines elevados grandes • Muros para terrazas

BENEFICIOS

•

Para construir muros de hasta 88,90 cm de alto • Para crear muros curvos o rectos

• Los colores de primera calidad mejoran cualquier jardín • Apariencia y sensación de piedra tallada a mano Tan/Brown #226470 Tan/Brown #258018 12 in W 30,48 cm

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

8

15

23

30

38

45 4 Courses /

Capas

15

30

45

60

75

90 6 Courses /

Capas

23

45

68

90

113

135 7 Courses /

Capas

27

53

79

105

132

158 Caps /

Tapas

6

12

17

22

28

34 Installation instructions on pages 36-41. /

42 lbs, 1pc = 0.56 sq ft, 72 pc/pallet. / 19,05 kg, 2,46 piezas por metro lineal, 72 piezas/paleta

14.7 lbs, 1 pc/lin ft, 80 pc/pallet / 6,67 kg 3,30 piezas por metro lineal, 80 piezas/paleta 16 in W 40,64 cm 5 in H 12,70 cm 8 in D 20,32 cm

(14)

Fresco

™

Accent Wall

_/

_{Muro decorativo Fresco}

_™

12 in W 30,48 cm 4 in H 10,16 cm Charcoal/Tan #292903

USES

• Columns and pillars

• Seating walls

• Raised flower beds

• Fire pits

• Grill surrounds

• Mailbox pillars

• Doubles as cap

BENEFITS

• Build walls up to 2 ft high

• Build columns up to 4 ft high

• Natural worn appearance

USOS

• Columnas y pilares • Muros de asentamiento • Macizos de flores elevados • Fogones

• Áreas circundantes de parrillas • Pilares de buzones

• Doble como tapa

BENEFICIOS

• Para construir paredes de hasta 61,00 cm de alto • Para construir columnas de hasta 121,90 cm de alto • Apariencia de desgaste natural

Installation instructions on pages 38-41. /

8 in D 20,32 cm

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

10

20

30

40

50

60 4 Courses /

Capas

20

40

60

80

100

120 6 Courses /

Capas

30

60

90

120

150

180 Caps /

Tapas

8

15

23

30

38

45 All dimensions are nominal. /

Todas las dimensiones son nominales.

14

(15)

5.5 in D 13,97 cm 4 in H 10,16 cm 8.5 in W 22,23 cm

USES

• Small retaining walls

• Flower bed and garden borders

BENEFITS

• Build walls up to 1 ft 4 in high

• Create curved or straight walls

• Rear lip makes installation easy

• Small block for easy handling

Hudson Stone

™

Retaining Wall

Muro de contención Hudson Stone

™

USOS

BENEFICIOS

• Bloques pequeños para una manipulación fácil Sand

# 226473

Installation instructions on pages 36-41. /

Wall

/

Muro

13.5 lbs, 1 pc = 0.24 sq ft, 216 pc/pallet / 6,12 kg, 5,00 piezas por metro lineal, 216 piezas/paleta

15 lbs, 0.88 pc/lin ft, 100 pc/pallet / 6,8 kg, 3,3 piezas por metro lineal, 100 piezas/paleta

W

all

Mur

o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

15

29

43

57

71

85 4 Courses /

Capas

29

57

85

113

142

170 Caps /

Tapas

6

12

18

23

29

35 Cap

/

Tapa Sand # 230372 12 in W 30,48 cm 9 in W 22,86 cm 2.38 in H 6,05 cm 7.5 in D 19,05 cm

(16)

This convenient fire pit kit

makes it easy to create

a warm gathering place

in your yard.

Este práctico kit de fogón facilita

la creación de un cálido lugar de

reunión en su jardín.

(17)

This convenient fire pit kit

makes it easy to create

a warm gathering place

in your yard.

Este práctico kit de fogón facilita

la creación de un cálido lugar de

reunión en su jardín.

Hudson Stone

™

Fire Pit Kit

Kit de fogón Hudson Stone

™

40 in outside diameter

/ Diámetro exterior de 101,60

cm

12 in H

Altura de 30,48 cm

30 in inside diameter

Diámetro interior de 76,20 cm

USES

• For outdoor fires

• Build into or on top of a patio

• Build in a yard

BENEFITS

• Makes a warm gathering place

• Pallet packed with metal liner

• No cutting required

• Look of rough-textured stone

USOS

• Para fogatas en exteriores

• Se arma en un patio o en su parte superior • Se arma en un jardín

BENEFICIOS

• Crea un cálido lugar de reunión

• Empacado con paleta con forro de metal • No requiere cortes

• Apariencia de piedra de textura áspera Sand

#359690

Installation instructions on pallet. /

Instrucciones de instalación en la paleta.

Safety Tips /

Consejos de seguridad

• The firepit is for outdoor use only.

• Prior to installation, contact your municipality

to obtain information for the fire pit regulations.

• Install fire pit a safe distance from surrounding

structures and buildings. Make sure nothing is

directly above the fire pit that is a potential fire

and/or injury hazard.

• El fogón es sólo para uso en exteriores.

• Antes de la instalación, póngase en contacto con la municipalidad para obtener información de las normas para fogones.

• Instale el fogón a una distancia segura de estructuras y edificios cercanos. Asegúrese de que no haya nada directamente sobre el fogón que implique un posible incendio y/o peligro de lesiones.

(18)

USES

• Retaining walls

• Garden walls

• Raised gardens

BENEFITS

• Build walls up to 2 ft high

• Create curved or straight walls

• Rear lip makes installation easy

• Variety of colors to choose from

Aspen Stone

®

Retaining Wall

Muro de contención Aspen Stone

®

USOS

BENEFICIOS

• El reborde posterior facilita la instalación • Variedad de colores para elegir 11.63 in W 29,53 cm 4 in H 10,16 cm 7 in D 17,78 cm

Wall

/

Muro Sand #166388 Cap #230372 Charcoal Wall / Muro: #238266 Cap / Tapa: #230370 Red/Charcoal Wall / Muro: #164778

Cap / Tapa: #230371 Wall / Muro: #238263Cap / Tapa: #230366 Wall / Muro: #238261Cap / Tapa: #230367

Tan Gray

Installation instructions on pages 36-41. /

W

all

Mur

o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

11

21

31

42

52

62 4 Courses /

Capas

21

42

62

83

104

124 6 Courses /

Capas

31

62

93

124

155

186 Caps /

Tapas

6

12

18

23

29

35

22 lbs, 1 pc = 0.32 ft,140 pc/pallet / 10,00 kg, 3,30 piezas por metro lineal,140 piezas/paleta

15 lbs, 0.88 pc/lin ft, 100 pc/pallet / 6,8 kg, 3,3 piezas por metro lineal, 100 piezas/paleta

All dimensions are nominal. /

18 Cap

/

Tapa 12 in W 30,48 cm 9 in W 22,86 cm 2.38 in H 6,05 cm 7.5 in D 19,05 cm

(19)

USES

• Large retaining walls

• Large raised gardens

• Terraced walls

BENEFITS

• Build walls up to 3 ft 6 in high

• Create curved or straight walls

• Rear lip makes installation easy

• Look of rough-hewn stone

USOS

• Muros de contención grandes • Jardines elevados grandes • Muros para terrazas

BENEFICIOS

• El reborde posterior facilita la instalación • Apariencia de piedra rústica

16 in W 40,24 cm 6 in H 15,24 cm 10 in D 25,40 cm

Hampton Stone

®

Retaining Wall

Muro de contención Hampton Stone

®

Wall

/

Muro Sand #215393

W

all

Mur o

Wall Height

(Altura del muro)

Pieces Piezas

Length (feet) /

Largo (metros)

5

(1,52)

10

(3,00)

15

(4,57)

20

(6,10)

25

(7,60)

30

(9,14)

2 Courses /

Capas

8

15

23

30

38

45 4 Courses /

Capas

15

30

45

60

75

90 6 Courses /

Capas

23

45

68

90

113

135 7 Courses /

Capas

27

53

79

105

132

158 Caps /

Tapas

8

16

24

32

40

48 Installation instructions on pages 36-41. /

55 lbs, 1 pc = 0.66 sq ft, 60 pc/pallet / 24,95 kg, 2,50 piezas por metro lineal, 60 piezas/paleta

22.5 lbs, 1.6 pc/lin ft, 84 pc/pallet / 10,21 kg 5,25 piezas por metro lineal, 84 piezas/paleta

Special

Order Only

Solo envios

especiales

Sand

ShortCut

®

_Cap

_/

_Tapa

8 in W 20,32 cm 3 in H 7,62 cm 13 in D 33,02 cm 7 in W 17,78 cm

(20)

Get the look of

genuine flagstone at a

fraction of the cost.

Foot Notes

®

_{patio stones}

have uniform height and

a smooth, flat back for

easier installation.

Obtenga la apariencia de laja

genuina a una fracción del costo.

Las piedras para patio Foot Notes

®

poseen un alto uniforme y un

reverso liso y plano para una

instalación más fácil.

(21)

Foot Notes

®

Patio Stones

Piedras para patio Foot Notes

®

USES

• Walkways

• Stepping stone paths

• Patios

BENEFITS

• Uniform height and smooth, flat back

for easy installation

• Natural flagstone texture

• Variety of installation options

USOS

• Senderos

• Caminos de baldosas de piedra • Patios

BENEFICIOS

• Alto uniforme y reverso liso y plano para una instalación fácil

• Textura de laja natural

• Variedad de opciones de instalación

Use in sets of 5 or individually to create your own unique path.

Utilice en juegos de 5 o individualmente para crear su propio camino único.

Charcoal/Tan #255442 Autumn Blend #340525 1.75 in H 4,45 cm

Installation instructions on pages 44-46. /

Las instrucciones de instalación se encuentran en la páginas 56 a 58.

Pattern options /

Opciones de diseño

A 40 in walkway/patio pattern

Un diseño de sendero/patio de 1,02 m

A 28 to 30 in curved pathway pattern

_{Un diseño de senda curva de 71,12 cm a 76,20 cm}

Rotate each set 90˚

Gire cada juego en 90°

40 in

1,02 m

40 in

1,02 m

5-piece pattern

Diseño de 5 piezas

1

3

4

5

3

4

2

1 Patio Stone

Piedra

para patio Pieces Piezas

Project Sq Ft (L x W) /

Proyecto en m2_{(largo x ancho)}

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

4 sets

4conjuntos 8

8 sets

conjuntos 9

9 sets

conjuntos 14

14 sets

conjuntos 22

22 sets

conjuntos 36

36 sets

conjuntos 37.3 lbs (average), 75 pc/pallet / 16,92 kg (promedio), 75 piezas/paleta

1

5

4

3

2

2 Create a curved pathway by alternating

and rotating single pieces and pairs.

Cree una senda curva alternando y rotando las piezas de a una o en pares.

Tan/Brown #255443

(22)

Create the perfect

balance between nature

and convenience. With

the combination of

natural texture and color,

and easy installation,

Slate Top

™

_{patio stones}

are your pathway to

simplicity.

Obtenga el equilibrio perfecto

entre la naturaleza y la

conveniencia. Con la combinación

de texturas y colores naturales, así

como también por la facilidad de

instalación, las piedras para patio

Slate Top™ son su senda hacia la

simplicidad.

(23)

USES

• Patios

• Walkways

BENEFITS

• Uniform height for easy installation

• Use independently as stepping stones

or together for a patio

• Natural slate texture

USOS

• Patios • Senderos BENEFICIOS

• Alto uniforme para una instalación fácil • Utilícelas independientemente como baldosas de piedra o juntas para un patio • Textura de azulejo de pizarra natural 16 in L 40,64 cm 2 in H 5,08 cm 16 in W 40,64 cm

Slate Top

™

Patio Stone

Piedra para patio Slate Top

™

Charcoal/Tan #255435

Patio Stone

Piedra

Project Sq Ft (L x W) /

Proyecto en m2 _{(largo x ancho)}

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

23

45

57

85

135

225 Rotate patio stones for the most random appearance.

Gire las piedras para patio para obtener un diseño más aleatorio.

Installation instructions on pages 44-46. /

Stack Bond

De unión apilable

Pattern options /

Opciones de diseño

45-degree

Running Bond

Trabazón americana de 45 grados

Running Bond

Trabazón americana

(24)

Portage

®

Stone

Piedra Portage

®

USES

• Patios

• Stepping stone paths

• Walkways

BENEFITS

• Each stone has one of six different natural textures

• One-piece system creates a seemingly

random pattern

• Use independently to create stepping stones

USOS

• Patios

• Caminos de baldosas de piedra • Senderos

BENEFICIOS

• Cada piedra tiene una de seis diferentes texturas naturales • El sistema de una pieza crea un diseño que parece aleatorio

• Utilícelas independientemente para crear baldosas de piedra

Installation instructions on pages 44-46. /

Patio Stone

Piedra

Project Sq Ft (L x W) /

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

27

54

68

101

162

269

28.1 lbs, 1 pc = 1.49 sq ft, 90 pc/pallet / 12,70 kg, 7,21 piezas por metro lineal, 90 piezas/paleta

Step 1: Begin by laying 3 stones at the center

of the surface to be covered. Step 2: Add more sets of 3 stones to fill in the surface to be covered. Step 3: Complete the balance of the surface to be covered with single stones for the final result.

Paso 1: Para comenzar, coloque 3 piedras en

el centro de la superficie a cubrir. Paso 2: Agregue más juegos 3 piedras para rellenar la superficie a cubrir. Paso 3: Complete la superficie restante a cubrir con piedras sueltas para el acabado final.

All dimensions are nominal. /

24

Tan/Brown #321000 1.6 in H 4,06 cm 15.1 in W 38,35 cm 20.7 in L 52,58 cm

(25)

Four Cobble

™

Stone

Piedra Four Cobble

TM

2 in H

5,08 cm

Charcoal/Tan #322751

Installation instructions on pages 44-46. /

Patio Stone

Piedra

Project Sq Ft (L x W) /

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

24

47

59

88

140

233

38 lbs, 1 pc = 1.72 sq ft, 90 pc/pallet / 17,24 kg 6,05 piezas por metro lineal, 90 piezas/paleta

USES

• Patios

• Walkways

BENEFITS

• Look and feel of natural cobblestone

• Joints create the look of four separate cobblestones

with the ease of installing just one

USOS

• Patios • Senderos

BENEFICIOS

• Apariencia y sensación de adoquín natural

• Las uniones crean la apariencia de cuatro adoquines separados con la facilidad de instalar sólo uno 15.7 in W

39,88 cm

15.7 in L

(26)

This tumbled

Renaissance patio

stone is the perfect

complement to the

Fresco

™

_{accent wall.}

Esta piedra para patio envejecido

Renaissance es el complemento

ideal para la pared decorativa

Fresco

™

_.

(27)

USES

• Patios

• Walkways

• Cap for Fresco

™

_{accent wall}

BENEFITS

• Versatile product for patio settings

• Piece together to create

walkways and paths

USOS

• Patios • Senderos

• Tapa de pared para pared decorativa Fresco™

BENEFICIOS

• Producto versátil para patios

• Colóquelas juntas para crear senderos y caminos

Renaissance Patio Stone

Piedra para patio Renaissance

2.75 in H 6,99 cm Charcoal/Tan #291193

Stack Bond

De unión apilable

Pattern options /

Opciones de diseño

45-degree

Running Bond

Trabazón americana de 45 grados

Running Bond

Trabazón americana

Installation instructions on pages 44-46. /

13.75 in L

34,93 cm

13.75 in W

34,93 cm

Patio Stone

Piedra

Project Sq Ft (L x W) /

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

31

61

76

115

183

305

(28)

All dimensions are nominal. /

28

Tan/Brown #239199 16 in W 40,64 cm 16 in L 40,64 cm 2 in H 5,08 cm

Patio Stone

Piedra

Project Sq Ft (L x W) /

Proyecto m2 _{(largo x ancho)}

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

23

45

57

85

135

225 Random Cobblestone

Adoquín con diseño aleatorio

USOS

• Patios y senderos

BENEFICIOS

• Fácil de instalar

• Una pieza crea la apariencia de adoquines con diseño aleatorio

USES

• Patios and walkways

BENEFITS

• Easy installation

• One piece creates the look of

cobblestone pavers in a

random pattern

(29)

Patio Stone

Piedra

Project Sq Ft (L x W) /

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

23

45

57

85

135

225 12 in Square

/

Cuadrado de 30,48 cm

Red #179560 Gray #179451 12 in W 30,48 cm 12 in L 30,48 cm

Patio Stone

Piedra

Project Sq Ft (L x W) /

Proyecto m2 _{(largo x ancho)}

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

40

80

100

150

240

400 USES

• Patios and walkways

• Grill areas

BENEFITS

• Economical option

• Easy to install

• One-square-foot coverage

per piece

• Contemporary style

USOS

• Patios y senderos • Áreas de parrillas

BENEFICIOS

• Opción económica • Fácil de instalar

• Cobertura de un pie cuadrado por pieza

• Estilo contemporáneo

Installation instructions on pages 44-46. /

2 in H

5,08 cm

16 in Square

/

Cuadrado de 40,64 cm

USES

• Patios and walkways

• Grill areas

BENEFITS

• Economical option

• Easy to install

• Larger piece for more

coverage

• Contemporary style

USOS

• Patios y senderos • Áreas de parrillas

BENEFICIOS

• Opción económica • Fácil de instalar

• Cobertura de un pie cuadrado por pieza

• Estilo contemporáneo

Installation instructions on pages 44-46. /

Gray #179450 16 in W 40,64 cm 16 in L 40,64 cm 2 in H 5,08 cm

(30)

Beautiful pavers,

reminiscent of old

cobblestone, bring a

warm feeling to any

patio, walkway or

driveway.

Los hermosos adoquines, que

evocan a los de antaño, brindan

una sensación de calidez a

cualquier patio, sendero o entrada

de garaje.

(31)

USOS

• Patios, senderos y entradas de garaje

BENEFICIOS

• Duradero: Resiste el agrietamiento y los ciclos de congelación/descongelación

• Opciones de diseño que complementan el estilo de cualquier hogar

USES

• Patios, walkways and driveways

BENEFITS

• Durable — resists cracking and

freeze-thaw weathering

• Pattern options complement

style of any home

Dutch Cobble Pavers

Adoquínes Dutch Cobble

Pattern options /

Opciones de diseño 5.5 in L 13,97 cm 2.38 in H 6,05 cm 5.5 in W 13,97 cm Autumn Blend Square Cuadrado #230406 Autumn Blend Rectangle Rectangulo #230405 8.25 in L 20,96 cm 2.38 in H 6,05 cm 5.5 in W 13,97 cm

Basket Weave

Trenzado tipo cesta

3:1 Running Bond

Trabazón americana 3/1

1:1 Running Bond

Trabazón americana 1/1 Diseño aleatorio 1/1

1:1 Random

Installation instructions on pages 42-46. /

Square: 6 lbs, 1 pc = 0.21 sq ft, 480 pc/pallet / Cuadrado-2,72 kg, 15,90 piezas por metro lineal, 480 piezas/paleta

Pattern

Diseño

Pieces Piezas

Project Sq Ft (L x W) /

Projecto m2 (largo x ancho)

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16) 1:1 Running Bond Trabazón americana 1/1 1:1 Random Diseño aleatorio 1/1 Square Cuadrado Rectangle Rectangulo

77

153

191

286

457

762

3:1 Running Bond Trabazón americana 3/1 Square Cuadrado Rectangle Rectangulo

127

43

254

85

318

106

477

159

762

254 1270

424

Basket Weave

Trenzado tipo cesta

Square Cuadrado Rectangle Rectangulo

48

96

191

120

239

179

358

286

572

477

953 Paver

Adoquín

(32)

A versatile, old-world

paver that is perfect for

many applications.

Un adoquin versátil del viejo

mundo, perfecto para muchas

aplicaciones.

(33)

Holland Pavers

Adoquínes Holland

7.88 in L 20,02 cm 3.88 in W 9,86 cm Red/Charcoal #230380 Charcoal/Tan #231673 Autumn Blend #291189 2.38in H 6,05 cm

Paver

Adoquín Pieces Piezas

Project Sq Ft (L x W) /

Projecto m2 (largo x ancho)

40

(3,72)

80

(7,43)

100

(9,29)

150

(13,94)

240

(22,30)

400

(37,16)

189

378

472

708 1133

1888

6 lbs, 1 pc = 0.21 sq ft, 486pc/pallet / 2,72 kg, 15,60 piezas por metro lineal, 486 piezas/paleta

Pattern options /

Opciones de diseño

Running Bond

Trabazón americana Diseño en espiga

Herringbone

Diseño tipo parquet

Parquet

Installation instructions on pages 42-46. /

USES

• Patios, walkways and driveways

BENEFITS

• Durable: resists cracking and

freeze-thaw weathering

• Use as border, accent row or

soldier course

• Creates a classic look

USOS

• Patios, senderos y entradas de garaje

BENEFICIOS

• Duradero: resiste el agrietamiento y los ciclos de congelación/descongelación • Para usar como borde, fila decorativa o hilada de ladrillos a sardinel

(34)

34 Anchor Edger

™

Bullet Edger

Bordillo de viñeta Anchor Edger

™

3 in H 7.62 cm 4 in W 10,16 cm 12.25 in L 31,12 cm Copper #230449 Red/Charcoal #230448 Charcoal/Tan #233879 Tan/Brown #231674

USES

• Patio, walkway and garden bed edging

BENEFITS

• Easy to install for straight lines

or curves

• For a traditional look

USOS

• Patios, senderos y bordes para macizos de jardines

BENEFICIOS

• Fácil de instalar en línea recta o con curvas • Para una apariencia tradicional

Edger

Bor

dillo

Pieces Piezas

Project Lin Ft /

Proyecto metro lineal

20

(6,09)

30

(9,14)

50

(15,23)

100

(30,46)

200

(60,92)

250

(76,15)

20

30

50

100

200

250

10.5 lbs, 1 pc/lin ft, 300pc/pallet / 4,76 kg, 3.30 piezas por metro lineal, 300 piezas/paleta

Installation instructions on page 47. /

Instrucciones de instalación en la página 59.

(35)

Rivers Edge

™

Edger

_/

_{Bordillo Rivers Edge}

_™

Edger

Bor

dillo

Pieces Piezas

Project Lin Ft /

Proyecto metro lineal

20

(6,09)

30

(9,14)

50

(15,24)

100

(30,48)

200

(60,96)

250

(76,20)

20

30

50

100

200

250

12 lbs, 1 pc/lin ft, 276pc/pallet / 5.44 kg, 3.30 piezas por metro lineal, 276 piezas/paleta

USES

• Patio, walkway and garden bed edging

BENEFITS

• Easy to install — lay end to end

• Natural stone appearance that

accents borders

USOS

• Patios, senderos y bordes para macizos de jardines

BENEFICIOS

• Fácil de instalar: Coloque extremo contra extremo • Apariencia de piedra natural que decora los bordes

Installation instructions on page 47. /

Instrucciones de instalación en la página 59.

3.63 in H 9,22 cm 3.63 in W 9,22 cm Tan/Brown #256420 12 in L 30,48 cm

(36)

36 DIY Retaining Wall Installation

1. Stake Out Wall and Create Trench. Begin by using stakes with a string line (or a garden hose for curved walls) to mark the location of the wall, using the

desired location of the back of blocks as the guide. Use the information below to determine the size of the trench needed, and then dig the trench. The width of the trench should be twice the depth (front to back) of the block.

Example: For block that is 6 inches deep make the trench 12 inches wide.

The depth of the trench should be equal to the height of the block plus compacted base depth (Table 1).

Example: For an exposed wall height of 1'6" and using a 6" high block, dig the trench a total of 9 inches in depth.

2. Add and Compact Base. Remove loose soil and firmly compact the soil in the bottom of the trench with the tamper. Base material can be paver base or

an equivalent to 3_/₄_{-inch minus (with fines) aggregate. Add a 2-inch layer of base material in the bottom of the trench; rake out and firmly compact}

(Fig. 1). Repeat as needed for recommended compacted base depth (reference Table 1).

3. Level Base. Tip: The more level the base material the easier it is to level the block when building the wall. Use a carpenter’s level to level base material

along the trench; check the level every few feet. Add more base material and repeat the process as needed until appropriate compacted base depth is achieved (reference Table 1).

4. Base Course. Tip: This is the most important step in the installation process. Bury the base course block. Use a hammer and chisel to remove the rear

lips from all base course blocks (if applicable). Starting at the lowest elevation, place the first block, making sure the block is level front to back and side to side; lay subsequent blocks in the same manner (Fig. 2). Adjust blocks with a rubber mallet if necessary. For a straight wall, use string line along the back edge of block to check for proper alignment. Fill cores of blocks (if applicable) and backfill trench behind base course with base material. Compact backfill with hand tamper. Fill trench in front of wall with soil and compact. Clean any debris off the top of the blocks before beginning next course.

For slopes, you may need to step up the base (Fig. 3). Make sure the base block is below grade at step-up with adequate base material below block.

5. Lay and Level Wall Blocks. Begin next course by laying a block with the rear lip (if applicable) facing down, in a staggered relationship (running bond)

to the course beneath. Pull each block forward until the lip is securely in contact with the blocks below (Fig. 4). Check each course for levelness and make adjustments with a rubber mallet before continuing. Incorporate drain tile, if required, per building code or site conditions. After each course, fill cores of blocks (if applicable) and backfill behind blocks with drainage aggregate (such as 3_/₄_{-inch angular/crushed free draining aggregate), extending}

12 inches behind the wall. Compact backfill with hand tamper. Repeat until wall height is reached. The last course of blocks can be backfilled with soil to allow for plants or sod.

6. Split/Cut Block. Cutting or splitting blocks may be required for your project.

• To split a block: Use a hammer and chisel to score the block on all sides of the split. Continue to pound the chisel on all score lines until the block

splits (Fig. 5).

• To cut a block: Use a circular saw or tub saw with a diamond blade designed for cutting concrete wall blocks.

• To create a 90-degree mitered corner: Cut a 45-degree angle on two blocks. Glue cut sides together with exterior-grade concrete adhesive so the two faces form the finished outside corner.

Always wear eye protection when sawing blocks.

Read and understand the operating manual before using a saw.

7. Mark, Cut and Glue Cap. To cap the wall, slide the cap forward so the face of the cap overhangs the face of the wall approximately 1 inch or as desired. • For capping straight walls, use a string line as a guide to keep alignment.

• For capping curved walls, cut the caps to follow the radius of the wall. Place a cap at the beginning of the curve, skip a space and place the next cap in the third position. Rest a cap on top of the original two, aligning the face with the adjacent caps. Mark the bottom of the cap along the edges (Fig. 6). Use a circular saw or tub saw with a diamond blade to cut the marked cap.

On a 90-degree corner, two caps need to be saw-cut at a 45-degree angle. At the end of the wall, cut and place the cap so the manufactured edge is exposed. Use an exterior-grade concrete adhesive to secure the caps. If not finishing with caps, glue the top wall course with exterior-grade concrete adhesive. Tip: Planting grass or other vegetation in front of the wall and behind the top of wall will help to reduce the chance of erosion.

Maximum gravity wall heights assume no slope below or above the wall; no surcharge loads (e.g., driveway, parking pad, pool, etc.); block cores (if applicable) are

filled; and all replaced soil is well compacted.

Call 811, Common Ground Alliance, to have utilities marked before starting your project.

Read all instructions prior to installation. Refer to page 41 for reference images of installation materials and tools.

* For exposed wall height limits, follow product’s total wall height (reference product page) and subtract height of block to account for buried base course.

Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6

Table 1

Trench Depth Reference Chart

Exposed Wall Height*

1'6" 2' 3'

Block

Height Compacted Base Depth Total Trench Depth Compacted Base Depth Total Trench Depth Compacted Base Depth Total Trench Depth

6" 3" 9" 4" 10" 6" 12"

5" 3" 8" 4" 9" N/A N/A

4" 3" 7" N/A N/A N/A N/A

3" 3" 6" N/A N/A N/A N/A

(37)

Retaining Wall Project Materials Calculators

1. Plan the length and height of the wall, accurate to nearest inch.

2. Select retaining wall product, then calculate number of blocks needed for project.

3. Calculate base material (paver base or 3_/₄_{-inch minus [with fines] aggregate) needed for project. For blocks with}

through-cores, add 15 percent to the volume of base calculation to account for filling the cores.

calculate exposed area of wall

exposed area of wall (sq. in.)

calculate area of block face

area of block face (sq. in.) minimum # of blocks*

wall length (in.)

______ X ______

=

exposed wall

height (in.) block length (in.)

______ X ______

=

block height (in.)

+

calculate number of blocks needed for buried base course

# of blocks needed for base course

wall length (in.) ______ ______

=

block length (in.)

_:

estimated # of blocks

4. Calculate drainage aggregate (3_/₄_{-inch angular/crushed free-draining aggregate) needed for project. For blocks with}

through-cores, add 15 percent to the volume of drainage aggregate calculation to account for filling the cores.

6. Calculate exterior-grade concrete adhesive needed.

length of courses to glue (lin. ft.)

use approximately 3 ounces of exterior-grade concrete

per linear foot

3

ounces of adhesive

_:

10

=

minimum # of 10-oz. exterior-grade concrete adhesive tubes ounces per linear foot

calculate total length of courses to glue, including cap course

wall length (in.) ______ X ______

12 =

# of courses to glue

=

* It is recommended that you purchase 5 percent more product than estimated to account for cutting and breakage. Add an extra 10 percent for curved walls.

1.05

*

X

_:

5. Select wall cap product, then calculate number of caps needed for project.

calculate linear coverage of cap

wall length (in.) linear coverage of cap (in.) minimum # of caps*

cap length (front) (in.) + cap length (back) (in.)

______

2 =

_:

estimated # of caps

=

1.05

*

X

_:

wall length in inches

X

* It is recommended that you purchase 5 percent more product than estimated to account for cutting and breakage.

=

calculate volume of base

volume of base (cu. in.)

cubic inches of base material

_:

1,728

=

total amount of base material (cu. ft.)

+

calculate volume behind base course

volume behind base course (cu. in.)

block depth (in.) (front to back)

x 2

______ X ______

=

compacted base depth (in.) (Table 1)

x wall length (in.)

block depth (in.) (front to back)

2

______ X ______

=

height of block (in.) x wall length (in.)

+

compensation for compaction (cu. in.) _:

calculate compensation for compaction

volume of base + volume behind base course

______ X

0.25 =

volume behind wall (cu. in.)

X

compensation for compaction

cubic inches of drainage aggregate

_:

1,728

=

total amount of drainage aggregate (cu. ft.) calculate volume

behind exposed wall

wall length (in.) ______ X ______ X

12 =

exposed wall height (in.)

1.25 _:

(38)

38 DIY Fresco™ Freestanding Wall Installation

1. Stake Out Wall and Create Trench. Begin by using stakes with a string line

(or a garden hose for curved walls) to mark the location of the wall. With a shovel, dig a trench 16 inches wide and 8 inches deep (Fig. 1).

2. Add and Compact Base. Remove loose soil and firmly compact the soil in

the bottom of the trench with the tamper. Base material can be paver base or an equivalent to 3_/₄_{-inch minus (with fines) aggregate. Add a}

2-inch layer of base material in the bottom of the trench; rake out and firmly compact (Fig. 2). Repeat as needed for finished compacted base depth of 4 inches.

3. Level Base. Tip: The more level the base material the easier it is to level

the block when building the wall. Use a carpenter’s level to level base material along the trench; check the level every few feet (Fig. 3). Add more base material and repeat the process as needed until appropriate compacted base depth is achieved.

4. Base Course. Tip: This is the most important step in the installation

process. Bury the base course block. Starting at the lowest elevation, place the first block, making sure the block is level front to back and side to side; lay subsequent blocks in the same manner. Adjust blocks with a rubber mallet if necessary. For a straight wall, use string line along the back edge of block to check for proper alignment. Fill trench in front and behind wall with soil and compact. Clean any debris off the top of the blocks before beginning next course.

5. Lay and Level Wall Blocks. Begin next/first course by laying a block

in a staggered relationship (running bond) to the course beneath (if applicable). Check each course for levelness and make adjustments with a rubber mallet before continuing (Fig. 4). Repeat until desired wall height is reached.

6. Split/Cut Block. Cutting or splitting blocks may be required for your

project.

• To split a block: Use a hammer and chisel to score the block on all sides of the split. Continue to pound the chisel on all score lines until the block splits (Fig. 5).

• To cut a block: Use a circular saw or tub saw with a diamond blade designed for cutting concrete wall blocks.

Always wear eye protection when sawing blocks.

Read and understand the operating manual before using a saw.

7. Glue Wall and Cap. Use an exterior-grade concrete adhesive to secure

each block in the top 2 courses (Fig. 6). To cap the wall, place a block perpendicular to the wall and slide the block forward so the face of the cap overhangs the face of the wall approximately 2 inches.

• For capping straight walls, use a string line as a guide to keep alignment.

• For capping curved walls, cut the blocks to follow the radius of the wall. Place a block at the beginning of the curve, skip a space and place the next block in the third position. Rest a block on top of the original two, aligning the face with the adjacent blocks. Mark the bottom of the block along the edges. Use a circular saw or tub saw with a diamond blade to cut the marked block.

Use an exterior-grade concrete adhesive to secure cap course (Fig. 7). Tip: For any cut edges on the block, chip the edges with a hammer to maintain a tumbled appearance.

Maximum gravity wall heights assume no slope below or above the wall;

no surcharge loads (e.g., driveway, parking pad, pool, etc.); block cores (if applicable) are filled; and all replaced soil is well compacted.

Call 811, Common Ground Alliance, to have utilities marked before starting your project. Read all instructions prior to installation. If building on top of existing paver or concrete base, make sure it is clean and level, then start with step 5.

Installation materials and tools needed (reference images on page 41):



Gloves



Stakes



String line



Garden hose



Tape measure



Shovel



Tamper



Rake



Paver base or an equivalent to 3_/₄_{-inch minus (with fines) aggregate}



Carpenter’s level



Hammer



Chisel



Level



Rubber mallet



Circular saw or tub saw



Diamond blade designed for cutting concrete wall blocks



Safety glasses



Exterior-grade concrete adhesive



Carpenter's pencil Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7
