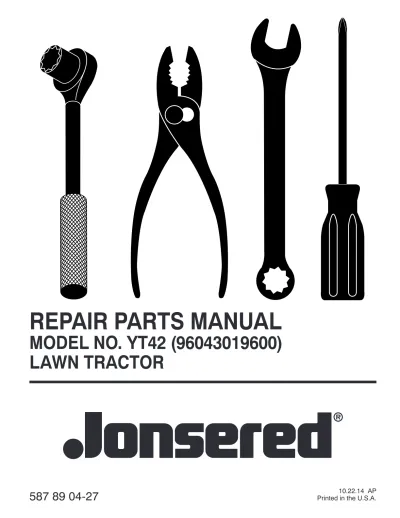

REPAIR PARTS MANUAL
MODEL NO. YT42 (96043019600)
LAWN TRACTOR
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “TRACTOR”
• MODEL NUMBER - “YT42" (96043019600)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ... 3
ELECTRICAL ...4-5
CHASSIS ...6-7
DRIVE...8-9
ENGINE ...10-11
STEERING ...12-13
MOWER DECK ...14-15
MOWER LIFT ... 16
SEAT ... 17
DECALS ... 18
SCHEMATIC
M
FUSE
STARTER SOLENOID
BATTERY
CLUTCH/BRAKE (PEDAL UP)
REVERSE SWITCH (NOT IN REVERSE)
SEAT SWITCH (NOT OCCUPIED)
SHORTING CONNECTOR CHASSIS
HARNESS
IGNITION UNIT
HOUR METER FUEL
LINE
FUEL SHUT-OFF SOLENOID (IF SO EQUIPPED)
JUNCTION CONNECTOR
S M
B G L
2 3 1 6 A2
A1
M
6 3
5 2
4 1
6 5 4
3 2 1
SPARK PLUGS GAP (2 PLUGS ON TWIN CYL. ENGINES) (OPTIONAL)
NON-REMOVABLE CONNECTIONS
REMOVABLE WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR SERVICING OF UNIT, THEY SHOULD BE RE-INSTALLED TO PROPERLY SECURE YOUR SCH11
IGNITION SWITCH CIRCUIT POSITION
OFF
B+A1
RUN/OVERRIDE
B + S + A1 START
M+G+A1
B+A1 RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH (CLUTCH OFF)
BLACK BLACK/WHITE
BLUE
BLUE BLACK
BLACK BLACK
BLACK BLACK BLACK
BLACK
BLACK D
E R RED
WHITE WHITE
GRAY
GRAY
BLACK BLACK
POWER OUTLET (OPTIONAL)
12V
BLACK A
AMMETER (OPTIONAL)
RED
BLACK BROWN
HEADLIGHTS
LIGHT SWITCH ORANGELIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM (CHARGING SYSTEM DISCONNECTED) CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT CONNECTED TO THE BATTERY, BUT HAVE THEIR OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
ELECTRICAL
30 33
34
22
79 21
26
40
71 16
TR02S
90
28 55
With Service Minder Option
46 46
2
43 27 99
87
106 29
102
105 With Charge Indicator Option
142
(+) (-)
143
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm 1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd. 1/4-20 unc x 3/4 8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In 21 532 40 02-52 Harness Socket Light w/4152J 22 532 00 41-52 Bulb Light
25 581 49 80-01 Cable Starter 26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc 28 532 42 16-86 Cable, Ground
29 532 40 15-45 Switch, Seat 30 532 19 33-50 Switch, Ign.
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset 40 581 02 31-01 Harness Ign. Dash 43 532 19 25-07 Solenoid
46 586 16 18-01 Gauge Service Reminder
55 817 06 05-12 Screw Thdrol. 5/16-18 x 3/4 TYTT 71 581 02 30-01 Harness Ign. Chassis
79 532 17 52-42 Bulbholder Asm. Incandescent 87 532 19 78-02 Switch Interlock Clutch
90 532 43 53-95 Cover Terminal Battery 99 817 67 04-12 Screw
102 532 40 44-54 Harness Pigtail
105 532 40 75-68 Switch Reverse
106 532 17 48-14 Pal Nut
CHASSIS
68
68
68
183 68
183
236
236 34
235 235
130 151
25 15
68
68 213
218 225
130
130 150
14
314 203
315 202
18
130
52 217 189
228
228 194
159
180 177 175 176
176 182
195 176 176
237
237
176 176
5
181 138
162 287
181 37
194
194 36
196 36
297
191
306
125
146
CHASSIS
KEY PART
NO. NO. DESCRIPTION 5 532 44 18-82 Dash
14 587 89 98-01 Hood 15 587 89 86-01 Lens LH 18 587 78 54-01 Grille 25 587 89 84-01 Lens RH 34 580 91 08-01 Plate Engine 36 817 06 05-12 Screw 5/16-18 x 3/4 37 532 44 34-76 Fender
52 873 68 05-00 Nut Lock 5/16-18
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 125 581 68 48-01 Clip Fuel Line
130 532 41 63-58 Screw #10 x 0.750 138 532 40 97-30 Cupholder
146 581 85 79-01 Bolt 150 584 86 29-01 Air Duct 151 532 44 54-94 Bracket Pivot 152 532 19 95-35 Shield Browning
159 817 00 06-12 Screw Hexwsh Thrd 3/8-16 x 3/4 162 532 14 24-32 Screw
175 532 19 63-04 Crossmember 176 532 40 07-76 Screw 10-24 x 5/8 177 532 19 52-27 Bushing Steering 180 532 19 54-57 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo 182 532 40 68-59 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4 189 817 00 05-12 Screw
191 532 42 54-07 Insert Reflective RH NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
194 873 90 05-00 Nut Lock Hex Flange 5/16-18 195 532 40 41-37 Plug Hole Dash Lower 196 532 41 45-79 Console Asm. Deck Lift 202 587 78 52-01 Vent Side Hood RH 203 587 78 51-01 Vent Side Hood LH 213 874 76 05-12 Bolt 5/16-18 x 3/4 217 532 40 91-67 Rod Pivot
218 532 19 63-95 X-Piece Hood Stop 225 587 89 81-01 Bumper Pred 228 532 19 51-61 Stud Fastner 235 532 40 61-29 Spacer Fender 236 873 93 05-00 Nut Lock 5/16-18 unc 237 532 40 37-04 Plug Mount
287 817 60 04-06 Screw 1/4-20 x 3/8 297 532 42 54-06 Insert Reflective LH 306 873 90 06-00 Nut Lock
314 587 77 71-01 Trim Hood Side LH 315 587 77 70-01 Trim Hood Side RH KEY PART
NO. NO. DESCRIPTION
DRIVE
52
51
170 171
225 125
2
2 116 33
230
183
183 205
116 56
213 221
160
206
26 207
209
92 125
116
64
188
161 163 35
184
167
160 42
29 15
159 159
221
185 208
210 125 214
215 153
166 211 211
222
17 153
216
143
186 189
49 187
50
51
52
51 190
325
326 336
125 125
227
116
DRIVE
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm 1 – – – – – – Transaxle, TuffTorq K46BT (426120)
(Order parts from transaxle manu- facturer)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake 26 532 19 96-79 Spring Return Cruise 29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 583 86 45-01 Rod, Brake, Park 42 532 12 48-72 Cover, Foot Pedal 49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat 51 873 90 06-00 Lock Nut 3/8-16 52 532 19 43-26 Idler V-Groove 56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control 73 874 49 05-40 Bolt Hex 5/16-18 x 2 1/2 G.5 92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25 99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18 125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2 153 532 12 47-88 Retainer Spring 1"
159 876 02 04-12 Pin Cotter 1/8 x 3/4 160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch 163 532 44 82-75 Rod Control
166 532 42 91-64 Nut Push
167 532 40 52-57 Latch Brake Parking 170 532 19 43-22 Keeper V-Idler KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION 171 872 11 06-16 Bolt 3/8-16 unc x 2 183 532 13 70-57 Spacer Axle
184 587 65 37-01 Handle Parking Brake 185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer 187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive 189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive 205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
206 532 44 85-96 Bracket Mount Latch Cruise 207 532 19 78-68 Latch Control Cruise 208 532 19 78-69 Gear Sector Control Cruise 209 532 19 95-92 Rod Control Cruise
210 532 40 09-80 Rocker Asm. Pedal Control 211 532 12 01-83 Bearing Nylon
213 532 40 31-19 Knob Control Cruise 214 532 42 12-63 Pedal Forward 215 532 40 17-23 Pedal Reverse 216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle 222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
225 532 40 33-19 Keeper Belt Transaxle 227 817 49 05-12 Screw 5/16-18 x 3/4 230 532 18 89-67 Washer .793 x 1.637 x 060 325 585 66 85-02 Torque Strap K46 LT RH
326 585 67 08-02 Bracket TRQ STP 46 20" Tire RH
336 587 25 96-01 Bolt 5/16 - 18 x 1-3/4 Flanged
1
84
29
SPARK ARRESTER KIT
84 45 21
20 62
71 70
79 69
87
2
engine-tex_bs-2cyl_71
90 9
12
42
85 18
15
37 28 97
96
37
82 81
111
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
1 – – – – – – Engine B&S Model No. 44R877- 0003-G1 (585700301) (Order parts from engine manufacturer.)
2 532 14 97-23 Muffler
9 584 90 80-01 Keeper Belt Engine 12 532 40 54-71 Pulley Engine 15 532 43 30-07 Tank Fuel 18 581 17 61-01 Cap Fuel 20 532 42 35-02 Control Throttle 21 532 41 63-58 Screw # 10 x 0.750 28 532 40 11-37 Fuel Line
29 532 13 71-80 Spark Arrester Kit 37 532 12 34-87 Clamp Hose 42 810 04 07-00 Washer Lock 7/16 45 873 51 04-00 Nut Keps Hex 1/4-20 unc 62 532 43 40-17 Shield Heat
69 532 16 53-91 Gasket
70 581 88 11-01 Exhaust Tube LH 71 581 88 10-01 Exhaust Tube RH
79 532 18 39-06 Screw Socket Hd. 5/16-18 x 1 81 532 14 84-56 Tube Drain Oil Easy
82 532 42 82-87 Valve Oil Drain 84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr 87 537 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems 90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4 111 532 41 41-19 Purge Line Carb 3/16
ENGINE
For engine service and replacement parts, call the toll free number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive En- gineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operat- ing conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this
Series engine.
STEERING ASSEMBLY
6
5
13
13
53 8 9
9
8 8
7 7
62 4
35
19 60
59
58
70 68
69
67 67
66
15
15 14
14 61
2
6
steering-tex_STDSRR_1_r3 16
28 13 22
64
21 51
26
1 45
20
57 63 57
63
122
122
KEY PART
NO. NO. DESCRIPTION 1 532 42 41-46 Wheel, Steering 2 532 19 59-68 Axle Cast Iron 4 532 40 30-87 Spindle Asm., LH 5 532 40 30-88 Spindle Asm., RH 6 532 12 49-31 Washer, Thrust
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75 9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8 15 873 54 06-00 Nut, Crown Lock 3/8-24 unf 16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering 20 532 42 47-40 Steering Boot
21 532 18 67-37 Adapter, Wheel Steering 22 532 42 05-37 Steering Support 26 532 42 41-47 Insert, Wheel Steering 28 817 00 06-12 Screw 3/8-16 x 3/4 35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 ID x 2-3/8 OD 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf 53 532 18 89-67 Washer Hardened .793 x 1.637 x .060 57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM 59 532 19 47-48 Washer Thrust Sector Steering 60 873 97 10-00 Nut Flange Lock 5/8-11 61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH 63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering 66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr 67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5 69 532 19 91-62 Washer 1.5 x .505 x .118 70 585 33 88-01 Bracket Deck Susp. Front 122 532 44 49-62 Cap Gear
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
STEERING ASSEMBLY
MOWER DECK
41 43
42
60
38
63 46
147 55
64
47 192
41 41
32 38
31 34 33
56
56 57
59
62
188 189 1
69 40
145
42_D_man-tex_LT_35_r2
15
14
13
11 8
21
24 25
26
27 29
23
189 188 144 113 36
113
40 57
19
19 6
6
242 241
21 21
69 69
20
117
116 40
119 40
117 119 116
195 195
122
123 68
70 7 37 7
67
152
9 46
10 46
21
117 119 116
2 111
40 113
40
21
2 112
MOWER DECK
1 587 89 99-01 Mower Weldment 2 872 14 05-06 Bolt 5/16-18 unc x 3/4
6 532 19 51-86 Arm Suspension Mower Rear Ld 7 532 41 63-58 Screw #10 x 0.750
8 532 19 30-03 Bolt/Washer Asm 7/16-20 Unf 9 532 40 55-06 Cover Mandrel RH
10 532 40 55-07 Cover Mandrel LH
11 532 13 89-71 Blade Mower 42"Hi Lift Premium 13 532 19 28-72 Shaft Asm Mndrl N/Greaseable 38 14 532 18 72-81 Housing Mandrel 4Pt Service 15 532 11 04-85 Bearing Ball Mandrel
19 532 19 65-39 Bolt Shoulder
20 532 15 97-70 Baffle Vortex 42 Std/Heavy Dty 21 873 68 05-00 Nut, Hex, Crownlock 5/16-18 23 532 19 25-57 Bracket Deflector 38/42"2005 24 532 10 53-04 Cap Sleeve .80 x .112 Blk Mower 25 532 19 70-26 Spring Torsion Dfl 38/42/46 Gr 26 532 11 04-52 Nut Push Phos & Oil
27 532 40 30-04 Shield Deflector Mower 42"Blk 29 532 13 14-91 Rod Hinge 42/46"
31 532 18 76-90 Washer Spacer Mandrel 32 532 19 74-73 Pulley Mandrel
33 532 40 02-34 Nut Flange Lock Top
34 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 36 532 19 73-79 Pulley Idler 4 50 Raw
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
38 532 43 25-20 Keeper Belt Mandrel Pulley 40 873 90 06-00 Nut, Hex, Flangelock 3/8-16 41 584 95 39-01 Bolt Hex
42 532 19 84-10 Spring Torsion
43 532 19 72-56 Spring Torsion Retainer 46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8 47 532 19 72-50 Bracket Clutch Cable 55 532 43 71-10 Idler Arm
56 532 19 90-92 Spacer Retainer
57 817 00 06-16 Screw 3/8-16X1 Smgml Tap/R Blk 59 532 14 10-43 Guard Tuv Idler
60 532 19 72-61 Arm Brake Mower
62 872 11 06-16 Bolt Rd Hd Sq Nk 3/8-16 unc x 2 63 532 19 94-77 Arm Brake Mower
64 532 19 99-18 Linkage Brake 67 532 40 30-12 Handle Clutch Cable 68 532 42 96-36 Belt Drive
69 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 x 5/8 70 532 19 99-72 Clutch Asm Manual
111 532 40 47-84 Bracket Wheel Guage LH 112 532 40 47-85 Bracket Wheel Guage RH 113 817 00 05-10 Bolt 5/16-18
116 532 12 48-42 Bolt Shld "A"2.41 "B"1.66 117 532 18 86-06 Wheel Gauge Half Spoked 119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH 123 532 19 72-59 Keeper Belt Engine RH 144 532 19 92-04 Keeper Belt Mower 145 532 19 31-97 Pulley Idler
147 532 40 19-71 Spring Return 152 584 24 35-01 Cable Clutch Manual
188 532 19 51-61 Stud Fastner W/'D'anti-Rotation 189 873 90 05-00 Nut, Lock Hex Flange 5/16-18 unc 192 532 19 72-60 Bracket Brake Stand
195 817 00 05-12 Screw 5/16-18X3/4 241 532 15 29-27 Screw
242 532 41 55-98 Port Washout
- - 532 41 64-05 Coupling Quick Connect
- - 532 19 28-70 Mandrel Assembly (Includes Hou- sing (Key #14), Shaft Assembly (Key #13), And Bearing (Key #15) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) - - 587 89 06-01 Deck Svc 42"Hp E 2Gwb Tex 668 KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
MOWER LIFT
7
3
87
10
88
2 17
90 98
97
97
lift-tex_40 *Key 91 may be substituted for Key 101
91
101*
87 100
89
89 87
2 532 42 20-27 Shaft Asm., Lift 3 532 19 52-31 Lever Asm., Lift RH 7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
17 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Center Lock 3/8-16 unc
101 532 40 70-03 Link Asm Lift Fixed
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
SEAT ASSEMBLY
1 532 40 66-25 Seat
2 532 18 01-66 Bracket Pivot Fender 3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc 7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems 10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18 37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat 41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4 44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm 2
6 1
40
10
37 37
21 21
3 41
7 8
7 8
seat-tex_6.5SL_3
44 43
8 8
6
DECALS
6 2
1
11 3
4 10
5 9
8 7
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION 1 532 05 91-92 Cap Valve Tire 2 532 06 51-39 Stem Valve 3 532 13 83-36 Rim Front
4 532 05 99-04 Tube Front (Service Item Only) 5 532 10 62-22 Tire Front 15 x 6-6
6 532 12 49-57 Fitting Grease (Front Wheel Only) 7 532 12 49-59 Bearing Flange (Front Wheel Only) 8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 13 84-68 Tire Rear 20 x 8-8
10 532 12 49-26 Tube Rear (Service Item Only) 11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube) 1 581 57 89-01 Decal, Fender Warning
2 587 67 54-01 Decal, Fender Logo 3 587 73 15-01 Decal, Strwheel 4 587 56 08-01 Decal, Deck
6 587 64 75-01 Decal, Replacement 7 585 55 68-01 Decal, Engine HP 8 584 90 46-01 Decal, Deflect. Warning
9 532 14 50-05 Decal, Battery Dnge/Poi 12 581 58 00-01 Decal, Mower V-Belt Schematic - - 581 72 48-01 Decal, Bypass
- - 532 40 95-05 Pad, Footrest, LH - - 532 40 95-07 Pad, Footrest, RH
- - 587 89 04-26 Manual, Operator's (Eng./Span.) - - 587 89 04-27 Manual, Part's (Eng./Span.)
9
12 4
7
3 6
8
2
1
MANUAL DE REPUESTOS
MODELO NO. YT42 (96043019600)
TRACTOR PARA CÉSPED
COMO UTILIZAR ESTE MANUAL
Este manual está diseñado para brindarle al comprador un medio para identificar las piezas del tractor para cuando necesite hacer el pedido de un repuesto. Las ilustraciones pueden o no representar los ensambles reales; por lo tanto, no se recomienda utilizar este manual como una guía para ensamblar o desarmar el tractor. Algunos accesorios y piezas están dibujados en tamaños más grandes para identificarlos con mayor facilidad.
Cada tractor tiene su propio número de modelo.
El número de modelo del tractor se encuentra en el guardabarros debajo del asiento.
Cuando haga el pedido de una pieza, siempre brinde la siguiente información:
• Producto: ”TRACTOR”
• NÚMERO DE MODELO: “YT42” (96043019600)”
• Número de pieza
• Descripción de la pieza
ÍNDICE
DIAGRAMA ... 3
DIAGRAMA ELÉCTRICO ...4-5
CHASIS ...6-7
TRANSMISIÓN ...8-9
MOTOR ...10-11
DIRECCIÓN ...12-13
PLATAFORMA DE LA CORTADORA DE CÉSPED ...14-15
ELEVACIÓN DE LA CORTADORA DE CÉSPED ... 16
ASIENTO ... 17
CALCOMANÍAS ... 18
DIAGRAMA
FUSIBLE
MOTOR DE ARRANQUE SOLENOIDE
BATERÍA
ACCESORIO DEL EMBRAGUE (EMBRAGUE DESCONECTADO)
EMBRAGUE/FRENO (PEDAL HACIA
ARRIBA)
INTERRUPTOR DE REVERSA (NO EN REVERSA)
INTERRUPTOR DEL ASIENTO (LIBRE)
CONECTOR DE CORTOCIRCUITOS ARNÉS DEL
CHASIS
UNIDAD DE ENCENDIDO
INTERRUPTOR DE LUZ
LUCES FRONTALES LÍNEA DE
COMBUSTIBLE
SOLENOIDE DE CIERRE DE COMBUSTIBLE (SI ESTÁ EQUIPADO CON ESTE)
CONECTOR DE UNIÓN
S M
B G L A2
A1
M
14 VOLTIOS DE CC A 3600 RPM (LUCES APAGADO) SALIDA DEL SISTEMA DE
CARGA DE 3 AMPERIOS DE CC A 3600 RPM
SISTEMA DE LUCES POTENCIA DE SALIDA 5 AMPERIOS AC @ 3600 RPM
28 VOLTIOS AC @3600 RPM (SISTEMA DE CARGA DESCONECTADO)
(OPCIONAL)
CONEXIONES NO DESMONTABLES
CONEXIONES NOTA SOBRE LAS ABRAZADERAS DE
AISLAMIENTO DEL CABLEADO: SI SE QUITAN LAS ABRAZADERAS DE AISLAMIENTO DEL CABLEADO PARA HACER EL MANTENIMIENTO DE LA UNIDAD, SE LAS DEBERÁ INSTALAR NUEVAMENTE PARA PROTEGER EL CABLEADO ADECUADAMENTE.
TOMACORRIENTE DE 12 VOLTIOS (OPCIONAL) MEDIDOR
DE AMPERIOS (OPCIONAL)
NARANJA
ROJO
MARRÓN
AZUL
AZUL
NEGRO NEGRO
DIODO ALTERNADOR
NEGRO NEGRO
NEGRO/BLANCO
NEGRO
NEGRO NEGRO
NEGRO NEGRO
NEGRO
NEGRO
BLANCO BLANCO
SCH11-s
GRIS
GRIS
NEGRO NEGRO
ROJO ROJO
CONTADOR HORARIO
SEPARACIÓN DE LAS BUJÍAS (DOS BUJÍAS EN LOS MOTORES BICILÍNDRICOS)
INTERRUPTOR DE ENCENDIDO
B+A1
B + S + A1 M+G+A1
B+A1 L+A2 POSICIÓN CIRCUITO «MARCA»
APAGADO PONER EN FUNCIO- NAMIENTO/ANULAR PONER EN FUNCIO- NAMIENTO
ARRANCAR
12V
NOTAS:
QUE SU TRACTOR ES EQUIPADO CON UN SISTEMA ESPECIAL DE ALTERNADOR. LAS LUCES NO SON CONECTADAS A LA BATERIA, PERO TIENEN SU PROPIA FUENTE ELECTRICA. A CAUSA DE ESTO, EL BRILLO DE LAS LUCES CAMBIARA CON LA VELOCIDAD DE MOTOR. EN LENTO, LAS LUCES NO SON COMO
BRILLANTES. CUANDO EL MOTOR ES ACELERADO, LA LUZ
CONSEGUIRÁ MÁS BRILLANTE.
6 3
5 2
4 1
6 5 4
3 2 1
