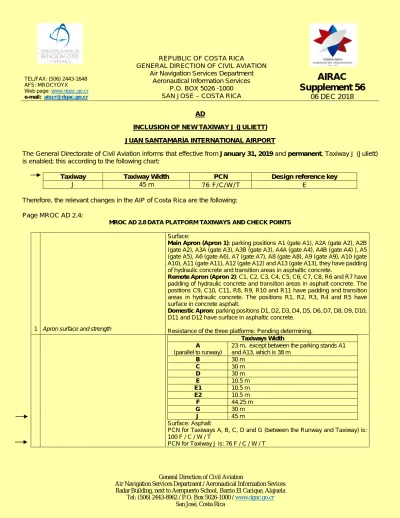

AIRAC Supplement DEC 2018

(1)

REPUBLIC OF COSTA RICA

GENERAL DIRECTION OF CIVIL AVIATION

Air Navigation Services Department

Aeronautical Information Services

P.O. BOX 5026 -1000

SAN JOSE – COSTA RICA

TEL/FAX: (506) 2443-1648 AFS: MROCYOYX Web page: www.dgac.go.cr e-mail: [email protected]

AIRAC

Supplement 56

06 DEC 2018

General Direction of Civil Aviation

Air Navigation Services Department / Aeronautical Information Sevices Radar Building, next to Aeropuerto School, Barrio El Cacique, Alajuela

Tel: (506) 2443-8962 / P.O. Box 5026-1000 / www.dgac.go.cr San José, Costa Rica

AD

INCLUSION OF NEW TAXIWAY J (JULIETT)

JUAN SANTAMARÍA INTERNATIONAL AIRPORT

The General Directorate of Civil Aviation informs that effective from January 31, 2019 and permanent, Taxiway J (Juliett)

is enabled; this according to the following chart:

Taxiway

Taxiway Width

PCN

Design reference key

J 45

m

76 F/C/W/T

E

Therefore, the relevant changes in the AIP of Costa Rica are the following:

Page MROC AD 2.4:

MROC AD 2.8 DATA PLATFORM TAXIWAYS AND CHECK POINTS

1 Apron surface and strength

Surface:

Main Apron (Apron 1): parking positions A1 (gate A1), A2A (gate A2), A2B

(gate A2), A3A (gate A3), A3B (gate A3), A4A (gate A4), A4B (gate A4) ), A5 (gate A5), A6 (gate A6), A7 (gate A7), A8 (gate A8), A9 (gate A9), A10 (gate A10), A11 (gate A11), A12 (gate A12) and A13 (gate A13), they have padding of hydraulic concrete and transition areas in asphaltic concrete.

Remote Apron (Apron 2): C1, C2, C3, C4, C5, C6, C7, C8, R6 and R7 have

padding of hydraulic concrete and transition areas in asphalt concrete. The positions C9, C10, C11, R8, R9, R10 and R11 have padding and transition areas in hydraulic concrete. The positions R1, R2, R3, R4 and R5 have surface in concrete asphalt.

Domestic Apron: parking positions D1, D2, D3, D4, D5, D6, D7, D8, D9, D10,

D11 and D12 have surface in asphaltic concrete. Resistance of the three platforms: Pending determining.

Surface: Asphalt

PCN for Taxiways A, B, C, D and G (between the Runway and Taxiway) is: 100 F / C / W / T

PCN for Taxiway J is: 76 F / C / W / T

Taxiways Width A

(parallel to runway)

23 m, except between the parking stands A1 and A13, which is 38 m

(2)

REPUBLIC OF COSTA RICA

GENERAL DIRECTION OF CIVIL AVIATION

Air Navigation Services Department

Aeronautical Information Services

P.O. BOX 5026 -1000

SAN JOSE – COSTA RICA

TEL/FAX: (506) 2443-1648 AFS: MROCYOYX Web page: www.dgac.go.cr e-mail: [email protected]

AIRAC

Supplement 56

06 DEC 2018

General Direction of Civil Aviation

Air Navigation Services Department / Aeronautical Information Sevices Radar Building, next to Aeropuerto School, Barrio El Cacique, Alajuela

Tel: (506) 2443-8962 / P.O. Box 5026-1000 / www.dgac.go.cr San José, Costa Rica

-2-

2 Taxiways width, surface and strength

F: Type of pavement (FLEXIBLE)

C: Sub-grade Category (CBR O 5 = "LOW") W: Permissible tire pressure (W = "No limitations") T: Evaluation method (Technique)

3 Altimeter checkpoint location and elevation

MET Office

Elevation: 1.50 m approx.

4 VOR checkpoints

Located at holding bay of Runway 07, on 115.7 frequency, R064º, and distance 1NM.

Coordinates: 09°59´27.2”N 084°13´16.0”W

5 INS checkpoints NIL

6 Remaks

To the entrance of the Domestic Apron (North side of the taxiway E) there is an aircraft waiting area. This area is designed for a single standby position and for aircraft with a wingspan equal or less of 19 m.

Maintenance of green areas on the strip of the runway and taxiways between 1200 UTC and 2300 UTC, coordinated with the Control Tower.

Concerning the positions of the main apron (Apron 1) the air traffic service will provide information to the crews regarding the boarding gate (not referring to the parking position).

ATTACHED:

 Aerodrome Chart MROC AD 1

 Landing Chart MROC AD 3

 Birds Concentration Chart MROC AD 12

 Declared Distances MROC AD 16 (It replaces Chart MROC AD 16 date 12JUN17 AIP of Costa Rica)

REPLACE INFORMATION OF PÁG. 4 FROM SUPPLEMENT A51/18:

Page MROC AD 2.4:

MROC AD 2.8 DATA PLATFORM TAXIWAYS AND CHECK POINTS

REPLACE CHARTS FROM SUPPLEMENT A51/18:

 Aerodrome Chart MROC AD 1

 Landing Chart MROC AD 3

(3)

AERODROME CHART

COCO ACC (R) 119.6 127.3ATIS COCO APP (R) 120.5 COCO TWR118.6 GROUND121.9

AIS / MAP

31 JAN 19

ALAJUELA/COSTA RICA

JUAN SANTAMARIA INTL

VOR TIO 115.7 DIRECCION GENERAL DE AVIACION CIVIL COSTA RICA Var 1º E 2009 07 25 248 ° 068 ° N 09º 59' 20.68131'' W 084º 13' 18.32249'' W 084º 11' 45.80721'' N 09º 59' 55.28188'' DIRECTION RWY _{COORD WGS-84}THR

MROC AD 1

COSTA RICA

AIP

W 084 ° 12' 31.8819'' N 09 ° 59' 38.05117'' ARP 25 248 ° DISPL THR _{N 09°59'49.60796''} W 084°12'00.98001''

AIRAC SUP 56 / 18

PROHIBITED 180º TURNS ALONG

RUNWAY 07/25 TO ALL AIRCRAFT WITH A MAXIMUM TAKE-OFF WEIGHT GREATHER THAN 25.000 LB, EXCEPT WHEN AUTORIZED BY ATC.

DIMENSIONS IN METERS ALTITUDES AND ELEVATIONS IN FEET WGS 84 COORDINATES SCALE 1:12.000 0 500 m -500 -250 0 500 -500 -250 m SCALE 1:14.500 SCALE 1:12.000 SCALE 1:12.000

LIGHTING AIDS RWY 07 / 25

07

25

A

D

C

B

G

A

E

F

J

D

C

B A2B A5 A6 A7 A8 A9 A10 A11 A12 A1

G

R1 R4 R5 R6 R3 R2 R7

07

IOCO 109.5

25

LIGHTING SYSTEM C1 C2 C3 C4 C5 C6 C7 C8 C10 C11 R8 R9 R10 R11

F

ILS - LOC N 09º 59' 34.52990" W 84º 12' 57.16367'' HELIPORT 3011 m x 45 m Elev 896 Elev 923 Elev 929

A

DOMESTIC APRON AIRPORT ADMINISTRATIONBUILDING BUILDING

A

BUILDING FIRE STATION SVA APRON

(4)

LANDING CHART

COCO ACC (R)119.6 127.3ATIS COCO APP (R)

120.5 COCO TWR118.6 SUPERFICIE121.9

AIS / MAP

ALAJUELA/COSTA RICA

JUAN SANTAMARIA INTL

VOR TIO 115.7 DIRECCION GENERAL DE AVIACION CIVIL 07 25 N 09º 59' 20.68131'' W 084º 13' 18.32249'' W 084º 11' 45.80721'' N 09º 59' 55.28188'' DIRECTION RWY _{COORD WGS-84}THR

COSTA RICA

AIP

25 DISPL THR 0 500 -500 -250 m 248 ° 068 ° 248 ° N 09°59'49.60796'' W 084°12'00.98001'' W 084 ° 12' 31.8819'' N 09 ° 59' 38.05117'' ARP Var 1º E 2009

AIRAC SUP 56 / 18

31 JAN 19

PROHIBITED 180º TURNS ALONG RUNWAY 07/25 TO ALL AIRCRAFT WITH A MAXIMUM TAKE-OFF WEIGHT GREATER THAN 25.000 LBS. EXCEPT WHEN AUTHORIZED BY ATC.

Dimensions in Meters. Altitudes and Elevations in Meters. WGS 84 Coordinates

GRAPHIC SCALE

1

Hot Spots, see page AIP_{MROC AD 2.15.}

1

Parking stands.

Simbology

HIRL MALSR REIL PAPI (ANGLE 3º)

3 y 4 07 1 y 2 25 RWY HIRL 3.2 km 3.2 km B 3.6 km 800' 4.4 km C D ALTERNATIVE MINIMUMS VOR RWY 07 800' USAGE LENGHT TAKE OFF RUNWAY ADDITIONAL INFORMATION

PRECISION A 600' GLIDE PATH 8258' 2517 m LANDING THRESHOLD 8759' 2670 m 800' NO PRECISION 45 m WIDTH 148'

TAKE OFF MINIMUMS WEATHER TAKE OFF MINIMUMS RWY 07 TAKE OFF MINIMUMS RWY 25 ENGINES ENGINES 1000 / 4300 200 / 800 200 / 1200 400 / 1600 FEET / METERS APPROACH LIGHT OPERATIVE SYSTEM GP INOPERATIVE APPROACH LIGHT INOPERATIVE SYSTEM

FEET / METERS FEET / METERS FEET / METERS

DELTA

CHARLIE

BRAVO

GOLF

R1 R4 R5 R6 R3 R2 R7

07

25

C1 C2 C3 C4 C5 C6 C7 C8 C10 C11 R8 R9 R10 R11

FOXTROT

3011 m x 45 m Elev 923 Elev 929

ALFA

Elev 896 EDIFICIO

ALFA

TIO 115.7 064° 1 NM R-064 1.0 DME N 09º 59' 27.2" W 84º 13' 16.0'' TERMINAL COOPESA

ECHO

ARP TDZE W 84° 13' 08.7'' N 09° 59' 24.2''

1

6

2

7

8

4

N 09º 59' 34.52990" W 84º 12' 57.16367''

5

3

ECHO 1 ECHO 2 A2B A5 A6 A7 A8 A9 A10 A11 A12 A1 A2A A3BA3A A4B A4A A13 C9

JULIETT

DOMESTIC APRON BUILDING ADMINISTRATION AIRPORT BUILDING BUILDING FIRE STATION SVA APRON
