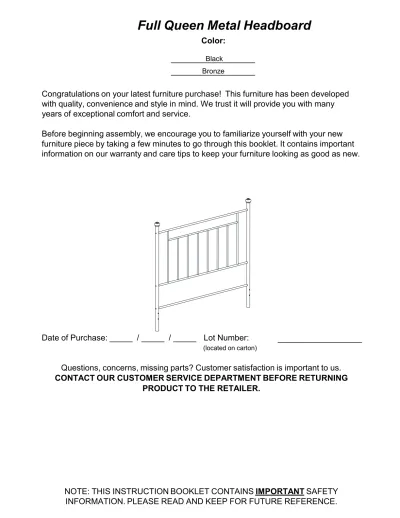

Full Queen Metal Headboard
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a few minutes to go through this booklet. It contains important information on our warranty and care tips to keep your furniture looking as good as new.
Date of Purchase: _____ / _____ / _____ Lot Number:
(located on carton)
PRODUCT TO THE RETAILER.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Color:
Black Bronze
Congratulations on your latest furniture purchase! This furniture has been developed with quality, convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service.
Questions, concerns, missing parts? Customer satisfaction is important to us.
CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model number, color and a detailed description of your enquiry.
NOTES AND INSTALLATION
* Ensure all parts and components are present before beginning assembly.
* Assemble on a soft, smooth surface to prevent damage to the product finish.
* Read all instructions before use.
* DO NOT use power tools.
* CAUTION: Adult assembly required.
* Assembly may require two people.
* NOTE: Bed frame is not included and must be purchased separately.
* Estimated assembly time is 45-60 minutes
CARE, CLEANING AND MAINTENANCE
Dust this item regularly with a soft, lint-free cloth to prevent soil build up. Do not soak or wash in hot water. Wipe with a soft, damp cloth if necessary. Do not use abrasives, cleansers or polish.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
WARNING: Should this product become damaged, and/or components are broken or missing, DO NOT USE.
LIMITED WARRANTY
PARTS LIST
A B C
POST HEADBOARD PANEL STRETCHER
2 PCS 1 PC 1PC
D E
FINIAL ADAPTER PLATE
2 PCS 2 PCS
Full Queen Metal Headboard
HARDWARE LIST
1 2 4
Ø1/4"*2" Ø1/4"*1-1/4" M4
BOLT THREADED PIN ALLEN KEY
10 PCS 2 PCS 1 PC
BED FRAME HARDWARE (TWIN SIZE BED)
3 5 6
Ø 1/4"*11mm*8mm Ø 6.5mm*Ø16mm*1mm
NUT ALLEN WRENCH WASHER
8 PCS 1 PC 8 PCS
7
Ø1/4"*1/2"
BOLT 4 PCS
Full Queen Metal Headboard
STEP 1:
Attach finials (D) to posts (A) with threaded pins (2) as shown below.
Full Queen Metal Headboard
STEP 2:
Attach headboard panel (B) and stretcher (C) to posts (A) with bolts (1) as shown below.
Use the Allen key (4) to tighten the bolts.
Full Queen Metal Headboard
NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPERATELY.
THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY.
Attaching the bed frame to make a Queen bed
Attach the bed frame (purchase separately) to posts (A) with bolts (1), washers (6) and nuts (3) as shown. Use Allen key (4) to tighten the bolts and Allen wrench (5) to tighten the nuts (3).
Full Queen Metal Headboard
NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPERATELY.
THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY.
Attaching the bed frame to make a Full bed
STEP 1:
Attach adapter plate (E) to posts (A) with bolts (1), nuts (3) and washers (6) as shown below. Use Allen key (4) to tighten the bolts (1) and Allen wrench (5) to tighten the nuts (3).
Full Queen Metal Headboard
NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPERATELY.
THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY.
Attaching the bed frame to make a Full bed
STEP 2:
Attach the bed frame (purchase separately) to posts (A) with bolts (7), washers (6) and nuts (3) as shown below. Use Allen key (4) to tighten the bolts and Allen wrench (5) to tighten the nuts (3).
Full Queen Metal Headboard
CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may
result in instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
Full Queen Metal Headboard
department.
Color:
Black Bronce
Le recomendamos que antes de comenzar a armarlo se familiarice con su nueva compra y tome unos minutos de su tiempo para leer este manual. Contiene información importante sobre nuestra garantía y consejos de cuidados para que su mueble siempre conserve su apariencia de nuevo.
Fecha de compra: _____ / _____ / _____ Número de lote:
(tomado del cartón)
DEVOLVER EL PRODUCTO A LA TIENDA.
NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE. POR FAVOR, LÉALO Y CONSÉRVELO PARA CONSULTARLO EN EL FUTURO.
CABECERA DE METAL PARA CAMA MATRIMONIAL
¡Felicitaciones por su nueva compra de un mueble! Los muebles de la línea han sido diseñados con la calidad, la comodidad y el estilo en mente. Estamos seguros de que este mueble le servirá por muchos años con su comodidad excepcional.
Preguntas, inquietudes, partes que faltan? La satisfacción del cliente es importante para nosotros.
CONTACTE NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el número de modelo del producto, el color y una descripción detallada de su pregunta.
NOTAS E INSTALACIÓN
* Asegúrese de tener todas las piezas y componentes antes de comenzar a armarla.
* Ármela sobre superficies limpias y blandas para evitar dañar el pulido del producto.
* Lea todas las instrucciones antes de usar el producto.
* NO use herramientas eléctricas.
* PRECAUCIÓN: El producto debe ser armado por un adulto.
* Pueden necesitarse dos personas para armar el producto.
* Tiempo estimado para armar el producto: 45-60 minutos.
CUIDADO, LIMPIEZA Y MANTENIMIENTO
Quítele el polvo regularmente con un paño suave y seco, para evitar que la suciedad se acumule.No remojar ni lavar en agua caliente. Limpie con un paño suave y húmedo si es necesario. No use abrasivos, limpiadores o productos para pulir.
Revise todos los pernos, tornillos y sujetadores periódicamente y apriételos si es necesario.
ADVERTENCIA: Si este producto está dañado y/o ciertas piezas faltan o están rotas, NO LO USE.
GARANTÍA LIMITADA
LISTA DE PIEZAS
A B C
POSTE PANEL DE CABECERA BARRA DE SOPORTE
2 PZAS 1 PZA 1PZA
D E
REMATE PLACA ADAPTADORA
2PZAS 2PZAS
CABECERA DE METAL PARA CAMA MATRIMONIAL
LISTA DE TORNILLOS Y ACCESORIOS
1 2 4
Ø1/4"*2" Ø1/4"*1-1/4" M4
PERNO PIVOTE ROSCADO LLAVE ALLEN
10 PZAS 2 PZAS 1 PZA
TORNILLOS Y ACCESORIOS PARA EL MARCO (CAMA DOBLE)
3 5 6
Ø 1/4"*11mm*8mm Ø 6.5mm*Ø16mm*1mm
TUERCA LLAVE INGLESA ARANDELA
8PZAS 1PZA 8 PZAS
7
Ø1/4"*1/2"
PERNO 4 PZAS
CABECERA DE METAL PARA CAMA MATRIMONIAL
ETAPA 1:
Fije los remates (D) a los postes (A) con los pivotes roscados (2) como se muestra a continuación.
CABECERA DE METAL PARA CAMA MATRIMONIAL
ETAPA 2:
Una el panel de la cabecera (B) y la barra de soporte (C) a los postes (A) con los pernos (1) como se muestra a continuacion, Use la llave Allen (4) para apretar los pernos.
CABECERA DE METAL PARA CAMA MATRIMONIAL
NOTE: EL MARCO DE CAMA NO ESTÁ INCLUIDO Y DEBE COMPRARSE POR SEPARADO.
LAS SIGUIENTES ILUSTRACIONES SON SÓLO PARA REFERENCIA.
Fijando el armazón de la cama para hacer una cama matrimonial.
Fije el marco de la cama (debe comprarse por separado) a los postes (A) con los pernos (1), las arandelas (6) y las tuercas (3) como se muestra a continuación. Use la llave Allen (4) para apretar los pernos y la llave inglesa (5) para apretar las tuercas (3).
CABECERA DE METAL PARA CAMA MATRIMONIAL
NOTE: EL MARCO DE CAMA NO ESTÁ INCLUIDO Y DEBE COMPRARSE POR SEPARADO.
LAS SIGUIENTES ILUSTRACIONES SON SÓLO PARA REFERENCIA.
Fijando el armazón de la cama para hacer una cama doble.
ETAPA 1:
Fije la placa adaptadora (E) a los postes (A) con pernos (1), tuercas (3) y arandelas (6) como se muestra a continuación. Use la llave Allen (4) para apretar los pernos (1) y la llave inglesa (5) para apretar las tuercas (3).
CABECERA DE METAL PARA CAMA MATRIMONIAL
NOTE: EL MARCO DE CAMA NO ESTÁ INCLUIDO Y DEBE COMPRARSE POR SEPARADO.
LAS SIGUIENTES ILUSTRACIONES SON SÓLO PARA REFERENCIA.
Fijando el armazón de la cama para hacer una cama doble.
ETAPA 2:
Fije el marco de la cama (debe comprarse por separado) a los postes (A) con los pernos (7), las arandelas (6) y las tuercas (3) como se muestra a continuación. Use la llave Allen (4) para apretar los pernos y la llave inglesa (5) para apretar las tuercas (3).
CABECERA DE METAL PARA CAMA MATRIMONIAL
PRECAUCIÓN: Esta unidad está prevista únicamente para ser usada con los productos y el peso máximo indicados. El usarla con otros productos más pesados que el peso máximo indicado puede
provocar inestabilidad y causar heridas.
CABECERA DE METAL PARA CAMA MATRIMONIAL
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de servicio a la clientela.
