RACE BRED ADRENALINE
w w w. s t a s i s e n g i n e e r i n g . c o m 8 8 8 - 9 - S TA S I S

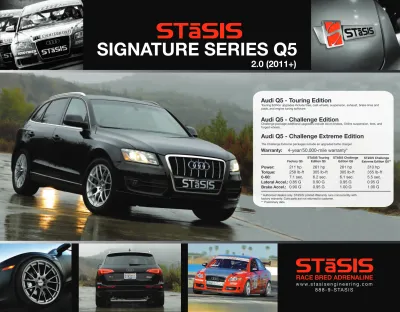

SIGNATURE SERIES Q5
2.0 (2011+)
Audi Q5 - Touring Edition Audi Q5 - Challenge Edition
Warranty: 4-year/50,000-mile warranty*
211 hp 261 hp 261 hp 310 hp
258 lb-ft 305 lb-ft 305 lb-ft 355 lb-ft 7.1 sec. 6.2 sec. 6.1 sec. 5.5 sec.
0.85 G 0.90 G 0.95 G 0.95 G
0.90 G 0.95 G 1.00 G 1.00 G
Power:
Torque:
0-60:
Lateral Accel.:
Brake Accel.:
Factory Q5 STāSIS Touring
Edition Q5 STāSIS Challenge Edition Q5
* Authorized dealers only. STāSIS Limited Warranty runs concurrently with factory warranty. Core parts are not returned to customer.
** Preliminary data
Touring Edition upgrades include tires, cast wheels, suspension, exhaust, brake lines and pads, and engine tuning software.
Challenge package additional upgrades include Alcon brakes, Ohlins suspension, tires, and forged wheels.
STāSIS Challenge Extreme Edition Q5**
Audi Q5 - Challenge Extreme Edition
The Challenge Extreme packages include an upgraded turbo charger.
20
5 6 7 8 9 10 11 12 15
40 35 30 25 50 45
13 14
STOPPING DISTANCE OVER CONSECUTIVE STOPS FROM 100 KPH (62 MPH)
Number of Stops
HIGH-SPEED FADE TEST OVER CONSECUTIVE STOPS MAINTAINING 0.7 G
Brake Pressure (Bar)
STāSIS Brake Kit
Number of Stops Factory Brakes STāSIS Brake Kit
Factory Brakes
Challenge Edition
The Challenge Edition Q5 expands on the Touring Edition, adding more racing technology for the streets. From the face-stretching limits of the Ohlins SL suspension to the extreme stopping power of Alcon brake components, Challenge Edition upgrades will turn your Q5 into a race-bred daily driver.
Copyright © 2011 STāSIS Engineering. All rights reserved.
SE992-G70-12-00 July 2011
Signature Series Q5
RACE BRED ADRENALINE • www.stasisengineering.com • 888.9.STASIS
TRACTION CIRCLE
Factory Touring Edition
Q5 Challenge Edition Q5 STāSIS Signature
Series Q5 Factory Q5 1.00 G
0.90 G
0.85 G 0.95 G
Touring Edition
Heightened acceleration, handling, and style set this Q5 apart. Add a menacing stance and larger wheels and tires to the Q5’s rugged usability and you get a tough and aggressive, yet refined vehicle that is unique in the sports utility market. The STāSIS Q5 Touring Edition delivers a vehicle that is exotic, affordable, and inspiring to own.
Power: 211 hp 261 hp 261 hp 310 hp
Torque: 258 lb-ft 305 lb-ft 305 lb-ft 355 lb-ft
0-60: 7.1 sec. 6.2 sec. 6.1 sec. 5.5 sec.
Lateral Accel.: 0.85 G 0.90 G 0.95 G 0.95 G
Brake Accel.: 0.90 G 0.95 G 1.00 G 1.00 G
Engine Tuning Software (optional) • 261 hp, 305 lb-ft (with STāSIS exhaust) Exhaust
• Twin outlet design • Dual 4” laser engraved tips • T304 stainless steel Suspension
• Lowered stance for better weight transfer
• Increased spring rate for better response
• High-performace anti-roll bar kit for added cornering grip
• Matched bushings and bumpstops
Brakes (optional)
• High-performance street pads for better response in single and multiple stops
• Braided stainless steel lines for a faster brake reaction
Wheels and Tires • 20” x 10” lightweight cast
aluminum wheels • High-performance tires Accessories
• STāSIS Signature Series floor mats Warranty
• 4-year/50,000-mile warranty*
Suspension
• Ohlins SL dampers with racing- level performance
• Increased spring rate for better response
• Double digressive valving for ride comfort
• Adjustable ride height for perfect weight distribution
• High-performance anti-roll bar kit for added cornering grip
Brakes
• 6-piston Alcon monobloc calipers • Lightweight 370-mm two-piece
floating rotors (390-mm brakes optional)
• High-performance street pads • Braided stainless steel lines Wheels and Tires
• 21” x 10” ultra-lightweight forged aluminum wheels
• Ultra-high-performance tires Warranty
• 4-year/50,000-mile warranty*
* Authorized dealers only. STaSIS Limited Warranty runs concurrently with factory warranty.
Challenge Extreme Edition Q5**
** Preliminary data
Challenge Extreme Edition
An upgraded STaSIS turbo charger boosts the power through a dynamic range of engine speeds, giving enthusiasts the thrill of true performance with factory-like reliability and drivability. This street-legal, bolt-on power solution is built to comply with regulatory requirements, including emissions. For extreme enthusiasts only.
20 30 40 50 60 70 80
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
HP/Torque
0
500 1500 2500 3500 4500 5500 6500 7500 200
150 100 50 300 250
HORSEPOWER/TORQUE GAINS
Speed (RPM)
STāSIS Torque (lb-ft) STāSIS Power (hp) Factory Torque (lb-ft) Factory Power (hp)
2.0 (2011+)
Meters
Audi Q5 2.0 2010-2012 *Add core charge to kit pricing if vehicle has over 1000 miles*
Signature Series Kits Audi Q5 2.0 2010-2012 Touring Challenge MSRP
Est Install 4SE251-A10-01-01 Touring Kit (with core return and kit discount)
2 see T below$6,495 9.8
Touring Items $7,659
Challenge Items
Individual Parts Audi Q5 2.0 2010-2012 Touring Challenge MSRP
Est Install 4SE252-F10-01-00 Engine Software - High Perfromance 261hp T $1,495 1
SE251-E10-01-00 Exhaust Touring T $1,495 1.3
SE251-S10-01-00 Suspension Touring Kit - Fixed Height Springs, ARB, Bushings T $1,295 5
SE201-B20-01-00 Brakes 370 Kit - Alcon Mono 6 with 370mm rotors (optional) O $3,895 2.5
SE201-B20-01-01 Brakes 390 Kit - Alcon Mono 6 with 390mm rotors (optional) O $4,195 2.5
SE252-W10-21-00 Wheels 20” x 10” - Light Aluminum 7 spoke T $1,980 0.5
SE992-R90-23-00 Tires 20" High Performance - 275/40/20 Yokohama Parada Spec X1 T $1,195 2
SE251-G10-91-00 Floor mats Black (front/rear) T $199 0
Core Parts Audi Q5 2.0 2010-2012 Touring Challenge MSRP
SE251-A30-01-00 Core - Wheels, Tires T C $800
Additional Parts Audi Q5 2.0 2010-2012 Touring Challenge MSRP
Est Install 4SE252-W20-31-00 Q5 Wheel FD-11 21 x 9.0 ET 30 Silver $5,190 0.5
SE992-R40-31-00 Tire 265/40R/21 Continental Conti Sport 2 $2,195 2
Notes 1. Stasis reserves the right to substitute similar high performance tires 2. Destination charge - flat rate shipping is $500 in continental United States 4. Estimated labor hours are sourced from 'All Data'
5. Includes alignment service 1 hour
