Instituto de Investigaciones en Matem´aticas Aplicadas y en Sistemas

On the spectral, modulational and

orbital stability of periodic wavetrains for the sine-Gordon equation

Ram´on G. Plaza

Institute of Applied Mathematics (IIMAS), National Autonomous University of Mexico (UNAM)

II Workshop on Nonlinear Dispersive Equations. Universidade Estadual de Campinas, Brazil. October 6 to 9, 2015.

(2)

Collaborators:

• Christopher K. R. T. Jones (Univ. of North Carolina, Chapel Hill)

• Robert Marangell (Univ. of Sydney)

• Peter D. Miller (Univ. of Michigan)

• Jaime Angulo Pava (Univ. of Sao Paulo)

This research was partially supported by: DGAPA-UNAM,

project PAPIIT IN-104814.

(3)

1 Introduction

2 Analysis of the monodromy map

3 Spectral (in)stability results

4 Multidimensional orbital stability

Ram´on G. Plaza — Stability of periodic nonlinear Klein-Gordon waves — II Workshop on Nonlinear Dispersive Equations. Universidade Estadual de Campinas, Brazil. October 6 to 9, 2015.

(4)

The nonlinear Klein-Gordon equation

Nonlinear Klein-Gordon with periodic potential:

u _tt − u _xx + V ⁰ (u) = 0. (nKG) for (x, t) ∈ R × [0, +∞) , u scalar, V ∈ C ² , periodic.

Sine-Gordon equation:

u _tt − u _xx + sin u = 0. (SG)

V (u) = 1 − cos u

(5)

The nonlinear Klein-Gordon equation

Nonlinear Klein-Gordon with periodic potential:

u _tt − u _xx + V ⁰ (u) = 0. (nKG) for (x, t) ∈ R × [0, +∞) , u scalar, V ∈ C ² , periodic.

Sine-Gordon equation:

u _tt − u _xx + sin u = 0. (SG)

V (u) = 1 − cos u

(6)

Applications (sine-Gordon):

• Surfaces with negative Gaussian curvature (Eisenhart, 1909)

• Propagation of crystal dislocations (Frenkel and Kontorova, 1939)

• Elementary particles (Perring and Skyrme, 1962)

• Propagation of magnetic flux on a Josephson line (Scott, 1969)

• Dynamics of fermions in the Thirring model (Coleman, 1975)

• Oscillations of a rigid pendulum attached to a

stretched rubber band (Drazin, 1983)

(7)

Assumptions on the potential:

(a) V : R → R is of class C ² in all its domain and it is periodic with fundamental period P _.

(b) V has only non-degenerate critical points.

(c) V ⁰ (u) ⁴ (V(u)/V ⁰ (u) ² ) ⁰⁰ ≥ 0 for all u _under consideration.

Assumption (c) implies monotonicity of the period map with respect to the energy.

(8)

Traveling waves

u(x, t) = f (x − ct) , z = x − ct , solution to the nonlinear pendulum equation:

(c ² − 1)f _zz + V ⁰ (f (z)) = 0,

Sine-Gordon case:

(c ² − 1)f _zz + sin(f (z)) = 0,

c ∈ R (wave speed), c ² 6= 1 .

(9)

Upon integration:

1 2 (c ² − 1)f _z ² = E − V(f ), E = constant (energy). Under assumptions:

0 < E ₀ = max V(u)

Sine-Gordon case: V(u) = 1 − cos u , E ₀ = 2 ,

1 2 (c ² − 1)f _z ² = E − 1 + cos f (z).

W.l.o.g.

(d) V has fundamental period P = 2π and min u∈ R

V(u) = 0, max

u∈ R

V(u) = 2.

(10)

Classification

First dichotomy (wave speed):

• Subluminal waves: c ² < 1

• Superluminal waves: c ² > 1 Second dichotomy (energy E _):

• Librational wavetrain: f (z + T ) = f (z) . Closed trajectory inside the separatrix in the phase portrait.

• Rotational wavetrain: f (z + T) = f (z) ± 2π . Open trajectory outside the separatrix in the phase plane.

Sign f _z _{is fixed.}

(11)

Classification

First dichotomy (wave speed):

• Subluminal waves: c ² < 1

• Superluminal waves: c ² > 1 Second dichotomy (energy E _):

• Librational wavetrain: f (z + T ) = f (z) . Closed trajectory inside the separatrix in the phase portrait.

• Rotational wavetrain: f (z + T) = f (z) ± 2π . Open trajectory outside the separatrix in the phase plane.

Sign f _z _{is fixed.}

(12)

-2π -π 0 π 2π -2

-1 0 1 2

-2π -π 0 π 2π

-2 -1 0 1 2

-2π -π 0 π 2π

-4 -3 -2 -1 0 1 2 3 4

-2π -π 0 π 2π

-4 -3 -2 -1 0 1 2 3 4

Figure : Phase portrait sine-Gordon case: V (u) = 1 − cos u :

superluminal c ² > 1 (left); subluminal c ² < 1 (right).

(13)

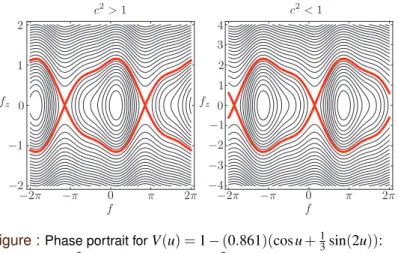

Figure : Phase portrait for V(u) = 1 − (0.861)(cos u + ¹ ₃ sin(2u)) _: superluminal c ² > 1 (left); subluminal c ² < 1 _(right).

(14)

Superluminal librational: c ² > 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (E − V(u))/(c ² − 1) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₁ , v ₂ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ 2

√ c ² − 1

p E − V (f ), where f ∈ (v ₁ , v ₂ ) ⊂ K ^(E) ^.

T = √ 2 p

c ² − 1 Z _v ₂

v ₁

dη p E − V(η) .

Sine-Gordon: wave oscillates around f = 0 , in

(v ₁ , v ₂ ) = (−Arc cos(−E + 1), Arc cos(−E + 1))

(15)

Superluminal librational: c ² > 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (E − V(u))/(c ² − 1) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₁ , v ₂ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ 2

√ c ² − 1

p E − V (f ), where f ∈ (v ₁ , v ₂ ) ⊂ K ^(E) ^.

T = √ 2 p

c ² − 1 Z _v ₂

v ₁

dη p E − V(η) .

Sine-Gordon: wave oscillates around f = 0 , in (v ₁ , v ₂ ) = (−Arc cos(−E + 1), Arc cos(−E + 1))

(16)

Subluminal librational: c ² < 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (V(u) − E)/(1 − c ² ) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₃ , v ₄ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ 2

√ 1 − c ²

p V(f ) − E, where f ∈ (v ₃ , v ₄ ) ⊂ K ^(E) ^.

T = √ 2 p

1 − c ² Z _v ₄

v ₃

dη p V(η) − E .

Sine-Gordon: wave oscillates around f = π , in

(v ₃ , v ₄ ) = (−Arc cos(−E + 1), 2π − Arc cos(−E + 1))

(17)

Subluminal librational: c ² < 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (V(u) − E)/(1 − c ² ) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₃ , v ₄ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ 2

√ 1 − c ²

p V(f ) − E, where f ∈ (v ₃ , v ₄ ) ⊂ K ^(E) ^.

T = √ 2 p

1 − c ² Z _v ₄

v ₃

dη p V(η) − E .

Sine-Gordon: wave oscillates around f = π , in

(v ₃ , v ₄ ) = (−Arc cos(−E + 1), 2π − Arc cos(−E + 1))

(18)

Superluminal rotational: c ² > 1 , E > E ₀ _, E − V(f ) > 0 and K ^{(E) =} R . Rotation, f _z has fixed sign. Orbit outside the separatrix and f (z + T) = f (z) ± π for all z .

f _z ² = 2(E − V (f )) c ² − 1 > 0,

T =

√ c ² − 1

√ 2 Z _π

0 dη p E − V(η)

Subluminal rotational: c ² < 1 , E < 0 , V(f ) − E ≥ 0 and

K ^{(E) =} R ^{with .} f _z has fixed sign. Orbit outside the separatrix and f (z + T ) = f (z) ± π for all z _.

T =

√ 1 − c ²

√

Z _π dη

(19)

Superluminal rotational: c ² > 1 , E > E ₀ _, E − V(f ) > 0 and K ^{(E) =} R . Rotation, f _z has fixed sign. Orbit outside the separatrix and f (z + T) = f (z) ± π for all z .

f _z ² = 2(E − V (f )) c ² − 1 > 0,

T =

√ c ² − 1

√ 2 Z _π

0 dη p E − V(η)

Subluminal rotational: c ² < 1 , E < 0 , V(f ) − E ≥ 0 and

K ^{(E) =} R ^{with .} f _z has fixed sign. Orbit outside the separatrix and f (z + T ) = f (z) ± π for all z _.

T =

√ 1 − c ²

√ 2

Z _π

0 dη p V (η) − E

(20)

G ^lib < = {c ² < 1, 0 < E < E ₀ }, (subluminal librational) , G ^rot < = {c ² < 1, E < 0}, (subluminal rotational) , G ^lib > = {c ² > 1, 0 < E < E ₀ }, (superluminal librational) , G ^rot > = {c ² > 1, E > E ₀ }, (superluminal rotational) ,

(E, c) ∈ G := G ^lib < ∪ G ^rot < ∪ G ^lib > ∪ G ^rot >

Lemma

For each fixed z ∈ R ^, f (z; E, c) is of class C ² in (E, c) ∈ G ^.

(21)

G ^lib < = {c ² < 1, 0 < E < E ₀ }, (subluminal librational) , G ^rot < = {c ² < 1, E < 0}, (subluminal rotational) , G ^lib > = {c ² > 1, 0 < E < E ₀ }, (superluminal librational) , G ^rot > = {c ² > 1, E > E ₀ }, (superluminal rotational) ,

(E, c) ∈ G := G ^lib < ∪ G ^rot < ∪ G ^lib > ∪ G ^rot >

Lemma

For each fixed z ∈ R ^, f (z; E, c) is of class C ² in (E, c) ∈ G ^.

(22)

Spectral problem

Solution f (z) + u(z, t) , with u = perturbation:

u _tt − 2cu zt + (c ² − 1)u _zz + V ⁰ (u + f ) − V ⁰ (f ) = 0.

Linearized equation:

u _tt − 2cu _zt + (c ² − 1)u _zz + V ⁰⁰ (f (z))u = 0.

u = w(z)e ^λt , λ ∈ C ^, w ∈ X _Banach:

(c ² − 1)w _zz − 2cλw _z + (λ ² + V ⁰⁰ (f (z)))w = 0. (P)

Quadratic “pencil” in λ .

(23)

Spectral problem

Solution f (z) + u(z, t) , with u = perturbation:

u _tt − 2cu zt + (c ² − 1)u _zz + V ⁰ (u + f ) − V ⁰ (f ) = 0.

Linearized equation:

u _tt − 2cu _zt + (c ² − 1)u _zz + V ⁰⁰ (f (z))u = 0.

u = w(z)e ^λt , λ ∈ C ^, w ∈ X _Banach:

(c ² − 1)w _zz − 2cλw _z + (λ ² + V ⁰⁰ (f (z)))w = 0. (P) Quadratic “pencil” in λ .

(24)

Floquet spectrum

Formally: λ ∈ σ _F is a Floquet eigenvalue if there exists a bounded solution w to (P). (Precise definition in a

moment.)

We say the wave is spectrally stable if σ _F ⊂ { Re λ ≤ 0} .

Otherwise it is spectrally unstable.

(25)

Floquet spectrum

Formally: λ ∈ σ _F is a Floquet eigenvalue if there exists a bounded solution w to (P). (Precise definition in a

moment.)

We say the wave is spectrally stable if σ _F ⊂ { Re λ ≤ 0} . Otherwise it is spectrally unstable.

(26)

Previous results

• A.C. Scott , Proc. IEEE (1969). Spectral stability.

• G.B. Whitham, Linear and nonlinear waves (1974).

“Modulational” stability results. Based on Modulation theory (Whitham, 1965).

• Forest, MacLaughlin (1982); Murakami (1986);

Ercolani, Forest, McLaughlin (1990); Parkes (1991);

etc. (abridged list).

(27)

Previous results

• A.C. Scott , Proc. IEEE (1969). Spectral stability.

• G.B. Whitham, Linear and nonlinear waves (1974).

“Modulational” stability results. Based on Modulation theory (Whitham, 1965).

• Forest, MacLaughlin (1982); Murakami (1986);

Ercolani, Forest, McLaughlin (1990); Parkes (1991);

etc. (abridged list).

(28)

Previous results

• A.C. Scott , Proc. IEEE (1969). Spectral stability.

• G.B. Whitham, Linear and nonlinear waves (1974).

“Modulational” stability results. Based on Modulation theory (Whitham, 1965).

• Forest, MacLaughlin (1982); Murakami (1986);

Ercolani, Forest, McLaughlin (1990); Parkes (1991);

etc. (abridged list).

(29)

Summary of stability results

Wave Whitham (1974) Scott (1969)

Subluminal rotational stable stable Superluminal rotational stable unstable Subluminal librational unstable unstable Superluminal librational unstable unstable

(30)

Whitham (1965, 1974):

Modulation theory: well established (formal) physical method based on WKB expansions. Exact wave f = f (x − ct) = f ˜ (kx − ωt) . Allowing dependence k = k(x, t), ω = ω(x, t) , under “slow modulations”, if the PDE system on (k, ω) is well-posed then the wave is

“stable”.

References: Whitham (1974), J. Fluid Mech. (1965), Proc.

Roy. Soc. Ser. A (1965).

(31)

Whitham (1965, 1974):

Modulation theory: well established (formal) physical method based on WKB expansions. Exact wave f = f (x − ct) = f ˜ (kx − ωt) . Allowing dependence k = k(x, t), ω = ω(x, t) , under “slow modulations”, if the PDE system on (k, ω) is well-posed then the wave is

“stable”.

References: Whitham (1974), J. Fluid Mech. (1965), Proc.

Roy. Soc. Ser. A (1965).

(32)

Scott (1969):

y = exp

−cλz c ² − 1

,

y _zz + V ⁰⁰ (f (z)) c ² − 1 y =

λ c ² − 1

2 y =: νy. (H) Hill’s equation with period T . ν ∈ σ H (Floquet spectrum of (H)) if there is a bounded solution y _.

Scott assumed that the transformation is isospectral:

( σ H = σ F ). This is not true. Actually:

Lemma (JMMP1)

If λ ∈ σ _H ∩ σ _F then λ ∈ i R ^.

(33)

Scott (1969):

y = exp

−cλz c ² − 1

,

y _zz + V ⁰⁰ (f (z)) c ² − 1 y =

λ c ² − 1

2 y =: νy. (H) Hill’s equation with period T . ν ∈ σ H (Floquet spectrum of (H)) if there is a bounded solution y _.

Scott assumed that the transformation is isospectral:

( σ H = σ F ). This is not true. Actually:

Lemma (JMMP1)

If λ ∈ σ _H ∩ σ _F then λ ∈ i R ^.

(34)

References:

• C.K.R.T. Jones, R. Marangell, P.D. Miller, R.P., On the stability of periodic traveling sine-Gordon waves, Phys. D 251 (2013) (JMMP1).

• C.K.R.T. Jones, R. Marangell, P.D. Miller, R.P., Spectral and modulational stability of periodic

wavetrains for the nonlinear Klein-Gordon equation. J.

Differential Equations 257 (2014) (JMMP2).

• J. Angulo-Pava, R.P., Nonlinear orbital stability of

subluminal periodic sine-Gordon wavetrains of

rotational type. Preprint (2015) (AP) .

(35)

Summary:

JMMP1:

• Correct proof of Scott’s results (spectral) JMMP2:

• More generic potentials

• Analysis of the monodromy map

• Modulational stability index

• Relation to Whitham’s modulation theory AP:

• Orbital (nonlinear) stability of subluminal rotational waves

• Multidimensional orbital stability (e.g. 2d sine-Gordon)

(36)

Other references (Whitham vs. spectral):

• Serre (2005); Oh, Zumbrun (2006) (viscous conserv.

laws)

• Bronski, Johnson (2009); Johnson, Zumbrun (2010);

Bronski, Johnson, Zumbrun (2010) (gKdV)

• Johnson (2010) (BBM)

• Noble, Rodrigues (2013) (Kuramoto-Sivashinski)

• Benzoni, Noble, Rodrigues (2013) (Hamiltonian

PDEs)

(37)

1 Introduction

2 Analysis of the monodromy map

3 Spectral (in)stability results

4 Multidimensional orbital stability

(38)

Floquet spectrum

Problem (P) (quadratic pencil) can be written as a first order system:

w _z = A(z, λ)w,

w :=

w w _z

,

A(z, λ) :=







0 1

− (λ ² + V ⁰⁰ (f (z))) c ² − 1

2cλ c ² − 1







.

(39)

Family of closed, densely defined operators:

T ^(λ) ^: D ^⊂ ^X ^→ ^X

T ^(λ)W ^:= ^W z − A(z, λ)W.

E.g.:

D ⁼ ^H ¹ ⁽ R ; C ² ), X = L ² ( R ; C ² ),

Spectral stability of periodic waves with respect to localized perturbations.

(40)

Family of closed, densely defined operators:

T ^(λ) ^: D ^⊂ ^X ^→ ^X

T ^(λ)W ^:= ^W z − A(z, λ)W.

E.g.:

D ⁼ ^H ¹ ⁽ R ; C ² ), X = L ² ( R ; C ² ),

Spectral stability of periodic waves with respect to localized

perturbations.

(41)

Definition (cf. Sandstede (2002))

The resolvent ρ , the point spectrum σ pt and the essential spectrum σ ess of problem (P):

ρ := {λ ∈ C : T ^(λ) is one-to-one and onto, and

T ^(λ) ⁻¹ ^{is bounded} ^},

σ pt := {λ ∈ C : T ^(λ) is Fredholm with zero index and has a non-trivial kernel },

σ ess := {λ ∈ C : T ^(λ) is either not Fredholm or has index different from zero }.

The spectrum is σ = σ ess ∪ σ pt . ( T ^(λ) ^closed ^⇒ ^ρ ⁼ C \σ .)

(42)

Comments:

• The transformation v ₁ = w _, v ₂ = λw _{defines a}

cartesian product in X = L ² which allows to write as a standard eigenvale problem:

λv =

0 1

−(c ² − 1)∂ ² _z − cos f (z) 2c∂ z

v =: L ^v, ^v ⁼

v ₁ v ₂

.

• Equivalent definition to the standard one (essential

spectrum of Weyl, 1910): 1-to-1 correspondence

between Jordan chains

(43)

Lemma (Gardner, 1997)

Since X = L ² all spectrum of problem (P) is “continuous”, that is, σ = σ ess and σ pt is empty.

Since (nKG) is a real Hamiltonian system:

Lemma

σ is symmetric with respect to reflection in real and imaginary axes: λ ∈ σ ⇒ −λ, λ ∈ σ .

Spectral stability is equivalent to σ ⊂ i R ^.

(44)

Lemma (Gardner, 1997)

Since X = L ² all spectrum of problem (P) is “continuous”, that is, σ = σ ess and σ pt is empty.

Since (nKG) is a real Hamiltonian system:

Lemma

σ is symmetric with respect to reflection in real and imaginary axes: λ ∈ σ ⇒ −λ, λ ∈ σ .

Spectral stability is equivalent to σ ⊂ i R ^.

(45)

Lemma (Gardner, 1997)

Since X = L ² all spectrum of problem (P) is “continuous”, that is, σ = σ ess and σ pt is empty.

Since (nKG) is a real Hamiltonian system:

Lemma

σ is symmetric with respect to reflection in real and imaginary axes: λ ∈ σ ⇒ −λ, λ ∈ σ .

Spectral stability is equivalent to σ ⊂ i R ^.

(46)

Monodromy matrix

M(λ) := F(T , λ)

F(z, λ) = fundamental solution with F(0, λ) = I . M(λ)F(z, λ) = F(z + T, λ)

Important feature: A entire in λ , Picard iterates converge

for F in z _bounded ⇒ M is an entire (analytic) function of

λ ∈ C ^.

(47)

Monodromy matrix

M(λ) := F(T , λ)

F(z, λ) = fundamental solution with F(0, λ) = I . M(λ)F(z, λ) = F(z + T, λ)

Important feature: A entire in λ , Picard iterates converge for F in z _bounded ⇒ M is an entire (analytic) function of λ ∈ C ^.

(48)

Floquet multipliers:

λ ∈ σ if and only if there exists at least one µ ∈ C ^(Floquet multiplier) with |µ| = 1 such that

D(λ,µ) ˆ := det(M(λ) − µI) = 0.

µ = µ(λ) = e ^iθ(λ) are the eigenvalues of M(λ) . θ = θ(λ)

are called the Floquet exponents.

(49)

Periodic Evans function

Definition (Gardner, 1997)

The periodic Evans function D : C × R → C îs D(λ, κ) := D(λ, ˆ e îκT ) = det(M(λ) − e îκT I), for each (λ, κ) ∈ C × R ^.

(50)

Properties: (Gardner 1997, 1998)

• σ is the set of all λ ∈ C ^{such that} D(λ, κ) = 0 for some real κ .

• D is analytic in λ and κ .

• The order of the zero in λ is the multiplicity of the eigenvalue.

• D(λ, ˆ 1) = D(λ, 0) detects spectra corresponding to

perturbations which are T -periodic.

(51)

Floquet spectrum

Boundary value problem of the form

(c ² − 1)w _zz − 2cλw z + (λ ² + V ⁰⁰ (f (z)))w = 0,

w(T) w _z (T)

= e ^iθ

w(0) w _z (0)

, θ ∈ R .

For a given θ ∈ R ^{we define} σ _θ ⊂ C to be the set of complex λ for which there exists a nontrivial solution. The Floquet spectrum σ _F is defined then as the union over θ of these sets:

σ _F := ^[

−π<θ≤π

σ _θ .

(52)

Observations:

• Clearly σ = σ F

• Each set σ _θ is discrete: zero set of the entire function det(M(λ) − e ^iθ I)

• The set σ ₀ (with θ = 0 ) is the part of the spectrum corresponding to perturbations which are co-periodic (periodic partial spectrum)

• θ - local coordinate; curves of spectrum: if

D _λ (λ ₀ , µ ₀ ) 6= 0 , D _µ (λ ₀ , µ ₀ ) 6= 0 then σ is a smooth local curve

• At points where derivatives vanish: spectral analytic

arcs (e.g. at λ = 0 !)

(53)

Bloch wave decomposition

Transformation: y = e ^−iθz/T w yields y _z = A(z, e λ, θ)y,

A(z, e λ, θ) = A(z, λ) − (iθ/T )I, Boundary conditions:

y(0) = y(T)

λ ∈ σ iff for some −π < θ ≤ π there exists a non-trivial solution y ∈ H _per ¹ ([0, T]; C ² )

(54)

Bloch wave decomposition

Transformation: y = e ^−iθz/T w yields y _z = A(z, e λ, θ)y,

A(z, e λ, θ) = A(z, λ) − (iθ/T )I, Boundary conditions:

y(0) = y(T)

λ ∈ σ iff for some −π < θ ≤ π there exists a non-trivial

solution ¹ ²

(55)

Equivalently, w = e ^1θz q transforms the spectral pencil (P) into

(c ² −1) ∂ _z + iθ T

2 −2cλ ∂ _z + iθ T

+(λ ² +cos f (z)) q = 0,

q(T) = q(0), q _z (T) = q _z (0)

Scalar domain base space H _per ¹ ([0, T ]; C ) ⊂ L ² _per ([0, T]; C ) . Make p ₁ = q _, p ₂ = λq , we obtain:

(56)

Family of Bloch operators

λp =

0 1

−(c ² − 1) ∂ _z + ^iθ _T 2

− cos f (z) 2c ∂ _z + ^iθ _T

p =: L θ p,

p = p ₁

p ₂

,

L θ : D ⁼ ^H ¹ per ([0, T ]; C ² ) → L ² _per ([0, T]; C ² ),

λ ∈ σ (continuous) iff λ ∈ σ pt ( L θ ) for some θ ∈ (−π, +π]

(57)

Solutions at λ = 0

f = f (z; E, c) , (E, c) ∈ G ^. w solution to pencil (P), with initial conditions:

w(0; E, c) = f (0;E, c)

=

( f (T; E, c), E ∈ (0, E ₀ ), (lib), f (T; E, c) − π, E ∈ (−∞, 0) ∪ (E ₀ ,+∞), (rot),

∂ _z w(0; E,c) = f _z (0; E,c) = f _z (T ; E, c)

(58)

System at λ = 0 :

w _z = A(z, 0)w,

A(z, 0) =

0 1

−V ⁰⁰ (f (z))/(c ² − 1) 0

.

Lemma

The two-dimensional vector space of solutions is spanned by

w ₀ (z) = f _z

f _zz

, and w ₁ (z) = f _E

f _Ez

.

det(w (z), w (z)) = f f − f f = 1

6= 0

(59)

System at λ = 0 :

w _z = A(z, 0)w,

A(z, 0) =

0 1

−V ⁰⁰ (f (z))/(c ² − 1) 0

.

Lemma

The two-dimensional vector space of solutions is spanned by

w ₀ (z) = f _z

f _zz

, and w ₁ (z) = f _E

f _Ez

.

det(w ₀ (z), w ₁ (z)) = f _z f _Ez − f _E f _zz = 1 c ² − 1 6= 0

(60)

Solution matrix:

Q(z, 0) := (w ₀ (z), w ₁ (z))

F(z, 0) = Q(z, 0)Q(0, 0) ⁻¹ .

M(0) = F(T, 0) = Q(T, 0)Q(0, 0) ⁻¹

Q(z, 0) ⁻¹ = (c ² − 1)

f _Ez −f _E

−f _zz f _z

.

(61)

Lemma

If T _E 6= 0 , there exists a basis in R ² such that the monodromy map M(λ) at λ = 0 has the Jordan form

M(0) ∼

1 −T _E

0 1

.

Q(T, 0) − Q(0, 0) is a rank-one matrix provided that T _E 6= 0 :

Q(T, 0) = Q(0, 0) + 0 −T _E v ₀ (E, c) 0 −T _E ^V ⁰ ^(u ⁰ ^(E,c))

c ² −1

!

(62)

Lemma

If T _E 6= 0 , there exists a basis in R ² such that the monodromy map M(λ) at λ = 0 has the Jordan form

M(0) ∼

1 −T _E

0 1

.

Q(T, 0) − Q(0, 0) is a rank-one matrix provided that T _E 6= 0 :

Q(T, 0) = Q(0, 0) + 0 −T _E v ₀ (E, c) 0 −T _E ^V ⁰ ^(u ⁰ ^(E,c))

c ² −1

!

(63)

Under Assumption (c), we have monotonicity of the period map (Chicone, 1987: criterion for planar Hamiltonian systems):

Lemma

Under assumptions there holds T _E 6= 0 . More precisely we have:

(i) T _E > 0 in the rotational subluminal and librational superluminal cases.

(ii) T _E < 0 in the rotational superluminal and librational subluminal cases.

(64)

Lemma

If we define

∆ ¯ := − T _E c ² − 1 then

(a) ∆ ¯ > 0 for rotational waves.

(b) ∆ ¯ < 0 for librational waves.

(65)

Solutions series expansions

Q = Q(z, λ) solution to dQ

dz = A(z, λ)Q.

Q(0, λ) = Q(0, 0) = (w ₀ (0), w ₁ (0)) By analyticity, seek series expansion

Q(z, λ) =

+∞

n=0 ∑

λ ⁿ Q _n (z)

(66)

Solutions series expansions

Q = Q(z, λ) solution to dQ

dz = A(z, λ)Q.

Q(0, λ) = Q(0, 0) = (w ₀ (0), w ₁ (0)) By analyticity, seek series expansion

Q(z, λ) =

+∞

n=0 ∑

λ ⁿ Q _n (z)

(67)

Collecting like powers of λ we obtain a hierarchy:

(c ² − 1) dQ ₁

dz = A ₀ (z)Q ₁ + A ₁ Q ₀ (c ² −1) dQ _n

dz = A ₀ (z)Q _n +A ₁ Q _n−1 + A ₂ Q _n−2 , n = 2, 3, . . . Solution by variation of parameters:

Q ₁ (z) = Q ₀ (z) c ² − 1

Z _z

0 Q ₀ (y) ⁻¹ A ₁ Q ₀ (y) dy

Q _n (z) = Q ₀ (z) c ² − 1

Z z 0

Q ₀ (y) ⁻¹ A ₁ Q _n−1 (y)+ A ₂ Q _n−2

dy, n ≥ 2

(68)

Collecting like powers of λ we obtain a hierarchy:

(c ² − 1) dQ ₁

dz = A ₀ (z)Q ₁ + A ₁ Q ₀ (c ² −1) dQ _n

dz = A ₀ (z)Q _n +A ₁ Q _n−1 + A ₂ Q _n−2 , n = 2, 3, . . . Solution by variation of parameters:

Q ₁ (z) = Q ₀ (z) c ² − 1

Z _z

0 Q ₀ (y) ⁻¹ A ₁ Q ₀ (y) dy

Q _n (z) = Q ₀ (z) c ² − 1

Z z 0

Q ₀ (y) ⁻¹ A ₁ Q _n−1 (y)+ A ₂ Q _n−2

dy, n ≥ 2

(69)

By Abel’s identity:

Lemma

For all z ∈ R ^, λ ∈ C , there holds

det Q(z, λ) = exp 2cλz/(c ² − 1) c ² − 1 . After (tedious) computations:

Lemma

tr Q ₀ (T)Q ₀ (0) ⁻¹ = 2.

tr Q ₁ (T)Q ₀ (0) ⁻¹ = 2cT c ² − 1 . tr Q ₂ (T)Q ₀ (0) ⁻¹ = c ² T ²

(c ² − 1) ² − T _E c ² − 1

Z _T

0 f _z (y) ² dy.

(70)

By Abel’s identity:

Lemma

For all z ∈ R ^, λ ∈ C , there holds

det Q(z, λ) = exp 2cλz/(c ² − 1) c ² − 1 . After (tedious) computations:

Lemma

tr Q ₀ (T)Q ₀ (0) ⁻¹ = 2.

tr Q ₁ (T)Q ₀ (0) ⁻¹ = 2cT c ² − 1 .

−1 c ² T ²

− T _E ^Z ^T ₂

(71)

Perturbation of the Jordan block

By analyticity of the monodromy map:

M(λ) =

+∞

n=0 ∑

λ ⁿ n!

d ⁿ M dλ ⁿ (0).

(Standard perturbation theory, Kato.) In general, the Floquet multipliers bifurcate from λ = 0 in Pusieux series.

Fundamental matrix:

F(z, λ) = Q(z, λ)Q ₀ (0) ⁻¹ =

+∞

∑

n=0

λ ⁿ Q _n (z)Q ⁻¹ ₀ =:

+∞

∑

n=0

λ ⁿ F _n (z)

(72)

Perturbation of the Jordan block

By analyticity of the monodromy map:

M(λ) =

+∞

n=0 ∑

λ ⁿ n!

d ⁿ M dλ ⁿ (0).

(Standard perturbation theory, Kato.) In general, the Floquet multipliers bifurcate from λ = 0 in Pusieux series.

Fundamental matrix:

F(z, λ) = Q(z, λ)Q ₀ (0) ⁻¹ =

+∞

∑

n=0

λ ⁿ Q _n (z)Q ⁻¹ ₀ =:

+∞

∑

n=0

λ ⁿ F _n (z)

(73)

Lemma

We have convergent series expansions

M(λ) =

+∞

∑

n=0

λ ⁿ Q _n (T )Q ₀ (0) ⁻¹ ,

tr M(λ) =

+∞

∑

n=0

λ ⁿ tr Q _n (T )Q ₀ (0) ⁻¹ ,

and det M(λ) =

+∞

∑

n=0

2cT c ² − 1

n

λ ⁿ n! ,

(74)

Expansion of the Floquet multipliers

µ , solutions to:

D(λ, ˆ µ) = det(M(λ) −µI) = µ ² −(tr M(λ))µ+ detM(λ) = 0

µ _± (λ) = 1 2

tr M(λ) ± (tr M(λ)) ² − 4 det M(λ) 1/2

(75)

Expanding:

tr M(λ) ² − 4 det M(λ) =

tr Q ₀ (T)Q ₀ (0) ⁻¹ + λtr Q ₁ (T)Q ₀ (0) ⁻¹ +λ ² tr Q ₂ (T)Q ₀ (0) ⁻¹ 2

+

− 4

1 + 2cT

c ² − 1 λ + 2c ² T ² (c ² − 1) ² λ ²

+ O(λ ³ )

= 4∆λ ² + O(λ ³ ), where,

∆ := − T _E c ² − 1

Z _T

0 f _z (y) ² dy

(76)

The two Floquet multipliers are analytic functions of λ at λ = 0 . Asymptotic form:

µ _± (λ) = 1 + cT

c ² − 1 ± ∆ ^1/2

λ + O(λ ² )

Definition

We define the modulational instability index to be the quantity

γ _M := sgn∆

Clearly sgn ∆ = sgn ¯ ∆

(77)

The two Floquet multipliers are analytic functions of λ at λ = 0 . Asymptotic form:

µ _± (λ) = 1 + cT

c ² − 1 ± ∆ ^1/2

λ + O(λ ² )

Definition

We define the modulational instability index to be the quantity

γ _M := sgn∆

Clearly sgn ∆ = sgn ¯ ∆

(78)

The two Floquet multipliers are analytic functions of λ at λ = 0 . Asymptotic form:

µ _± (λ) = 1 + cT

c ² − 1 ± ∆ ^1/2

λ + O(λ ² )

Definition

We define the modulational instability index to be the quantity

γ _M := sgn∆

Clearly sgn ∆ = sgn ¯ ∆

(79)

Expansion of D near the origin

Lemma

The periodic Evans function D(λ, κ) , for (λ,κ) ∈ C × R ^, has the following expansion in a neighborhood of (λ, κ) = (0, 0) ,

D(λ, κ) = −∆λ ² +

iκ − cT c ² − 1 λ

2 + O(3),

where O(3) denotes terms of order three or higher in (λ, k) .

(80)

Lemma

If γ _M = 1 then the solutions to D(λ, κ) = 0 near

(λ, κ) = (0, 0) emerge from the origin tangentially to the imaginary axis in the complex λ -plane:

λ(κ) = −ivκ + O(κ ² ),

with v ∈ R ^{, for} |κ| 1 .

If γ _M = −1 then the solutions emerge from the origin tangentially to two lines passing through the origin and forming non-zero angles with the imaginary axis:

λ(κ) = −(α + iβ)κ + O(κ ² ),

(81)

Im

Re λ

λ Im

Re λ λ

Figure : Qualitative sketch of σ near the origin. γ M = 1 _(left); γ M = −1 (right).

(82)

Theorem

Under assumptions (a), (b) and (c):

• γ _M = −1 for librational waves. Spectrally unstable.

• γ _M = 1 for rotational waves. The spectrum is tangent to the imaginary axis at λ = 0 .

Theorem

Under the non-degeneracy condition T _E 6= 0 if the

modulational instability index is γ _M = −1 then the

underlying periodic traveling wave is spectrally unstable.

(83)

Theorem

Under assumptions (a), (b) and (c):

• γ _M = −1 for librational waves. Spectrally unstable.

• γ _M = 1 for rotational waves. The spectrum is tangent to the imaginary axis at λ = 0 .

Theorem

Under the non-degeneracy condition T _E 6= 0 if the modulational instability index is γ _M = −1 then the underlying periodic traveling wave is spectrally unstable.

(84)

Relation to Whitham’s modulation theory

Reference: Whitham, Proc. Roy. Soc. Ser. A (1965).

WKB approximations of the form:

u(x, t) = f z(x,t) ε

+ O(ε),

k, ω are no longer constant (and hence, E _and c _{). We have} c = ω/k and k = θ _x , ω = −θ _t , θ = kx − ωt . Conservation of fluxons:

k _t + ω _x = 0

(85)

Averaged Lagrangian

I[u] = Z Z

L(u, u _x , u _t ) dx dt, L(u, u _x , u _t ) = ¹ ₂ u ² _t − ¹ ₂ u ² _x − V(u).

In the wave u = f (x − ct) = Φ(kx − ωt) :

L(u,u _x , u _t ) = ¹ ₂ (ω ² − k ² )Φ _θ (θ) ² − V (Φ(θ))

Averaged Lagrangian:

hLi = 1 kT

Z _kT

0 1

2 (ω ² −k ² )Φ _θ (θ) ² −V (Φ(θ)) dθ = L ˜ ^(ω, ^k, ^E).

(86)

Averaged Lagrangian variational principle

δ Z Z

L ˜ ^(ω, ^k, ^E) ^{dx dt} ⁼ ^0,

L ˜ E = 0, dispersion relation

Whitham’s system:

k _t + ω _x = 0

( L ˜ ω ) _t − ( L ˜ k ) _x = 0. ^() If the last system () is hyperbolic (Cauchy problem

well-posed) then the wave is stable under slow

modulations (Whitham, 1974).

(87)

Averaged Lagrangian variational principle

δ Z Z

L ˜ ^(ω, ^k, ^E) ^{dx dt} ⁼ ^0,

L ˜ E = 0, dispersion relation

Whitham’s system:

k _t + ω _x = 0

( L ˜ ω ) _t − ( L ˜ k ) _x = 0. ^() If the last system () is hyperbolic (Cauchy problem

well-posed) then the wave is stable under slow modulations (Whitham, 1974).

(88)

Equivalently (Whitham, 1965) we may express (*) in terms of E _and c

hLi = 1 T

Z _T

0 1

2 (c ² − 1)f _z (z) ² − V(f (z)) dz

=

√ 2 T

I

((c ² − 1)(E − V(η))) ^1/2 dη − E =: L ^(E, ^c).

(89)

L ^(E, ^c) ⁼ ²

√ 2 T

p c ² − 1 Z _v ₂

v 1

p E − V (η)dη − E, (sup, lib) ,

L ^(E, ^{c) =} ⁻ ²

√ 2 T

p 1 − c ² Z _v ₄

v 3

p V(η) − E dη − E, (sub, lib) ,

L ^(E, ^{c) =}

√ 2 T

p c ² − 1 Z _π

0 p E − V(η) dη − E, (sup, rot) ,

L ^(E, ^{c) =} ⁻

√ 2 T

p 1 − c ² Z _π

0 p V(η) − E dη − E, (sub, rot) .

(90)

Classical action (mechanics):

W (E, c) = √ 2

I

((c ² − 1)(E − V(η))) ^1/2 dη,

W (E, c) := sgn (c ² − 1) q

|c ² − 1|J(E),

J(E) :=

( J _lib (E), librations , J _rot (E), rotations , J _rot (E) := √

2 Z _P

0 q

sgn (c ² − 1)(E − V (η)) dη

J _lib (E) := 2

√ 2

Z _v _j q

sgn (c ² − 1)(E − V(η)) dη

(91)

Lemma

For each of the four cases under consideration (sub- or superluminal, libration or rotation) there hold

W _E = T , (1)

W _c = cW

c ² − 1 . (2)

Taking average of conservation of energy and momentum equations we can express the Whitham modulation system (*) as:

W _c T

t

+ cW _c

T − E

x

= 0, 1

T

t

+ c T

x = 0.

(**)

(92)

Lemma

Whitham’s system of equations (**) is equivalent to the system:

E c

t

+ A(E, c) E

c

x

= 0, (Wh)

A(E, c) = 1 N(E, c)

c(J(E)J ⁰⁰ (E)+J ⁰ (E) ² ) −J(E)J ⁰ (E) (c ² −1) ² J ⁰ (E)J ⁰⁰ (E) c(J(E)J ⁰⁰ (E)+J ⁰ (E) ² )

,

N(E, c) = J(E)J ⁰⁰ (E) + c ² J ⁰ (E) ² .

(93)

Lemma

Whitham system (Wh) is hyperbolic if and only if J ⁰⁰ (E) < 0.

Characteristic velocities:

c(J(E)J ⁰⁰ (E)+ J ⁰ (E) ² ) −s _± = ±|c ² −1| −J(E)J ⁰⁰ (E)J ⁰ (E) ² 1/2

.

(94)

Proof of Whitham’s modulational instability

Lemma

sgn J ⁰⁰ (E) = −γ _M . Proof:

T _E = W _EE = sgn (c ² − 1) q

|c ² − 1|J ⁰⁰ (E).

(95)

Corollary

The quasilinear Whitham system (Wh) is hyperbolic if and only if γ M = 1 . In this case we say that the underlying periodic traveling wave is modulationally stable (otherwise we say it is modulationally unstable).

Theorem (Proof of Whitham’s instability)

Under the non-degenerate condition T _E 6= 0 , if the periodic traveling wave is modulationaly unstable in the sense defined by Whitham then it is spectrally unstable.

(96)

Corollary

The quasilinear Whitham system (Wh) is hyperbolic if and only if γ M = 1 . In this case we say that the underlying periodic traveling wave is modulationally stable (otherwise we say it is modulationally unstable).

Theorem (Proof of Whitham’s instability)

Under the non-degenerate condition T _E 6= 0 , if the periodic

traveling wave is modulationaly unstable in the sense

defined by Whitham then it is spectrally unstable.

(97)

Corollary

Under the non-degenerate condition T _E 6= 0 , a necessary condition for the spectral stability of a periodic wave is that the modulational instabilty index is γ _M = 1 , or equivalently, that the Whitham modulation system is hyperbolic.

Finally we recover:

Theorem (Whitham, 1974)

• Both super- and subluminal rotational waves are modulationally stable,

• Both super- and subluminal librational waves are modulationally unstable (and whence, spectrally unstable).

(98)

Corollary

Under the non-degenerate condition T _E 6= 0 , a necessary condition for the spectral stability of a periodic wave is that the modulational instabilty index is γ _M = 1 , or equivalently, that the Whitham modulation system is hyperbolic.

Finally we recover:

Theorem (Whitham, 1974)

• Both super- and subluminal rotational waves are modulationally stable,

• Both super- and subluminal librational waves are

modulationally unstable (and whence, spectrally

unstable).

(99)

Interpretation: “Modulational” stability pertains to perturbations for which the wave parameters underlie small variations with respect to wavelength. (Equivalently, perturbations near the origin λ = 0 ).

Whitham’s is an instability theory .

(100)

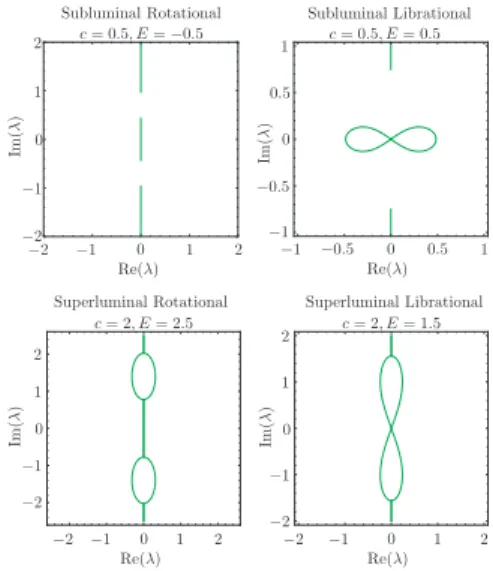

Figure : Numerical plots of the Floquet spectrum G(λ) = 0 _for

(101)

1 Introduction

2 Analysis of the monodromy map

3 Spectral (in)stability results

4 Multidimensional orbital stability

(102)

(In)stability in the rotational case

Theorem

Under assumptions we have:

(A) Superluminal rotational waves are spectrally unstable.

(B) Subluminal rotational waves are spectrally stable.

That is: if λ ∈ σ then λ is purely imaginary.

(103)

Part (A):

Define G : C → R ^by

G(λ) = log |µ ₊ (λ)| log |µ ₋ (λ)|.

G continuous in R ² ^and λ ∈ σ if and only if G(λ) = 0 . Fact:

if µ(λ) ∈ σM(λ) (Floquet mult. for (P) then

η(λ) = exp(−λcT/(c ² − 1)) ∈ σM _H (λ) (Floquet mult. for (H)). By Abel’s identity:

G(λ) =

Re cλT c ² − 1

2 − (log |η ₊ (λ)|) ²

=

Re cλT c ² − 1

2 − (log |η ₋ (λ)|) ² .

(104)

Thus, for λ ∈ i R ^, G ≤ 0 . Moreover, G(iβ) = 0 iff iβ ∈ σ ∩ i R = σ ^H ∩ i R ^{. Thus,}

Corollary

Suppose β ∈ R is such that iβ

c ² − 1 2

∈ / σ ^H . Then

G(iβ) < 0 .

(105)

Moreover, we can show:

Lemma

For a superluminal rotational wave, G(λ) > 0 for λ ∈ R ^, λ 1 , and there is a iβ _∗ in the spectral gap of σ _H , that is, G(iβ) < 0 .

By continuity, there must be an eigenvalue

λ = α _∗ t + iβ _∗ (1 − t) for some t ∈ (0,1) , where G(α _∗ ) > 0 , α ∗ large and real, such that G(λ) = 0 . Clearly, Re λ > 0 .

This shows (A).

(106)

Moreover, we can show:

Lemma

For a superluminal rotational wave, G(λ) > 0 for λ ∈ R ^, λ 1 , and there is a iβ _∗ in the spectral gap of σ _H , that is, G(iβ) < 0 .

By continuity, there must be an eigenvalue

λ = α _∗ t + iβ _∗ (1 − t) for some t ∈ (0,1) , where G(α _∗ ) > 0 , α ∗ large and real, such that G(λ) = 0 . Clearly, Re λ > 0 .

This shows (A).

(107)

Part (B): Spectral stability of subluminal rotations.

By energy estimates: define the Hamiltonian operator H = d ² /dz ² + V ⁰⁰ (f )/(c ² − 1) so that the spectral equation (P) is:

(c ² − 1)Hw(z) − 2cλw _z (z) + λ ² w(z) = 0

Lemma

The operator H is negative semidefinite in the case of a rotational wave. For librations, H is indefinite.

(108)

If λ ∈ σ , multiply eq. by w ^∗ and integrate by parts on a fundamental period [0, T] :

PDF On the spectral, modulational and orbital stability of periodic ... - UNAM

Instituto de Investigaciones en Matem´aticas Aplicadas y en Sistemas

On the spectral, modulational and

orbital stability of periodic wavetrains for the sine-Gordon equation

Ram´on G. Plaza

Institute of Applied Mathematics (IIMAS), National Autonomous University of Mexico (UNAM)

Collaborators:

• Christopher K. R. T. Jones (Univ. of North Carolina, Chapel Hill)

• Robert Marangell (Univ. of Sydney)

• Peter D. Miller (Univ. of Michigan)

• Jaime Angulo Pava (Univ. of Sao Paulo)

This research was partially supported by: DGAPA-UNAM,

project PAPIIT IN-104814.

1 Introduction

2 Analysis of the monodromy map

3 Spectral (in)stability results

4 Multidimensional orbital stability

The nonlinear Klein-Gordon equation

Nonlinear Klein-Gordon with periodic potential:

u tt − u xx + V 0 (u) = 0. (nKG) for (x, t) ∈ R × [0, +∞) , u scalar, V ∈ C 2 , periodic.

Sine-Gordon equation:

u tt − u xx + sin u = 0. (SG)

V (u) = 1 − cos u

The nonlinear Klein-Gordon equation

Nonlinear Klein-Gordon with periodic potential:

u tt − u xx + V 0 (u) = 0. (nKG) for (x, t) ∈ R × [0, +∞) , u scalar, V ∈ C 2 , periodic.

Sine-Gordon equation:

u tt − u xx + sin u = 0. (SG)

V (u) = 1 − cos u

Applications (sine-Gordon):

• Surfaces with negative Gaussian curvature (Eisenhart, 1909)

• Propagation of crystal dislocations (Frenkel and Kontorova, 1939)

• Elementary particles (Perring and Skyrme, 1962)

• Propagation of magnetic flux on a Josephson line (Scott, 1969)

• Dynamics of fermions in the Thirring model (Coleman, 1975)

• Oscillations of a rigid pendulum attached to a

stretched rubber band (Drazin, 1983)

Assumptions on the potential:

(a) V : R → R is of class C 2 in all its domain and it is periodic with fundamental period P .

(b) V has only non-degenerate critical points.

(c) V 0 (u) 4 (V(u)/V 0 (u) 2 ) 00 ≥ 0 for all u under consideration.

Assumption (c) implies monotonicity of the period map with respect to the energy.

Traveling waves

u(x, t) = f (x − ct) , z = x − ct , solution to the nonlinear pendulum equation:

(c 2 − 1)f zz + V 0 (f (z)) = 0,

Sine-Gordon case:

(c 2 − 1)f zz + sin(f (z)) = 0,

c ∈ R (wave speed), c 2 6= 1 .

Upon integration:

1

2 (c 2 − 1)f z 2 = E − V(f ), E = constant (energy). Under assumptions:

0 < E 0 = max V(u)

Sine-Gordon case: V(u) = 1 − cos u , E 0 = 2 ,

1

2 (c 2 − 1)f z 2 = E − 1 + cos f (z).

W.l.o.g.

(d) V has fundamental period P = 2π and min u∈ R

V(u) = 0, max

u∈ R

V(u) = 2.

Classification

First dichotomy (wave speed):

• Subluminal waves: c 2 < 1

• Superluminal waves: c 2 > 1 Second dichotomy (energy E ):

• Librational wavetrain: f (z + T ) = f (z) . Closed trajectory inside the separatrix in the phase portrait.

• Rotational wavetrain: f (z + T) = f (z) ± 2π . Open trajectory outside the separatrix in the phase plane.

Sign f z is fixed.

Classification

First dichotomy (wave speed):

• Subluminal waves: c 2 < 1

• Superluminal waves: c 2 > 1 Second dichotomy (energy E ):

• Librational wavetrain: f (z + T ) = f (z) . Closed trajectory inside the separatrix in the phase portrait.

• Rotational wavetrain: f (z + T) = f (z) ± 2π . Open trajectory outside the separatrix in the phase plane.

Sign f z is fixed.

Figure : Phase portrait sine-Gordon case: V (u) = 1 − cos u :

superluminal c 2 > 1 (left); subluminal c 2 < 1 (right).

Figure : Phase portrait for V(u) = 1 − (0.861)(cos u + 1 3 sin(2u)) : superluminal c 2 > 1 (left); subluminal c 2 < 1 (right).

Superluminal librational: c 2 > 1 , 0 < E < E 0 .

K (E) = {u ∈ R : (E − V(u))/(c 2 − 1) ≥ 0} = disjoint union of intervals in (0, π) . In (v 1 , v 2 ) , only one

non-degenerate zero of V 0 . Librational (closed) periodic orbit.

u _tt − u _xx + V ⁰ (u) = 0. (nKG) for (x, t) ∈ R × [0, +∞) , u scalar, V ∈ C ² , periodic.

u _tt − u _xx + sin u = 0. (SG)

u _tt − u _xx + V ⁰ (u) = 0. (nKG) for (x, t) ∈ R × [0, +∞) , u scalar, V ∈ C ² , periodic.

u _tt − u _xx + sin u = 0. (SG)

(a) V : R → R is of class C ² in all its domain and it is periodic with fundamental period P _.

(c) V ⁰ (u) ⁴ (V(u)/V ⁰ (u) ² ) ⁰⁰ ≥ 0 for all u _under consideration.

(c ² − 1)f _zz + V ⁰ (f (z)) = 0,

(c ² − 1)f _zz + sin(f (z)) = 0,

c ∈ R (wave speed), c ² 6= 1 .

2 (c ² − 1)f _z ² = E − V(f ), E = constant (energy). Under assumptions:

0 < E ₀ = max V(u)

Sine-Gordon case: V(u) = 1 − cos u , E ₀ = 2 ,

2 (c ² − 1)f _z ² = E − 1 + cos f (z).

• Subluminal waves: c ² < 1

• Superluminal waves: c ² > 1 Second dichotomy (energy E _):

Sign f _z _{is fixed.}

• Subluminal waves: c ² < 1

• Superluminal waves: c ² > 1 Second dichotomy (energy E _):

Sign f _z _{is fixed.}

superluminal c ² > 1 (left); subluminal c ² < 1 (right).

Figure : Phase portrait for V(u) = 1 − (0.861)(cos u + ¹ ₃ sin(2u)) _: superluminal c ² > 1 (left); subluminal c ² < 1 _(right).

Superluminal librational: c ² > 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (E − V(u))/(c ² − 1) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₁ , v ₂ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ c ² − 1

p E − V (f ), where f ∈ (v ₁ , v ₂ ) ⊂ K ^(E) ^.

c ² − 1 Z _v ₂

v ₁

(v ₁ , v ₂ ) = (−Arc cos(−E + 1), Arc cos(−E + 1))

Superluminal librational: c ² > 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (E − V(u))/(c ² − 1) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₁ , v ₂ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ c ² − 1

p E − V (f ), where f ∈ (v ₁ , v ₂ ) ⊂ K ^(E) ^.

c ² − 1 Z _v ₂

v ₁

Sine-Gordon: wave oscillates around f = 0 , in (v ₁ , v ₂ ) = (−Arc cos(−E + 1), Arc cos(−E + 1))

Subluminal librational: c ² < 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (V(u) − E)/(1 − c ² ) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₃ , v ₄ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ 1 − c ²

p V(f ) − E, where f ∈ (v ₃ , v ₄ ) ⊂ K ^(E) ^.

1 − c ² Z _v ₄

v ₃

(v ₃ , v ₄ ) = (−Arc cos(−E + 1), 2π − Arc cos(−E + 1))

Subluminal librational: c ² < 1 , 0 < E < E ₀ _.

K ^{(E) =} ^{u ^∈ R : (V(u) − E)/(1 − c ² ) ≥ 0} = disjoint union of intervals in (0, π) . In (v ₃ , v ₄ ) , only one

non-degenerate zero of V ⁰ . Librational (closed) periodic orbit.

f _z =

√ 1 − c ²

p V(f ) − E, where f ∈ (v ₃ , v ₄ ) ⊂ K ^(E) ^.

1 − c ² Z _v ₄

v ₃

(v ₃ , v ₄ ) = (−Arc cos(−E + 1), 2π − Arc cos(−E + 1))

Superluminal rotational: c ² > 1 , E > E ₀ _, E − V(f ) > 0 and K ^{(E) =} R . Rotation, f _z has fixed sign. Orbit outside the separatrix and f (z + T) = f (z) ± π for all z .

f _z ² = 2(E − V (f )) c ² − 1 > 0,

√ c ² − 1

√ 2 Z _π

Subluminal rotational: c ² < 1 , E < 0 , V(f ) − E ≥ 0 and

K ^{(E) =} R ^{with .} f _z has fixed sign. Orbit outside the separatrix and f (z + T ) = f (z) ± π for all z _.

√ 1 − c ²

Z _π dη

Superluminal rotational: c ² > 1 , E > E ₀ _, E − V(f ) > 0 and K ^{(E) =} R . Rotation, f _z has fixed sign. Orbit outside the separatrix and f (z + T) = f (z) ± π for all z .

f _z ² = 2(E − V (f )) c ² − 1 > 0,

√ c ² − 1

√ 2 Z _π

Subluminal rotational: c ² < 1 , E < 0 , V(f ) − E ≥ 0 and

K ^{(E) =} R ^{with .} f _z has fixed sign. Orbit outside the separatrix and f (z + T ) = f (z) ± π for all z _.
