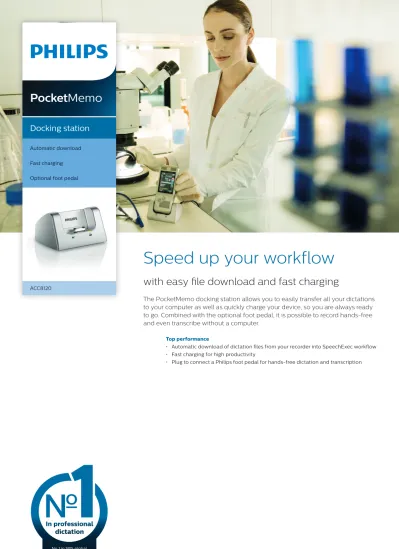

Speed up your workflow
with easy file download and fast charging
The PocketMemo docking station allows you to easily transfer all your dictations to your computer as well as quickly charge your device, so you are always ready to go. Combined with the optional foot pedal, it is possible to record hands-free and even transcribe without a computer.
Top performance
• Automatic download of dictation files from your recorder into SpeechExec workflow
• Fast charging for high productivity
• Plug to connect a Philips foot pedal for hands-free dictation and transcription
No 1 in SPS global customer satisfaction
survey 09/2015.
PocketMemo
Docking station
Automatic download Fast charging Optional foot pedal
ACC8120
Connectivity Docking port
Foot pedal port: (3.5 mm) USB: micro USB 2.0 USB: micro USB 5V DC
Convenience
Green LED: indicates that the record's batteries are recharging
Yellow LED: indicates that files are being downloaded from the recorder
Operation conditions
Temperature: 5 °–45 °C/41 °–113 °F Humidity: 10 %–90 %, noncondensing
Power
Power supply: 5 V DC/1800 mA Power consumption: 800 mA max.
Compatibility
Philips PocketMemo digital dictation recorder DPM6000, DPM7000 and DPM8000 series Philips foot pedal LFH2210
Package contents Docking station Power adapter USB cable User manual
Green specifications
Compliant to 2011/65/EU (RoHS) Lead-free soldered product
Specifications
Product dimensions (W × D × H):
80 × 77 × 45 mm/3.1 × 3.0 × 1.8 inches Weight: 196 g/6.9 oz.
Specifications
PocketMemo docking station
Highlights
Easy file transfer
Just dock your PocketMemo dictation recorder into the docking station and enjoy the easiest way to transfer your dictation files to the computer in seconds.
Fast charging
Charge the batteries of the PocketMemo dictation recorder to keep it always ready for use. Supporting fast recharging, the docking station recharges the batteries in only three hours.
Optional foot pedal
The docking station is prepared to work with a Philips foot pedal (optional LFH2210). This way you can enjoy hands-free recording and transcription via the docking station, without being connected to a computer.
ACC8120
Issue date 2016-12-12 Version 1.0
www.philips.com/dictation
© 2016 Speech Processing Solutions GmbH.
All rights reserved.
Specifications are subject to change without notice.
Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. and are used by Speech Processing Solutions GmbH under license from Koninklijke Philips N.V. All trademarks are the property of their respective owners.
