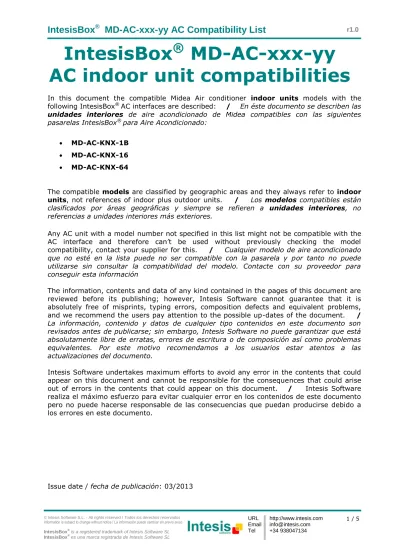

IntesisBox ® MD-AC-xxx-yy AC indoor unit compatibilities
In this document the compatible Midea Air conditioner indoor units models with the following IntesisBox® AC interfaces are described: / En éste documento se describen las unidades interiores de aire acondicionado de Midea compatibles con las siguientes pasarelas IntesisBox® para Aire Acondicionado:
MD-AC-KNX-1B
MD-AC-KNX-16
MD-AC-KNX-64
The compatible models are classified by geographic areas and they always refer to indoor units, not references of indoor plus outdoor units. / Los modelos compatibles están clasificados por áreas geográficas y siempre se refieren a unidades interiores, no referencias a unidades interiores más exteriores.
Any AC unit with a model number not specified in this list might not be compatible with the AC interface and therefore can’t be used without previously checking the model compatibility, contact your supplier for this. / Cualquier modelo de aire acondicionado que no esté en la lista puede no ser compatible con la pasarela y por tanto no puede utilizarse sin consultar la compatibilidad del modelo. Contacte con su proveedor para conseguir esta información
The information, contents and data of any kind contained in the pages of this document are reviewed before its publishing; however, Intesis Software cannot guarantee that it is absolutely free of misprints, typing errors, composition defects and equivalent problems, and we recommend the users pay attention to the possible up-dates of the document. / La información, contenido y datos de cualquier tipo contenidos en este documento son revisados antes de publicarse; sin embargo, Intesis Software no puede garantizar que está absolutamente libre de erratas, errores de escritura o de composición así como problemas equivalentes. Por este motivo recomendamos a los usuarios estar atentos a las actualizaciones del documento.
Intesis Software undertakes maximum efforts to avoid any error in the contents that could appear on this document and cannot be responsible for the consequences that could arise out of errors in the contents that could appear on this document. / Intesis Software realiza el máximo esfuerzo para evitar cualquier error en los contenidos de este documento pero no puede hacerse responsable de las consecuencias que puedan producirse debido a los errores en este documento.
Issue date / fecha de publicación: 03/2013
1. Compatible Indoor units / Unidades interiores compatibles
All units including the XYE connector and compatible with the MD-CCM03 remote controller are compatible with our solution. / Todas las unidades que incluyan el conector XYE y sean compatibles con el control centralizado MD-CCM03 son compatibles con nuestros productos.
INDOOR UNIT Type TIPO DE UNIDAD INTERIOR
Reference Referencia
Cassete
One way cassette
MDV-D28Q1/N1-C MDV-D36Q1/N1-C MDV-D45Q1/N1-C MDV-D56Q1/N1-C
Two way cassette
MDV-D22Q2/N1 MDV-D28Q2/N1 MDV-D36Q2/N1 MDV-D45Q2/N1 MDV-D56Q2/N1 MDV-D71Q2/N1
Compact four way cassette
MDV-D22Q4/N1-A3 MDV-D28Q4/N1-A3 MDV-D36Q4/N1-A3 MDV-D45Q4/N1-A3
Four way cassette
MDV-D28Q4/N1-D MDV-D36Q4/N1-D MDV-D45Q4/N1-D MDV-D56Q4/N1-D MDV-D71Q4/N1-D MDV-D80Q4/N1-D MDV-D90Q4/N1-D MDV-D100Q4/N1-D MDV-D112Q4/N1-D MDV-D140Q4/N1-D
Ductable unit Plastic T3
MDV-D18T3/N1-B MDV-D22T3/N1-B MDV-D28T3/N1-B
MDV-D36T3/N1-B MDV-D45T3/N1-B MDV-D56T3/N1-B
Slim A5 medium static duct
MDV-D22T2/N1-DA5 MDV-D28T2/N1-DA5 MDV-D36T2/N1-DA5 MDV-D71T2/N1-CA5
A5 medium static duct
MDV-D22T2/N1-BA5 MDV-D28T2/N1-BA5 MDV-D36T2/N1-BA5 MDV-D45T2/N1-BA5 MDV-D56T2/N1-BA5 MDV-D71T2/N1-BA5 MDV-D80T2/N1-BA5 MDV-D90T2/N1-BA5 MDV-D112T2/N1-BA5 MDV-D140T2/N1-BA5
High static duct
MDV-D200T1/N1-B MDV-D250T1/N1-B MDV-D280T1/N1-B MDV-D71T1/N1-B MDV-D80T1/N1-B MDV-D90T1/N1-B MDV-D112T1/N1-B MDV-D140T1/N1-B MDV-D160T1/N1-B MDV-D400T1/N1 MDV-D450T1/N1 MDV-D560T1/N1
Ceiling floor Ceiling floor
MDV-D36DL/N1-C MDV-D45DL/N1-C MDV-D56DL/N1-C MDV-D71DL/N1-C MDV-D80DL/N1-C
MDV-D90DL/N1-C MDV-D112DL/N1-C MDV-D140DL/N1-C MDVD160DL/N1-C
Floor stand type
Exposed type floor standing with side air return
MDV-D22Z/N1-F4 MDV-D28Z/N1-F4 MDV-D36Z/N1-F4 MDV-D45Z/N1-F4 MDV-D56Z/N1-F4 MDV-D71Z/N1-F4 MDV-D80Z/N1-F4
Exposed type floor standing with bottom air return
MDV-D22Z/N1-F5 MDV-D28Z/N1-F5 MDV-D36Z/N1-F5 MDV-D45Z/N1-F5 MDV-D56Z/N1-F5 MDV-D71Z/N1-F5 MDV-D80Z/N1-F5
Concealed type floor standing
MDV-D22Z/N1-F3B MDV-D28Z/N1-F3B MDV-D36Z/N1-F3B MDV-D45Z/N1-F3B MDV-D56Z/N1-F3B MDV-D71Z/N1-F3B MDV-D80Z/N1-F3B
Wall-mounted unit
R3 series wall-mounted
MDV-D71G-R3/N1Y MDV-D80G-R3/N1Y MDV-D90G-R3/N1Y
C series wall-mounted
MDV-D22G/DN1YB MDV-D28G/DN1YB MDV-D36G/DN1YB MDV-D45G/DN1YB MDV-D56G/DN1YB MDV-D22G/N1YB
MDV-D28G/N1YB MDV-D36G/N1YB MDV-D45G/N1YB MDV-D56G/N1YB
S series wall-mounted
MDV-D22G/N1-S MDV-D28G/N1-S MDV-D36G/N1-S MDV-D45G/N1-S MDV-D56G/N1-S MDV-D22G/DN1-S MDV-D28G/DN1-S MDV-D36G/DN1-S MDV-D45G/DN1-S MDV-D56G/DN1-S
Console Console
MDV-D22Z/DN1-B MDV-D28Z/DN1-B MDV-D36Z/DN1-B MDV-D45Z/DN1-B
Fresh air unit Fresh air unit
MDV-D125T1/N1-FA MDV-D140T1/N1-FA MDV-D200T1/N1-FA MDV-D250T1/N1-FA MDV-D280T1/N1-FA
The models are referred to indoor units, not references of indoor plus outdoor units. / Los modelos se refieren a unidades interiores, no referencias a unidades interiores más exteriores.
Any AC unit with a model number not specified in this list might not be compatible with the AC interface and therefore can’t be used without previously checking the model compatibility, contact your supplier for this. / Cualquier modelo de aire acondicionado que no esté en la lista puede no ser compatible con la pasarela y por tanto no puede utilizarse sin consultar la compatibilidad del modelo. Contacte con su proveedor para conseguir esta información.
